Adaptive Morley element algorithms for the biharmonic eigenvalue problem

Journal of Inequalities and Applications20182018:55

https://doi.org/10.1186/s13660-018-1643-9

  • Received: 8 December 2017
  • Accepted: 20 February 2018
  • Published:

Abstract

This paper is devoted to the adaptive Morley element algorithms for a biharmonic eigenvalue problem in \(\mathbb{R}^{n}\) (\(n\geq2\)). We combine the Morley element method with the shifted-inverse iteration including Rayleigh quotient iteration and the inverse iteration with fixed shift to propose multigrid discretization schemes in an adaptive fashion. We establish an inequality on Rayleigh quotient and use it to prove the efficiency of the adaptive algorithms. Numerical experiments show that these algorithms are efficient and can get the optimal convergence rate.

Keywords

  • Biharmonic eigenvalues
  • Morley elements
  • Adaptive algorithms
  • An inequality on Rayleigh quotient

MSC

  • 65N25
  • 65N30
  • 65N15

1 Introduction

Biharmonic equation/eigenvalue problem plays an important role in elastic mechanics. In 1968, Morley designed a famous non-conforming element called the Morley element [1] to solve biharmonic equation (plate bending problem). The Morley element was extended to arbitrarily dimensions by Wang and Xu [2] in 2006. For biharmonic equation, the a priori/a posteriori error estimate was studied in [36] and the convergence and optimality of the adaptive Morley element method was proved in [7, 8]. The Morley element has been employed to solve the biharmonic eigenvalue problem, including the vibration of a plate; and [9] studied its a priori error estimate. [10, 11] studied a posteriori error estimate and the adaptive method, [12] adopted a new method dispensing with any additional regularity assumption to study the error estimates and adaptive algorithms. This paper further studies the adaptive Morley element method and has the following features:
  1. 1.

    The adaptive finite element methods, which were first proposed by Babuska and Rheinboldt [13], have gained an extensive attention in academia. More and more researchers entered this field and obtained many good results, most of which have been systemically summarized in [5, 1416]. And [10, 12] have employed the adaptive Morley element algorithms for the biharmonic eigenvalue problem based on solving directly the original eigenvalue problem \(a(u,v)=\lambda b(u,v)\) in each iteration. In this paper, we establish the adaptive Morley element algorithms based on the shifted-inverse iteration including Rayleigh quotient iteration and the inverse iteration with fixed shift to solve the biharmonic eigenvalue problem. The shifted-inverse iteration method based on the multigrid discretizations has been studied in-depth (see [17] and the references therein), but they did not involve the Morley element. With our method, the solution of an original eigenvalue problem is reduced to the solution of an eigenvalue problem on a much coarser grid and the solution of a series of linear algebraic equations on finer and finer grids. Therefore, our method is more efficient than the method in [10, 12].


  2. 2.

    For fourth order equations in \(\mathbb{R}^{3}\), it is difficult to employ a conforming element. For instance, Zenicek constructed a conforming tetrahedral finite element with 9 degree of polynomials and 220 nodal parameters [5], while the Morley tetrahedral element [2] has only 10 nodal parameters. Based on [4], we comply with the adaptive Morley element computation for the biharmonic eigenvalue problem in \(\mathbb{R}^{3}\). Numerical results indicate that the adaptive algorithms are very efficient.


  3. 3.

    A family of good adaptive meshes should satisfy \(h=O(h_{\min}^{\alpha})\), where h is the mesh size, \(h_{\min}\) is the diameter of the smallest element, and α is the regularity index of the biharmonic equation over the domain with reentrant corner (see [18]). However, we find through the numerical computation that \(\frac{h}{h_{\min}^{\alpha}}\) will become bigger and bigger when the iteration increases for the standard adaptive algorithm. Thus, referring to [19], we combine the standard local refined adaptive algorithm with uniformly refined algorithm to give new algorithms.



2 Preliminary

Consider the following biharmonic eigenvalue problem:
$$ \begin{aligned} &\Delta^{2}u=\lambda u,\quad \mbox{in } \Omega, \\ &\frac{\partial u}{\partial\gamma}=0,\quad u=0,\mbox{ on }\partial\Omega, \end{aligned} $$
(2.1)
where \(\Omega\in \mathbb{R}^{n}\) is a polyhedral domain with boundary Ω, \(\frac{\partial u}{\partial\gamma}\) is the outward normal derivative on Ω.

Let \(H^{s}(\Omega)\) denote a usual Sobolev space with norm \(\Vert \cdot \Vert _{s,\Omega}\) (\(\Vert \cdot \Vert _{s}\)), \(H_{0}^{2}(\Omega)=\{v\in H^{2}(\Omega): v|_{\partial\Omega}=\frac{\partial v}{\partial \gamma}|_{\partial\Omega}=0\}\) with norm \(\Vert \cdot \Vert _{2}\) and semi-norm \(|\cdot|_{2}\).

The weak form of (2.1) is to seek \((\lambda,u)\in \mathbb{R}\times H_{0}^{2}(\Omega)\) with \(u\neq 0\) such that
$$ a(u,v)=\lambda b(u,v),\quad \forall v\in H_{0}^{2}( \Omega), $$
(2.2)
where
$$\begin{aligned} a(u,v)= \int_{\Omega}\sum_{1\leq i,j\leq n} \frac{\partial^{2} u}{\partial x_{i}\partial x_{j}}\frac{\partial^{2} v}{\partial x_{i}\partial x_{j}}\,dx,\qquad b(u,v)= \int_{\Omega}uv \,dx,\qquad \Vert u \Vert _{b}= \sqrt{b(u,u)}. \end{aligned}$$
In the case of \(n=2\), (2.2) is the weak form of clamped plate vibration.

It is easy to verify that \(a(u,v)\) is a symmetric, continuous, and \(H_{0}^{2}(\Omega)\)-elliptic bilinear form. Let \(\Vert u \Vert _{a}=\sqrt{a(u,u)}\), then the norms \(\Vert u \Vert _{a}\), \(\Vert u \Vert _{2}\), and \(|u|_{2}\) are equivalent.

We assume that \(\pi_{h}=\{\kappa\}\) is a regular simplex partition of Ω and satisfies \(\overline{\Omega}=\bigcup\overline{\kappa}\) (see [20]). Let \(h_{\kappa}\) be the diameter of κ, and \(h=\max\{h_{\kappa}: \kappa\in \pi_{h}\}\) be the mesh size of \(\pi_{h}\) (\(h<1\)), \(h_{\min}=\min\{h_{\kappa}: \kappa\in \pi_{h}\}\). Let \(\varepsilon_{h}=\{F\}\) denote the set of faces ((\(n-1\))-simplexes) of \(\pi_{h}\), and let \(\varepsilon_{h}'=\{l\}\) denote the set of faces (\(n-2\))-simplexes of \(\pi_{h}\). When \(n=2\), \(l=z\) is a vertex of κ, and \(\frac{1}{\operatorname{meas}(l)}\int_{l}v=v(z)\). Let \(\pi_{h}(\kappa)\) denote the set of all elements sharing a common face with the element κ. Let \(\kappa_{+}\) and \(\kappa_{-}\) be any two n-simplexes with a face F in common such that the unit outward normal to \(\kappa_{-}\) at F corresponds to \(\gamma_{F}\). We denote the jump of v across the face F by
$$[v]=(v|_{\kappa_{+}}-v|_{\kappa_{-}})|_{F}. $$
And the jump on boundary faces is simply given by the trace of the function on each face.
In the papers [2, 5], the Morley element space is defined by
$$\begin{aligned} S^{h} =& \biggl\{ v\in L_{2}(\Omega):v\mid_{\kappa} \in P_{2}(\kappa),\forall \kappa\in \pi_{h}, \int_{F}[\nabla v\cdot \gamma_{F}]=0\ \forall F\in \varepsilon_{h},\\ & \frac{1}{\operatorname{meas}(l)} \int_{l}[v]=0\ \forall l\in \varepsilon_{h}' \biggr\} , \end{aligned}$$
where \(P_{2}(\kappa)\) denotes the space of polynomials of degree less than or equal to 2 on κ.
Define the interpolation operator \(I_{h}:H_{0}^{2}(\Omega)\rightarrow S^{h}\), which satisfies
$$\begin{aligned} \int_{F}\frac{\partial I_{h} v}{\partial\gamma}= \int_{F}\frac{\partial v}{\partial\gamma}\quad \forall F\in \varepsilon_{h},\qquad \frac{1}{l} \int_{l} I_{h}v=\frac{1}{l} \int_{l} v\quad \forall l\in\varepsilon_{h}'. \end{aligned}$$
The Morley element space \(S^{h}\subset L_{2}(\Omega)\), \(S^{h}\not\subset H^{1}(\Omega)\). Let
$$\begin{aligned} \Vert v \Vert _{m,h}^{2}=\sum _{\kappa\in \pi_{h}} \Vert v \Vert _{m,\kappa}^{2},\qquad \vert v \vert _{m,h}^{2}=\sum _{\kappa\in \pi_{h}} \vert v \vert _{m,\kappa}^{2},\quad m=0,1,2. \end{aligned}$$
From Lemma 8 in [2], we know that \(|\cdot|_{2,h}\) is equivalent to \(\Vert \cdot \Vert _{2,h}\), \(\Vert \cdot \Vert _{2,h}\) is a norm in \(S^{h}\), and \(a_{h}(\cdot,\cdot)\) is a uniformly \(S^{h}\)-elliptic bilinear form, and \(\Vert \cdot \Vert _{h}=a_{h}(\cdot,\cdot)^{\frac{1}{2}}\) is a norm in \(S^{h}\). And the following equality holds for any \(w\in H_{0}^{2}(\Omega)\):
$$\lim_{h\rightarrow0}\inf_{v\in S^{h}} \Vert w-v \Vert _{h}=0. $$
The discrete form of (2.2) reads: Find \((\lambda_{h},u_{h})\in \mathbb{R}\times S^{h}\) with \(u_{h}\neq0\) such that
$$\begin{aligned} a_{h}(u_{h},v)=\lambda_{h} b(u_{h},v),\quad \forall v\in S^{h}, \end{aligned}$$
(2.3)
where
$$\begin{aligned} a_{h}(u_{h},v)= \sum_{\kappa\in\pi_{h}} \int_{\kappa} \sum_{i,j=1}^{n} \frac{\partial^{2}u_{h}}{\partial x_{i}\partial x_{j}}\frac{\partial^{2}v}{\partial x_{i}\partial x_{j}}\,dx. \end{aligned}$$
The corresponding boundary value problem of (2.1) is
$$\begin{aligned} &\Delta^{2}w=f,\quad \mbox{in }\Omega, \\ &\frac{\partial w}{\partial\gamma}=0,\quad w=0,\mbox{ on }\partial\Omega. \end{aligned}$$
(2.4)
From [18], we know that
$$\Vert w \Vert _{2+\alpha}\lesssim \Vert f \Vert _{0}, $$
where \(\alpha\in(\frac{1}{2},1)\) for the domain with reentrant corner, and \(\alpha=1\) for the convex domain in \(\mathbb{R}^{2}\).
The weak form of (2.4) and its discrete form are to find \(w\in H_{0}^{2}(\Omega)\) such that
$$a(w,v)=b(f,v),\quad \forall v\in H_{0}^{2}(\Omega), $$
and to find \(w_{h}\in S^{h}\) such that
$$a_{h}(w_{h},v)=b(f,v),\quad \forall v\in S^{h}. $$
Define the solution operators \(T:L_{2}({\Omega})\to H_{0}^{2}(\Omega)\subset L_{2}({\Omega})\) and \(T_{h}: L_{2}({\Omega})\to S^{h}\) as follows:
$$ \begin{aligned} &a(Tf,v)=b(f,v),\quad \forall v \in H_{0}^{2}( \Omega), \\ &a_{h}(T_{h}f,v)=b(f,v),\quad \forall v \in S^{h}. \end{aligned} $$
(2.5)
Then \(T, T_{h}: L_{2}(\Omega) \to L_{2}(\Omega)\) are self-adjoint and compact.

It is well known that the eigenvalue problem (2.1) has countably many eigenvalues, which are real and positive diverging to +∞. Suppose that λ and \(\lambda_{h}\) are the kth eigenvalue of (2.2) and (2.3), respectively, the algebraic multiplicity of λ is equal to q, \(\lambda=\lambda_{k}=\lambda_{k+1}=\cdots=\lambda_{k+q-1}\). Let \(M(\lambda)\) be the space spanned by all eigenfunctions corresponding to λ and \(M_{h}(\lambda)\) be the direct sum of eigenspaces corresponding to all eigenvalues of (2.3) that converge to λ. Let \(\hat{M}(\lambda)=\{u:u\in M(\lambda), \Vert u \Vert _{h}=1\}\).

Now we introduce the following quantity:
$$ \delta_{h}(\lambda)= \bigl\Vert (T-T_{h})|_{M(\lambda_{k})} \bigr\Vert _{h}. $$
(2.6)
The saturation condition was analyzed in [2123], especially, it was analyzed in [22] for very general cases. According to this condition, we can make the following assumption:
$$ C_{1}h\leq \inf_{\forall v\in S^{h}} \Vert u-v \Vert _{h}\leq C_{2}\delta_{h}( \lambda_{k}),\quad \forall u\in M(\lambda_{k}), $$
(2.7)
where \(C_{1}\) and \(C_{2}\) are independent of mesh parameters.

Define \(S^{h}+H_{0}^{2}(\Omega)=\{v_{h}+v: v_{h}\in S^{h}, v\in H_{0}^{2}(\Omega)\}\).

Due to the generalized Poincare–Friedrichs inequality, Theorem 3 in [24] and \(a_{h}(u-I_{h}u,v)=0, \forall v\in S^{h}\) (see [5]), we deduce for any \(w\in S^{h}, u\in H_{0}^{2}(\Omega)\)
$$\begin{aligned} \Vert w-u \Vert _{0} \leq& \Vert w-I_{h}u \Vert _{0}+ \Vert u-I_{h}u \Vert _{0} \\ \leq& \frac{C_{3}}{3} \bigl( \Vert w-I_{h}u \Vert _{h}+h^{2} \Vert u-I_{h}u \Vert _{h} \bigr) \\ \leq& \frac{C_{3}}{3} \bigl( \Vert w-u \Vert _{h}+ \Vert u-I_{h}u \Vert _{h}+h^{2} \Vert u-I_{h}u \Vert _{h} \bigr) \leq C_{3} \Vert w-u \Vert _{h}. \end{aligned}$$
Therefore,
$$\begin{aligned} \Vert v \Vert _{0}\leq C_{3} \Vert v \Vert _{h},\quad \forall v\in S^{h}+H_{0}^{2}( \Omega), \end{aligned}$$
(2.8)
where \(C_{3}\) is a positive constant independent of mesh parameters.
From (2.5) we have the following estimate using the Cauchy–Schwarz inequality: For any \(g\in L^{2}(\Omega), T_{h} g\in S^{h}\) satisfying
$$\Vert T_{h} g \Vert _{h}\leq C_{3} \Vert g \Vert _{0}, $$
define the consistency term
$$E_{h}(w,v_{h})=a_{h}(w,v)-b(f,v),\quad \forall v\in S^{h}+H_{0}^{2}(\Omega). $$
Suppose \(w\in H^{2+r}(\Omega)\), \(r\in (\frac{1}{2},1 ]\), then we have the following estimate:
$$ \bigl\vert E_{h}(w,v) \bigr\vert \leq C_{4} h^{r} \bigl( \Vert w \Vert _{2+r}+h^{2-r} \Vert f \Vert _{0} \bigr) \Vert v \Vert _{h}, \quad \forall v\in S^{h}+H_{0}^{2}(\Omega). $$
(2.9)

Using the trace inequality [5] proves the above estimate under the case \(r=1\). Using the arguments in [5], we can obtain the above estimate under the case \(r=(\frac{1}{2},1]\) (also see [11]).

We can derive the following Lemma 2.1 from Lemma 2.3 in [25].

Lemma 2.1

Let λ and \(\lambda_{h}\) be the \(kth\) eigenvalue of (2.2) and (2.3), respectively. Then for any eigenfunction \(u_{h}\) corresponding to \(\lambda_{h}\) with \(\Vert u_{h} \Vert _{h}=1\), there exist \(u\in M(\lambda)\) and \(h_{0}>0\) such that if \(h\leq h_{0}\),
$$ \Vert u-u_{h} \Vert _{h}\leq C_{5}\delta_{h}(\lambda), $$
(2.10)
for any \(u\in\widehat{M}(\lambda)\), there exists \(u_{h}\in M_{h}(\lambda)\) such that if \(h\leq h_{0}\),
$$ \Vert u-u_{h} \Vert _{h}\leq C_{6}\delta_{h}(\lambda), $$
(2.11)
where constants \(C_{5}\) and \(C_{6}\) are positive and only depend on λ.

The following inequality on Rayleigh quotient plays an important role.

Theorem 2.1

Let \((\lambda,u)\) be an eigenpair of (2.2), \(v\in S^{h}\) with \(\Vert v \Vert _{h}=1\) and \(\Vert v-u \Vert _{h}\leq (4 C_{3}\sqrt{\lambda})^{-1}\), then the Rayleigh quotient \(R(v)=\frac{a_{h}(v,v)}{ \Vert v \Vert ^{2}_{0}}\) satisfies
$$ \bigl\vert R(v)-\lambda \bigr\vert \leq C_{7} \Vert v-u \Vert _{h}^{1+r}, $$
(2.12)
where \(C_{7}=4\lambda (1+\lambda C_{3}^{2} )(4C_{3}\sqrt{\lambda})^{r-1}+\frac{8C_{4}}{C_{1}^{r}}\lambda ( \Vert u \Vert _{2+r}+h^{2-r}\lambda \Vert u \Vert _{0} )\).

Proof

Since \(u\in M(\lambda), v\in S^{h}, \Vert v \Vert _{h}=1\) and \(\Vert v-u \Vert _{h}\leq (4 C_{3}\sqrt{\lambda})^{-1}\), by Lemma 3.1 in [26] we have
$$\begin{aligned} & \biggl\Vert v-\frac{u}{ \Vert u \Vert _{h}} \biggr\Vert _{h}\leq 2 \Vert v-u \Vert _{h}\leq (2 C_{3}\sqrt{\lambda})^{-1}, \\ & \biggl\Vert v-\frac{u}{ \Vert u \Vert _{h}} \biggr\Vert _{0}\leq C_{3} \biggl\Vert v-\frac{u}{ \Vert u \Vert _{h}} \biggr\Vert _{h} \leq \frac{1}{2\sqrt{\lambda}}, \end{aligned}$$
which together with \(\Vert \frac{u}{ \Vert u \Vert _{h}} \Vert _{0}=\frac{1}{\sqrt{\lambda}}\) yields
$$\Vert v \Vert _{0}\geq \biggl\Vert \frac{u}{ \Vert u \Vert _{h}} \biggr\Vert _{0}- \biggl\Vert v-\frac{u}{ \Vert u \Vert _{h}} \biggr\Vert _{0}\geq\frac{1}{2\sqrt{\lambda}}. $$
By Lemma 2.5 in [26], we get
$$\frac{a_{h}(v,v)}{ \Vert v \Vert ^{2}_{0}}-\lambda=\frac{ \Vert v-u \Vert _{h}^{2}}{ \Vert v \Vert _{0}^{2}}-\lambda\frac{ \Vert v-u \Vert _{0}^{2}}{ \Vert v \Vert _{0}^{2}}+2 \frac{E_{h}(u,v)}{ \Vert v \Vert _{0}^{2}}. $$
Hence, from inequalities (2.7)–(2.9) we deduce
$$\begin{aligned} \bigl\vert R(v)-\lambda \bigr\vert &\leq4\lambda \Vert v-u \Vert _{h}^{2}+4\lambda^{2} \Vert v-u \Vert _{0}^{2}+8\lambda E_{h}(u,v) \\ &\leq4\lambda \Vert v-u \Vert _{h}^{2}+4C_{3}^{2} \lambda^{2} \Vert v-u \Vert _{h}^{2}+8\lambda E_{h}(u,v-u) \\ &\leq4\lambda \bigl(1+\lambda C_{3}^{2} \bigr) \Vert v-u \Vert _{h}^{2}+8C_{4}h^{r}\lambda \bigl( \Vert u \Vert _{2+r}+h^{2-r}\lambda \Vert u \Vert _{0} \bigr) \Vert v-u \Vert _{h} \\ &\leq4\lambda \bigl(1+\lambda C_{3}^{2} \bigr) \Vert v-u \Vert _{h}^{2}+8C_{4}\lambda \bigl( \Vert u \Vert _{2+r}+h^{2-r}\lambda \Vert u \Vert _{0} \bigr) \Vert v-u \Vert _{h}^{1+r} \\ &\leq \biggl(4\lambda \bigl(1+\lambda C_{3}^{2} \bigr) \Vert v-u \Vert _{h}^{1-r}+\frac{8C_{4}}{C_{1}^{r}}\lambda \bigl( \Vert u \Vert _{2+r}+h^{2-r}\lambda \Vert u \Vert _{0} \bigr) \biggr) \Vert v-u \Vert _{h}^{1+r} \\ &\leq \biggl(4\lambda \bigl(1+\lambda C_{3}^{2} \bigr) (4C_{3}\sqrt{\lambda})^{r-1}+\frac{8C_{4}}{C_{1}^{r}}\lambda \bigl( \Vert u \Vert _{2+r}+h^{2-r}\lambda \Vert u \Vert _{0} \bigr) \biggr) \Vert v-u \Vert _{h}^{1+r} \\ &\leq C_{7} \Vert v-u \Vert _{h}^{1+r}. \end{aligned}$$
We get the results that we need. □
(2.3) implies \(\lambda_{h}=R(u_{h})\), and from (2.7), (2.10), and (3.22) in [11], we deduce
$$ \bigl\vert R(u_{h})-\lambda \bigr\vert \leq C_{7} \Vert u_{h}-u \Vert _{h}^{2} \leq C_{5}^{2}C_{7}\delta_{h}^{2}( \lambda). $$
(2.13)

3 The shifted-inverse iteration based on multigrid discretization

Let \(\{S^{h_{i}}\}_{0}^{\infty}\) be a family Morley element spaces, \(h_{0}=H\). Refer to the references [17], we present the following calculation schemes.

Scheme 1

(Rayleigh quotient iteration based on multigrid discretizations)

Given the iteration times l.

Step 1. Solve (2.3) on \(S^{H}\): Find \((\lambda_{H},u_{H})\in \mathbb{R}\times S^{H}\) such that \(\Vert u_{H} \Vert _{H}=1\) and
$$a_{H}(u_{H},v)=\lambda_{H}b(u_{H},v), \quad \forall v\in S^{H}. $$

Step 2. \(u^{h_{0}}\Leftarrow u_{H}, \lambda^{h_{0}}\Leftarrow \lambda_{H}, i\Leftarrow 1\).

Step 3. Solve a linear system on \(S^{h_{i}}\): Find \(u'\in S^{h_{i}}\) such that
$$a_{h} \bigl(u',v \bigr)-\lambda^{h_{i-1}}b \bigl(u',v \bigr)=b \bigl(u^{h_{i-1}},v \bigr), \quad \forall v \in S^{h_{i}}, $$
set \(u^{h_{i}}=\frac{u'}{ \Vert u' \Vert _{h}}\).
Step 4. Compute the Rayleigh quotient:
$$\lambda^{h_{i}}=\frac{a_{h}(u^{h_{i}},u^{h_{i}})}{b(u^{h_{i}},u^{h_{i}})}. $$

Step 5. If \(i=l\), then output \((\lambda^{h_{l}},u^{h_{l}})\), stop; else, \(i\Leftarrow i+1\), and return to Step 3.

Scheme 2

(The inverse iteration with fixed shift based on multigrid discretizations)

Given the iteration times l and \(i_{0}\).

Steps 14. The same as Steps 1–4 in Scheme 1.

Step 5. If \(i>i_{0}\), then \(\lambda^{h_{i_{0}}}\Leftarrow \lambda^{h_{i-1}}\), \(i\Leftarrow i+1\), turn to Step 6; else, \(i\Leftarrow i+1\), and return to Step 3.

Step 6. Solve a linear system on \(S^{h_{i}}\): Find \(u'\in S ^{h_{i}}\) such that
$$a_{h} \bigl(u',v \bigr)-\lambda^{h_{i_{0}}}b \bigl(u',v \bigr)=b \bigl(u^{h_{i-1}},v \bigr),\quad \forall v \in S^{h_{i}}, $$
set \(u^{h_{i}}=\frac{u'}{ \Vert u' \Vert _{h}}\).
Step 7. Compute the Rayleigh quotient
$$\lambda^{h_{i}}=\frac{a_{h}(u^{h_{i}},u^{h_{i}})}{b(u^{h_{i}},u^{h_{i}})}. $$
Step 8. If \(i=l\), then output \((\lambda^{h_{l}},u^{h_{l}})\), stop; else, \(i\Leftarrow i+1\), and return to Step 6.

Strictly speaking, the above \(a_{h}(\cdot,\cdot)\) and \(\Vert \cdot \Vert _{h}\) should be written as \(a_{h_{i}}(\cdot,\cdot)\) and \(\Vert \cdot \Vert _{h_{i}}\). For the sake of simplicity, we write \(a_{h_{i}}(\cdot,\cdot)\) and \(\Vert \cdot \Vert _{h_{i}}\) as \(a_{h}(\cdot,\cdot)\) and \(\Vert \cdot \Vert _{h}\), in this paper.

4 The theoretical analysis

In this section, we will prove the convergence of \((\lambda^{h_{l}},u^{h_{l}})\) derived from Scheme 1/Scheme 2, and that the constants appearing in the error estimates are not only independent of mesh parameter but also iterative times l.

In the following discussion, let \((\lambda_{k},u_{k})\) and \((\lambda_{k,h},u_{k,h})\) denote the \(kth\) eigenpair of (2.2) and (2.3), respectively, and \(\mu_{k}=\frac{1}{\lambda_{k}},\mu_{k,h}=\frac{1}{\lambda_{k,h}},M(\mu_{k})=M(\lambda_{k}),M_{h}(\mu_{k})=M_{h}(\lambda_{k})\).

Denote \(\operatorname{dist}(u,S)=\inf_{v\in S} \Vert u-v \Vert _{h}\).

Our analysis is based on the following Lemma 4.1 (see Lemma 4.1 in [17]).

Lemma 4.1

Let \((\mu_{0},u_{0})\) be an approximation for \((\mu_{k},u_{k})\), where \(\mu_{0}\) is not an eigenvalue of \(T_{h}\), and \(u_{0}\in S^{h}\) with \(\Vert u_{0} \Vert _{h}=1\). Suppose that
(C1):

\(\operatorname{dist} (u_{0},M_{h}(\mu_{k}) )\leq \frac{1}{2}\);

(C2):

\(\vert \mu_{0}-\mu_{k} \vert \leq\frac{\rho}{4}, \vert \mu_{j,h}-\mu_{j} \vert \leq\frac{\rho}{4}\) for \(j=k-1,k,k+q\) (\(j\neq0\)), where \(\rho=\min_{\mu_{j}\neq\mu_{k}}|\mu_{j}-\mu_{k}|\) is the separation constant of the eigenvalue \(\mu_{k}\);

(C3):
\(u'\in S^{h},u_{k}^{h}\in S^{h}\) satisfy
$$(\mu_{0}-T_{h})u'=u_{0},\qquad u_{k}^{h}= \frac{u'}{ \Vert u \Vert _{h}}, $$
then the following inequality holds:
$$ \operatorname{dist} \bigl(u_{k}^{h},M_{h}( \mu_{k}) \bigr) \leq\frac{4}{\rho}\max_{k\leq j\leq k+q-1} \vert \mu_{0}-\mu_{j,h} \vert \operatorname{dist} \bigl(u_{0},M_{h}(\mu_{k}) \bigr). $$
(4.1)

Next, we will use the proof method in [17] to analyze the error of Schemes 12.

Let \(\delta_{0}\) be a positive constant satisfying the following inequalities:
$$\begin{aligned} &\max \{1,C_{5} \}\delta_{0}\leq\min \biggl\{ \frac{1}{2},\frac{1}{4C_{3}\sqrt{\lambda_{k}}} \biggr\} ; \end{aligned}$$
(4.2)
$$\begin{aligned} &4C_{3}C_{7}\delta_{0}^{2}+4C_{3}^{2} \lambda_{k}\delta_{0}+2\lambda_{k} \delta_{0}+C_{6}\delta_{0}\leq \frac{1}{2}; \end{aligned}$$
(4.3)
$$\begin{aligned} &\frac{\delta_{0}}{(\lambda_{k}-\delta_{0})\lambda_{k}}\leq\frac{\rho}{4},\quad \delta_{0}\leq \frac{\lambda_{k}}{2} ; \end{aligned}$$
(4.4)
$$\begin{aligned} &\frac{C_{5}^{2}C_{7}\delta_{0}^{2}}{\lambda_{j}(\lambda_{j}-C_{5}^{2}C_{7}\delta_{0}^{2})}\leq\frac{\rho}{4},\quad j=k-1,k,\ldots,k+q,j \neq0. \end{aligned}$$
(4.5)

Condition 4.1

There exists \(\bar{u}\in M(\lambda_{k})\) such that
$$\bigl\Vert u^{h_{l}}-\bar{u} \bigr\Vert _{h}\leq \delta_{0},\qquad \vert \lambda_{0}-\lambda_{k} \vert \leq \delta_{0},\qquad \delta_{h_{l}}( \lambda_{j})\leq\delta_{0}\quad (j=k-1,k,k+1,j\neq0), $$
where \(\lambda_{0}\) is an approximate eigenvalue of \(\lambda_{k}\), \(u^{h_{l}}\) is an approximate eigenfunction obtained by Scheme 1 or Scheme 2, and ρ is the separation constant of the eigenvalue \(\mu_{k}=\frac{1}{\lambda_{k}}\).

Condition 4.1 plays a key role in proving Theorem 4.1, by which we can prove Theorems 4.24.3. In the proof of Theorems 4.24.3, we can deduce that Condition 4.1 holds when the mesh size H is appropriately small. However, it is difficult to verify the condition whether the mesh size H is appropriately small or not. And it seems to be a necessary condition in many papers on the convergence and error estimates of the finite element method for eigenvalue problem. But numerical experiments in Sect. 6 present a satisfying practical performance for our algorithms, which shows that it is unnecessary for the mesh size H to be appropriately small, even though the theory is not complete.

The following Theorems 4.14.3 are the generalization of Theorems 4.2–4.4 in [17].

Theorem 4.1

Let \((\lambda_{k}^{h_{l}},u_{k}^{h_{l}})\) be an approximate eigenvalue obtained by Scheme 1 or Scheme 2. Assume that Lemma 2.1 and Condition 4.1 hold with \(\lambda_{0}=\lambda_{k}^{h_{l-1}}\) for Scheme 1 or \(\lambda_{0}=\lambda_{k}^{h_{i0}}\) for Scheme 2. Then there exists \(u_{k}\in M(\lambda_{k})\) such that
$$ \bigl\Vert u_{k}^{h_{l}}-u_{k} \bigr\Vert _{h} \leq\frac{C_{0}}{2} \bigl\{ \vert \lambda_{0}-\lambda_{k} \vert \bigl( \bigl\vert \lambda_{k}^{h_{l-1}}-\lambda_{k} \bigr\vert + \bigl\Vert u_{k}^{h_{l-1}}-\bar{u} \bigr\Vert _{h} \bigr)+\delta_{h_{l}}(\lambda_{k}) \bigr\} . $$
(4.6)

Proof

We use Lemma 4.1 to complete the proof. Select \(\mu_{0}=\frac{1}{\lambda_{0}}\) and \(u_{0}=\frac{\lambda_{k}^{h_{l-1}}T_{h_{l}}u_{k}^{h_{l-1}}}{ \Vert \lambda_{k}^{h_{l-1}}T_{h_{l}}u_{k}^{h_{l-1}} \Vert _{h}}\). Then, by (2.6) and (2.8), we have
$$\begin{aligned} & \bigl\Vert \lambda_{k}^{h_{l-1}}T_{h_{l}}u_{k}^{h_{l-1}}- \bar{u} \bigr\Vert _{h} \\ &\quad = \bigl\Vert \lambda_{k}^{h_{l-1}}T_{h_{l}}u_{k}^{h_{l-1}}- \lambda_{k}T_{h_{l}}u_{k}^{h_{l-1}}+ \lambda_{k}T_{h_{l}}u_{k}^{h_{l-1}}- \lambda_{k}T_{h_{l}}\bar{u}+\lambda_{k}T_{h_{l}} \bar{u}-\lambda_{k}T\bar{u} \bigr\Vert _{h} \\ &\quad \leq C_{3} \bigl\vert \lambda_{k}^{h_{l-1}}- \lambda_{k} \bigr\vert +C_{3}\lambda_{k} \bigl\Vert u_{k}^{h_{l-1}}-\bar{u} \bigr\Vert _{0}+ \lambda_{k} \bigl\Vert (T_{h_{l}}-T)|_{M(\lambda_{k})} \bigr\Vert _{h} \Vert \bar{u} \Vert _{h} \\ &\quad \leq C_{3} \bigl\vert \lambda_{k}^{h_{l-1}}- \lambda_{k} \bigr\vert +C_{3}^{2} \lambda_{k} \bigl\Vert u_{k}^{h_{l-1}}-\bar{u} \bigr\Vert _{h}+\lambda_{k}\delta_{h_{l}}( \lambda_{k}) \Vert \bar{u} \Vert _{h}. \end{aligned}$$
Noting that \(\Vert \bar{u} \Vert _{h}\geq \Vert u_{k}^{h_{l-1}} \Vert _{h}- \Vert \bar{u}-u_{k}^{h_{l-1}} \Vert _{h}\geq1-\delta_{0}\geq\frac{1}{2}\), thus, by Lemma 3.1 in [26], we have
$$\begin{aligned} \biggl\Vert u_{0}-\frac{\bar{u}}{ \Vert \bar{u} \Vert _{h}} \biggr\Vert _{h}&\leq\frac{2}{ \Vert \bar{u} \Vert _{h}} \bigl\Vert \lambda_{k}^{h_{l-1}}T_{h_{l}}u_{k}^{h_{l-1}}- \bar{u} \bigr\Vert _{h} \\ &\leq 4C_{3} \bigl\vert \lambda_{k}^{h_{l-1}}- \lambda_{k} \bigr\vert +4C_{3}^{2} \lambda_{k} \bigl\Vert u_{k}^{h_{l-1}}-\bar{u} \bigr\Vert _{h}+2\lambda_{k}\delta_{h_{l}}( \lambda_{k}). \end{aligned}$$
(4.7)
Using the triangle inequality, (4.7), (2.11), Condition 4.1 and (4.3), we get
$$\begin{aligned} &\operatorname{dist} \bigl(u_{0},M_{h_{l}}( \lambda_{k}) \bigr) \\ &\quad \leq \biggl\Vert u_{0}-\frac{\bar{u}}{ \Vert \bar{u} \Vert _{h}} \biggr\Vert _{h}+\operatorname{dist} \biggl(\frac{\bar{u}}{ \Vert \bar{u} \Vert _{h}},M_{h_{l}}( \lambda_{k}) \biggr) \\ &\quad \leq 4C_{3} \bigl\vert \lambda_{k}^{h_{l-1}}- \lambda_{k} \bigr\vert +4C_{3}^{2} \lambda_{k} \bigl\Vert u_{k}^{h_{l-1}}-\bar{u} \bigr\Vert _{h}+2\lambda_{k}\delta_{h_{l}}( \lambda_{k})+C_{6}\delta_{h_{l}}( \lambda_{k}) \\ &\quad \leq 4C_{3}C_{7}\delta_{0}^{2}+4C_{3}^{2} \lambda_{k}\delta_{0}+2\lambda_{k} \delta_{0}+C_{6}\delta_{0}\leq \frac{1}{2}. \end{aligned}$$
(4.8)
From Condition 4.1, (4.4), we have
$$\vert \mu_{0}-\mu_{k} \vert =\frac{ \vert \lambda_{0}-\lambda_{k} \vert }{\lambda_{0}\lambda_{k}}\leq \frac{\delta_{0}}{(\lambda_{k}-\delta_{0})\lambda_{k}}\leq\frac{\rho}{4}. $$
From (2.13), we deduce
$$\begin{aligned} \vert \mu_{j}-\mu_{j,h_{l}} \vert =& \biggl\vert \frac{\lambda_{j}-\lambda_{j,h_{l}}}{\lambda_{j}\lambda_{j,h_{l}}} \biggr\vert \leq \frac{C_{5}^{2}C_{7}\delta_{h}(\lambda)^{2}}{\lambda_{j}(\lambda_{j}-C_{5}^{2}C_{7}\delta_{h}(\lambda)^{2})} \leq \frac{C_{5}^{2}C_{7}\delta_{0}^{2}}{\lambda_{j}(\lambda_{j}-C_{5}^{2}C_{7}\delta_{0}^{2})}\leq\frac{\rho}{4}. \end{aligned}$$
Hence, the conditions in Lemma 4.1 are verified.
By (2.5) we see that Step 3 in Scheme 1 or Step 6 in Scheme 2 is equivalent to the following:
$$a_{h} \bigl(u',v \bigr)-\lambda_{0}a_{h} \bigl(T_{h_{l}}u',v \bigr)=a_{h} \bigl(T_{h_{l}}u_{k}^{h_{l-1}},v \bigr),\quad \forall v\in S^{h_{l}}, $$
\(u_{k}^{h_{l}}=\frac{u'}{ \Vert u' \Vert _{h}}\), i.e.,
$$\bigl(\lambda_{0}^{-1}-T_{h_{l}} \bigr)u'=\lambda_{0}^{-1}T_{h_{l}}u_{k}^{h_{l-1}}, \quad u_{k}^{h_{l}}=\frac{u'}{ \Vert u' \Vert _{h}}. $$
Then Step 3 in Scheme 1 or Step 6 in Scheme 2 is equivalent to
$$\bigl(\lambda_{0}^{-1}-T_{h_{l}} \bigr)u'=u_{0},\quad u_{k}^{h_{l}}= \frac{u'}{ \Vert u' \Vert _{h}}. $$
From (4.4), (2.13) and (4.5), we derive that
$$\begin{aligned} \vert \mu_{0}-\mu_{j,h_{l}} \vert =& \biggl\vert \frac{1}{\lambda_{0}}-\frac{1}{\lambda_{j,h_{l}}} \biggr\vert \leq \frac{4 \vert \lambda_{0}-\lambda_{j,h_{l}} \vert }{\lambda_{k}^{2}} \leq \frac{4}{\lambda_{k}^{2}} \vert \lambda_{0}-\lambda_{k} \vert +\frac{4}{\lambda_{k}^{2}} \vert \lambda_{k}-\lambda_{j,h_{l}} \vert \\ \leq& \frac{4}{\lambda_{k}^{2}}\delta_{0}+\frac{4C_{5}^{2}C_{7}}{\lambda_{k}^{2}} \delta_{0}^{2},\quad j=k,k+1,\ldots,k+q-1. \end{aligned}$$
(4.9)
Let the eigenvectors \(\{u_{j,h_{l}}\}_{k}^{k+q-1}\) be an orthogonal basis of \(M_{h_{l}}(\lambda_{k})\) with respect to \(a_{h}(\cdot,\cdot)\). Denote
$$u^{*}=\sum_{j=k}^{k+q-1}a_{h} \bigl(u_{k}^{h_{l}},u_{j,h_{l}} \bigr)u_{j,h_{l}}, $$
then
$$\bigl\Vert u_{k}^{h_{l}}-u^{*} \bigr\Vert _{h}= \operatorname{dist} \bigl(u_{k}^{h_{l}},M_{h_{l}}( \lambda_{k}) \bigr). $$
Hence, substituting (4.8) and (4.9) into (4.1), we obtain
$$\begin{aligned} \bigl\Vert u_{k}^{h_{l}}-u^{*} \bigr\Vert _{h} =&\operatorname{dist} \bigl(u_{k}^{h_{l}},M_{h_{l}}( \lambda_{k}) \bigr) \\ \leq &\frac{4}{\rho} \biggl(\frac{4}{\lambda_{k}^{2}} \vert \lambda_{0}-\lambda_{k} \vert +\frac{4C_{5}^{2}C_{7}}{\lambda_{k}^{2}} \delta_{h}^{2}(\lambda) \biggr) \\ &{}\times \bigl(4C_{3} \bigl\vert \lambda_{k}^{h_{l-1}}- \lambda_{k} \bigr\vert +4C_{3}^{2} \lambda_{k} \bigl\Vert u_{k}^{h_{l-1}}-\bar{u} \bigr\Vert _{h} \\ &{}+2\lambda_{k}\delta_{h_{l}}( \lambda_{k})+C_{6}\delta_{h_{l}}( \lambda_{k}) \bigr). \end{aligned}$$
(4.10)
By Lemma 2.1, there exist eigenvectors \(\{u_{j}^{0} \}_{k}^{k+q-1}\) making \(u_{j,h_{l}}\) and \(u_{j}^{0}\) satisfy (2.10). Let
$$u_{k}=\sum_{j=k}^{k+q-1}a_{h} \bigl(u_{k}^{h_{l}},u_{j,h_{l}} \bigr)u_{j}^{0}, $$
then \(u_{k}\in M(\lambda_{k})\).
Using (2.10), we deduce that
$$\begin{aligned} \bigl\Vert u_{k}-u^{*} \bigr\Vert _{h} =& \Biggl\Vert \sum_{j=k}^{k+q-1}a_{h} \bigl(u_{k}^{h_{l}},u_{j,h_{l}} \bigr) \bigl(u_{j}^{0}-u_{j,h_{l}} \bigr) \Biggr\Vert _{h} \\ \leq & \Biggl(\sum_{j=k}^{k+q-1} \bigl\Vert u_{j}^{0}-u_{j,h_{l}} \bigr\Vert _{h}^{2} \Biggr)^{\frac{1}{2}}\leq \bigl(C_{5}^{2} \delta_{h_{l}}(\lambda_{j})^{2} \bigr)^{\frac{1}{2}} \leq q^{\frac{1}{2}}C_{5}\delta_{h_{l}}(\lambda_{j}). \end{aligned}$$

Noting that the constants \(C_{3},C_{5},C_{6},C_{7}\) and ρ are independent of mesh parameters and iterative times l, and \(\Vert u_{k}^{h_{l-1}}-\bar{u} \Vert _{h}\leq\delta_{0}, \vert \lambda_{0}-\lambda_{k} \vert \leq\delta_{0}\) and \(\delta_{h_{l}}(\lambda_{k})\leq\delta_{0}\), by (4.10) and (4.2), we know that there exists a positive constant \(C_{0}\) that is independent of mesh parameters and l such that (4.6) holds. And we can have \(C_{0}\geq C_{5}\). □

We need the following two conditions (see Conditions 4.2 and 4.3 in [17]).

Condition 4.2

There exists \(t_{i}\in(1,2]\) (\(i=1,2,\ldots \)) such that \(\delta_{h_{i}}(\lambda_{k})=\delta_{h_{i-1}}^{t_{i}}(\lambda_{k})\) and \(\delta_{h_{i}}(\lambda_{k})\rightarrow 0\) (\(i\rightarrow\infty\)).

Condition 4.2 is easily satisfied; for example, for smooth eigenfunction, by using the uniform mesh, choose \(h_{0}=\frac{\sqrt{2}}{8}\), \(h_{1}=\frac{\sqrt{2}}{32}\), \(h_{2}=\frac{\sqrt{2}}{64}\), and \(h_{3}=\frac{\sqrt{2}}{128}\); then we have \(h_{i}=h^{t_{i}}_{i-1}\), i.e., \(\delta_{h_{i}}(\lambda_{k})=\delta^{t_{i}}_{h_{i}-1}(\lambda_{k})\), where \(t_{1}\approx1.80,t_{2}\approx1.22,t_{3}\approx1.18\). For a nonsmooth eigenfunction, the condition could be met when the local refinement is done near the singular point.

Condition 4.3

For any given number \(\beta_{0}\in(0,1)\), there exists \(0<\beta_{0}\leq\beta_{i}<1\) (\(i=1,2,\ldots\)) such that \(\delta_{h_{i}}(\lambda_{k})=\beta_{i}\delta_{h_{i-1}}(\lambda_{k}),\delta_{h_{i}}(\lambda_{k})\rightarrow 0\) (\(i\rightarrow \infty\)).

Theorem 4.2

Let \((\lambda_{k}^{h_{l}},u_{k}^{h_{l}})\) be an approximate eigenpair obtained by Scheme 1. Suppose that Condition 4.2 holds, then there exist \(u_{k}\in M(\lambda_{k})\) and \(H_{0}>0\) such that if \(H< H_{0}\), Lemma 2.1 and the following estimates hold:
$$\begin{aligned} & \bigl\Vert u_{k}^{h_{l}}-u_{k} \bigr\Vert _{h}\leq C_{0}\delta_{h_{l}}(\lambda_{k}), \end{aligned}$$
(4.11)
$$\begin{aligned} & \bigl\vert \lambda_{k}^{h_{l}}-\lambda_{k} \bigr\vert \leq C_{0}^{1+r}C_{7} \delta_{h_{l}}^{1+r}(\lambda_{k}). \end{aligned}$$
(4.12)

Proof

The proof is completed by using induction and Theorem 4.1 with \(\lambda_{0}=\lambda_{k}^{h_{l-1}}\). Note that \(\delta_{H}(\lambda_{k})\rightarrow0\), then there is a proper small \(H_{0}>0\) such that if \(H\leq H_{0}\), Lemma 2.1 and the following inequalities hold:
$$\begin{aligned} &C_{0}\delta_{H}(\lambda_{k})\leq \delta_{0},\qquad C_{0}^{1+r}C_{7} \delta_{H}^{1+r}(\lambda_{k})\leq \delta_{0}, \end{aligned}$$
(4.13)
$$\begin{aligned} &C_{0}^{2+2r}C_{7}^{2} \delta_{H}^{2r}(\lambda_{k})+C_{0}^{2+r}C_{7} \delta_{H}^{r}(\lambda_{k})\leq 1. \end{aligned}$$
(4.14)
When \(l=1\), we have \((\lambda_{k}^{h_{l-1}},u_{k}^{h_{l-1}})=(\lambda_{k,H},u_{k,H})\); from Lemma 2.1 and (2.12), we know that there exists \(\bar{u}\in M(\lambda_{k})\) such that
$$\begin{aligned} & \Vert u_{k,H}-\bar{u} \Vert _{H}\leq C_{5} \delta_{H}(\lambda_{k})\leq \delta_{0}, \\ & \vert \lambda_{k,H}-\lambda_{k} \vert \leq C_{5}^{1+r}C_{7}\delta_{H}^{1+r}( \lambda_{k})\leq\delta_{0}, \end{aligned}$$
and \(\delta_{h_{1}}(\lambda{_{j}})\leq\delta_{0}\) (\(j=k-1,k,k+q,j\neq 0\)), i.e. Condition 4.1 holds. Thus, by Theorem 4.1 and \(2-t_{1}\geq0\) and \(C_{5}\leq C_{0}\) we get
$$\begin{aligned} \bigl\Vert u_{k}^{h_{1}}-u_{k} \bigr\Vert _{h} \leq& \frac{C_{0}}{2} \bigl\{ C_{5}^{2+2r}C_{7}^{2} \delta_{H}^{2+2r}(\lambda_{k})+C_{5}^{2+r}C_{7} \delta_{H}^{2+r}(\lambda_{k})+\delta_{h_{1}}( \lambda_{k}) \bigr\} \\ \leq& \frac{C_{0}}{2} \bigl\{ C_{0}^{2+2r}C_{7}^{2} \delta_{H}^{2+2r-t_{1}}(\lambda_{k})+C_{0}^{2+r}C_{7} \delta_{H}^{2+r-t_{1}}(\lambda_{k})+1 \bigr\} \delta_{h_{1}}(\lambda_{k}) \\ \leq& \frac{C_{0}}{2} \bigl\{ C_{0}^{2+2r}C_{7}^{2} \delta_{H}^{2r}(\lambda_{k})+C_{0}^{2+r}C_{7} \delta_{H}^{r}(\lambda_{k})+1 \bigr\} \delta_{h_{1}}(\lambda_{k}) \\ \leq& C_{0}\delta_{h_{1}}(\lambda_{k}). \end{aligned}$$
Combining (2.12) and the above inequality yields
$$\bigl\vert \lambda_{k}^{h_{1}}-\lambda_{k} \bigr\vert \leq C_{7} \bigl\Vert u_{k}^{h_{1}}-u_{k} \bigr\Vert _{h}^{1+r}\leq C_{0}^{1+r}C_{7} \delta_{h_{1}}^{1+r}(\lambda_{k}). $$
Suppose that Theorem 4.2 is valid for \(l-1\), i.e. there exists \(\bar{u}\in M(\lambda_{k})\) such that
$$\begin{aligned} & \bigl\Vert u_{k}^{h_{l-1}}-\bar{u} \bigr\Vert _{h} \leq C_{0}\delta_{h_{l-1}}(\lambda_{k}), \\ & \bigl\vert \lambda_{k}^{h_{l-1}}-\lambda_{k} \bigr\vert \leq C_{0}^{1+r}C_{7} \delta_{h_{l-1}}^{1+r}(\lambda_{k}), \end{aligned}$$
then, owing to (4.13)–(4.14), we have \(\Vert u_{k}^{h_{l-1}}-\bar{u} \Vert _{h} \leq\delta_{0}\) and \(\vert \lambda_{k}^{h_{l-1}}-\lambda_{k} \vert \leq\delta_{0}\) (\(j=k-1,k,k+q, j\neq0\)), i.e. the conditions of Theorem 4.1 hold. Therefore, for l, by (4.6) and (4.14) we deduce
$$\begin{aligned} \bigl\Vert u_{k}^{h_{l}}-u_{k} \bigr\Vert _{h} \leq& \frac{C_{0}}{2} \bigl\{ C_{0}^{2+2r}C_{7}^{2} \delta_{h_{l-1}}^{2+2r}(\lambda_{k})+C_{0}^{2+r}C_{7} \delta_{h_{l-1}}^{2+r}(\lambda_{k})+ \delta_{h_{l}}(\lambda_{k}) \bigr\} \\ \leq& \frac{C_{0}}{2} \bigl\{ C_{0}^{2+2r}C_{7}^{2} \delta_{h_{l-1}}^{2+2r-t_{l}}(\lambda_{k})+C_{0}^{2+r}C_{7} \delta_{h_{l-1}}^{2+r-t_{l}}(\lambda_{k})+1 \bigr\} \delta_{h_{l}}(\lambda_{k}) \\ \leq& \frac{C_{0}}{2} \bigl\{ C_{0}^{2+2r}C_{7}^{2} \delta_{H}^{2+2r-t_{l}}(\lambda_{k})+C_{0}^{2+r}C_{7} \delta_{H}^{2+r-t_{l}}(\lambda_{k})+1 \bigr\} \delta_{h_{l}}(\lambda_{k}) \\ \leq& \frac{C_{0}}{2} \bigl\{ C_{0}^{2+2r}C_{7}^{2} \delta_{H}^{2r}(\lambda_{k})+C_{0}^{2+r}C_{7} \delta_{H}^{r}(\lambda_{k})+1 \bigr\} \delta_{h_{l}}(\lambda_{k}) \\ \leq& C_{0}\delta_{h_{l}}(\lambda_{k}). \end{aligned}$$
By (2.12) and the above inequality we deduce
$$\bigl\vert \lambda_{k}^{h_{l}}-\lambda_{k} \bigr\vert \leq C_{7} \bigl\Vert u_{k}^{h_{l}}-u_{k} \bigr\Vert _{h}^{1+r}\leq C_{0}^{1+r}C_{7} \delta_{h_{l}}^{1+r}(\lambda_{k}), $$
i.e. (4.11)–(4.12) are valid. □

Theorem 4.3

Let \((\lambda_{k}^{h_{l}},u_{k}^{h_{l}})\) be an approximate eigenpair obtained by Scheme 2. Suppose that Condition 4.2 holds for \(i\leq i_{0}\) and Condition 4.3 holds for \(i>i_{0}\). Then there exist \(u_{k}\in M(\lambda_{k})\) and \(H_{0}>0\) such that if \(H\leq H_{0}\) it holds that
$$\begin{aligned} & \bigl\Vert u_{k}^{h_{l}}-u_{k} \bigr\Vert _{h}\leq C_{0}\delta_{h_{l}}(\lambda_{k}), \end{aligned}$$
(4.15)
$$\begin{aligned} & \bigl\vert \lambda_{k}^{h_{l}}-\lambda_{k} \bigr\vert \leq C_{0}^{1+r}C _{7} \delta_{h_{l}}^{1+r}(\lambda_{k}),\quad l>i_{0}. \end{aligned}$$
(4.16)

Proof

The proof is completed by using induction and Theorem 4.1 with \(\lambda_{0}=\lambda_{k}^{h_{i_{0}}}\). Note that \(\delta_{H}(\lambda_{k})\rightarrow 0\) (\(H\rightarrow0\)), then there is a proper small \(H_{0}>0\) such that if \(H\leq H_{0}\), Lemma 2.1 and the following inequalities hold:
$$\begin{aligned} &C_{0}\delta_{H}(\lambda_{k})\leq \delta_{0},\qquad C_{0}^{1+r}C_{7} \delta_{H}^{1+r}(\lambda_{k})\leq \delta_{0}, \end{aligned}$$
(4.17)
$$\begin{aligned} &C_{0}^{2+2r}C_{7}^{2} \delta_{h_{l_{0}+1}}^{1+r}(\lambda_{k})\delta_{h_{l-1}}^{r}( \lambda_{k})\frac{1}{\beta_{0}} +C_{0}^{2+r}C_{7} \delta_{h_{l_{0}+1}}^{1+r}(\lambda_{k})\frac{1}{\beta_{0}} \leq 1. \end{aligned}$$
(4.18)
When \(l=i_{0}+1\), by Theorem 4.2 we know that there exists \(u_{k}\in M(\lambda_{k})\) such that
$$\begin{aligned} & \bigl\Vert u_{k}^{h_{i_{0}+1}}-u_{k} \bigr\Vert _{h}\leq C_{0}\delta_{h_{i_{0}+1}}(\lambda_{k}), \\ & \bigl\vert \lambda_{k}^{h_{i_{0}+1}}-\lambda_{k} \bigr\vert \leq C_{0}^{1+r}C_{7} \delta_{h_{i_{0}+1}}^{1+r}(\lambda_{k}). \end{aligned}$$
Suppose that Theorem 4.3 holds for \(l-1\), i.e. there exists \(\bar{u}\in M(\lambda_{k})\) such that
$$\begin{aligned} & \bigl\Vert u_{k}^{h_{l-1}}-\bar{u} \bigr\Vert _{h}\leq C_{0}\delta_{h_{l-1}}(\lambda_{k}), \\ & \bigl\vert \lambda_{k}^{h_{l-1}}-\lambda_{k} \bigr\vert \leq C_{0}^{1+r}C_{7} \delta_{h_{l-1}}^{1+r}(\lambda_{k}). \end{aligned}$$
Then we infer from (4.17) that the conditions of Theorem 4.1 hold; therefore, for l, we can get
$$\begin{aligned} & \bigl\Vert u_{k}^{h_{l}}-u_{k} \bigr\Vert _{h} \\ &\quad \leq \frac{C_{0}}{2} \bigl\{ C_{0}^{2+2r}C_{7}^{2} \delta_{h_{l_{0}+1}}^{1+r}(\lambda_{k}) \delta_{h_{l-1}}^{1+r}( \lambda_{k}) +C_{0}^{2+r}C_{7} \delta_{h_{l_{0}+1}}^{1+r}(\lambda_{k}) \delta_{h_{l-1}}( \lambda_{k})+\delta_{h_{l}}( \lambda_{k}) \bigr\} \\ &\quad \leq \frac{C_{0}}{2} \biggl\{ C_{0}^{2+2r}C_{7}^{2} \delta_{h_{l_{0}+1}}^{1+r}(\lambda_{k}) \delta_{h_{l-1}}^{r}( \lambda_{k})\frac{1}{\beta_{0}} +C_{0}^{2+r}C_{7} \delta_{h_{l_{0}+1}}^{1+r}( \lambda_{k})\frac{1}{\beta_{0}}+1 \biggr\} \delta_{h_{l}}( \lambda_{k}), \end{aligned}$$
which together with (4.18), we get (4.15). Substituting (4.15) into the inequality (2.12), we get (4.16). □

Remark

For some adaptive local refined grids used usually, (2.9) can be expressed as \(\vert E_{h}(u,v) \vert \leq C_{4}h \Vert v \Vert _{h}\), \(\forall v\in S^{h}+H_{0}^{2}(\Omega)\), therefore r in the theorems of this paper can take 1.

5 Adaptive algorithms

In this section, referring to [10, 17, 27], we present six algorithms. We denote Algorithm 1 in [10] as Algorithm 1 in this paper, and Algorithms 23 are established based on Schemes 12, respectively. Then we combine Algorithms 13 with a uniformly refined algorithm to get Algorithms 1M3M, respectively. And the a posterior error estimator in the following algorithms comes from [4], that is
$$\begin{aligned} &\begin{aligned} \eta_{h}(f,w_{h}, \kappa)^{2}={}&h_{\kappa}^{4} \Vert f \Vert _{0,\kappa}^{2} \\ &{}+\sum_{F\in \varepsilon_{h}\cap\partial\kappa}h_{F} \biggl\Vert \frac{1}{2} \bigl[ \bigl({\nabla(\nabla w_{h})+\nabla(\nabla w_{h})^{T}} \bigr)\tau_{F} \bigr] \biggr\Vert _{0,F}^{2} \quad \mbox{in }\mathbb{R}^{2}, \end{aligned} \\ &\begin{aligned} \eta_{h}(f,w_{h},\kappa)^{2}={}&h_{\kappa}^{4} \Vert f \Vert _{0,\kappa}^{2} \\ &{}+\sum_{F\in \varepsilon_{h}\cap\partial\kappa}h_{F} \biggl\Vert \frac{1}{2} \bigl[ \bigl({\nabla(\nabla w_{h})+\nabla(\nabla w_{h})^{T}} \bigr)\times\gamma_{F} \bigr] \biggr\Vert _{0,F}^{2}\quad \mbox{in }\mathbb{R}^{3}, \end{aligned} \\ &\eta_{h}(f,w_{h},\pi_{h})^{2}=\sum _{\kappa\in\pi_{h}}\eta_{h}(f,w_{h}, \kappa)^{2}, \end{aligned}$$
(5.1)
where \(w_{h}\) is the finite element approximate solution of (2.4), \(\tau_{F}\) is the tangential vector and \(\gamma_{F}\) the unit outward normal on \(F\in\varepsilon_{h}\).

In the following algorithms, we have to provide an initial shape regular triangulation \(\pi_{h_{0}}\) and a parameter \(\theta \in (0,1)\). Also, from [10, 11] we know that replacing \(w_{h}\) with \(u_{h}\) and replacing f with \(\lambda_{h}u_{h}\) in (5.1), we can obtain the error estimator of Algorithms 1 and 1M. By Lemma 4.1 we can deduce that replacing \(w_{h}\) with \(u^{h}\) and replacing f with \(\lambda^{h}u^{h}\) in (5.1), we can obtain the error estimator of Algorithms 23 and Algorithms 2M3M.

Algorithm 1

Choose the parameter \(0<\theta<1\).

Step 1. Pick any initial mesh \(\pi_{h_{0}}\).

Step 2. Solve (2.3) on \(\pi_{h_{0}}\) for discrete solution \((\lambda_{h_{0}},u_{h_{0}})\).

Step 3. \(l\Leftarrow0\).

Step 4. Compute the local indicators \(\eta_{h_{l}}(\lambda_{h_{l}}u_{h_{l}},u_{h_{l}},\kappa)\).

Step 5. Construct \(\hat{\pi}_{h_{l}}\in \pi_{h_{l}}\) by Marking strategy E and θ.

Step 6. Refine \(\pi_{h_{l}}\) to get a new mesh \(\pi_{h_{l+1}}\) by procedure Refine.

Step 7. Solve (2.3) on \(\pi_{h_{l+1}}\) for discrete solution \((\lambda_{h_{l+1}},u_{h_{l+1}})\).

Step 8. \(l\Leftarrow l+1\) and go to Step 4.

Algorithm 2

Choose the parameter \(0<\theta<1\).

Step 1. Pick any initial mesh \(\pi_{h_{0}}\).

Step 2. Solve (2.3) on \(\pi_{h_{0}}\) for discrete solution \((\lambda_{h_{0}},u_{h_{0}})\).

Step 3. \(l\Leftarrow0, \lambda_{0}\Leftarrow\lambda_{h_{0}}, u^{h_{0}}\Leftarrow u_{h_{0}}\).

Step 4. Compute the local indicators \(\eta_{h_{l}}(\lambda^{h_{l}}u^{h_{l}},u^{h_{l}},\kappa)\).

Step 5. Construct \(\hat{\pi}_{h_{l}}\in \pi_{h_{l}}\) by Marking strategy E1 and θ.

Step 6. Refine \(\pi_{h_{l}}\) to get a new mesh \(\pi_{h_{l+1}}\) by procedure Refine.

Step 7. Find \(u'\in V_{h_{l+1}}\) such that
$$ a_{h} \bigl(u',v \bigr)- \lambda_{0}b \bigl(u',v \bigr)=b \bigl(u^{h_{l}},v \bigr); $$
(5.2)
denote \(u^{h_{l+1}}=\frac{u'}{ \Vert u' \Vert _{h}}\) and compute the Rayleigh quotient:
$$\lambda^{h_{l+1}}=\frac{a_{h} (u^{h_{l+1}},u^{h_{l+1}} )}{b (u^{h_{l+1}},u^{h_{l+1}} )}. $$

Step 8. \(\lambda_{0}\Leftarrow\lambda^{h_{l+1}},l\Leftarrow l+1\) and go to Step 4.

Algorithm 3

Choose the parameter \(0<\theta<1\) and an integer \(i_{0}\).

Step 1Step 7. The same as Steps 1–7 of Algorithm 2.

Step 8. If \(l< i_{0},\lambda_{0}\Leftarrow\lambda^{h_{l+1}},l\Leftarrow l+1\) and go to Step 4; else \(l\Leftarrow l+1\), and go to Step 4.

A family of good adaptive meshes should satisfy \(h=O(h_{\min}^{\alpha})\). Hence, we give a bound \(C_{r}\) of \(\frac{h}{h_{\min}^{\alpha}}\). When the rate \(\frac{h}{h_{\min}^{\alpha}}\geq C_{r}\) in the process of Algorithms 1M3M is running, we refine the mesh uniformly for one time. And thus the following three algorithms are derived.

Algorithm 1M

Choose the parameter \(0<\theta<1\), α, and a bound \(C_{r}\) of \(\frac{h_{l}}{h_{l_{\min}}^{\alpha}}\).

Step 1Step 7. The same as Steps 1–7 of Algorithm 1.

Step 8. \(l\Leftarrow l+1\).

Step 9. If \(\frac{h_{l}}{h_{l_{\min}}^{\alpha}}\geq C_{r}\), then uniformly refine the mesh \(\pi_{h_{l}}\) to get a new mesh \(\pi_{h_{l+1}}\) and go to Step 7, else go to Step 4.

Algorithm 2M

Choose the parameter \(0<\theta<1\), α, and a bound \(C_{r}\) of \(\frac{h_{l}}{h_{l_{\min}}^{\alpha}}\).

Step 1Step 7. The same as Steps 1–7 of Algorithm 2.

Step 8. \(\lambda_{0}\Leftarrow\lambda^{h_{l+1}},l\Leftarrow l+1\).

Step 9. If \(\frac{h_{l}}{h_{l_{\min}}^{\alpha}}\geq C_{r}\), then uniformly refine the mesh \(\pi_{h_{l}}\) to get a new mesh \(\pi_{h_{l+1}}\) and go to Step 7, else go to Step 4.

Algorithm 3M

Choose the parameter \(0<\theta<1\), an integer \(i_{0}\), α, and a bound \(C_{r}\) of \(\frac{h_{l}}{h_{l_{\min}}^{\alpha}}\).

Step 1Step 7. The same as Steps 1–7 of Algorithm 2.

Step 8. If \(l< i_{0},\lambda_{0}\Leftarrow\lambda^{h_{l+1}},l\Leftarrow l+1\); else \(l\Leftarrow l+1\).

Step 9. If \(\frac{h_{l}}{h_{l_{\min}}^{\alpha}}\geq C_{r}\), then uniformly refine the mesh \(\pi_{h_{l}}\) to get a new mesh \(\pi_{h_{l+1}}\) and go to Step 7, else go to Step 4.

Marking strategy E

Given parameter \(0<\theta<1\):

Step 1. Construct a minimal subset \(\widehat{\pi}_{h_{l}}\) of \(\pi_{h_{l}}\) by selecting some elements in \(\pi_{h_{l}}\) such that
$$\begin{aligned} \sum_{\kappa\in \widehat{\pi}_{h_{l}}}{\eta}_{h_{l}}^{2}( \lambda_{h_{l}}u_{h_{l}}, u_{h_{l}},\kappa) \geq \theta{ \eta}_{h_{l}}^{2}(\lambda_{h_{l}}u_{h_{l}},u_{h_{l}}, \Omega). \end{aligned}$$

Step 2. Mark all the elements in \(\widehat{\pi}_{h_{l}}\).

Marking strategy E1

To get Marking strategy E1 we only replace \(\lambda_{h_{l}}\) and \(u_{h_{l}}\) in Marking strategy E with \(\lambda^{h_{l}}\) and \(u^{h_{l}}\), respectively.

Algorithms 1M3M including steps with uniform refinement seem to be opposite to the adaptive concept. Indeed, the combination of adaptive algorithms and uniform refinement meets the certain mesh-grading properties, thus improving the efficiency of Algorithms 13 (see Tables 13 in Sect. 6).
Table 1

The smallest eigenvalue solved by Algorithm 1 and Algorithm 1M

l

\(N_{\mathrm{dof}}\)

\(h_{l}\)

\(\frac{h_{l}}{h_{l_{\min}}^{\alpha}}\)

\(\lambda_{1,h_{l}}\)

CPU(s)

\(N_{\mathrm{dof}}\)

\(h_{l}\)

\(\frac{h_{l}}{h_{l_{\min}}^{\alpha}}\)

\(\lambda_{1,h_{l}}^{M}\)

CPU(s)

1

2945

0.044

0.210

6333.637

0.275

2945

0.044

0.210

6333.637

0.086

2

2957

0.044

0.250

6368.756

0.368

2957

0.044

0.250

6368.756

0.162

3

3035

0.044

0.297

6426.312

0.452

3035

0.044

0.297

6426.312

0.239

4

3135

0.044

0.354

6459.396

0.537

3135

0.044

0.354

6459.396

0.320

5

3345

0.044

0.420

6506.181

0.629

3345

0.044

0.420

6506.181

0.405

6

3609

0.044

0.500

6540.464

0.726

3609

0.044

0.500

6540.464

0.499

7

3979

0.044

0.595

6574.027

0.834

3979

0.044

0.595

6574.027

0.605

8

4459

0.044

0.707

6588.671

0.957

4459

0.044

0.707

6588.671

0.723

9

5097

0.044

0.841

6606.244

1.10

5097

0.044

0.841

6606.244

0.860

10

5787

0.044

1.00

6615.776

1.27

5787

0.044

1.00

6615.776

1.02

11

6665

0.044

1.19

6631.992

1.48

6665

0.044

1.19

6631.992

1.21

12

7791

0.044

1.41

6642.939

1.71

31,697

0.022

0.841

6688.240

2.12

13

9110

0.044

1.68

6656.854

1.97

34,833

0.022

1.00

6690.595

3.15

14

10,591

0.044

2.00

6662.468

2.27

39,191

0.022

1.19

6693.066

4.43

15

12,295

0.044

2.38

6665.980

2.65

173,919

0.011

0.841

6701.061

11.4

16

14,331

0.044

2.83

6671.824

3.10

189,989

0.011

1.00

6701.477

19.4

17

16,641

0.044

3.36

6676.967

3.62

211,977

0.011

1.19

6701.750

29.0

18

19,497

0.044

4.00

6680.844

4.21

948,969

0.006

0.841

6703.147

82.8

19

22,925

0.044

4.76

6684.502

4.92

1,025,149

0.006

1.00

6703.198

141

20

27,171

0.044

5.66

6686.546

5.77

1,131,177

0.006

1.19

6703.244

210

21

32,088

0.044

6.73

6689.797

6.76

5,114,697

0.003

0.841

6703.512

587

22

37,703

0.044

8.00

6692.349

7.95

23

44,289

0.044

9.51

6694.425

9.39

24

52,103

0.044

11.3

6695.960

11.1

25

60,857

0.044

13.5

6696.560

13.2

26

70,881

0.044

16.0

6697.400

15.7

27

83,091

0.031

13.5

6698.304

18.7

28

98,019

0.031

16.0

6699.274

22.7

29

116,273

0.031

19.0

6699.950

27.4

30

136,557

0.031

22.6

6700.589

33.1

31

160,465

0.022

16.0

6701.087

40.0

32

188,195

0.022

19.0

6701.469

48.2

33

221,401

0.022

22.6

6701.858

58.0

34

257,797

0.022

26.9

6702.060

69.7

35

301,063

0.022

32.0

6702.246

84.6

36

353,201

0.022

38.1

6702.411

102

37

416,609

0.022

45.3

6702.557

124

38

492,039

0.022

45.3

6702.767

151

39

577,233

0.022

53.8

6702.937

182

40

677,271

0.016

45.3

6703.035

220

41

793,765

0.016

53.8

6703.115

266

42

934,557

0.016

64.0

6703.190

321

43

1,084,193

0.016

64.0

6703.237

388

44

1,267,059

0.016

76.1

6703.272

465

45

1,487,051

0.016

90.5

6703.320

558

46

1,756,709

0.016

108

6703.362

672

47

2,065,245

0.011

90.5

6703.407

809

48

2,420,223

0.011

108

6703.446

973

49

2,834,373

0.011

128

6703.468

1171

50

3,319,763

0.011

128

6703.487

1415

51

3,894,763

0.011

152

6703.505

1706

52

4,522,239

0.011

181

6703.516

2060

Table 2

The smallest eigenvalue solved by Algorithm 2 and Algorithm 2M

l

\(N_{\mathrm{dof}}\)

\(h_{l}\)

\(\frac{h_{l}}{h_{l_{\min}}^{\alpha}}\)

\(\lambda_{1,h_{l}}^{R}\)

CPU(s)

\(N_{\mathrm{dof}}\)

\(h_{l}\)

\(\frac{h_{l}}{h_{l_{\min}}^{\alpha}}\)

\(\lambda_{1,h_{l}}^{\mathrm{RM}}\)

CPU(s)

1

2945

0.044

0.210

6333.637

0.133

2945

0.044

0.210

6333.637

0.090

2

2957

0.044

0.297

6373.503

0.228

2957

0.044

0.297

6373.503

0.140

3

3031

0.044

0.354

6538.971

0.280

3031

0.044

0.354

6538.971

0.192

4

3067

0.044

0.420

6443.737

0.371

3067

0.044

0.420

6443.737

0.250

5

3237

0.044

0.500

6489.761

0.426

3237

0.044

0.500

6489.761

0.305

6

3445

0.044

0.595

6523.466

0.487

3445

0.044

0.595

6523.466

0.365

7

3811

0.044

0.707

6566.620

0.560

3811

0.044

0.707

6566.620

0.431

8

4195

0.044

0.841

6595.431

0.636

4195

0.044

0.841

6595.431

0.504

9

4678

0.044

1.00

6597.955

0.720

4678

0.044

1.00

6597.955

0.588

10

5293

0.044

1.19

6607.441

0.814

5293

0.044

1.19

6607.441

0.709

11

6118

0.044

1.41

6623.248

0.924

25,297

0.022

0.841

6683.573

1.15

12

6997

0.044

1.68

6634.588

1.05

27,723

0.022

1.00

6686.324

1.63

13

8232

0.044

2.00

6648.804

1.20

30,933

0.022

1.19

6688.518

2.38

14

9527

0.044

2.38

6658.106

1.39

139,409

0.011

0.841

6700.069

5.87

15

11,102

0.044

2.83

6663.393

1.59

153,179

0.011

1.00

6700.762

9.71

16

12,928

0.044

3.36

6667.166

1.82

168,897

0.011

1.19

6701.161

15.4

17

15,139

0.044

4.00

6673.763

2.11

740,417

0.006

0.841

6702.983

39.1

18

17,619

0.044

4.76

6678.433

2.43

807,451

0.006

1.00

6703.097

65.4

19

20,763

0.044

5.66

6682.562

2.82

882,597

0.006

1.19

6703.149

103

20

24,365

0.044

6.73

6685.164

3.27

3,907,351

0.003

0.841

6703.486

236

21

28,967

0.044

8.00

6687.944

3.81

4,218,771

0.003

1.00

6703.504

382

22

34,068

0.044

9.51

6690.675

4.50

23

40,007

0.044

11.3

6692.914

5.39

24

47,117

0.044

13.5

6694.937

6.46

25

55,275

0.044

16.0

6696.294

7.64

26

64,407

0.044

19.0

6696.867

9.09

27

75,259

0.031

13.5

6697.823

10.8

28

88,353

0.031

16.0

6698.752

13.2

29

104,269

0.031

19.0

6699.457

16.1

30

123,285

0.031

22.6

6700.133

19.4

31

145,061

0.031

26.9

6700.774

23.3

32

170,397

0.022

22.6

6701.291

27.9

33

199,833

0.022

26.9

6701.638

33.5

34

235,261

0.022

26.9

6701.906

40.0

35

272,877

0.022

32.0

6702.117

48.6

36

319,549

0.022

38.1

6702.292

58.8

37

375,279

0.022

45.3

6702.462

71.1

38

444,149

0.022

53.8

6702.631

86.1

39

522,525

0.022

64.0

6702.819

104

40

613,375

0.022

76.1

6702.964

125

41

719,217

0.016

53.8

6703.062

149

42

844,333

0.016

64.0

6703.144

179

43

988,863

0.016

76.1

6703.208

214

44

1,150,057

0.016

90.5

6703.256

255

45

1,346,861

0.016

108

6703.292

304

46

1,584,041

0.016

128

6703.337

362

47

1,873,597

0.016

152

6703.378

433

48

2,196,067

0.011

108

6703.422

509

49

2,572,281

0.011

128

6703.454

598

50

3,010,543

0.011

152

6703.474

705

51

3,538,161

0.011

181

6703.497

831

52

4,120,833

0.011

215

6703.510

979

Table 3

The smallest eigenvalue solved by Algorithm 3 and Algorithm 3M

l

\(N_{\mathrm{dof}}\)

\(h_{l}\)

\(\frac{h_{l}}{h_{l_{\min}}^{\alpha}}\)

\(\lambda_{1,h_{l}}^{F}\)

CPU(s)

\(N_{\mathrm{dof}}\)

\(h_{l}\)

\(\frac{h_{l}}{h_{l_{\min}}^{\alpha}}\)

\(\lambda_{1,h_{l}}^{FM}\)

CPU(s)

1

2945

0.044

0.210

6333.637

0.086

2945

0.044

0.210

6333.637

0.086

2

2957

0.044

0.297

6373.503

0.137

2957

0.044

0.297

6373.503

0.137

3

3031

0.044

0.354

6538.971

0.187

3031

0.044

0.354

6538.971

0.187

4

3067

0.044

0.420

6443.737

0.244

3067

0.044

0.420

6443.737

0.245

5

3237

0.044

0.500

6489.761

0.299

3237

0.044

0.500

6489.761

0.300

6

3445

0.044

0.595

6523.466

0.358

3445

0.044

0.595

6523.466

0.360

7

3811

0.044

0.707

6566.620

0.423

3811

0.044

0.707

6566.620

0.426

8

4195

0.044

0.841

6595.431

0.496

4195

0.044

0.841

6595.431

0.498

9

4678

0.044

1.00

6597.955

0.577

4678

0.044

1.00

6597.955

0.581

10

5293

0.044

1.19

6607.441

0.670

5293

0.044

1.19

6607.441

0.696

11

6118

0.044

1.41

6623.248

0.779

25,297

0.022

0.841

6683.573

1.14

12

6997

0.044

1.68

6634.588

0.903

27,723

0.022

1.00

6686.324

1.62

13

8232

0.044

2.00

6648.804

1.05

30,933

0.022

1.19

6688.518

2.37

14

9527

0.044

2.38

6658.106

1.21

139,409

0.011

0.841

6700.069

5.85

15

11,102

0.044

2.83

6663.393

1.41

153,179

0.011

1.00

6701.996

9.71

16

12,928

0.044

3.36

6667.166

1.64

164,253

0.011

1.19

6701.274

15.2

17

15,139

0.044

4.00

6673.763

1.93

715,319

0.006

0.841

6702.994

38.2

18

17,619

0.044

4.76

6678.433

2.25

780,735

0.006

1.00

6703.096

63.8

19

20,763

0.044

5.66

6682.562

2.63

853,934

0.006

1.19

6703.205

100

20

24,365

0.044

6.73

6685.164

3.08

3,774,935

0.003

0.841

6703.503

231

21

28,967

0.044

8.00

6687.944

3.60

4,083,915

0.003

1.00

6703.538

372

22

34,068

0.044

9.51

6690.675

4.21

23

40,007

0.044

11.3

6692.914

4.97

24

47,117

0.044

13.5

6694.937

5.89

25

55,275

0.044

16.0

6696.294

6.98

26

64,407

0.044

19.0

6696.867

8.28

27

75,259

0.031

13.5

6697.823

9.85

28

88,357

0.031

16.0

6698.753

12.0

29

104,277

0.031

19.0

6699.461

14.6

30

123,275

0.031

22.6

6700.132

17.7

31

145,073

0.031

26.9

6700.784

21.4

32

170,409

0.022

22.6

6701.303

25.9

33

199,844

0.022

26.9

6701.644

31.2

34

235,273

0.022

26.9

6701.901

37.6

35

272,825

0.022

32.0

6702.117

45.7

36

319,389

0.022

38.1

6702.299

55.5

37

375,188

0.022

45.3

6702.459

67.4

38

443,902

0.022

53.8

6702.642

81.7

39

522,189

0.022

64.0

6702.815

98.8

40

612,931

0.022

76.1

6702.966

119

41

718,761

0.016

53.8

6703.061

143

42

844,127

0.016

64.0

6703.150

171

43

988,405

0.016

76.1

6703.208

205

44

1,149,526

0.016

90.5

6703.256

244

45

1,346,037

0.016

108

6703.295

291

46

1,583,069

0.016

128

6703.340

347

47

1,872,353

0.016

152

6703.381

412

48

2,194,659

0.011

108

6703.425

490

49

2,570,539

0.011

128

6703.458

580

50

3,008,669

0.011

152

6703.478

687

51

3,535,715

0.011

181

6703.498

813

52

4,118,331

0.011

215

6703.512

962

6 Numerical experiment

In this section, we compute the smallest eigenvalue of (2.1) on the L-shaped domain \((0,1)^{2}\setminus[\frac{1}{2},1]^{2}\) by Algorithms 13 and Algorithms 1M3M and \((0,1)^{3}\setminus ([0.5,1]\times[0,1]\times[0.5,1] )\) by Algorithms 12 to demonstrate the advantages of the adaptive Morley element method based on the inverse-shift iteration for a biharmonic eigenvalue problem. Our programs are compiled on MATLAB2012a under the package of Chen [28] using HP-Z230 workstation with ROM 32G and CPU 3.60 GHz.

We use the command “” to solve (5.2) and use the sparse solver \(\operatorname{eigs}(A,B,1,{'}sm{'})\) to solve (2.3) for the smallest eigenvalues. Before showing the results, some symbols need to be explained:
\(\lambda_{h_{l}}\)

the smallest eigenvalue obtained by the lth iteration using Algorithm 1.

\(\lambda^{R}_{h_{l}}\)

the smallest eigenvalue obtained by the lth iteration using Algorithm 2.

\(\lambda^{F}_{h_{l}}\)

the smallest eigenvalue obtained by the lth iteration using Algorithm 3.

\(\lambda^{M}_{h_{l}}\)

the smallest eigenvalue obtained by the lth iteration using Algorithm 1M.

\(\lambda^{RM}_{h_{l}}\)

the smallest eigenvalue obtained by the lth iteration using Algorithm 2M.

\(\lambda^{FM}_{h_{l}}\)

the smallest eigenvalue obtained by the lth iteration using Algorithm 3M.

\(N_{\mathrm{dof}}\)

the number of the degree of freedom.

\(\operatorname{CPU}(s)\)

the time CPU runs from the first iteration to the current iteration.

In \(\mathbb{R}^{2}\), the initial mesh \(\pi_{h_{0}}\) is isosceles right triangle subdivision with mesh size \(\frac{\sqrt{2}}{32}\), and we take \(\theta=0.25\), \(C_{r}=1.1\), \(\alpha=\frac{1}{2}\). We fix shift from the 25th and 13th in Algorithm 3 and Algorithm 3M, respectively. The results are shown in Tables 13. We depict the error curves of Algorithms 13 and Algorithms 1M3M in Figs. 13.
Figure 1
Figure 1

The convergence rates of the smallest eigenvalue from Algorithm 1(a) and Algorithm 1M(b)

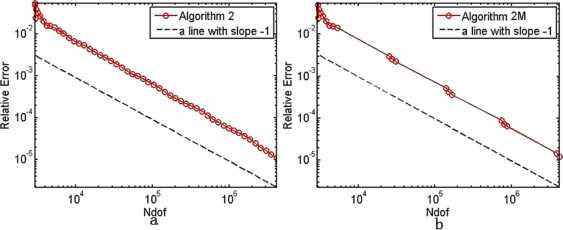

Figure 2
Figure 2

The convergence rates of the smallest eigenvalue from Algorithm 2(a) and Algorithm 2M(b)

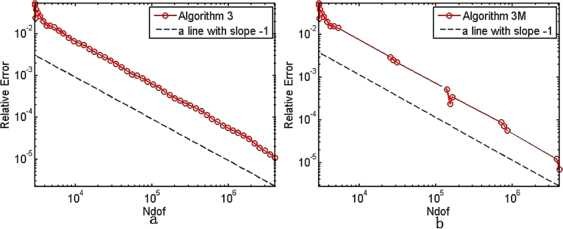

Figure 3
Figure 3

The convergence rates of the smallest eigenvalue from Algorithm 3(a) and Algorithm 3M(b)

From Tables 13, we can get the conclusion that in the case the accurate are almost same, Algorithms 23 take about half time of Algorithm 1. In the case the accurate are almost same, Algorithm iM takes about \(\frac{2}{5}\) time of Algorithm i, \(i=1,2,3\).

The smallest eigenvalue of (2.1) is unknown. Therefore, we replace it with an approximate eigenvalue \(\lambda_{1}\approx6703.585\) in \(\mathbb{R}^{2}\) with high accuracy. It is present that the relative error curves of the smallest eigenvalues derived from Algorithms 13 and Algorithms 1M3M on the adaptive meshes in Figs. 13, whose slopes are more or less −1, which shows that all the six Morley element adaptive algorithms can get the optimal convergence rate \(O(h^{2})\) in \(\mathbb{R}^{2}\).

In \(\mathbb{R}^{3}\), the initial mesh \(\pi_{h_{0}}\) is tetrahedron subdivision with mesh size \(\frac{\sqrt{3}}{16}\), and we take \(\theta=0.25\) and \(\lambda_{1}\approx8290.011\) with high accuracy replacing the accurate eigenvalue. It is present that the refined mesh and the relative error curves of the smallest eigenvalues derived from Algorithms 12 in Fig. 4, from which we see that Algorithm 2 is more efficient than Algorithm 1, but meanwhile we also see from Table 4 that the mesh size has no change. Because \(N_{\mathrm{dof}}\) in \(\mathbb{R}^{3}\) increases very fast after uniform refinement, which leads to surpassing computer’s memory, we cannot employ Algorithms 1M3M to solve (2.1).
Figure 4
Figure 4

The refined mesh for the L-shaped domain (a) and the convergence rates of the smallest eigenvalue from Algorithm 1 and Algorithm 2(b) in \(\mathbb{R}^{3}\)

Table 4

The smallest eigenvalue solved by Algorithm 1 and Algorithm 2

l

\(N_{\mathrm{dof}}\)

\(h_{l}\)

\(\lambda_{1,h_{l}}\)

CPU(s)

\(N_{\mathrm{dof}}\)

\(h_{l}\)

\(\lambda_{1,h_{l}}^{R}\)

CPU(s)

1

54,896

0.108

7547.686

8.25

54,896

0.108

7547.686

9.71

2

57,176

0.108

7612.980

16.5

57,176

0.108

7613.142

13.0

3

60,822

0.108

7678.863

25.6

60,822

0.108

7678.902

16.7

4

67,192

0.108

7736.644

35.1

67,192

0.108

7736.699

20.9

5

76,278

0.108

7802.128

46.5

76,316

0.108

7802.062

25.8

6

86,838

0.108

7871.038

58.6

86,905

0.108

7872.137

31.2

7

101,261

0.108

7949.987

73.8

101,368

0.108

7950.349

38.4

8

121,408

0.108

8001.974

92.4

121,563

0.108

8002.931

47.3

9

146,456

0.108

8041.421

118

146,215

0.108

8040.738

58.1

10

180,528

0.108

8082.211

155

180,203

0.108

8082.247

72.3

11

224,755

0.108

8108.734

211

224,288

0.108

8108.530

92.1

12

282,583

0.108

8141.177

295

281,953

0.108

8141.009

119

13

355,133

0.108

8174.424

414

354,598

0.108

8174.437

156

14

451,162

0.108

8199.573

583

450,739

0.108

8199.502

205

15

561,904

0.108

8220.566

847

561,090

0.108

8220.433

269

16

693,222

0.108

8240.310

2368

691,963

0.108

8240.129

354

17

863,420

0.108

8258.156

9957

861,795

0.108

8258.042

469

18

1,084,848

0.108

8272.888

624

19

1,357,830

0.108

8281.060

851

20

1,730,050

0.108

8290.011

1206

Declarations

Acknowledgements

This work is supported by the Science and Technology Foundation of Guizhou Province of China (Grant nos. LH [2014] 7061 and LKS [2013] 06). We appreciate editors and reviewers for constructive suggestions and helpful comments.

Authors’ contributions

HL and YY participated in the theoretical analysis and HL carried out the numerical experiments. The final manuscript was made after YY had discussed it with HL. All authors read and approved the final manuscript.

Competing interests

The authors declare to have no competing interests.

Open Access This article is distributed under the terms of the Creative Commons Attribution 4.0 International License (http://creativecommons.org/licenses/by/4.0/), which permits unrestricted use, distribution, and reproduction in any medium, provided you give appropriate credit to the original author(s) and the source, provide a link to the Creative Commons license, and indicate if changes were made.

Authors’ Affiliations

(1)
The School of the Mathematical Sciences, Guizhou Normal University, Gui Yang, China

References

  1. Morley, L.S.D.: The triangular equilibrium element in the solution of plate bending problems. Aero Quart (1968) Google Scholar
  2. Wang, M., Xu, J.: The Morley element for fourth order elliptic equations in any dimensions 155-169. Numer. Math. 103, 155–169 (2006) MathSciNetView ArticleGoogle Scholar
  3. da Veiga, L.B., Niiranen, J., Stenberg, R.: A posteriori errors estimates for the Morley plate bending element. Numer. Math. 106, 165–179 (2007) MathSciNetView ArticleMATHGoogle Scholar
  4. Hu, J., Shi, Z.: A new a posteriori error estimate for the Morley element. Numer. Math. 112, 25–40 (2009) MathSciNetView ArticleMATHGoogle Scholar
  5. Shi, Z., Wang, M.: Finite Element Methods. Science Press, Beijing (2013) Google Scholar
  6. Carstensen, C., Gallistl, D., Hu, J.: A posteriori error estimates for nonconforming finite element methods for fourth-order problems on rectangles. Numer. Math. 124, 309–335 (2013) MathSciNetView ArticleMATHGoogle Scholar
  7. Hu, J., Shi, Z., Xu, J.: Convergence and optimality of the adaptive Morley method. Numer. Math. 121, 731–752 (2012) MathSciNetView ArticleMATHGoogle Scholar
  8. Carstensen, C., Gallistl, D., Hu, J.: A discrete Helmholtz decomposition with Morley finite element functions and the optimality of adaptive finite element schemes. Comput. Math. Appl. 68(part B), 2167–2181 (2014) MathSciNetView ArticleMATHGoogle Scholar
  9. Rannacher, R.: Nonconforming finite element methods for eigenvalue problems in linear plate theory. Numer. Math. 13, 23–42 (1979) MathSciNetView ArticleMATHGoogle Scholar
  10. Shen, Q.: A posteriori error estimates of the Morley element for the fourth order elliptic eigenvalue problem. Numer. Algorithms 68, 455–466 (2015) MathSciNetView ArticleMATHGoogle Scholar
  11. Yang, Y., Li, H., Bi, H.: The lower bound property of the Morley element eigenvalues. Comput. Math. Appl. 17, 904–920 (2016) MathSciNetView ArticleMATHGoogle Scholar
  12. Gallistl, D.: Morley finite element method for the eigenvalues of the biharmonic operator. IMA J. Numer. Anal. 35(4), 1779–1811 (2015) MathSciNetView ArticleMATHGoogle Scholar
  13. Babuška, I., Rheinboldt, W.C.: Error estimates for adaptive finite element computations. SIAM J. Numer. Anal. 15, 736–754 (1978) MathSciNetView ArticleMATHGoogle Scholar
  14. Verfürth, R.: A Review of a Posteriori Error Estimates and Adaptive Mesh-Refinement Techniques. Wiley-Teubner, New York (1996) MATHGoogle Scholar
  15. Ainsworth, M., Oden, J.T.: A Posteriori Error Estimates in the Finite Element Analysis. Wiley-Inter science, New York (2011) MATHGoogle Scholar
  16. Morin, P., Nochetto, R.H., Siebert, K.: Convergence of adaptive finite element methods. SIAM Rev. 44, 631–658 (2002) MathSciNetView ArticleMATHGoogle Scholar
  17. Yang, Y., Bi, H., Han, J., Yu, Y.: The shifted-inverse iteration based on the multigrid discretizations for eigenvalue problems. SIAM J. Sci. Comput. 37, 2583–2606 (2015) MathSciNetView ArticleMATHGoogle Scholar
  18. Blum, H., Rannacher, R.: On the boundary value problem of the biharmonic operator on domains with angular corners. Math. Methods Appl. Sci. 2, 556–581 (1980) MathSciNetView ArticleMATHGoogle Scholar
  19. Li, H., Yang, Y.: \(c^{0}\)ipg adaptive algorithms for the biharmonic eigenvalue problem. Numer. Algorithms (2017). https://doi.org/10.1007/s11075-017-0388-8 Google Scholar
  20. Ciarlet, P.G.: Basic Error Estimates for Elliptic Problems. Handbook of Numerical Analysis, vol. 2. Elsevier, North-Holand (1991) MATHGoogle Scholar
  21. Babuška, I., Kellog, R.B., Pitkaranta, J.: Direct and inverse error estimates for finite elements with mesh refinement. Numer. Math. 33, 447–471 (1979) MathSciNetView ArticleMATHGoogle Scholar
  22. Hu, J., Huang, Y., Lin, Q.: Lower bounds for eigenvalues of elliptic operators: by nonconforming finite element methods. J. Sci. Comput. 61, 196–221 (2014) MathSciNetView ArticleMATHGoogle Scholar
  23. Lin, Q., Xie, H., Xu, J.: Lower bounds of the discretization for piecewise polynomials. Math. Comput. 83, 1–13 (2014) MathSciNetView ArticleMATHGoogle Scholar
  24. Carstensen, C., Gallistl, D.: Guaranteed lower eigenvalue bounds for the biharmonic equation. Numer. Math. 125, 33–51 (2014) MathSciNetView ArticleMATHGoogle Scholar
  25. Yang, Y., Zhang, Z., Lin, F.: Eigenvalue approximation from below using nonforming finite elements. Sci. China Math. 53, 137–150 (2010) MathSciNetView ArticleMATHGoogle Scholar
  26. Yang, Y., Bi, H.: A tow-grid discretization scheme based on shifted-inverse power method. SIAM J. Numer. Anal. 49, 1602–1642 (2011) MathSciNetView ArticleMATHGoogle Scholar
  27. Dai, X., Xu, J., Zhou, A.: Convergence and optimal complexity of adaptive finite element eigenvalue computations. Numer. Math. 110, 313–355 (2008) MathSciNetView ArticleMATHGoogle Scholar
  28. Chen, L. (ed.): iFEM: An Innovative Finite Element Methods Package in MATLAB. Technical Report, University of California at Irvine (2009) Google Scholar

Copyright

Advertisement
