A modified subgradient extragradient algorithm-type for solving quasimonotone variational inequality problems with applications
Journal of Inequalities and Applications volume 2023, Article number: 73 (2023)
Abstract
In this article, we introduce an inertial-type algorithm that combines the extragradient subgradient method, the projection contraction method, and the viscosity method. The proposed method is used for solving quasimonotone variational inequality problems in infinite dimensional real Hilbert spaces such that it does not depend on the Lipschitz constant of the cost operator. Further, we prove the strong convergence results of the new algorithm. Our strong convergence results are achieved without imposing strict conditions on the control parameters and inertial factor of our algorithm. We utilize our algorithm to solve some problems in applied sciences and engineering such as image restoration and optimal control. Some numerical experiments are carried out to support our theoretical results. Our numerical illustrations show that our new method is more efficient than many existing methods.
1 Introduction
Throughout this article, let H be a real Hilbert space with inner product \(\langle \cdot ,\cdot \rangle \) and its induced norm \(\|\cdot \|\). Let Ψ be a nonempty closed and convex subset of H and \(M:\Psi \to H\) be an operator. A variational inequality problem \(VI(\Psi ,M)\) involves finding a point \(g\in \Psi \) such that
The solution set of \(VI(\Psi ,M)\) (1.1) shall be denoted by S. Diverse problems emanating from engineering, economics, mechanics, transportation, mathematical programming, etc. can be formulated as \(VI(\Psi ,M)\) (1.1) (see, for example, [4, 5, 15, 22, 23, 28]). We use \(S_{D}\) to denote a solution set of the dual variational inequality problem, that is, \(S_{D}=\{g^{*}\in \Psi :\langle Mh,h-g^{*}\rangle \geq 0, \forall h\in \Psi \}\). It is easy to see that \(S_{D}\) is a closed and convex subset of Ψ [41]. If M is continuous and Ψ is convex, then we obtain that \(S_{D}\subseteq S\), and if M is continuous and quasimonotone, then \(S=S_{D}\) [12]. The inclusion \(S\subset S_{D}\) is not true if M is a continuous and quasimonotone mapping [56].
There are basically two well-known approaches for solving the variational inequality problems, namely, the regularized method and the projection method. In this article, our interest will be on the projection method [39]. For any \(g\in H\), there exists a unique point z in Ψ such that
and \(P_{\Psi}:H\to \Psi \) is called a metric projection from H into Ψ.
It is well known that the variational inequality problem \(VI(\Psi ,M)\) (1.1) can be transformed into a fixed point problem as follows:
where \(P_{\Psi}:H\to \Psi \) is the metric projection and \(\tau >0\), see [43]. The simplest projection method to find the solution of \(VI(\Psi ,M)\) (1.1) is the projection gradient method (PGM) defined as follows:
Observe that just one projection onto the feasible set is required. However, the convergence of PGM to an element of S requires a slightly strong hypothesis that the operator is L-continuous and α-inverse strongly monotone with \(\tau \in (0,\frac{2\alpha}{L^{2}})\). In [19], the authors observed that if the strong monotonicity assumption is relaxed to monotonicity, then the situation may become divergence. To overcome this challenge, Korpelevich [24] introduced the extragradient method (EGM) as follows:
where M is a monotone operator that is L-Lipschitz continuous and \(\tau \in (0,\frac{1}{L})\). It is well known that the sequence \(\{g_{m}\}\) that is generated by (1.4) converges weakly to a point in S.
It is worthy to note that the calculation of the projection onto a closed convex set Ψ is equivalent to the solution of the minimum distance problem. It is not hard to see that EGM requires two calculations of the two projections onto Ψ in each iteration and the performance of the method may reduce if Ψ is a general closed and convex set. For some years now, the (EGM) has been modified and improved in diverse forms, see, e.g., [7–10, 27, 33, 42, 46] and the references in them.
To overcome the drawback in EGM, Censor et al. [8–10] introduced the subgradient extragradient method (SEGM) as follows:
where \(\tau \in (0,\frac{1}{L})\), M is a monotone and L-Lipschitz continuous operator. This method replaces the two projections onto Ψ in EGM by one projection onto Ψ and one onto a half space. This may speed up the convergence of the algorithm.
The second modification of (EGM), which is known as Tseng’s extragradient method (TEGM), was developed by Tseng [48] as follows:
where \(\lambda \in (0,\frac{1}{L})\) and M is a monotone and L-Lipschitz continuous operator.
The third method which was introduced to overcome the limitation of (EGM) is known as the projection and contraction method (PCM). This method was introduced by He [18] as follows:
where \(\rho \in (0,2)\), \(\tau \in (0,\frac{1}{L})\) and \(\beta _{m}\) is defined as
The SEGM, TEGM, and PCM require only to calculate one projection onto the feasible set in each iteration. For some years now, these methods have been improved in various ways by different authors, see, e.g., [2, 39, 41, 49] and the references in them. Some authors have considered the combination of the subgradient extragradient method and the projection contraction method to obtain more efficient methods, see, for example, [39, 41].
It is worthy to note that the class of quasimonotone operators properly includes the classes of monotone and pseudomonotone operators which have been studied by many authors in the recent years, see, e.g., [2, 25, 30, 56]. In applied sciences and engineering, it will be more interesting to extend the methods of solving variational inequality problems to a more general class of quasimonotone operators. The broadness and the applicability of this operator have attracted a considerable amount of interest from researchers in the last few years. For instance, in [56], Ye and He introduced an algorithm with double projection for solving variational inequality problem involving quasimonotone operators in an infinite dimensional Euclidean space \(\mathbb{R}^{m}\). In [30], Salhuddin extended the main EGM, which deals with monotone operators, to solving a variational inequality problem involving Lipschitz continuous and quasimonotone operators in infinite dimensional Hilbert spaces. In [25], Liu and Yang modified the EGM, SEGM, and TEGM using a new step size for approximating the solution variational inequality problems involving quasimonotone operators in real Hilbert spaces. Very recently, Alakoya et al. [2] improved the results of Lui and Yang [25] by introducing two inertial algorithms with self-adaptive step sizes for solving quasimonotone variational inequality problems. The authors obtained some strong convergence results without using some strict conditions used by Liu and Yang [25] in obtaining convergence results.
On the other hand, the concept of inertial technique was first studied by Polyak [29] as a process of acceleration for solving a smooth convex minimization problem. This technique is obtained from an implicit time discretization of a second-order dynamical system as heavy ball with friction. In recent years, the inertial technique has been wildly employed as the rate of convergence accelerator of algorithms for approximating the solution of several kinds of optimization problems (see [50] and the references in it). The inertial-type algorithms have been studied by several researchers, see, e.g., [2, 36–39, 41, 49] and the references in them.
It is well known that the strong convergence of iteration algorithms is more desirable and applicable than their weak convergence. Most results on variational inequality problems in the current literature deal with weak convergence. One of the techniques for obtaining the strong convergence results of an algorithm is by combining such an algorithm with the viscosity method.
Motivated and inspired by the works above, we introduce an inertial-type algorithm that combines the subgradient extragradient method, the projection contraction method, and the viscosity method. The proposed method is used for solving quasimonotone (or without monotonicity) variational inequality problems in infinite dimensional Hilbert spaces such that it does not depend on the Lipschitz constant of the cost operator. Further, we prove the strong convergence results of the new algorithm. We utilize our algorithm to solve some problems in applied sciences and engineering such as image restoration and optimal control. Some numerical experiments are carried out to support our theoretical results without using some existing restrictive assumptions. Our numerical illustrations show that our new method enjoys better speed of convergence than many existing methods.
The paper is organized as follows: We first recall some basic definitions and established results in Sect. 2. The convergence analysis of the proposed method is presented in Sect. 3. Numerical experiments and the applications of the proposed method are presented in Sect. 4. The summary of the obtained results is given in Sect. 5.
2 Preliminaries
In this section, we present some important notations, definitions, and results that will be useful in the sequel.
Let Ψ stand for a nonempty closed and convex subset of a real Hilbert space H. The weak and strong convergence of \(\{g_{m}\}\) to g are written as \(g_{m}\rightharpoonup g\) and \(g_{m}\rightarrow g\), respectively. Assume that a subsequence \(\{g_{m_{i}}\}\) of \(\{g_{m}\}\) converges weakly to a point g, then g is known as the weak cluster point of \(\{g_{m}\}\) and the set of such cluster points of \(\{g_{m}\}\) is denoted by \(\omega _{w}(g_{m})\).
Definition 2.1
An operator \(M:H\to H\) is called:
- (\(a_{1}\)):
-
contraction if there exists a constant \(c\in [0,1)\) such that
$$ \Vert Mg-Mh \Vert \leq c \Vert g-h \Vert ,\quad \forall g,h\in H; $$ - (\(a_{2}\)):
-
L-Lipschitz continuous if \(L>0\) exists with
$$ \Vert Mg-Mh \Vert \leq L \Vert g-h \Vert ,\quad \forall g,h\in H; $$ - (\(a_{3}\)):
-
L-strongly monotone if \(L>0\) exists with
$$ \langle Mg-Mh, g-h\rangle \geq L \Vert g-h \Vert ^{2},\quad \forall g,h\in H; $$ - (\(a_{4}\)):
-
monotone if
$$ \langle Mg-Mh, g-h\rangle \geq 0,\quad \forall g,h\in H; $$ - (\(a_{5}\)):
-
pseudomonotone if
$$ \langle Mh, g-h\rangle \geq 0\quad \implies \quad \langle Mg, g-h \rangle \geq 0,\quad \forall g,h\in H; $$ - (\(a_{6}\)):
-
quasimonotone if
$$ \langle Mh, g-h\rangle > 0\quad \implies \quad \langle Mg, g-h \rangle \geq 0, \quad \forall g,h\in H; $$ - (\(a_{7}\)):
-
sequentially weakly continuous if for any sequence \(\{g_{m}\}\) that converges weakly to g the sequence \(\{Mg_{m}\}\) weakly converges to Mg.
From the definition above, it is true that (\(a_{3}\)) ⇒ (\(a_{4}\)) ⇒ (\(a_{5}\)) ⇒ (\(a_{6}\)). However, the converses are not always true.
Lemma 2.1
([56])
If one of the following holds:
-
(i)
The mapping M is a pseudomonotone on Ψ and \(S\neq \emptyset \);
-
(ii)
The mapping M is the gradient of U, where U is the differential quasiconvex function of the open set \(V\supset \Psi \) and attains its global minimum on Ψ;
-
(iii)
The mapping M is quasimonotone on Ψ, \(M\neq 0\) on ψ, and Ψ is bounded;
-
(iv)
The mapping M is quasimonotone on Ψ, \(M\neq 0\) on Ψ, and there exists a positive number r such that, for all \(g\in r\) with \(\|g\|\geq r\), there exists \(h\in \Psi \) such that \(\|h\|\leq r\) and \(\langle Mg, h-g\rangle \leq 0\);
-
(v)
The mapping M is quasimonotone on Ψ, \(int \Psi \) is nonempty, and there exists \(g^{*}\in S\) such that \(Mg^{*}\neq 0\).
Then \(S_{D}\) is nonempty.
Lemma 2.2
Let H be a real Hilbert space. Then, for each \(g,h\in H\) and \(\zeta \in \mathbb{R}\), we have
-
(i)
\(\|g+h\|^{2}\leq \|g\|^{2}+2 \langle h,g+h\rangle \);
-
(ii)
\(\|g+h\|^{2}= \|g\|^{2}+2\langle g,h\rangle +\|h\|^{2}\);
-
(iii)
\(\|\zeta g+(1-\zeta )h\|^{2}=\zeta \|g\|^{2}+(1-\zeta )\|h\|^{2}- \zeta (1-\zeta )\|g-h\|^{2}\).
Lemma 2.3
([16])
Let Ψ be nonempty closed convex subset of a real Hilbert space H. Suppose \(g\in H\) and \(h\in \Psi \). Then \(h=P_{\Psi }g\iff\langle g-h,h-w\rangle \geq 0\), \(\forall w\in \Psi \).
Lemma 2.4
([16])
Let Ψ be a closed convex subset of a real Hilbert space H. If \(g\in H\), then
-
(i)
\(\|P_{\Psi }g-P_{\Psi }h\|\leq \langle P_{\Psi }g-P_{\Psi }h,g-h \rangle \), \(\forall h\in H\);
-
(ii)
\(\langle (I-P_{\Psi})g-(I-P_{\Psi})h,g-h\rangle \geq \|(I-P_{\Psi})g-(I-P_{ \Psi})h\|^{2}\), \(\forall h\in H\);
-
(iii)
\(\|P_{\Psi }g-h\|^{2}\leq \|g-h\|^{2}-\|g-P_{\Psi }g\|^{2}\), \(\forall h\in H\).
Lemma 2.5
([51])
Let \(\{u_{m}\}\) be a sequence of nonnegative real numbers such that
where \(\{\nu _{m}\}\subset (0,1)\) and \(\{v_{m}\}\), \(\{w_{m}\}\) satisfy the following conditions:
-
(a)
\(\sum_{m=0}^{\infty}\nu _{m}=\infty \);
-
(b)
\(\limsup_{m\to \infty}v_{m}\leq 0\);
-
(c)
\(w_{m}\geq 0\), ∀m, \(\sum_{m=0}^{\infty}w_{m}<\infty \). Then \(\lim_{m\to \infty}u_{m}=0\).
Lemma 2.6
([26])
If there exists a subsequence \(\{c_{m_{i}}\}\) of a nonnegative real numbers sequence \(\{c_{m}\}\) such that \(c_{m_{i}}< c_{m_{i}+1}\) for all \(i\in \mathbb{N}\). Then there exists a nondecreasing sequence \(\{s_{j}\}\) of \(\mathbb{N}\) such that \(\lim_{j\to \infty}s_{j}=\infty \) and the following inequalities are satisfied by all (sufficiently large) number \(j\in \mathbb{N}\):
3 Main results
In this section, we establish the convergence analysis of our proposed algorithm under the following assumptions:
- (\(C_{1}\)):
-
The self mapping f defined on a real Hilbert space H is a contraction with constant \(c \in (0,1)\).
- (\(C_{2}\)):
-
The positive sequence \(\{\xi _{m}\}\) satisfies \(\lim_{m\to \infty}\frac{\xi _{m}}{a_{m}}=0\), where \(\{a_{m}\}\in (0,1]\) such that \(\sum_{m=1}^{\infty}a_{m}<\infty \).
- (\(C_{3}\)):
-
The sequence \(\{b_{m}\}\subset (0,1)\) satisfies \(\sum_{m=1}^{\infty}b_{m}=\infty \), \(\lim_{m\to \infty}b_{m}=0\), and \(0< b\leq b_{m}\).
- (\(C_{4}\)):
-
\(S_{D}\neq \emptyset \).
- (\(C_{5}\)):
-
The operator M is Lipschitz continuous such that \(L>0\);
- (\(C_{6}\)):
-
The operator M is sequentially weak continuous on Ψ.
- (\(C_{7}\)):
-
The operator M is quasimonotone on Ψ.
- (\(C_{8}\)):
-
If \(g_{m}\rightharpoonup g^{*}\) and \(\limsup_{m\to \infty}\langle Mg_{m},g_{m}\rangle \leq \langle Mg^{*},g^{*}\rangle \), then \(\lim_{m\to \infty}\langle Mg_{m},g_{m}\rangle = \langle Mg^{*},g^{*} \rangle \).
Algorithm 3.1
____________________________________________________________________
Initialization: Given \(\tau _{1} >0\), \(\psi >0\), \(\eta >1\), \(\rho \in (0,\frac{2}{\eta} )\), \(\mu \in (0,1)\), and let \(g_{0},g_{1}\in H\) be arbitrary. Take \(\{q_{m}\}\subset [0,\infty )\) with \(\sum_{m=0}^{\infty}q_{m}<\infty \) and \(\{p_{m}\}\in [1,\infty )\) such that \(\lim_{m\to \infty}p_{m}=1\).
____________________________________________________________________
Iteration Steps: Compute \(g_{m+1}\) as follows:
Step 1: Given the iterates \(g_{m-1}\) and \(\{g_{m}\}\) (\(m\geq 1\)), choose \(\psi _{m}\) such that \(0\leq \psi _{m}\leq \bar{\psi}_{m} \), where
Step 2: Set
and compute
If \(t_{m}=h_{m}\) or \(Mt_{m}=0\), then stop and \(t_{m}\) is a solution. Otherwise, we go to Step 3.
Step 3: Compute
where
and
Step 4: Compute
Update
Set \(m:=m+1\) and return to Step 1.
____________________________________________________________________
Remark 3.2
Now, we highlight some of the advantages of new Algorithm 3.1 over some existing methods in the literature.
-
(1)
Our algorithm uses an efficient step size that was first introduced by Tan et al. [39]. It is not hard to see that the step size studied is quite different from those step sizes studied in many articles. To be precise, if \(q_{m}=0\) and \(p_{m}=1\) for all \(m\geq 0\), then the considered step size reduces to the step size used by several methods (see, e.g., [14, 43, 44, 53–55]). Furthermore, if \(q_{m}\neq 0\) and \(p_{m}=1\), \(\forall m\geq 0\), then the step size reduces to the step size in [25].
-
(2)
It is important to note that the additive step size in our method is updated explicitly and is permitted to increase at each iteration of algorithm, which makes it more implementable in practice.
-
(3)
The operators involved in our new algorithm are quasimonotone. This class of operators is wider than the classes of monotone and pseudomonotone operators. Hence, our method is more applicable than the methods for solving monotone and pseudomontone variational inequality problems used by many authors (see, e.g, [39, 41, 43, 44, 54, 55] and the references in them).
-
(4)
To speed up the convergence of our method, we embed a modified inertial term in our algorithm. Further, we prove our convergence results without the strict conditions imposed on the control parameter in the inertial term, i.e., \(\lim_{m\to \infty}a_{m}=0\) and \(\sum_{m=0}^{\infty}a_{m}=\infty \).
-
(5)
Our algorithm uses a nonmonotonic step size rule which allows it work without the prior knowledge of the Lipschitz constant of M. In practical application sense, this is preferable to the fixed-step algorithm studied in [11, 47]. Also, our algorithm does not require any line search rule.
-
(6)
The inertial term used in the algorithm [2, 41] has been studied by several authors in the literature. Recently, a more relaxed inertial term (3.3), which is considered in our proposed Algorithm 3.1, has been studied by a few authors (see, e.g., [39, 40, 45]). In this research direction, convergence analysis of these methods required that the relaxation parameter \(a_{m}\) in the inertial term (3.3) is in (0,1). In this article, we improve upon the existing results in this direction by proving our convergence results such that the relaxation parameter \(a_{m}\) is allowed to be chosen in (0,1]. This implies that the relaxation parameter can be chosen in a special case to be 1. Thus, our proposed algorithm improves several inertial algorithm types for solving variational inequality problems in the existing literature.
Lemma 3.3
Suppose that M is L-Lipschitz continuous on H and \(\{\tau _{m}\}\) is the sequence generated by (3.9), then there exists \(\tau \in [\min \{\frac{\mu}{L},\tau _{1} \},\tau _{1}+ \sum_{m=1}^{\infty}q_{m} ]\) with \(\tau =\lim_{m\to \infty}\tau _{m}\). Moreover,
Next we show the boundedness of the sequence \(\{g_{m}\}\) generated by Algorithm 3.1.
Lemma 3.4
If \(\{g_{m}\}\) is a sequence generated by Algorithm 3.1, then under assumptions \((C_{1})\)–\((C_{5})\), \(\{g_{m}\}\) is bounded.
Proof
Let \(g^{*}\in S_{D}\). Then from (3.2) we have
On the other hand, since by (3.1) we have
which implies that \(\lim_{m\to \infty}[(1-a_{m})\frac{\psi _{m}}{a_{m}}\|g_{m}-g_{m-1} \|+\|g^{*}\|]=\|g^{*}\|\), therefore there exists \(K_{1}>0\) such that
From (3.13) and (3.11), we obtain
Next, by (3.4), Lemma 2.4, and Lemma 2.2, we have
Now, since \(h_{m}\in \Psi \) and \(g^{*}\in S_{D}\), we have \(\langle Mh_{m},h_{m}-g^{*}\rangle \geq 0\) for all \(n\geq 0\). Thus, from (3.15), we have
On the other hand, since \(k_{m}\in Z_{m}\), we have
Hence,
Now, we estimate \(-2\rho \tau _{m}\delta _{m}\langle v_{m},t_{m}-h_{m}\rangle \) and \(2\rho \tau _{m}\delta _{m}\langle v_{m},t_{m}-k_{m}\rangle \). From (3.7) and (3.9), we have
By Lemma 3.3, we have that \(\lim_{m\to \infty}\tau _{m}\) exists. Since \(\lim_{m\to \infty}p_{m}=1\), we have \(\lim_{m\to \infty}\frac{p_{m}\tau _{m}}{\tau _{m+1}}=1\). Now, since \(\lim_{m\to \infty} (1-p_{m}\mu \frac{\tau _{m}}{\tau _{m+1}} )=1-\mu >\frac{1-\mu}{\eta}>0\), there exists \(m_{0}\in \mathbb{N}\) such that
Using (3.18) and (3.19), we have
Since \(\delta _{m}=(1-\mu )\frac{\|t_{m}-h_{m}\|^{2}}{\|v_{m}\|^{2}}\), it implies
Next, by Lemma 2.2, we get
Putting (3.22) and (3.23), we obtain
Using (3.7), we obtain
It follows from (3.25) that
Thus, from (3.6) and (3.26), we obtain
Combining (3.16), (3.22), and (3.27), we have
From (3.14) and (3.28), we obtain
From (3.8) we get
Substituting (3.29) into (3.30), we have
Since \(a_{m}\subset (0,1)\), \(b_{m}\subset (0,1)\), \(0< b\leq b_{m}\), and \(c\in (0,1)\), then it implies that \((1-(1-c)b_{m})<1\) and \((1-a_{m})<1\). Again, since \(K_{1}>0\), (3.31) becomes
This implies that \(\{g_{m}\}\) is bounded. Furthermore, it follows that \(\{k_{m}\}\), \(\{f(k_{m})\}\), and \(\{t_{m}\}\) are bounded. □
Lemma 3.5
Suppose that assumptions \((C_{1})\)–\((C_{7})\) hold and \(\{g_{m}\}\) is a sequence generated by Algorithm 3.1. If there exists a subsequence \(\{g_{m_{i}}\}\) of \(\{g_{m}\}\) with \(g_{m_{i}}\rightharpoonup p^{*}\in H\) and \(\lim_{m\to \infty}\|h_{m_{i}}-t_{m_{i}}\|=0\), then either \(p^{*}\in S_{D}\) or \(Mp^{*}=0\).
Proof
By Lemma 3.4, \(\{t_{m}\}\) is bounded. Thus, the weak cluster point set of \(\{t_{m}\}\) is nonempty. Let \(p^{*}\) be a weak cluster point of \(\{t_{m}\}\). Suppose that we take a subsequence \(\{t_{m_{i}}\}\) of \(\{t_{m}\}\) such that \(t_{m_{i}}\rightharpoonup p^{*}\in \Psi \) as \(i\to \infty \). From the hypothesis of the lemma, it implies that \(h_{m_{i}}\rightharpoonup p^{*}\in \Psi \) as \(i\to \infty \).
The following two cases will now be considered.
Case I: Assume that \(\limsup_{i\to \infty}\|Mg_{m_{i}}\|=0\). Then
Since \(h_{m_{i}}\) converges weakly to \(p^{*}\in \Psi \) and M is weakly sequentially continuous on Ψ, it implies that \(\{Mh_{m_{i}}\}\) converges weakly to \(Np^{*}\). From the sequentially lower semicontinuity of the norm, we obtain
This implies that \(Mp^{*}=0\).
Case II: Assume that \(\limsup_{i\to \infty}\|Mg_{m_{i}}\|>0\). Then, without loss of generality, we can take \(\lim_{i\to \infty}\|Mg_{m_{i}}\|=K_{2}>0\). This means that there exists \(J>0\) such that \(\|Mg_{m_{i}}\|>\frac{K_{2}}{2}\) for all \(i\geq J\). Since \(h_{m_{i}}=P_{\Psi}(t_{m_{i}}-\tau _{m_{i}}Mt_{m_{i}})\), by Lemma 2.3, we get
This implies that
It follows that
Since \(\lim_{m\to \infty}\|h_{m_{i}}-t_{m_{i}}\|=0\) and M is Lipschitz continuous on H, we have that \(\lim_{m\to \infty}\|Mt_{m_{i}}-Mh_{m_{i}}\|=0\). Thus, from (3.33), we get
As a result of (3.34), the following cases are considered under Case II:
Case 1: Assume that \(\limsup_{i\to \infty}\langle Mh_{m_{i}},h-h_{m_{i}}\rangle >0\), \(\forall h\in \Psi \). Then we can take a subsequence \(\{h_{m_{i_{j}}}\}\) of \(\{h_{m_{i}}\}\) such that \(\lim_{j\to \infty}\langle Mh_{m_{i_{j}}},h-h_{m_{i_{j}}} \rangle >0\). Hence, there exists \(j_{0}\geq 1\) such that \(\langle Mh_{m_{i_{j}}},h-h_{m_{i_{j}}}\rangle >0\), \(\forall j\geq j_{0}\). From the quasimonotonicity of M on Ψ, it implies that \(\langle Mh,h-h_{m_{i_{j}}}\rangle \geq 0\), \(\forall h\in \Psi \), \(j\geq j_{0}\). Consequently, by letting \(j\to \infty \), we obtain \(\langle Mh,h-p^{*}\rangle \geq 0\), \(\forall h\in \Psi \). Thus, \(p^{*}\in S_{D}\).
Case 2: Suppose that \(\limsup_{i\to \infty}\langle Mh_{m_{i}},h-h_{m_{i}}\rangle =0\), \(\forall h\in \Psi \). Then, by (3.34), we have
which implies that
Furthermore, since \(\lim_{i\to \infty}\|Mg_{m_{i}}\|=K_{2}>0\), there exists \(i_{0}\geq 1\) such that \(\|Mh_{m_{i}}\|>\frac{K_{2}}{2}\), \(\forall i\geq i_{0}\). Therefore, we can let \(d_{m_{i}}=\frac{Mh_{m_{i}}}{\|Mh_{m_{i}}\|^{2}}\), \(\forall i \geq i_{0}\). Hence \(\langle Mh_{m_{i}},d_{m_{i}}\rangle =1\), \(\forall i\geq i_{0}\). From (3.36) it follows that
and due to the quasimonotonicity of M on H, we get
This means that
for some \(K_{3}>0\), where \(K_{3}\) is obtained from the boundedness of \(\{h+d_{m_{i}} [|\langle Mh_{m_{i}},h-h_{m_{i}}\rangle |+ \frac{1}{i+1} ]-h_{m_{i}} \}\). Now, from (3.23), it follows that \(\lim_{j\to \infty} (|\langle Mh_{m_{i}},h-h_{m_{i}} \rangle |+\frac{1}{i+1} )=0\). Hence, as \(i\to \infty \) in (3.37), we obtain \(\langle Mh,h-p^{*}\rangle \), \(\forall h\in \Psi \). Thus, \(p^{*}\in S_{D}\). □
Now, we present the strong convergence theorem of our Algorithm 3.1 as follows.
Theorem 3.6
Suppose that assumptions \((C_{1})\)–\((C_{7})\) hold and \(Mg\neq 0\), \(\forall g\in H\). If \(\{g_{m}\}\) is a sequence generated by Algorithm 3.1, then \(\{g_{m}\}\) converges strongly to an element \(g^{*}\in S_{D}\subset S\), where \(g^{*}=P_{S_{D}}o f(g^{*})\).
Proof
Claim a:
for some \(K_{4},K_{5}>0\). Indeed, for \(g^{*}\in S_{D}\), using (3.8) and Lemma 2.2, we have
where \(K_{4}=\sup_{m\geq 1}\{2\|k_{m}-g^{*}\|\cdot \|f(g^{*})-g^{*} \|+\|f(g^{*})-g^{*}\|^{2}\}\). Putting (3.28) into (3.39), we get
Owing to (3.29), we obtain
where \(K_{5}=\sup_{m\geq 1}\{2(1-a_{m})K_{1}\|g_{m}-g^{*}\|+a_{m}K^{2}_{1} \}\). Combining (3.40) and (3.41), we get
which implies that
Claim b:
for all \(m\geq m_{0}\) and for some \(K_{6}>0\).
Indeed, from (3.2) we have
where \(K_{6}=\sup_{m\geq 1}\{\|g_{m}-g^{*}+\psi _{m}(g_{m}-g_{m-1}) \|\}\). Now, from Lemma 2.2 and (3.8), we have
Putting (3.44) into (3.45), we obtain
where \(K_{7}=\sup_{m\geq 1} \{(1-a_{m}) \frac{\psi _{m}}{a_{m}}\| g_{m}-g_{m-1}\|K_{6}+2a_{m}\| g^{*}\|\|g^{*}-t_{m} \| \}>0\).
Claim c: We now show that the sequence \(\{\|g_{m}-g^{*}\|^{2}\}\) converges strongly to zero. To show this, we consider two possible cases on the sequence \(\{\|g_{m}-g^{*}\|^{2}\}\).
Case A: There exists \(N\in \mathbb{N}\) such that \(\|g_{m+1}-g^{*}\|^{2}\leq \|g_{m}-g^{*}\|^{2}\) for all \(m\geq N\). Since \(\{\|g_{m}-g^{*}\|^{2}\}\) is bounded, it follows that \(\{\|g_{m}-g^{*}\|^{2}\}\) converges, and hence
Recalling that \(\sum_{m=1}^{\infty}a_{m}<\infty \), \(\lim_{m\to \infty}b_{m}=0\), \(\rho \in (0,\frac{2}{\eta} )\), and \(\lim_{m\to \infty} ( \frac{1-\mu}{1+p_{m}\mu \frac{\tau _{m}}{\tau _{m+1}}} )^{2}>0\), then from (3.43) it follows that
For all \(m\geq m_{0}\), we observe that \(\|v_{m}\|\geq \frac{1-\mu}{\eta}\|t_{m}-h_{m}\|\), which implies that \(\frac{1}{\|v_{m}\|}\leq \frac{\eta}{(1-\mu )\|t_{m}-h_{m}\|}\). Thus, we have
Therefore, from (3.47) it follows that
Furthermore, from (3.2) we have
Thus,
Hence, using (3.48) and (3.49), we have
Combining (3.8) and (3.50), we get
Since \(\lim_{m\to \infty}b_{m}=0\), using (3.51), we obtain
Since \(\{g_{m}\}\) is a bounded sequence, a subsequence \(\{g_{m_{j}}\}\) of \(\{g_{m}\}\) exists such that \(\{g_{m_{j}}\}\rightharpoonup z\in H\) with
Now, due to the hypothesis that \(Mg\neq 0\) for all \(g\in H\), we have \(Mz\neq 0\) for all \(z\in H\). Since \(g_{m_{i}} \rightharpoonup z\) and by (3.47), it follows from Lemma 3.5 that \(z\in S_{D}\). It is not hard to see that \(P_{S_{D}}of\) is a contraction mapping. From the Banach contraction principle, we know that \(P_{S_{D}}of\) has a unique fixed point, say \(g^{*}\in H\). That is, \(g^{*}P_{S_{D}}of(g^{*})\). By Lemma 2.3, we have
It follows that
Using (3.52) and (3.54), we have
By applying Lemma 2.5 to (3.46), we obtain \(g_{m}\to g^{*}\) as \(m\to \infty \).
Case B: There exists a subsequence \(\{\|g_{m_{i}}-g^{*}\|\}\) of \(\{\|g_{m}-g^{*}\|\}\) such that \(\|g_{m_{i}}-g^{*}\|^{2}\leq \|g_{m_{i}+1}-g^{*}\|^{2}\) for all \(i\in \mathbb{N}\). Now, by Lemma 2.6, a nondecreasing sequence \(\{s_{j}\}\) of \(\mathbb{N}\) such that \(\lim_{j\to \infty}s_{j}=\infty \), and the following inequalities are satisfied for all \(j\in \mathbb{N}\):
By (3.43), we have
This means that
Using a similar proof as in Case A, we obtain
and
According to (3.46), we have
Using (3.56) and (3.62), we have
This implies that
Thus, we have
Combining (3.56) and (3.63), we obtain \(\limsup_{m\to \infty}\|g_{j}-g^{*}\|\leq 0\), it follows that \(g_{j}\to g^{*}\) as \(j\to \infty \). This ends the proof. □
Remark 3.7
It is not hard to see that quasimonotonicity was not employed in Lemma 3.3. Also, only Case 2 of Lemma 3.5 is used. Now, we present the strong convergence result of our proposed Algorithm 3.1 without monotonicity.
Lemma 3.8
Suppose that assumptions \((C_{1})\)–\((C_{6})\), \((C_{8})\) hold and \(\{g_{m}\}\) is a sequence generated by Algorithm 3.1. If there exists a subsequence \(\{g_{m_{i}}\}\) of \(\{g_{m}\}\) with \(g_{m_{i}}\rightharpoonup p^{*}\in H\) and \(\lim_{m\to \infty}\|h_{m_{i}}-t_{m_{i}}\|=0\), then either \(p^{*}\in S_{D}\) or \(Mp^{*}=0\).
Proof
By (3.34) and using the same argument in Lemma (3.5), if we fix \(h\in \Psi \), then we obtain \(h_{m_{i}} \rightharpoonup p^{*}\), \(p^{*}\in \Psi \) and
Next, a positive sequence \(\{\epsilon _{m}\}\) such that \(\lim_{m\to \infty}=0\) and
This means that
In particular, set \(h=p^{*}\) in (3.64), we have
Letting \(m\to \infty \) in (3.65), from condition \((H_{6})\) and recalling that \(h_{m_{i}}\rightharpoonup p^{*}\), we have
By condition \((H_{8})\), we have \(\lim_{i\to \infty}\langle Mh_{m_{i}},h_{m_{i}}\rangle = \langle Mp^{*},p^{*}\rangle \). Now, from (3.64) we have
It follows that
This implies that \(p^{*}\in S_{D}\). Consequently, we know that either \(p^{*}\in S_{D}\) or \(Mp^{*}=0\) as required. □
Theorem 3.9
Suppose that assumptions \((C_{1})\)–\((C_{6})\), \((C_{8})\) hold and \(Mg\neq 0\), \(\forall g\in H\). If \(\{g_{m}\}\) is a sequence generated by Algorithm 3.1, then \(\{g_{m}\}\) converges strongly to an element \(g^{*}\in S_{D}\subset S\), where \(g^{*}=P_{S_{D}}o f(g^{*})\).
Proof
By using Lemma 3.5 and adopting the same approach in the proof of Theorem 3.6, we get the required result. □
4 Applications and numerical experiments

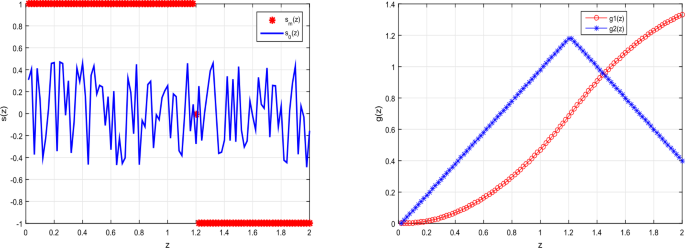

In this section, we consider the application of our proposed algorithm to image restoration problems and optimal control problems. Furthermore, we examine the efficiency of some iterative algorithm for solving quasimonotone variational inequality problems. Specifically, we numerically compare our proposed Algorithm 3.1 with Algorithms 3.2 of Alakoya et al. [2] (namely, Alakoya Alg. 3.2), Algorithm 3.1 of Liu and Yang [25] (namely, Liu and Yang Alg. 3.1), and Algorithm 2.1 of Ye and He [56] (namely, Ye and He Alg. 2.1). Throughout this section, the parameters of our proposed algorithm and the compared ones are as follows:
-
For our Algorithm 3.1, let \(\tau _{0}=0.6\), \(\psi =0.5\), \(\rho =1.6\), \(\mu =0.5\), \(a_{m}=\frac{1}{(n+1)^{2}}\), \(b_{m}=\frac{1}{(m+1)}\), \(q_{m}=\frac{1}{(m+1)^{1.1}}\), \(p_{m}=\frac{(m+1)}{m}\), \(\xi _{m}=\frac{100}{(m+1)^{3}}\), and \(f(g)=\frac{g}{5}\).
-
For Algorithm 3.2 of Alakoya et al. [2], let \(\tau _{0}=0.6\), \(\psi =0.5\), \(\rho =1.6\), \(\mu =0.5\), \(b_{m}=\frac{1}{(m+1)}\), \(q_{m}=\frac{1}{(m+1)^{1.1}}\), \(\xi _{m}=\frac{100}{(m+1)^{3}}\), and \(f(g)=\frac{g}{5}\).
-
For Algorithm 3.1 of Liu and Yang [25], let \(\tau _{0}=0.6\), \(\mu =0.5\), \(q_{m}=\frac{1}{(m+1)^{1.1}}\).
-
For Algorithm 2.1 of Ye and He [56], let \(\gamma =0.7\) and \(\sigma =0.95\).
We perform all the numerical experiments on an HP laptop with Intel(R) Core(TM)i5-6200U CPU 2.3GHz with 5 GB RAM.
4.1 Application to image restoration problem
In recent years, compressive sensing (CS) has become one of the major techniques used by several authors for image/signal processing. Image restoration is one of the most popular classical inverse problems. This kind of problem has been deeply been studied in various applications such as image deblurring, remote sensing, astronomical imaging, digital photography, radar imaging, and microscopic imaging [20].
In this part of the article, we compare the performance our Algorithm 3.1 with Algorithm 2.1 of Ye and He [56], Algorithm 3.2 of Alakoya et al. [2], Algorithm 3.1 of Liu and Yang [25] for solving an image restoration problem, which involves reformation of an image that is degraded by blur and additive noise.
Example 4.1
Consider the \(l_{1}\)-norm regularization problem that has to do with finding the solution of the following continuous optimization problem:
where A is a matrix of \(m\times n\) (\(n< m\)) dimension, d is a vector in \(\mathbb{R}^{m}\), and \(\|g\|_{1}=\sum_{i=1}^{n}|g_{i}|\) is the \(l_{1}\) norm of g. We can reconstruct expression (4.1) as the least absolute selection and shrinkage operator (LASSO) problem as follows [13, 32]:
where \(w>0\) denotes the balancing parameter. It is not hard to see that (4.2) is a convex unconstrained minimization problem that appears in image reconstruction and compress sensing, where the original image/signal is sparse in some orthogonal basis by the process
where \(g\in \mathbb{R}^{n}\), g, t, and d are unknown original image, unknown additive random noise, and known degraded observation, respectively, and A is the blurring operation. The first iterative method used to the solve (4.2) was introduced by Figureido et al. [13]. After that, many iterative methods have been studied for this problem (see [13, 17, 31, 32] and the references in them). It is important to note that the LASSO problem (4.2) can be formulated as a variational inequality problem, that is, finding \(g\in \mathbb{R}^{n}\) such that \(\langle M(g),h-g\rangle \geq 0\) for all \(h\in \mathbb{R}^{n}\), where \(Mg=A^{T}(Ag-d)\) [31]. For this, M is monotone (hence M is quasimonotone) Lipschitz continuous with \(L=\|A^{T}A\|\). Now, we let \(\Psi =\mathbb{R}^{n}\). By so doing, it means that \(Z_{m}\) defined in our proposed modified subgradient extragradient-type Algorithm 3.1 is equal to \(\mathbb{R}^{n}\). Hence, our proposed Algorithm 3.1 coincides with this problem. For more details about the equivalence of model (4.2) to variational inequality problem, we refer the reader to [1, 3, 17, 21, 34, 35, 50] and the references in them.
Next, we aim at comparing the deblurring efficiency of our proposed Algorithm 3.1 with Algorithm 3.2 of Alakoya et al. [2], Algorithm 3.1 of Liu and Yang [25], and Algorithm 2.1 of Ye and He [56]. The test images are Peppers and Board of sizes \(256\times 256\) each in the Image Processing Toolbox in the MATLAB. The image went through a Gaussian blur of size \(8\times 8\) and standard deviation of \(\sigma =4\). Now, to measure the performances of the algorithms, we use the signal-to-noise ratio (SNR) defined by
where \(g^{*}\) is the restored image and g is the original image. We use Matlab2015a to write the programs with stopping criterion \(E_{m}=\|g_{m+1}-g_{m}\|\leq 10^{-6}\).
The computation results of deblurring images of Peppers and Board are illustrated in the following Tables 1–2 and Figs. 1–4.
Degraded peppers and its restoration via various algorithms. (a) Original peppers; (b) Peppers degraded by motion blur and random noise; (c) Peppers restored by Algorithm 3.1; (d) Peppers restored by Alakoya Alg. 3.2; (e) Peppers restored by Liu and Yang Alg. 3.1 and (f) Peppers restored by Ye and He Alg. 2.1
Graph corresponding to Table 1
Graph corresponding to Table 2
Note that the larger the value of the SNR, the better the quality of the restored images. From the numerical experiments presented in Tables 1–2 and Figs. 1–4, it is evident that our proposed Algorithm 3.1 appears more promising and competitive as it outperforms Algorithm 3.2 of Alakoya et al. [2], Algorithm 3.1 of Liu and Yang [25], and Algorithm 2.1 of Ye and He [56].
4.2 Application to optimal control problem
In this part of the article, we use our proposed Algorithm 3.1 to solve variational inequality arising in the optimal control problem. Now, we consider the following example when the terminal function is nonlinear. The initial controls \(p_{0}(z)=p_{1}(z)\) are randomly taken in \([-1,1]\). We take the stopping criterion \(E_{m}=\|g_{m+1}-g_{m}\|\leq 10^{-6}\).
Example 4.2
(See [6])
The exact solution of the problem in Example 4.2 is
Algorithm 3.1 took 0.0563 sec. to obtain the approximate solution at the 89 iteration. Figure 5 represents the approximate optimal control and the corresponding trajectories of Algorithm 3.1.
4.3 Numerical experiments
Here, we consider two numerical experiments in solving quasimonotone variational inequality problems. We illustrate the benefits and computing effectiveness of our proposed Algorithm 3.1 in comparison to some well known algorithms in the literature which includes: Algorithm 3.2 of Alakoya et al. [2], Algorithm 3.1 of Liu and Yang [25] and Algorithm 2.1 of Ye and He [56].
Example 4.3
(See [25])
Let \(\Psi =[-1,1]\) and
Then the mapping is M is quasimonotone and Lipschitz continuous with \(S_{D}=\{-1\}\) and \(S=\{-1,0\}\).
We take the stopping criterion \(E_{m}=\|g_{m+1}-g_{m}\|\leq 10^{-6}\) and consider the following initial values for this experiment:
Case a: \((g_{0},g_{1})=(0.5,0.5)\);
Case b: \((g_{0},g_{1})=(-0.08,0.1)\);
Case c: \((g_{0},g_{1})=(0.1,0.9)\);
Case d: \((g_{0},g_{1})=(-5,-0.001)\).
We compare the convergence efficiency of our proposed Algorithm 3.1 with Algorithm 3.2 of Alakoya et al. [2], Algorithm 3.1 of Liu and Yang [25] and Algorithm 2.1 of Ye and He [56]. The graphs of errors against the iteration numbers in each case are plotted. We report the numerical results in Table 3 and Fig. 6.
Example 4.4
(See [30])
Let \(H=\ell _{2}\), where \(\ell _{2}\) is a real Hilbert space whose elements are square summable sequences of real numbers, that is, \(\ell _{2}=\{g=(g_{1},g_{2},\ldots ,g_{j},\ldots ),j=1,2,\ldots , \sum_{j=1}^{\infty}|g_{j}|^{2}<\infty \}\). Let \(p,q\in \mathbb{R}\) be such that \(q>p>\frac{q}{2} >0\). If \(\Psi =\{g\in \ell _{2}:\|g\|\leq p\}\) and \(Mg=(q-\|g\|)g\), then M is quasimonotone and Lipschitz continuous with \(S_{D}={0}\). We set \(p=3\) and \(q=5\).
Wet take the stopping criterion \(E_{m}=\|g_{m+1}-g_{m}\|\leq 10^{-5}\) and consider the following initial values for this experiment:
Case I: \(g_{0}=g_{1}=(1,1,\ldots ,1_{50{,}000},0,0,\ldots )\);
Case II: \(g_{0}=g_{1}=(2,2,\ldots ,2_{50{,}000},0,0,\ldots )\);
Case III: \(g_{0}=g_{1}=(1,2,\ldots ,{50{,}000},0,0,\ldots )\);
Case IV: \(g_{0}=g_{1}=(10,10,\ldots ,10_{50{,}000},0,0,\ldots )\).
We compare the convergence efficiency of our proposed Algorithm 3.1 with Algorithm 3.2 of Alakoya et al. [2], Algorithm 3.1 of Liu and Yang [25], and Algorithm 2.1 of Ye and He [56]. The graphs of errors against the iteration numbers in each case are plotted. We report the numerical results in Table 4 and Fig. 7.
5 Conclusion
In this paper, we constructed an inertial modified subgradient extragradient-type Algorithm 3.1 for solving variational inequality problems involving quasimonotone and Lipschitz continuous operators in a real Hilbert space. The step-size considered in our algorithm is explicitly and adaptively updated without prior knowledge of the Lipschitz constant of the operator. We proved the strong convergence results of our proposed algorithm under some mild assumptions imposed on the control parameters. We utilize our method to solve some problems in applied sciences and engineering such as image restoration and optimal control problems. We carried out several numerical experiments to show that our method outperforms many well known methods in the existing literature.
Availability of data and materials
Not applicable.
References
Adamu, A., Deepho, J., Ibrahim, A.H., Abubakar, A.B.: Approximation of zeros of sum of monotone mappings with applications to variational inequality and image restoration problems. Nonlinear Funct. Anal. Appl. 26(2), 411–432 (2021)
Alakoya, T.O., Mewomo, O.T., Shehu, Y.: Math. Methods Oper. Res. 95, 249–279 (2022)
Altiparmak, E., Karaha, I.: Image restoration using an inertial viscosity fixed point algorithm (2021). arXiv:2108.05146v1 [math.FA]
Aubin, J.P., Ekeland, I.: Applied Nonlinear Analysis. Wiley, New York (1984)
Baiocchi, C., Capelo, A.: Variational and Quasivariational Inequalities: Applications to Free Boundary Problems. Wiley, New York (1984)
Bressan, B., Piccoli, B.: Introduction to the Mathematical Theory of Control. Am. Inst. of Math. Sci., San Francisco (2007)
Cai, X., Gu, G., He, B.: On the \(O(\frac{1}{t})\) convergence rate of the projection and contraction methods for variational inequalities with Lipschitz continuous monotone operators. Comput. Optim. Appl. 57, 339–363 (2014)
Censor, Y., Gibali, A., Reich, S.: The subgradient extragradient method for solving variational inequalities in Hilbert space. J. Optim. Theory Appl. 148, 318–335 (2011)
Censor, Y., Gibali, A., Reich, S.: Strong convergence of subgradient extragradient methods for the variational inequality problem in Hilbert space. Optim. Methods Softw. 26, 827–845 (2011)
Censor, Y., Gibali, A., Reich, S.: Extensions of Korpelevich’s extragradient method for the variational inequality problem in Euclidean space. Optimization 61, 1119–1132 (2011)
Cholamjiak, P., Thong, D.V., Cho, Y.J.: A novel inertial projection and contraction method for solving pseudomonotone variational inequality problems. Acta Appl. Math. 169, 217–245 (2020)
Cottle, R.W., Yao, J.C.: Pseudo-monotone complementarity problems in Hilbert space. J. Optim. Theory Appl. 75, 281–295 (1992)
Figueiredo, M.A.T., Nowak, R.D., Wright, S.J.: Gradient projection for sparse reconstruction: application to compressed sensing and other inverse problems. IEEE J. Sel. Top. Signal Process. 1, 586–597 (2007)
Gibali, A., Thong, D.V.: Tseng type-methods for solving inclusion problems and its applications. Calcolo 55, Article ID 49 (2018)
Glowinski, R., Lions, J.L., Trémolières, R.: Numerical Analysis of Variational Inequalities. North-Holland, Amsterdam (1981)
Goebel, K., Reich, S.: Uniform Convexity, Hyperbolic Geometry, and Nonexpansive Mappings. Dekker, New York (1984)
Harbau, M.H., Ugwunnadi, G.C., Jolaoso, L.O., Abdulwahab, A.: Inertial accelerated algorithm for fixed point of asymptotically nonexpansive mapping in real uniformly convex Banach spaces. Axioms 10, 147 (2021)
He, B.S.: A class of projection and contraction methods for monotone variational inequalities. Appl. Math. Optim. 35, 69–76 (1997)
He, B.S., Liao, L.Z.: Improvements of some projection methods for monotone nonlinear variational inequalities. J. Optim. Theory Appl. 12, 111–128 (2002)
Janngam, K., Suantai, S.: An accelerated forward-backward algorithm with applications to image restoration problems. Thai J. Math. 19, 325–339 (2021)
Jolaoso, L.O., Aphane, M., Khan, S.H.: Two Bregman projection methods for solving variational inequality problems in Hilbert spaces with applications to signal processing. Symmetry 12, 2007 (2020)
Kinderlehrer, D., Stampacchia, G.: An Introduction to Variational Inequalities and Their Applications. Academic Press, New York (1980)
Konnov, I.V.: Combined Relaxation Methods for Variational Inequalities. Springer, Berlin (2001)
Korpelevich, G.M.: An extragradient method for finding saddle points and other problems. Èkon. Mat. Metody 12, 747–756 (1976)
Liu, H., Yang, J.: Weak convergence of iterative methods for solving quasimonotone variational inequalities. Comput. Optim. Appl. 77, 491–508 (2020)
Mainge, P.E.: A hybrid extragradient-viscosity method for monotone operators and fixed problems. SIAM J. Control Optim. 47, 1499–1515 (2008)
Malitsky, Y.V.: Projected reflected gradient methods for monotone variational inequalities. SIAM J. Optim. 25, 502–520 (2015)
Marcotte, P.: Applications of Khobotov’s algorithm to variational and network equlibrium problems. Inf. Syst. Oper. Res. 29, 258–270 (1991)
Polyak, B.T.: Some methods of speeding up the convergence of iteration methods. USSR Comput. Math. Math. Phys. 4, 1–17 (1964)
Salahuddin: The extragradient method for quasi-monotone variational inequalities. Optimization 71, 2519–2528 (2022)
Shehu, Y., Iyiola, O.S., Ogbuisi, F.U.: Iterative method with inertial terms for nonexpansive mappings, applications to compressed sensing. Numer. Algorithms 83, 1321–1347 (2020)
Shehu, Y., Vuong, P.T., Cholamjiak, P.: A self-adaptive projection method with an inertial technique for split feasibility problems in Banach spaces with applications to image restoration problems. J. Fixed Point Theory Appl. 21, 1–24 (2019)
Solodov, M.V., Svaiter, B.F.: A new projection method for variational inequality problems. SIAM J. Control Optim. 37, 765–776 (1999)
Suantai, S., Peeyada, P., Cholamjiak, W., Duttac, H.: Image deblurring using a projective inertial parallel subgradient extragradient-line algorithm of variational inequality problems. Filomat 36, 423–437 (2022)
Suantai, S., Peeyada, P., Yambangwai, D., Cholamjiak, W.: A parallel-viscosity-type subgradient extragradient–line method for finding the common solution of variational inequality problems applied to image restoration problems. Mathematics 8, 248 (2020)
Tan, B., Cho, S.Y., Yao, J.: Accelerated inertial subgradient extragradient algorithms with non-monotonic step sizes for equilibrium problems and fixed point problems. J. Nonlinear Var. Anal. 6, 89–122 (2022)
Tan, B., Qin, X., Cho, S.Y.: Revisiting subgradient extragradient methods for solving variational inequalities. Numer. Algorithms 90, 1593–1615 (2022)
Tan, B., Qin, X., Yao, J.: Strong convergence of inertial projection and contraction methods for pseudomonotone variational inequalities with applications to optimal control problems. J. Glob. Optim. 82, 523–557 (2022)
Tan, B., Sunthrayuth, P., Cholamjiak, P., Cho, Y.J.: Modified inertial extragradient methods for finding minimum-norm solution of the variational inequality problem with applications to optimal control problem. Int. J. Comput. Math. 100, 525–545 (2023)
Thong, D.V., Anh, P.K., Dung, V.T., Linh, D.T.M.: A novel method for finding minimum-norm solutions to pseudomonotone variational inequalities. Netw. Spat. Econ. 23, 39–64 (2023)
Thong, D.V., Dung, V.T.: A relaxed inertial factor of the modified subgradient extragradient method for solving pseudo monotone variational inequalities in Hilbert spaces. Acta Math. Sci. Ser. B Engl. Ed. 43, 184–204 (2023)
Thong, D.V., Hieu, D.V.: Modified subgradient extragradient method for inequality variational problems. Numer. Algorithms 79, 579–610 (2018)
Thong, D.V., Hieu, D.V.: Some extragradient-viscosity algorithms for solving variational inequality problems and fixed point problems. Numer. Algorithms 82, 761–789 (2019)
Thong, D.V., Hieu, D.V., Rassias, T.M.: Self adaptive inertial subgradient extragradient algorithms for solving pseudomonotone variational inequality problems. Optim. Lett. 14, 115–144 (2020)
Thong, D.V., Liu, L., Dong, Q., Long, L.V., Tuan, P.A.: Fast relaxed Tseng’s method-base algorithm for solving variational inequality and fixed point problems in Hilbert space. J. Comput. Appl. Math. 418, 114739 (2023)
Thong, D.V., Shehu, Y., Iyiola, O.: Weak and strong convergence theorems for solving pseudo-monotone variational inequalities with non-Lipschitz mappings. Numer. Algorithms 84, 795–823 (2020)
Thong, D.V., Vinh, N.T., Cho, Y.J.: New strong convergence theorem of the inertial projection and contraction method for variational inequality problems. Numer. Algorithms 84, 285–305 (2020)
Tseng, P.: A modified forward-backward splitting method for maximal monotone mappings. SIAM J. Control Optim. 38, 431–446 (2000)
Wang, K., Wang, Y., Iyiola, O.S., Shehu, Y.: Double inertial projection method for variational inequalities with quasi–monotonicity, Optimization. https://doi.org/10.1080/02331934.2022.2123241
Wang, Z., Sunnthrayuth, P., Abubakar, A., Cholamjiak, P.: Modified accelerated Bregman projection methods for solving quasimotone variational inequalities. Optimization (2023)
Xu, H.K.: Iterative algorithms for nonlinear operators. J. Lond. Math. Soc. 66, 240–256 (2002)
Yang, J.: Projection and contraction methods for solving bilevel pseudomonotone variational inequalities. Acta Appl. Math. 177, Article ID 7 (2022)
Yang, J., Cholamjiak, P., Sunthrayuth, P.: Modified Tseng’s splitting algorithms for the sum of two monotone operators in Banach spaces. AIMS Math. 6, 4873–4900 (2021)
Yang, J., Liu, H.: A modified projected gradient method for monotone variational inequalities. J. Optim. Theory Appl. 179, 197–211 (2018)
Yang, J., Liu, H.: Strong convergence result for solving monotone variational inequalities in Hilbert space. Numer. Algorithms 80, 741–752 (2019)
Ye, M.L., He, Y.R.: A double projection method for solving variational inequalities without monotonicity. Comput. Optim. Appl. 60, 141–150 (2015)
Funding
This work does not receive any external funding.
Author information
Authors and Affiliations
Contributions
A.E.O. and A.A.M. made conceptualization, methodology and writing draft preparation. G.C.U. and H.I. performed the formal analysis, writing-review and editing. O.K.N. made investigation, review and validation. All authors read and approved the final version.
Corresponding author
Ethics declarations
Ethics approval and consent to participate
This article does not contain any studies with human participants or animals performed by any of the authors.
Competing interests
The authors declare no competing interests.
Additional information
Publisher’s Note
Springer Nature remains neutral with regard to jurisdictional claims in published maps and institutional affiliations.
Rights and permissions
Open Access This article is licensed under a Creative Commons Attribution 4.0 International License, which permits use, sharing, adaptation, distribution and reproduction in any medium or format, as long as you give appropriate credit to the original author(s) and the source, provide a link to the Creative Commons licence, and indicate if changes were made. The images or other third party material in this article are included in the article’s Creative Commons licence, unless indicated otherwise in a credit line to the material. If material is not included in the article’s Creative Commons licence and your intended use is not permitted by statutory regulation or exceeds the permitted use, you will need to obtain permission directly from the copyright holder. To view a copy of this licence, visit http://creativecommons.org/licenses/by/4.0/.
About this article
Cite this article
Ofem, A.E., Mebawondu, A.A., Ugwunnadi, G.C. et al. A modified subgradient extragradient algorithm-type for solving quasimonotone variational inequality problems with applications. J Inequal Appl 2023, 73 (2023). https://doi.org/10.1186/s13660-023-02981-7
Received:
Accepted:
Published:
DOI: https://doi.org/10.1186/s13660-023-02981-7
MSC
- 47H05
- 47J20
- 47J25
- 65K15
Keywords
- Variational inequality problem
- Quasimonotone operator
- Strong convergence
- Relaxed inertial extragradient subgradient method
