Error estimates of finite volume method for Stokes optimal control problem

Abstract

In this paper, we discuss a priori error estimates for the finite volume element approximation of optimal control problem governed by Stokes equations. Under some reasonable assumptions, we obtain optimal \(L^{2}\)-norm error estimates. The approximate orders for the state, costate, and control variables are \(O(h^{2})\) in the sense of \(L^{2}\)-norm. Furthermore, we derive \(H^{1}\)-norm error estimates for the state and costate variables. Finally, we give some conclusions and future works.

Introduction

Flow control problems have been widely used in science and engineering. Finite element [2, 5], finite difference [28], and spectral [7] methods have been employed to numerically solve them. Finite volume method is an effective discretization technique for partial differential equations. Due to its local conservative property and other attractive properties, the finite volume method is widely used in the numerical approximation fluid dynamics. Since the method was proposed, there have been a lot of studies of mathematical theory for the finite volume method in the literature [1, 3, 4, 6, 10, 11, 14, 15]. Bank and Rose obtained some results for elliptic boundary value problems that the finite volume element approximation was comparable with the finite element approximation in \(H^{1}\)-norm which can be found in [1]. In [15], the authors presented the optimal \(L^{2}\)-error estimate for second-order elliptic boundary value problems under the assumption that \(f\in H^{1}\), they also obtained the \(H^{1}\)-norm and maximum-norm error estimates for those problems. In [6], Chatzipantelidis proposed a nonconforming finite volume method and obtained the \(L^{2}\)-norm and \(H^{1}\)-norm error estimates for elliptic boundary value problems in two dimensions. The authors discussed a priori estimates for a linear elliptic optimal control problem in [26], they derived the optimal order error estimates in \(L^{2}\) and \(L^{\infty }\)-norm for the state, costate, and control variables, and the optimal \(H^{1}\) and \(W^{1,\infty }\)-norm error estimates for the state and costate variables. At the same time, there are some other literature works to study optimal control problems [8, 9, 16, 1925].

In fact, finite volume methods lie somewhere between finite difference and finite element methods, they have a flexibility similar to that of finite element methods for handling complicated solution domain geometries and boundary conditions, and they have a simplicity for implementation comparable to finite difference methods with triangulations of a simple structure. The finite volume methods and finite element methods are commonly employed in computational fluid mechanics and computational solid dynamics, where the finite volume method is traditionally associated with computational fluid mechanics and the finite element method is associated with computational solid dynamics. In general, two different functional spaces (one for the trial space and one for the test space) are used in the finite volume method. Owing to the two different spaces, the numerical analysis of the finite volume method is more difficult than that of the finite element method and finite difference method. In [18], the authors developed a family of stabilized discontinuous finite volume element methods for the Stokes equations. A priori error estimates are derived for the velocity and pressure in the energy norm, and convergence rates are predicted for velocity in the \(L_{2}\)-norm under the assumption that the source term was locally in \(H_{1}\). In [13], the authors established a general framework for analyzing the class of finite volume methods for the Stokes equations. Under the framework, optimal \(L_{2}\) error estimates for velocity were obtained for the first time for several different finite volume methods. In recent years, the authors studied the Legendre–Galerkin in spectral approximation of distributed optimal control problems governed by Stokes equations. They derived a priori error estimates in both \(H_{1}\) and \(L_{2}\) norms for the Legendre–Galerkin approximation of the unconstrained control problems in [7]. However, a priori error estimates for the finite volume element approximation of optimal control problem governed by Stokes equations have few papers to study.

In this paper, we mainly establish finite volume schemes for Stokes optimal control problem and obtain some optimal order error estimates. Firstly, we use the finite volume method to discretize the state and adjoint equation of the optimal control problem. Then, applying the variational discretization concept [17], the control variable is not discretized directly, but discretized by a projection of the discrete costate variable. At last, we obtain some optimal order error estimates under some reasonable assumptions.

In this paper, we adopt the standard notation \(W^{m,p}(\Omega )\) for Sobolev spaces on Ω with a norm \(\| v \|_{m,p}^{p}\) given by \(\| v \|_{m,p}^{p}=\sum_{\mid \alpha \mid \leq m}\| D^{\alpha }v\|_{L^{p}(\Omega )}^{p}\) and the semi-norm \(\mid v\mid _{m,p}^{p}=\sum_{\mid \alpha \mid = m}\| D^{\alpha }v\|_{L^{p}(\Omega )}^{p}\). We set \(W_{0}^{m,p}(\Omega )=\{v\in W^{m,p}(\Omega ): v\mid _{\partial \Omega }=0\}\). For \(p=2\), we denote \(H^{m}(\Omega )=W^{m,2}(\Omega )\), \(H_{0}^{m}(\Omega )=W_{0}^{m,2}(\Omega )\), \(\|\cdot \|_{m}=\|\cdot \|_{m,2}\), and \(\|\cdot \|=\|\cdot \|_{0,2}\). Let \(\|\cdot \|_{\infty }\) denote the maximum norm, \(\|f\|_{\infty }=\mathrm{ess} \sup_{x\in \Omega }|f(x)|\). \(L^{2}_{0}(\Omega )=\{q\in L^{2}(\Omega ); \int _{\Omega }q =0\}\). As usual, we use \((\cdot,\cdot )\) to denote the \(L^{2}(\Omega )\)-inner product.

In this paper, we consider the following Stokes optimal control problem:

$$\begin{aligned} & \min_{u\in U_{ad}}\frac{1}{2} \Vert y- y_{d} \Vert ^{2}_{L^{2}(\Omega )}+ \frac{1}{2} \Vert u \Vert ^{2}_{L^{2}(\Omega )}, \end{aligned}$$
(1.1)
$$\begin{aligned} &-\upsilon \triangle y+\nabla r=f+u, \quad\text{in } \Omega, \end{aligned}$$
(1.2)
$$\begin{aligned} &\nabla \cdot y=0, \quad\text{in } \Omega, \end{aligned}$$
(1.3)
$$\begin{aligned} &y=0, \quad\text{on } \partial \Omega, \end{aligned}$$
(1.4)

where \(\Omega \subset \mathbb{R}^{2}\) is a bounded convex polygon domain with boundary Ω, \(f\in L^{2}(\Omega )^{2}\) or \(H^{1}_{0}(\Omega )^{2}\), \(\upsilon >0\) is a given constant, and \(y,u\) are unknown functions, \(U_{ad}\) is denoted by

$$\begin{aligned} U_{ad}=\bigl\{ u\in L^{2}(\Omega )^{2}: u(x)\geq 0, \text{ a.e. in } \Omega \bigr\} . \end{aligned}$$

Let

$$\begin{aligned} &a(y,w)=\upsilon \int _{\Omega }\nabla y\cdot \nabla w,\quad \forall w \in H_{0}^{1}(\Omega )^{2}, \\ &b(w,r)= \int _{\Omega }r\nabla \cdot w, \quad\forall (w,r)\in H_{0}^{1}( \Omega )^{2}\times L_{0}^{2}( \Omega ), \\ &(u,w)= \int _{\Omega }u\cdot w, \quad\forall (u,w)\in L_{0}^{2}( \Omega )^{2}\times H_{0}^{1}(\Omega )^{2}. \end{aligned}$$

The bilinear form \(b(\cdot,\cdot )\) relating the functional spaces for velocity and pressure satisfies the following Babuška–Brezzi condition (see [27] for example): there exists a constant \(\varsigma > 0\) such that

$$\begin{aligned} \inf_{q\in L_{0}^{2}(\Omega )}\sup_{v\in H_{0}^{1}(\Omega )^{2}} \frac{b(v,q)}{ \Vert v \Vert _{1}}\geq \varsigma \Vert q \Vert . \end{aligned}$$
(1.5)

The weak formulation associated with the state equations (1.1)–(1.4) is given as follows: find \((y,r)\in H^{1}_{0}(\Omega )^{2}\times L^{2}_{0}(\Omega )\) such that

$$\begin{aligned} & \min_{u\in U_{ad}}\frac{1}{2} \Vert y- y_{d} \Vert ^{2}_{L^{2}(\Omega )}+ \frac{1}{2} \Vert u \Vert ^{2}_{L^{2}(\Omega )} \end{aligned}$$
(1.6)
$$\begin{aligned} &a(y, w)-b(w,r)=(f+u,w),\quad \forall w\in H^{1}_{0}(\Omega )^{2}, \end{aligned}$$
(1.7)
$$\begin{aligned} &b(y,\phi )=0,\quad \forall \phi \in L^{2}_{0}( \Omega ). \end{aligned}$$
(1.8)

The paper is organized as follows. In Sect. 2, we present some notations and describe the finite volume method briefly. In Sect. 3, we analyze the error estimates between the exact solution and the finite volume element approximation. Finally, we give a conclusion and some possible future work in Sect. 4.

Finite volume element approximation

As is shown in [15], the partition \(\mathcal{T}_{h}\) is quasi-uniform, i.e., there exists a positive constant C such that

$$\begin{aligned} C^{-1}h^{2}\leq \operatorname{meas}(V_{i})\leq Ch^{2}, \quad\forall V_{i} \in \mathcal{T}_{h}. \end{aligned}$$

For the convex polygon Ω, we consider a quasi-uniform triangulation \(\mathcal{T}_{h}\) consisting of closed triangle elements K such that \(\bar{\Omega }=\bigcup_{K\in \mathcal{T}_{h}}K\). We use \(N_{h}\) to denote the set of all nodes or vertices of \(\mathcal{T}_{h}\), \(N_{t}\) denote the number of triangles in the primal partition. To define the dual partition \(\mathcal{T}_{h}^{*}\) of \(\mathcal{T}_{h}\), we divide each \(K\in \mathcal{T}_{h}\) into three quadrilaterals by connecting the barycenter \(C_{K}\) of K with line segments to the midpoints of edges of K as is shown in Fig. 1.

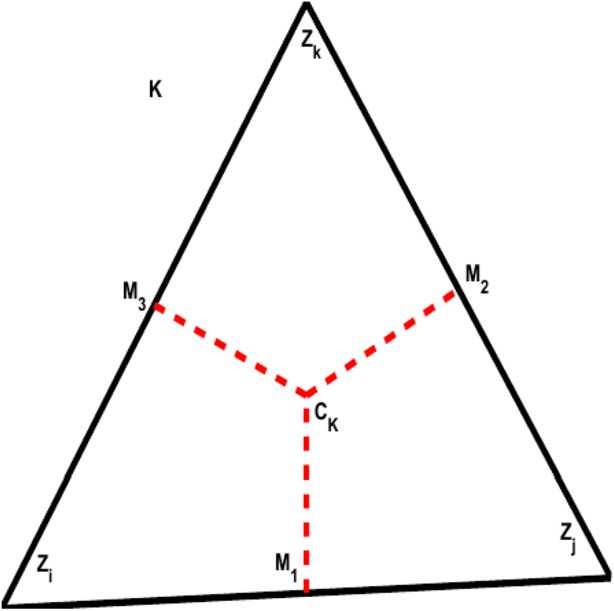

Figure 1
figure1

The dual partition of a triangular K

The control volume \(V_{i}\) consists of the quadrilaterals sharing the same vertex \(z_{i}\) as is shown in Fig. 2.

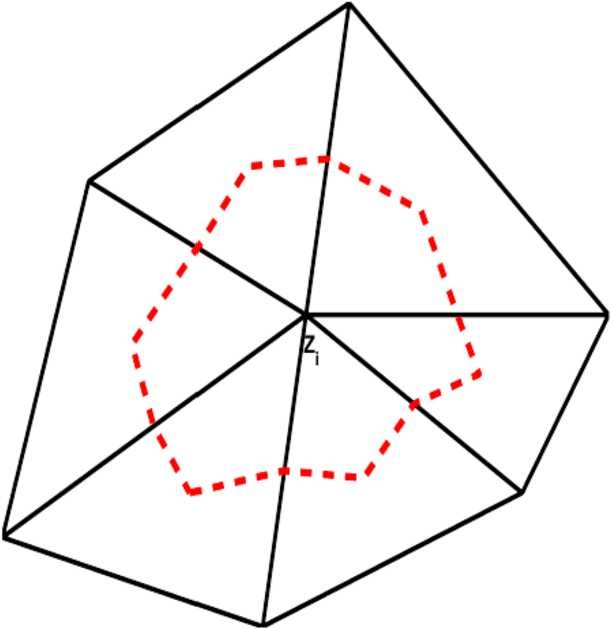

Figure 2
figure2

The control volume \(V_{i}\) sharing the same vertex \(z_{i}\)

The dual partition \(\mathcal{T}_{h}^{*}\) consists of the union of the control volume \(V_{i}\). Let \(h=\max \{h_{K} \}\), where \(h_{K}\) is the diameter of the triangle K. The dual partition \(\mathcal{T}_{h}^{*}\) is also quasi-uniform.

We define the finite dimensional space \(V_{h}\) associated with \(\mathcal{T}_{h}\) for the trial functions by

$$\begin{aligned} V_{h}=\bigl\{ v: v\in L^{2}(\Omega )^{2}, v|_{K}\in P_{1}(K)^{2}, \forall K\in \mathcal{T}_{h}, v|_{\partial \Omega }=0 \bigr\} , \end{aligned}$$

and define the finite dimensional space \(Q_{h}\) associated with the dual partition \(\mathcal{T}_{h}^{*}\) for the test functions by

$$\begin{aligned} Q_{h}=\bigl\{ q\in L^{2}(\Omega )^{2}: q|_{V}\in P_{0}(V)^{2}, \forall V \in \mathcal{T}_{h}^{*}; q|_{V_{z}}=0, z\in \partial \Omega \bigr\} , \end{aligned}$$

where \(V_{z}\) is a dual element and \(P_{l}(K)\) or \(P_{l}(V)\) consists of all the polynomials with degree less than or equal to l defined on K or V.

Let \(R_{h}\) be the following finite dimensional space for pressure:

$$\begin{aligned} R_{h}=\bigl\{ r\in L_{0}^{2}(\Omega ): r|_{K}\in P_{0}(K), \forall k \in \mathcal{T}_{h} \bigr\} . \end{aligned}$$

To connect the trial space and the test space, we define a transfer operator \(I_{h}: V_{h}\rightarrow Q_{h}\) as follows:

$$\begin{aligned} I_{h}v_{h}=\sum_{z_{i}\in N_{h}} v_{h}(z_{i})\chi _{i}, I_{h}v_{h}|_{V_{i}}=v_{h}(z_{i}),\quad \forall V_{i} \in \mathcal{T}_{h}^{*}, \end{aligned}$$

where \(\chi _{i}\) is the characteristic function of \(V_{i}\).

It is well known (see [12] for example) that there exists a positive constant C such that, for all \(v\in V_{h}\),

$$\begin{aligned} & \Vert v-I_{h}v \Vert \leq C h \Vert v \Vert _{1}, \end{aligned}$$
(2.1)
$$\begin{aligned} &a(v_{h},I_{h}v_{h})\geq C \Vert v_{h} \Vert _{1}^{2}. \end{aligned}$$
(2.2)

The finite volume scheme of (1.6)–(1.8) is defined as the solution of the problem: find \((y_{h},r_{h})\in V_{h}\times R_{h}\) such that

$$\begin{aligned} &a(y_{h}, I_{h}w_{h})-b(I_{h}w_{h},r_{h})=(f+u_{h},I_{h}w_{h}),\quad \forall w_{h}\in H^{1}_{0}(\Omega )^{2}, \end{aligned}$$
(2.3)
$$\begin{aligned} &b(I_{h}y_{h},\phi _{h})=0,\quad \forall \phi \in R_{h}, \end{aligned}$$
(2.4)

where the bilinear forms \(a(y_{h},I_{h}w_{h})\) and \(b(I_{h}w_{h},r_{h})\) are defined by

$$\begin{aligned} a(y_{h},I_{h}w_{h})=-A\sum _{z_{i}\in N_{h}}w_{h}(z_{i}) \int _{ \partial V_{i}} \nabla y_{h}\cdot \mathbf{n}\,ds,\quad y_{h},w_{h}\in H^{1}_{0}( \Omega )^{2}\cap V_{h} \end{aligned}$$

and

$$\begin{aligned} b(I_{h}w_{h},r_{h})=\sum _{z_{i}\in N_{h}}w_{h}(z_{i}) \int _{ \partial V_{i}} r_{h} \mathbf{n}\,ds,\quad r_{h},w_{h}\in R_{h}\cap V_{h}, \end{aligned}$$

where n is the unit outward normal vector to \(\partial V_{i}\).

The bilinear form \(a(\cdot,\cdot )\) is not symmetric though the problem is self-adjoint. Then, for all \(w_{h},v_{h}\in V_{h}\), there exist positive constants C and \(h_{0}\geq 0\) such that [11], for all \(0< h< h_{0}\),

$$\begin{aligned} \bigl\vert a(w_{h},I_{h}v_{h})-a(v_{h},I_{h}w_{h}) \bigr\vert \leq C h \Vert w_{h} \Vert _{1} \Vert v_{h} \Vert _{1}. \end{aligned}$$
(2.5)

It is well known (see, e.g., [20]) that the optimal control problem (1.1)–(1.4) has a unique solution \((y,r,u)\), and that if a triplet \((y,r,u)\) is the solution of (1.1)–(1.4), then there is a co-state \((p,s)\in H^{1}_{0}(\Omega )^{2}\times L^{2}_{0}(\Omega )\) such that \((y,r,p,s,u)\) satisfies the following optimality conditions:

$$\begin{aligned} &a(y, w)-b(w,r)=(f+u,w),\quad \forall w\in H^{1}_{0}( \Omega )^{2}, \end{aligned}$$
(2.6)
$$\begin{aligned} &b(y,\phi )=0, \quad\forall \phi \in L^{2}_{0}( \Omega ), \end{aligned}$$
(2.7)
$$\begin{aligned} &a(q,p)+b(q,s)=(y-y_{d},q), \quad\forall q\in H^{1}_{0}(\Omega )^{2}, \end{aligned}$$
(2.8)
$$\begin{aligned} &b(p,\psi )=0, \quad\forall \psi \in L^{2}_{0}( \Omega ), \end{aligned}$$
(2.9)
$$\begin{aligned} &(u+p,v-u)\geq 0, \quad{\forall v \in U_{ad}}. \end{aligned}$$
(2.10)

We use the finite volume method to discretize the state and costate equation. Then the optimal control problem (2.6)–(2.10) can be approximated as follows: find \((y_{h},r_{h},p_{h},s_{h},u_{h})\in V_{h}\times R_{h}\times V_{h} \times R_{h}\times U_{ad}\) such that

$$\begin{aligned} &a(y_{h}, I_{h}w_{h})-b(I_{h}w_{h},r_{h})=(f+u_{h},I_{h}w_{h}),\quad \forall w_{h}\in V_{h}, \end{aligned}$$
(2.11)
$$\begin{aligned} &b(I_{h}y_{h},\phi _{h})=0,\quad \forall \phi \in R_{h}, \end{aligned}$$
(2.12)
$$\begin{aligned} &a(p_{h},I_{h}q_{h})+b(I_{h}q_{h},s_{h})=(y_{h}-y_{d},I_{h}q_{h}),\quad \forall q_{h}\in V_{h}, \end{aligned}$$
(2.13)
$$\begin{aligned} &b(I_{h}p_{h},\psi _{h})=0,\quad \forall \psi \in R_{h}, \end{aligned}$$
(2.14)
$$\begin{aligned} &(u_{h}+p_{h},v_{h}-u_{h}) \geq 0, \quad\forall v_{h} \in U_{ad}. \end{aligned}$$
(2.15)

\(L^{2}\) error estimates

In this section, we consider the error analysis of the finite volume element approximation. Let \((y_{h}(u),r_{h}(u),p_{h}(y),s_{h}(y))\) be the solution of

$$\begin{aligned} &a\bigl(y_{h}(u),I_{h}w_{h}\bigr)-b \bigl(r_{h}(u),I_{h}w_{h}\bigr)=(f+u,I_{h}w_{h}),\quad \forall w_{h}\in V_{h}, \end{aligned}$$
(3.1)
$$\begin{aligned} &b\bigl(I_{h}y_{h}(u),\phi _{h}\bigr)=0,\quad \forall \phi _{h}\in R_{h}, \end{aligned}$$
(3.2)
$$\begin{aligned} &a\bigl(p_{h}(y),I_{h}q_{h}\bigr)+b \bigl(s_{h}(y),I_{h}q_{h}\bigr)= \bigl(y_{h}(u)-y_{d},I_{h}q_{h}\bigr),\quad \forall q_{h}\in V_{h}. \end{aligned}$$
(3.3)
$$\begin{aligned} &b\bigl(I_{h}p_{h}(y),\psi _{h}\bigr)=0,\quad \forall \psi _{h}\in R_{h} . \end{aligned}$$
(3.4)

For \(y_{h}(u)\) and \(p_{h}(u)\), note that \(y_{h}=y_{h}(u_{h})\) and \(p_{h}=p_{h}(u_{h})\).

Firstly, we give some intermediate error estimates.

Lemma 3.1

Let \((y,r,p,s,u)\) and \((y_{h},r_{h},p_{h},s_{h},u_{h})\in V_{h}\times R_{h}\times V_{h} \times R_{h}\times U_{ad}\) be the solutions of (2.6)(2.10) and (2.11)(2.15), respectively. Assume that \((y_{h}(u),r_{h}(u),p_{h}(y),s_{h}(y))\) are the solutions of (3.1)(3.4), respectively. Then we have

$$\begin{aligned} & \bigl\Vert y_{h}(u)-y_{h} \bigr\Vert _{1}+ \bigl\Vert r_{h}(u)-r_{h} \bigr\Vert \leq C \Vert u-u_{h} \Vert , \end{aligned}$$
(3.5)
$$\begin{aligned} & \bigl\Vert p_{h}(y)-p_{h} \bigr\Vert _{1}+ \bigl\Vert s_{h}(y)-s_{h} \bigr\Vert \leq C \Vert y-y_{h} \Vert . \end{aligned}$$
(3.6)

Proof

Subtracting (2.11)–(2.12) from (3.1)–(3.2), we have

$$\begin{aligned} &a\bigl(y_{h}(u)-y_{h},I_{h}w_{h} \bigr)-b\bigl(r_{h}(u)-r_{h},I_{h}w_{h} \bigr)=(u-u_{h},I_{h}w_{h}),\quad \forall w_{h}\in V_{h}, \\ & b\bigl(I_{h}\bigl(y_{h}(u)-y_{h}\bigr),\phi _{h}\bigr)=0, \quad\forall \phi _{h}\in R_{h}. \end{aligned}$$

Let \(w_{h}=y_{h}(u)-y_{h}\) and \(\phi _{h}=r_{h}(u)-r_{h}\). Note that

$$ b\bigl(r_{h}(u)-r_{h},I_{h} \bigl(y_{h}(u)-y_{h}\bigr)\bigr)=0. $$

Then we can obtain

$$\begin{aligned} a\bigl(y_{h}(u)-y_{h},I_{h} \bigl(y_{h}(u)-y_{h}\bigr)\bigr)= \bigl(u-u_{h},I_{h} \bigl(y_{h}(u)-y_{h}\bigr)\bigr). \end{aligned}$$
(3.7)

By using (2.2), we have

$$\begin{aligned} C \bigl\Vert y_{h}(u)-y_{h} \bigr\Vert _{1}^{2}&\leq \bigl(u-u_{h},I_{h} \bigl(y_{h}(u)-y_{h}\bigr)\bigr) \\ &\leq C \Vert u_{h}-u \Vert \cdot \bigl\Vert y_{h}(u)-y_{h} \bigr\Vert _{1}. \end{aligned}$$
(3.8)

It is clear that we obtain

$$\begin{aligned} \bigl\Vert y_{h}(u)-y_{h} \bigr\Vert _{1} \leq C \Vert u-u_{h} \Vert . \end{aligned}$$
(3.9)

Then, we deal with this term \(\|r_{h}(u)-r_{h}\|\) by using (1.5)

$$\begin{aligned} \bigl\Vert r_{h}(u)-r_{h} \bigr\Vert &\leq \frac{1}{\varsigma }\sup_{w_{h}\in V_{h}} \frac{b(I_{h}v_{h},r_{h}(u)-r_{h})}{ \Vert w_{h} \Vert _{1}} \\ &=\frac{1}{\varsigma }\sup_{w_{h}\in V_{h}} \frac{a(y_{h}(u)-y_{h},I_{h}w_{h})+(u_{h}-u,I_{h}w_{h})}{ \Vert w_{h} \Vert _{1}} \\ &\leq \Vert u-u_{h} \Vert . \end{aligned}$$
(3.10)

Similarly, we can obtain

$$\begin{aligned} \bigl\Vert p_{h}(u)-p_{h} \bigr\Vert _{1}+ \bigl\Vert s_{h}(u)-s_{h} \bigr\Vert \leq C \Vert y-y_{h} \Vert . \end{aligned}$$
(3.11)

This completes the proof. □

Lemma 3.2

Let \((y,r,p,s,u)\) and \((y_{h},r_{h},p_{h},s_{h},u_{h})\in V_{h}\times R_{h}\times V_{h} \times R_{h}\times U_{ad}\) be the solutions of (2.6)(2.10) and (2.11)(2.15), respectively. Assume \(A\in W^{2,\infty }(\Omega )\) and \(f,y_{d}\in H^{1}(\Omega )^{2}\). Then we have

$$\begin{aligned} & \bigl\Vert p_{h}(u)-p \bigr\Vert + \bigl\Vert y_{h}(u)-y \bigr\Vert \leq C h^{2}, \end{aligned}$$
(3.12)
$$\begin{aligned} & \bigl\Vert r_{h}(u)-r \bigr\Vert + \bigl\Vert s_{h}(u)-s \bigr\Vert \leq C h. \end{aligned}$$
(3.13)

Proof

Similar to the proof of Theorem 4.1 in [29], directly apply Lemma 3.1 to readily derive the following estimates:

$$\begin{aligned} & \bigl\Vert y_{h}(u)-y \bigr\Vert _{1}+ \bigl\Vert r_{h}(u)-r \bigr\Vert \leq C h, \end{aligned}$$
(3.14)
$$\begin{aligned} & \bigl\Vert p_{h}(u)-p \bigr\Vert _{1}+ \bigl\Vert s_{h}(u)-s \bigr\Vert \leq C h. \end{aligned}$$
(3.15)

Then we will estimate the derivation of \(L^{2}\)-estimates for \(y-y_{h}(u)\) and \(p-p_{h}( y)\). Let us consider the dual problem: find \((\eta,\rho )\) such that

$$\begin{aligned} &-v\triangle \eta +\nabla \rho =y-y_{h}(u), \quad\text{in } \Omega, \end{aligned}$$
(3.16)
$$\begin{aligned} &\nabla \cdot \eta =0, \quad\text{in } \Omega, \end{aligned}$$
(3.17)
$$\begin{aligned} &\eta =0, \quad\text{on } \partial \Omega, \end{aligned}$$
(3.18)

which is uniquely solvable; moreover, the following \(H^{2}(\Omega ) \times H^{1}(\Omega )\)-regularity is satisfied:

$$\begin{aligned} \Vert \eta \Vert _{2}+ \Vert \rho \Vert _{1}\leq c \bigl\Vert y-y_{h}(u) \bigr\Vert . \end{aligned}$$
(3.19)

Let \(\eta _{I}\in V_{h}\) be the usual continuous piecewise linear interplant; it is not hard to see that there exists a constant c independent of h such that

$$\begin{aligned} & \Vert \eta -\eta _{I} \Vert _{2}\leq ch \Vert \eta \Vert _{2}. \end{aligned}$$
(3.20)
$$\begin{aligned} & \Vert \eta -\eta _{I} \Vert \leq ch^{2} \Vert \eta \Vert _{2}. \end{aligned}$$
(3.21)

Let Π denote the \(L^{2}\)-projection from \(L^{2}_{0}(\Omega )\) to \(Q_{h}\), we can get

$$\begin{aligned} \Vert \rho -\Pi \rho \Vert \leq ch \Vert \rho \Vert _{1}. \end{aligned}$$
(3.22)

Since \(\eta _{I} \in V_{h}\) is a continuous interpolant of η,

$$\begin{aligned} &a\bigl(y-y_{h}(u),\eta _{I}\bigr)+b\bigl(\eta _{I},r-r_{h}(u)\bigr)=0, \end{aligned}$$
(3.23)
$$\begin{aligned} &b\bigl(y-y_{h}(u),\Pi \lambda \bigr)=0. \end{aligned}$$
(3.24)

Multiplying (3.16) by \(y-y_{h}(u)\), integrating by parts, we can get

$$\begin{aligned} \bigl\Vert y-y_{h}(u) \bigr\Vert ^{2}=a \bigl(y-y_{h}(u),\eta \bigr)-b\bigl(y-y_{h}(u),\rho \bigr). \end{aligned}$$
(3.25)

Note that

$$\begin{aligned} b\bigl(\eta _{I},r-r_{h}(u)\bigr)=-\operatorname{div} \eta _{I},r-r_{h}(u))-(\nabla r,\eta _{I}-I_{h} \eta _{I}) \end{aligned}$$
(3.26)

and

$$\begin{aligned} a\bigl(y-y_{h}(u),\eta _{I}\bigr)=\bigl(\nabla \bigl(y-y_{h}(u)\bigr),\nabla \eta _{I}\bigr)-( \triangle y, \eta _{I}-I_{h}\eta _{I}). \end{aligned}$$
(3.27)

Subtracting (3.23) from (3.25), we have

$$\begin{aligned} &\bigl\Vert y-y_{h}(u) \bigr\Vert ^{2}\\ &\quad=a \bigl(y-y_{h}(u),\eta \bigr)-a\bigl(y-y_{h}(u),\eta _{I}\bigr)-b\bigl(y-y_{h}(u), \rho \bigr)-b\bigl(\eta _{I},r-r_{h}(u)\bigr) \\ &\quad=a\bigl(y-y_{h}(u),\eta \bigr)-a\bigl(y-y_{h}(u), \eta _{I}\bigr)+\bigl(\operatorname{div} \eta _{I},r-r_{h}(u) \bigr)-( \triangle y,\eta _{I}-I_{h}\eta _{I}) \\ &\qquad{} +(\nabla r,\eta _{I}-I_{h}\eta _{I})-b\bigl(y-y_{h}(u),\rho \bigr)+b\bigl(y-y_{h}(u), \Pi \rho \bigr) \\ &\quad=a\bigl(y-y_{h}(u),\eta -\eta _{I}\bigr) + \bigl(\operatorname{div} \eta _{I},r-r_{h}(u)\bigr) \\ &\qquad{} +(-\triangle y+\nabla r,\eta _{I}-I_{h}\eta _{I})-b\bigl(y-y_{h}(u), \rho -\Pi \rho \bigr) \\ &\quad \equiv E_{1}+E_{2}+E_{3}+E_{4}. \end{aligned}$$
(3.28)

For the first term of (3.28), we can obtain

$$\begin{aligned} E_{1}&=a\bigl(y-y_{h}(u),\eta -\eta _{I}\bigr) \\ &\leq Ch^{2} \Vert y \Vert _{2} \Vert \eta \Vert _{2} \\ &\leq Ch^{2} \Vert y \Vert _{2} \bigl\Vert y-y_{h}(u) \bigr\Vert . \end{aligned}$$
(3.29)

Then we estimate \(E_{2}\) as follows:

$$\begin{aligned} E_{2}&=\bigl(\operatorname{div} \eta _{I},r-r_{h}(u) \bigr) \\ &\leq \bigl\vert \bigl(\operatorname{div}(\eta - \eta _{I}),r-r_{h}(u)\bigr) \bigr\vert \\ &\leq Ch^{2} \Vert r \Vert _{1} \bigl\Vert y-y_{h}(u) \bigr\Vert . \end{aligned}$$
(3.30)

By using (1.2), we can obtain

$$\begin{aligned} E_{3}&=(-\triangle y+\nabla r,\eta _{I}-I_{h} \eta _{I}) \\ &=(f+u,\eta _{I}-I_{h}\eta _{I}) \\ &\leq Ch^{2}\bigl( \Vert f \Vert _{1}+ \Vert u \Vert _{1}+ \Vert y \Vert _{2}\bigr) \bigl\Vert y-y_{h}(u) \bigr\Vert . \end{aligned}$$
(3.31)

According to the quality of Π, we have

$$\begin{aligned} E_{4}&=b\bigl(y-y_{h}(u),\rho -\Pi \rho \bigr) \\ &\leq Ch^{2} \Vert y \Vert _{2} \bigl\Vert y-y_{h}(u) \bigr\Vert . \end{aligned}$$
(3.32)

Putting (3.29)–(3.32) into (3.28), we can prove

$$\begin{aligned} \bigl\Vert y-y_{h}(u) \bigr\Vert \leq Ch^{2}. \end{aligned}$$
(3.33)

In the same way, we can obtain

$$\begin{aligned} \bigl\Vert p-p_{h}(u) \bigr\Vert \leq Ch^{2}. \end{aligned}$$
(3.34)

 □

Now, we estimate the error of the approximate control in \(L^{2}\)-norm.

Theorem 3.1

Let \((y,r,p,s,u)\) and \((y_{h},r_{h},p_{h},s_{h},u_{h})\in V_{h}\times R_{h}\times V_{h} \times R_{h}\times U_{ad}\) be the solutions of (2.6)(2.10) and (2.11)(2.15), respectively. We assume \(A\in W^{2,\infty }(\Omega )\) and \(f,y_{d}\in H^{1}(\Omega )^{2}\). Then we have the following error estimate:

$$\begin{aligned} \Vert u-u_{h} \Vert \leq Ch^{2}. \end{aligned}$$
(3.35)

Proof

Let \(v=u_{h}\) in (2.10) and \(v=u\) in (2.15), then we have

$$\begin{aligned} &(u-p,u_{h}-u)\geq 0, \end{aligned}$$
(3.36)
$$\begin{aligned} &(u_{h}-p_{h},u-u_{h})\geq 0. \end{aligned}$$
(3.37)

By using (3.36) and (3.37), we obtain

$$\begin{aligned} c \Vert u-u_{h} \Vert ^{2} \leq {}&(p-p_{h},u_{h}-u) \\ ={}&\bigl(p-p_{h}(y),u_{h}-u\bigr)+ \bigl(p_{h}(y)-p_{h},u_{h}-u\bigr) \\ ={}&\bigl(p-p_{h}(y),u_{h}-u\bigr)+ \bigl(I_{h}\bigl(p_{h}(y)-p_{h} \bigr),u_{h}-u\bigr) \\ &{}+\bigl(\bigl(p_{h}(y)-p_{h} \bigr)-I_{h}\bigl(p_{h}(y)-p_{h} \bigr),u_{h}-u\bigr) \\ \equiv{}& E_{1}+E_{2}+E_{3}. \end{aligned}$$
(3.38)

Now, we estimate all terms on the right-hand side of (3.38). From Lemma 3.2 and δ-Cauchy inequality, we have

$$\begin{aligned} E_{1}&=\bigl(p-p_{h}(y),u_{h}-u \bigr) \\ &\leq C \bigl\Vert p-p_{h}(y) \bigr\Vert \cdot \Vert u-u_{h} \Vert \\ &\leq Ch^{2} \Vert u-u_{h} \Vert . \end{aligned}$$
(3.39)

Note that \(b(r_{h}-r_{h}(u),I_{h}(p_{h}(y)-p_{h}))=0\) and \(b(s_{h}(y)-s_{h},I_{h}(y_{h}-y_{h}(u)))=0\), we have

$$\begin{aligned} E_{2}={}&\bigl(I_{h} \bigl(p_{h}(y)-p_{h}\bigr),u_{h}-u\bigr) \\ ={}&a\bigl(y_{h}-y_{h}(u),I_{h} \bigl(p_{h}(y)-p_{h}\bigr)\bigr)-b\bigl(r_{h}-r_{h}(u),I_{h} \bigl(p_{h}(y)-p_{h}\bigr)\bigr) \\ ={} &a\bigl(y_{h}-y_{h}(u),I_{h} \bigl(p_{h}(y)-p_{h}\bigr)\bigr)-a\bigl(p_{h}(y)-p_{h},I_{h} \bigl(y_{h}-y_{h}(u)\bigr)\bigr) \\ &{}+a\bigl(p_{h}(y)-p_{h},I_{h} \bigl(y_{h}-y_{h}(u)\bigr)\bigr)-b\bigl(r_{h}-r_{h}(u),I_{h} \bigl(p_{h}(u)-p_{h}\bigr)\bigr) \\ ={}&a\bigl(y_{h}-y_{h}(u),I_{h} \bigl(p_{h}(y)-p_{h}\bigr)\bigr)-a\bigl(p_{h}(y)-p_{h},I_{h} \bigl(y_{h}-y_{h}(u)\bigr)\bigr) \\ &{}+\bigl(y_{h}(u)-y_{h},I_{h} \bigl(y_{h}-y_{h}(u)\bigr)\bigr)-b\bigl(s_{h}(y)-s_{h},I_{h} \bigl(y_{h}-y_{h}(u)\bigr)\bigr). \end{aligned}$$
(3.40)

By applying \((y_{h}(u)-y_{h},I_{h}(y_{h}-y_{h}(u)))\leq 0\) and Lemma 3.2, it is clear that

$$\begin{aligned} E_{2}&=a\bigl(y_{h}-y_{h}(u),I_{h} \bigl(p_{h}(y)-p_{h}\bigr)\bigr)-a\bigl(p_{h}(y)-p_{h},I_{h} \bigl(y_{h}-y_{h}(u)\bigr)\bigr) \\ &\leq Ch \bigl\Vert y_{h}-y_{h}(u) \bigr\Vert _{1}\cdot \bigl\Vert p_{h}(y)-p_{h} \bigr\Vert _{1} \\ &\leq Ch \Vert u-u_{h} \Vert \cdot \Vert y-y_{h} \Vert \\ &\leq C h \Vert u-u_{h} \Vert \cdot \bigl(Ch^{2}+ \Vert u-u_{h} \Vert \bigr). \end{aligned}$$
(3.41)

According to (2.1) and Lemma 3.2, we obtain

$$\begin{aligned} E_{3}&=\bigl(\bigl(p_{h}(y)-p_{h} \bigr)-I_{h}\bigl(p_{h}(y)-p_{h} \bigr),u_{h}-u\bigr) \\ &\leq Ch \bigl\Vert p_{h}(y)-p_{h} \bigr\Vert _{1}\cdot \Vert u-u_{h} \Vert \\ &\leq Ch \Vert y-y_{h} \Vert \cdot \Vert u-u_{h} \Vert \\ &\leq C h \Vert u-u_{h} \Vert \cdot \bigl(Ch^{2}+ \Vert u-u_{h} \Vert \bigr). \end{aligned}$$
(3.42)

Finally, we can derive the result (3.35) from (3.38)–(3.42). □

Theorem 3.2

Let \((y,r,p,s,u)\) and \((y_{h},r_{h},p_{h},s_{h},u_{h})\in V_{h}\times R_{h}\times V_{h} \times R_{h}\times U_{ad}\) be the solutions of (2.6)(2.10) and (2.11)(2.15), respectively. We assume \(A\in W^{2,\infty }(\Omega )\) and \(f,y_{d}\in H^{1}(\Omega )^{2}\). Then there exists \(h_{0}>0\) such that, for all \(0< h\leq h_{0}\),

$$\begin{aligned} & \Vert u-u_{h} \Vert + \Vert y-y_{h} \Vert + \Vert p-p_{h} \Vert \leq Ch^{2}, \end{aligned}$$
(3.43)
$$\begin{aligned} & \Vert r-r_{h} \Vert + \Vert s-s_{h} \Vert \leq Ch. \end{aligned}$$
(3.44)

Proof

Using the triangle inequality, we have

$$\begin{aligned} & \Vert y-y_{h} \Vert \leq \bigl\Vert y-y_{h}(u) \bigr\Vert + \bigl\Vert y_{h}(u)-y_{h} \bigr\Vert , \\ & \Vert p-p_{h} \Vert \leq \bigl\Vert p-p_{h}(u) \bigr\Vert + \bigl\Vert p_{h}(u)-p_{h} \bigr\Vert . \end{aligned}$$

Lemma 3.1 implies that

$$\begin{aligned} & \Vert y-y_{h} \Vert \leq \bigl\Vert y-y_{h}(u) \bigr\Vert +C \Vert u-u_{h} \Vert , \end{aligned}$$
(3.45)
$$\begin{aligned} & \Vert p-p_{h} \Vert \leq \bigl\Vert p-p_{h}(u) \bigr\Vert +C \Vert y-y_{h} \Vert . \end{aligned}$$
(3.46)

By using Lemma 3.2, we can easily obtain

$$\begin{aligned} \Vert y-y_{h} \Vert \leq Ch^{2}. \end{aligned}$$
(3.47)

By using (3.47) and Lemma 3.2, we derive

$$\begin{aligned} \Vert p-p_{h} \Vert \leq Ch^{2}. \end{aligned}$$
(3.48)

From (3.47)–(3.48), we can immediately obtain (3.43). In the same way, we can obtain (3.44). □

Next, we will discuss the error estimates of the numerical solutions of the state and costate in \(H^{1}\)-norm.

Theorem 3.3

Assume that \(A\in W^{2,\infty }(\Omega )\) and \(f,y_{d}\in L^{2}(\Omega )^{2}\). Let \((y,r,p,s,u)\) and \((y_{h},r_{h}, p_{h},s_{h},u_{h})\in V_{h}\times R_{h}\times V_{h} \times R_{h}\times U_{ad}\) be the solutions of (2.6)(2.10) and (2.11)(2.15), respectively. Then there exists \(h_{0}>0\) such that, for all \(0< h\leq h_{0}\),

$$\begin{aligned} \Vert y-y_{h} \Vert _{1}+ \Vert p-p_{h} \Vert _{1}\leq Ch. \end{aligned}$$
(3.49)

Proof

Using the triangle inequality, we have

$$\begin{aligned} & \Vert y-y_{h} \Vert _{1}\leq \bigl\Vert y-y_{h}(u) \bigr\Vert _{1}+ \bigl\Vert y_{h}(u)-y_{h} \bigr\Vert _{1}, \\ & \Vert p-p_{h} \Vert _{1}\leq \bigl\Vert p-p_{h}(u) \bigr\Vert _{1}+ \bigl\Vert p_{h}(u)-p_{h} \bigr\Vert _{1}. \end{aligned}$$

Lemma 3.1 implies that

$$\begin{aligned} & \Vert y-y_{h} \Vert _{1}\leq \bigl\Vert y-y_{h}(u) \bigr\Vert _{1}+C \Vert u-u_{h} \Vert , \end{aligned}$$
(3.50)
$$\begin{aligned} & \Vert p-p_{h} \Vert _{1}\leq \bigl\Vert p-p_{h}(u) \bigr\Vert _{1}+C \Vert y-y_{h} \Vert . \end{aligned}$$
(3.51)

From Theorem 3.2, (3.14)–(3.15), and (3.50)–(3.51), we can easily obtain (3.49). □

Conclusion and future works

In this paper, we considered a priori error estimates for the finite volume element approximation of Stokes optimal control problem. Then we used the finite volume method to discretize the state and adjoint equation of the system. Under some reasonable assumptions, we obtained some optimal order error estimates. The approximate orders for the state, costate, and control variables were \(O(h^{2})\), and the approximate orders for the state and costate variables was \(O(h)\) in the sense of \(L^{2}\)-norm and \(H^{1}\)-norm. To our best knowledge, in the context of optimal control problems, these a priori error estimates of the finite volume method for Stokes optimal control problem are new.

In future, we shall consider a posteriori error estimates and superconvergence of the finite volume element solutions for Stokes optimal control problem.

Availability of data and materials

Not applicable.

References

  1. 1.

    Bank, R.E., Rose, D.J.: Some error estimates for the box method. SIAM J. Numer. Anal. 24, 777–787 (1987)

    MathSciNet  Article  Google Scholar

  2. 2.

    Bochev, P., Gunzburger, M.D.: Least-squares finite-element methods for optimization and control problems for the Stokes equations. Comput. Math. Appl. 48, 1035–1057 (2004)

    MathSciNet  Article  Google Scholar

  3. 3.

    Boyer, F., Hubert, F.: Finite volume method for 2D linear and nonlinear elliptic problems with discontinuities. SIAM J. Numer. Anal. 6, 3032–3070 (2008)

    MathSciNet  Article  Google Scholar

  4. 4.

    Cai, Z.: On the finite volume element method. Numer. Math. 58, 713–735 (1991)

    MathSciNet  Article  Google Scholar

  5. 5.

    Casas, E., Mateos, M., Raymond, J.P.: Error estimates for the numerical approximation of a distributed control problem for the steady-state Navier–Stokes equations. SIAM J. Control Optim. 46, 952–982 (2007)

    MathSciNet  Article  Google Scholar

  6. 6.

    Chatzipantelidis, P.: A finite volume method based on the Crouzeix–Raviart element for elliptic PDEs in two dimensions. Numer. Math. 82, 409–432 (1999)

    MathSciNet  Article  Google Scholar

  7. 7.

    Chen, Y., Huang, F., Yi, N., Liu, W.: A Legendre–Galerkin spectral method for optimal control problems governed by Stokes equations. SIAM J. Numer. Anal. 49, 1625–1648 (2011)

    MathSciNet  Article  Google Scholar

  8. 8.

    Chen, Y., Lu, Z.: High Efficient and Accuracy Numerical Methods for Optimal Control Problems. Science Press, Beijing (2015)

    Google Scholar

  9. 9.

    Chen, Y., Lu, Z., Huang, Y.: Superconvergence of triangular Raviart–Thomas mixed finite element methods for bilinear constrained optimal control problem. Comput. Math. Appl. 66, 1498–1513 (2013)

    MathSciNet  Article  Google Scholar

  10. 10.

    Chen, Z., Li, R., Zhou, A.: A note on the optimal \(L^{2}\) estimate of the finite volume element method. Adv. Comput. Math. 16, 291–303 (2002)

    MathSciNet  Article  Google Scholar

  11. 11.

    Chou, S., Li, Q.: Error estimates in \(L^{2}\), \(H^{1}\) and \(L^{\infty }\) in covolume methods for elliptic and parabolic problems: a unified approach. Math. Comput. 69, 103–120 (2000)

    Article  Google Scholar

  12. 12.

    Chou, S., Ye, X.: Unified analysis of finite volume methods for second order elliptic problems. SIAM J. Numer. Anal. 45, 1639–1653 (2007)

    MathSciNet  Article  Google Scholar

  13. 13.

    Cui, M., Ye, X.: Unified analysis of finite volume methods for the Stokes equations. SIAM J. Numer. Anal. 48, 824–839 (2010)

    MathSciNet  Article  Google Scholar

  14. 14.

    Estep, D., Pernice, M., Du, P.: A posteriori error analysis of a cell-centered finite volume method for semilinear elliptic problems. J. Comput. Appl. Math. 2, 459–472 (2009)

    MathSciNet  Article  Google Scholar

  15. 15.

    Ewing, R.E., Lin, T., Lin, Y.: On the accuracy of the finite volume element method based on piecewise linear polynomials. SIAM J. Numer. Anal. 39, 1865–1888 (2002)

    MathSciNet  Article  Google Scholar

  16. 16.

    Falk, F.S.: Approximation of a class of optimal control problems with order of convergence estimates. J. Math. Anal. Appl. 44, 28–47 (1973)

    MathSciNet  Article  Google Scholar

  17. 17.

    Hinze, M.: A variational discretization concept in control constrained optimization: the linear-quadratic case. Comput. Optim. Appl. 30, 45–61 (2005)

    MathSciNet  Article  Google Scholar

  18. 18.

    Kumar, S., Ruiz-Baier, R.: Equal order discontinuous finite volume element methods for the Stokes problem. J. Sci. Comput. 65, 956–978 (2015)

    MathSciNet  Article  Google Scholar

  19. 19.

    Li, R., Liu, W., Ma, H., Tang, T.: Adaptive finite element approximation for distributed elliptic optimal control problems. SIAM J. Control Optim. 41, 1321–1349 (2002)

    MathSciNet  Article  Google Scholar

  20. 20.

    Lions, J.L.: Optimal Control of Systems Governed by Partial Differential Equations. Springer, Berlin (1971)

    Google Scholar

  21. 21.

    Liu, W., Tiba, D.: Error estimates for the finite element approximation of a class of nonlinear optimal control problems. J. Numer. Func. Optim. 22, 935–972 (2001)

    Google Scholar

  22. 22.

    Liu, W., Yan, N.: A posteriori error estimates for convex boundary control problems. SIAM J. Numer. Anal. 39, 73–99 (2001)

    MathSciNet  Article  Google Scholar

  23. 23.

    Liu, W., Yan, N.: A posteriori error estimates for control problems governed by nonlinear elliptic equations. Appl. Numer. Math. 2, 173–187 (2003)

    MathSciNet  Article  Google Scholar

  24. 24.

    Liu, W., Yan, N.: Adaptive Finite Element Methods for Optimal Control Governed by PDEs. Science Press, Beijing (2008)

    Google Scholar

  25. 25.

    Lu, Z., Chen, Y., Zheng, W.: A posteriori error estimates of lowest order Raviart–Thomas mixed finite element methods for bilinear optimal control problems. East Asian J. Appl. Math. 2, 108–125 (2012)

    MathSciNet  Article  Google Scholar

  26. 26.

    Luo, X., Chen, Y., Huang, Y.: Some error estimates of finite volume element approximation for elliptic optimal control problems. Int. J. Numer. Anal. Model. 3, 697–711 (2013)

    MathSciNet  MATH  Google Scholar

  27. 27.

    Quarteroni, A., Valli, A.: Numerical Approximation of Partial Differential Equations. Springer, Berlin (1997)

    Google Scholar

  28. 28.

    Reyes, D.: Primal-dual active set method for control constrained optimal control of the Stokes equations. Optim. Methods Softw. 21, 267–293 (2006)

    MathSciNet  Article  Google Scholar

  29. 29.

    Ye, X.: On the relationship between finite volume and finite element methods applied to the Stokes equations. Numer. Methods Partial Differ. Equ. 17, 440–453 (2001)

    MathSciNet  Article  Google Scholar

Download references

Acknowledgements

The authors express their thanks to the referees for their helpful suggestions, which led to improvements of the presentation.

Funding

This project is supported by the Kunming University of Science and Technology Startup Fund for Talent Introduction (KKSY201721032).

Author information

Affiliations

Authors

Contributions

LL and XW have participated in the sequence alignment and drafted the manuscript. RC, CM, and HF have made substantial contributions to the conception and design. All authors read and approved the final manuscript.

Corresponding author

Correspondence to Xiao-dong Wang.

Ethics declarations

Competing interests

The authors declare that they have no competing interests.

Rights and permissions

Open Access This article is licensed under a Creative Commons Attribution 4.0 International License, which permits use, sharing, adaptation, distribution and reproduction in any medium or format, as long as you give appropriate credit to the original author(s) and the source, provide a link to the Creative Commons licence, and indicate if changes were made. The images or other third party material in this article are included in the article’s Creative Commons licence, unless indicated otherwise in a credit line to the material. If material is not included in the article’s Creative Commons licence and your intended use is not permitted by statutory regulation or exceeds the permitted use, you will need to obtain permission directly from the copyright holder. To view a copy of this licence, visit http://creativecommons.org/licenses/by/4.0/.

Reprints and Permissions

About this article

Verify currency and authenticity via CrossMark

Cite this article

Lan, L., Chen, Rh., Wang, Xd. et al. Error estimates of finite volume method for Stokes optimal control problem. J Inequal Appl 2021, 4 (2021). https://doi.org/10.1186/s13660-020-02532-4

Download citation

MSC

  • 49J20
  • 65N30

Keywords

  • Optimal control problem
  • Stokes equations
  • Finite volume method
  • A priori error estimates
  • Variational discretization
