# Extremal values on Zagreb indices of trees with given distance k-domination number

## Abstract

Let $$G=(V(G),E(G))$$ be a graph. A set $$D\subseteq V(G)$$ is a distance k-dominating set of G if for every vertex $$u\in V(G)\setminus D$$, $$d_{G}(u,v)\leq k$$ for some vertex $$v\in D$$, where k is a positive integer. The distance k-domination number $$\gamma_{k}(G)$$ of G is the minimum cardinality among all distance k-dominating sets of G. The first Zagreb index of G is defined as $$M_{1}=\sum_{u\in V(G)}d^{2}(u)$$ and the second Zagreb index of G is $$M_{2}=\sum_{uv\in E(G)}d(u)d(v)$$. In this paper, we obtain the upper bounds for the Zagreb indices of n-vertex trees with given distance k-domination number and characterize the extremal trees, which generalize the results of Borovićanin and Furtula (Appl. Math. Comput. 276:208–218, 2016). What is worth mentioning, for an n-vertex tree T, is that a sharp upper bound on the distance k-domination number $$\gamma _{k}(T)$$ is determined.

## 1 Introduction

Throughout this paper, all graphs considered are simple, undirected and connected. Let $$G=(V,E)$$ be a simple and connected graph, where $$V=V(G)$$ is the vertex set and $$E=E(G)$$ is the edge set of G. The eccentricity of v is defined as $$\varepsilon_{G}(v)=\max\{ d_{G}(u,v)\mid u\in V(G)\}$$. The diameter of G is $$\operatorname{diam}(G)=\max\{ \varepsilon_{G}(v)\mid v\in V(G)\}$$. A path P is called a diameter path of G if the length of P is $$\operatorname{diam}(G)$$. Denote by $$N_{G}^{i}(v)$$ the set of vertices with distance i from v in G, that is, $$N_{G}^{i}(v)=\{u\in V(G)\mid d(u,v)=i\}$$. In particular, $$N_{G}^{0}(v)=\{v\}$$ and $$N_{G}^{1}(v)=N_{G}(v)$$. A vertex $$v\in V(G)$$ is called a private k-neighbor of u with respect to D if $$\bigcup_{i=0}^{k}N^{i}_{G}(v)\cap D=\{u\}$$. That is, $$d_{G}(v,u)\leq k$$ and $$d_{G}(v,x)\geq k+1$$ for any vertex $$x\in D\setminus\{u\}$$. The pendent vertex is the vertex of degree 1.

A chemical molecule can be viewed as a graph. In a molecular graph, the vertices represent the atoms of the molecule and the edges are chemical bonds. A topological index of a molecular graph is a mathematical parameter which is used for studying various properties of this molecule. The distance-based topological indices, such as the Wiener index [2, 3] and the Balaban index [4], have been extensively researched for many decades. Meanwhile the spectrum-based indices developed rapidly, such as the Estrada index [5], the Kirchhoff index [6] and matching energy [7]. The eccentricity-based topological indices, such as the eccentric distance sum [8], the connective eccentricity index [9] and the adjacent eccentric distance sum [10], were proposed and studied recently. The degree-based topological indices, such as the Randić index [1113], the general sum-connectivity index [14, 15], the Zagreb indices [16], the multiplicative Zagreb indices [17, 18] and the augmented Zagreb index [19], where the Zagreb indices include the first Zagreb index $$M_{1}=\sum_{u\in V(G)}d^{2}(u)$$ and the second Zagreb index $$M_{2}=\sum_{uv\in E(G)}d(u)d(v)$$, represent one kind of the most famous topological indices. In this paper, we continue the work on Zagreb indices. Further study about the Zagreb indices can be found in [2025]. Many researchers are interested in establishing the bounds for the Zagreb indices of graphs and characterizing the extremal graphs [1, 2640].

A set $$D\subseteq V(G)$$ is a dominating set of G if, for any vertex $$u\in V(G)\setminus D$$, $$N_{G}(u)\cap D\ne\emptyset$$. The domination number $$\gamma(G)$$ of G is the minimum cardinality of dominating sets of G. For $$k\in N^{+}$$, a set $$D\subseteq V(G)$$ is a distance k-dominating set of G if, for every vertex $$u\in V(G)\setminus D$$, $$d_{G}(u,v)\leq k$$ for some vertex $$v\in D$$. The distance k-domination number $$\gamma_{k}(G)$$ of G is the minimum cardinality among all distance k-dominating sets of G [41, 42]. Every vertex in a minimum distance k-dominating set has a private k-neighbor. The domination number is the special case of the distance k-domination number for $$k=1$$. Two famous books [43, 44] written by Haynes et al. show us a comprehensive study of domination. The topological indices of graphs with given domination number or domination variations have attracted much attention of researchers [1, 4547].

Borovićanin [1] showed the sharp upper bounds on the Zagreb indices of n-vertex trees with domination number γ and characterized the extremal trees. Motivated by [1], we describe the upper bounds for the Zagreb indices of n-vertex trees with given distance k-domination number and find the extremal trees. Furthermore, a sharp upper bound, in terms of $$n,k$$ and Δ, on the distance k-domination number $$\gamma_{k}(T)$$ for an n-vertex tree T is obtained in this paper.

## 2 Lemmas

In this section, we give some lemmas which are helpful to our results.

### Lemma 2.1

([24, 48])

If T is an n-vertex tree, different from the star $$S_{n}$$, then $$M_{i}(T)< M_{i}(S_{n})$$ for $$i=1,2$$.

In what follows, we present two graph transformations that increase the Zagreb indices.

### Transformation I

([49])

Let T be an n-vertex tree ($$n>3$$) and $$e=uv\in E(T)$$ be a nonpendent edge. Assume that $$T-uv=T_{1}\cup T_{2}$$ with vertex $$u\in V(T_{1})$$ and $$v\in V(T_{2})$$. Let $$T'$$ be the tree obtained by identifying the vertex u of $$T_{1}$$ with vertex v of $$T_{2}$$ and attaching a pendent vertex w to the u (=v) (see Figure 1). For the sake of convenience, we denote $$T'=\tau(T,uv)$$.

### Lemma 2.2

Let T be a tree of order n (≥3) and $$T'=\tau(T,uv)$$. Then $$M_{i}(T')>M_{i}(T)$$, $$i=1,2$$.

### Proof

It is obvious that $$d_{T'}(u)=d_{T}(u)+d_{T}(v)-1$$ and

\begin{aligned} M_{1}\bigl(T'\bigr)-M_{1}(T)={}& \bigl(d_{T}(u)+d_{T}(v)-1\bigr)^{2}+1-d_{T}^{2}(u)-d_{T}^{2}(v) \\ ={}&2\bigl(d_{T}(u)-1\bigr) \bigl(d_{T}(v)-1\bigr) \\ >{}&0.\end{aligned}

Let $$x\in V(T)$$ be a vertex different from u and v. Then

\begin{aligned} M_{2}\bigl(T'\bigr)-M_{2}(T)={}& \bigl(d_{T}(u)+d_{T}(v)-1\bigr) \biggl(\sum _{xu\in E(T_{1})}d_{T}(x)+\sum_{xv\in E(T_{2})}d_{T}(x)+1 \biggr) \\ &-d_{T}(u)\sum_{xu\in E(T_{1})}d_{T}(x)-d_{T}(v) \sum_{xv\in E(T_{2})}d_{T}(x) -d_{T}(u)d_{T}(v) \\ ={}&\bigl(d_{T}(v)-1\bigr)\sum_{xu\in E(T_{1})}d_{T}(x)+ \bigl(d_{T}(u)-1\bigr)\sum_{xv\in E(T_{2})}d_{T}(x) \\ &+d_{T}(u)+d_{T}(v)-1-d_{T}(u)d_{T}(v) \\ \geq{} &2\bigl(d_{T}(v)-1\bigr) \bigl(d_{T}(u)-1 \bigr)+d_{T}(u)+d_{T}(v)-1-d_{T}(u)d_{T}(v) \\ ={}&\bigl(d_{T}(v)-1\bigr) \bigl(d_{T}(u)-1\bigr) \\ >{}&0.\end{aligned}

This completes the proof. □

### Lemma 2.3

([50])

Let u and v be two distinct vertices in G. $$u_{1},u_{2},\ldots,u_{r}$$ are the pendent vertices adjacent to u and $$v_{1}, v_{2},\ldots,v_{t}$$ are the pendent vertices adjacent to v. Define $$G'=G-\{vv_{1}, vv_{2},\ldots, vv_{t}\}+ \{uv_{1}, uv_{2},\ldots, uv_{t}\}$$ and $$G''=G-\{uu_{1}, uu_{2},\ldots, uu_{r}\}+\{ vu_{1}, vu_{2},\ldots, vu_{r}\}$$, as shown in Figure 2. Then either $$M_{i}(G')>M_{i}(G)$$ or $$M_{i}(G'')>M_{i}(G)$$, $$i=1,2$$.

### Lemma 2.4

([51])

For a connected graph G of order n with $$n\geq k+1$$, $$\gamma_{k}(G)\leq\lfloor\frac {n}{k+1}\rfloor$$.

Let G be a connected graph of order n. If $$\gamma_{k}(G)\geq2$$, then $$n\geq k+1$$. Otherwise, $$\gamma_{k}(G)=1$$, a contradiction. Hence, by Lemma 2.4, we have $$\gamma_{k}(G)\leq\lfloor\frac{n}{k+1}\rfloor$$ and $$n\geq(k+1)\gamma_{k}$$ for any connected graph G of order n if $$\gamma _{k}(G)\geq2$$.

### Lemma 2.5

Let T be an n-vertex tree with distance k-domination number $$\gamma_{k}\geq2$$. Then $$\triangle \leq n-k\gamma_{k}$$.

### Proof

Suppose that $$\triangle\geq n-k\gamma_{k}+1$$. Let $$v\in V(T)$$ be the vertex such that $$d(v)=\triangle$$ and $$N(v)=\{v_{1},\ldots ,v_{\triangle}\}$$. Denote by $$T^{i}$$ the component of $$T-v$$ containing the vertex $$v_{i}$$, $$i=1,\ldots,\triangle$$. Let D be a minimum distance k-dominating set of T,

$$S_{1}=\bigl\{ i\mid i\in\{1,2,\ldots,\triangle\}, 0\leq\varepsilon _{T^{i}}(v_{i})\leq k-1\bigr\}$$

and

$$S_{2}=\bigl\{ i\mid i\in\{1,2,\ldots,\triangle\}, \varepsilon _{T^{i}}(v_{i})\geq k\bigr\} .$$

Clearly, $$|S_{2}|\geq1$$. If not, $$\{v\}$$ is a distance k-dominating set of T, which contradicts $$\gamma_{k}\geq2$$. If $$|S_{1}|=0$$, then $$\varepsilon_{T^{i}}(v_{i})\geq k$$ for $$i=1,\ldots ,\triangle$$, so $$|V(T^{i})\cap D|\geq1$$. Therefore, $$\gamma_{k}\geq\triangle\geq {n-k\gamma_{k}+1}$$, which implies that $$\gamma_{k}\geq\frac{n+1}{k+1}$$. Since $$\gamma_{k}\geq2$$, $$\gamma_{k}\leq\lfloor\frac{n}{k+1}\rfloor$$ by Lemma 2.4, a contradiction. Thus, $$|S_{1}|\geq1$$. Let $$i_{1}\in S_{1}$$ and

$$\varepsilon_{T^{i_{1}}}(v_{i_{1}})=\max\bigl\{ \varepsilon_{T^{i}}(v_{i}) \mid i\in S_{1}\bigr\} =\lambda.$$

Then $$0\leq\lambda\leq k-1$$, so $$|S_{2}|\leq\lfloor\frac{n-\triangle -1-\lambda}{k}\rfloor \leq\lfloor\frac{k\gamma_{k}-2}{k}\rfloor\leq\gamma_{k}-1$$.

If $$V(T^{i})\cap D=D_{1}\neq\emptyset$$ for some $$i\in S_{1}$$, then $$D-D_{1}+\{ v\}$$ is a distance k-dominating set according to the definition of $$S_{1}$$. Thus, we assume that $$V(T^{i})\cap D=\emptyset$$ for each $$i\in S_{1}$$. Similarly, suppose that $$D'\cap V(T^{i_{1}})=\emptyset$$ where $$D'$$ is a minimum distance k-dominating set of the tree $$T'=T-\bigcup_{i\in S_{1}\setminus\{i_{1}\}}V(T^{i})$$.

We claim that $$D'$$ is a distance k-dominating set of T. Let $$y\in V(T^{i_{1}})$$ be the vertex such that $$d(v_{i_{1}},y)=\lambda$$ and $$y'\in D'_{1}=\bigcup_{i=0}^{k}N_{T'}^{i}(y)\cap D'$$. Then $$y'\in V(T')\setminus V(T^{i_{1}})$$ and $$d(y,y')=d(y,v)+d(v,y')\leq k$$, so, for $$x\in\bigcup_{i\in S_{1}\setminus\{i_{1}\}}V(T^{i})$$, we have $$d(x,y')=d(x,v)+d(v,y')\leq d(y,v)+d(v,y')\leq k$$. Hence, all the vertices in $$\bigcup_{i\in S_{1}\setminus\{i_{1}\}}V(T^{i})$$ can be dominated by $$y'\in D'$$. Therefore, $$D'$$ is a distance k-dominating set of T, so the claim is true.

In view of

$$k+1< (k+1)|S_{2}|+\lambda+2\leq\big|V\bigl(T'\bigr)\big|\leq n-|S_{1}|+1=n-\triangle+|S_{2}|+1,$$

one has

\begin{aligned} \gamma_{k}&\leq\big|D'\big| \\ &\leq\biggl\lfloor \frac{n-\triangle+|S_{2}|+1}{k+1}\biggr\rfloor \quad (\text{by Lemma 2.4}) \\ &\leq\biggl\lfloor \frac{(k+1)\gamma_{k}-1}{k+1}\biggr\rfloor \quad\bigl(\text{since }\triangle \geq n-k\gamma_{k}+1, |S_{2}|\leq\gamma_{k}-1\bigr) \\ &< \gamma_{k},\end{aligned}

Determining the bound on the distance k-domination number of a connected graph is an attractive problem. In Lemma 2.5, an upper bound for the distance k-domination number of a tree is characterized. Namely, if T is an n-vertex tree with distance k-domination number $$\gamma_{k}\geq2$$, then $$\gamma_{k}(T)\leq\frac{n-\Delta(T)}{k}$$.

Let $$\mathscr{T}_{n,k,\gamma_{k}}$$ be the set of all n-vertex trees with distance k-domination number $$\gamma_{k}$$ and $$S_{n-k\gamma _{k}+1}$$ be the star of order $$n-k\gamma_{k}+1$$ with pendent vertices $$v_{1},v_{2},\ldots,v_{n-k\gamma_{k}}$$. Denote by $$T_{n,k,\gamma_{k}}$$ the tree formed from $$S_{n-k\gamma_{k}}$$ by attaching a path $$P_{k-1}$$ to $$v_{1}$$ and attaching a path $$P_{k}$$ to $$v_{i}$$ for each $$i\in\{2,\ldots,\gamma_{k}\}$$, as shown in Figure 3. Then $$T_{n,k,\gamma_{k}}\in\mathscr{T}_{n,k,\gamma_{k}}$$. Even more noteworthy is the notion that $$\gamma_{k}(T_{n,k,\gamma _{k}})=\gamma_{k}=\frac{n-\Delta(T_{n,k,\gamma_{k}})}{k}$$. It implies that the upper bound on the distance k-domination number mentioned in the above paragraph is sharp.

The Zagreb indices of $$T_{n,k,\gamma_{k}}$$ are computed as

$$M_{1}(T_{n,k,\gamma_{k}})=(n-k\gamma_{k}) (n-k \gamma_{k}+1)+4(k\gamma_{k}-1)$$

and

$$M_{2}(T_{n,k,\gamma_{k}})= \textstyle\begin{cases} (n-k\gamma_{k})[n-(k-1)\gamma_{k}]+(4k-2)\gamma_{k}-4& \text{if }k\geq2,\\ 2(n-\gamma+1)(\gamma-1)+(n-\gamma)(n-2\gamma+1) &\text{if }k=1. \end{cases}$$

For $$k=1$$, the distance k-domination number $$\gamma_{1}(G)$$ is the domination number $$\gamma(G)$$. Furthermore, the upper bounds on the Zagreb indices of an n-vertex tree with domination number were studied in [1], so we only consider $$k\geq2$$ in the following.

### Lemma 2.6

([52])

T be a tree on $$(k+1)n$$ vertices. Then $$\gamma_{k}(T)=n$$ if and only if at least one of the following conditions holds:

1. (1)

T is any tree on $$k+1$$ vertices;

2. (2)

$$T=R\circ k$$ for some tree R on $$n\geq1$$ vertices, where $$R\circ k$$ is the graph obtained by taking one copy of R and $$|V(R)|$$ copies of the path $$P_{k-1}$$ of length $$k-1$$ and then joining the ith vertex of R to exactly one end vertex in the ith copy of $$P_{k-1}$$.

### Lemma 2.7

Let T be an n-vertex tree with distance k-domination number $$\gamma_{k}(T)\geq3$$. If $$n=(k+1)\gamma _{k}$$, then

$$M_{1}(T)\leq\gamma_{k}(\gamma_{k}+1)+4(k \gamma_{k}-1)$$

and

$$M_{2}(T)\leq2\gamma_{k}^{2}+(4k-2) \gamma_{k}-4,$$

with equality if and only if $$T\cong T_{n,k,\gamma_{k}}$$.

### Proof

When $$n=(k+1)\gamma_{k}$$, $$T=R\circ k$$ for some tree R on $$\gamma_{k}$$ vertices by Lemma 2.6. Assume that $$V(R)=\{v_{1},\ldots,v_{\gamma_{k}}\}$$. Then $$d_{R}(v_{i})=d_{T}(v_{i})-1$$. It is well known that $$\sum_{i=1}^{n} d(u_{i})=2(n-1)$$ for any n-vertex tree with vertex set $$\{u_{1},\ldots ,u_{n}\}$$. Hence, $$\sum_{i=1}^{\gamma_{k}}d_{R}(v_{i})=2(\gamma_{k}-1)$$. By the definition of the first Zagreb index, we have

\begin{aligned} M_{1}(T) =&\sum_{i=1}^{\gamma_{k}}d_{T}^{2}(v_{i})+ \sum_{x\in V(T)\setminus V(R)}d_{T}^{2}(x) \\ =&\sum_{i=1}^{\gamma_{k}}\bigl(d_{T}(v_{i})-1 \bigr)^{2}+\sum_{x\in V(T)\setminus V(R)}d_{T}^{2}(x)+2 \sum_{i=1}^{\gamma_{k}}\bigl(d_{T}(v_{i})-1 \bigr)+\gamma_{k} \\ =&M_{1}(R)+4(k-1)\gamma_{k}+\gamma_{k}+2\sum _{i=1}^{\gamma_{k}}d_{R}(v_{i})+ \gamma _{k} \\ \leq&M_{1}(S_{\gamma_{k}})+4(k-1)\gamma_{k}+2 \gamma_{k}+4(\gamma_{k}-1) \\ =&\gamma_{k}(\gamma_{k}+1)+4(k\gamma_{k}-1). \end{aligned}

The equality holds if and only if $$R\cong S_{\gamma_{k}}$$, that is, $$T\cong T_{n,k,\gamma_{k}}$$. We have

\begin{aligned} M_{2}(T)={}&\sum_{xy\in E(R)}d_{T}(x)d_{T}(y)+ \sum_{xy\in E(T)\setminus E(R)}d_{T}(x)d_{T}(y) \\ ={}&\sum_{xy\in E(R)}\bigl(d_{T}(x)-1\bigr) \bigl(d_{T}(y)-1\bigr)+\sum_{xy\in E(R)} \bigl(d_{T}(x)+d_{T}(y)-1\bigr) \\ &+\sum_{xy\in E(T)\setminus E(R)}d_{T}(x)d_{T}(y) \\ ={}&M_{2}(R)+\sum_{x\in V(R)}d_{T}(x) \bigl(d_{T}(x)-1\bigr)-(\gamma_{k}-1) \\ &+\sum_{x\in V(R)}2d_{T}(x)+4(k-2) \gamma_{k}+2\gamma_{k} \\ ={}&M_{2}(R)+\sum_{x\in V(R)} \bigl(d_{T}(x)-1\bigr)^{2} +3\sum _{x\in V(R)}\bigl(d_{T}(x)-1\bigr)+4k\gamma_{k}-5 \gamma_{k}-1 \\ ={}&M_{2}(R)+M_{1}(R)+6(\gamma_{k}-1)+4k \gamma_{k}-5\gamma_{k}+1 \\ \leq{}&M_{2}(S_{\gamma_{k}})+M_{1}(S_{\gamma_{k}})+4k \gamma_{k}+\gamma_{k}-5 \\ ={}&2\gamma_{k}^{2}+(4k-2)\gamma_{k}-4. \end{aligned}

The equality holds if and only if $$R\cong S_{\gamma_{k}}$$. As a consequence, $$T\cong T_{n,k,\gamma_{k}}$$. □

### Lemma 2.8

Let G be a graph which has a maximum value of the Zagreb indices among all n-vertex connected graphs with distance k-domination number and $$S_{G}=\{v\in V(G)\mid d_{G}(v)=1,\gamma _{k}(G-v)=\gamma_{k}(G)\}$$. If $$S_{G}\neq\emptyset$$, then $$|N_{G}(S_{G})|=1$$.

### Proof

Suppose that $$|N_{G}(S_{G})|\geq2$$ and u and v are two distinct vertices in $$N_{G}(S_{G})$$. $$x_{1},x_{2},\ldots, x_{r}$$ are the pendent vertices adjacent to u and $$y_{1},y_{2},\ldots,y_{t}$$ are the pendent vertices adjacent to v, where $$r\geq1$$ and $$t\geq1$$. Let D be a minimum distance k-dominating set of G. If $$x_{i}\in D$$ for some $$i\in\{1,\ldots,r\}$$, then $$D-x_{i}+u$$ is a distance k-dominating set of T. Hence, we assume that $$x_{i}\notin D$$, $$i=1,\ldots,r$$. Similarly, $$y_{i}\notin D$$ for $$1\leq i\leq t$$. Define $$G_{1}=G-\{vy_{1}\}+\{uy_{1}\}$$ and $$G_{2}=G-\{ux_{1}\}+\{vx_{1}\}$$. Then $$\gamma_{k}(G_{1})=\gamma_{k}(G_{2})=\gamma_{k}(G)$$. In addition, we have either $$M_{i}(G_{1})>M_{i}(G)$$ or $$M_{i}(G_{2})>M_{i}(G)$$, $$i=1,2$$, by a similar proof of Lemma 2.3 and thus omitted here (for reference, see the Appendix). It follows a contradiction, as desired. □

## 3 Main results

In this section, we give upper bounds on the Zagreb indices of a tree with given order n and distance k-domination number $$\gamma_{k}$$. If $$P=v_{0}v_{1}\cdots v_{d}$$ is a diameter path of an n-vertex tree T, then denote by $$T_{i}$$ the component of $$T-\{v_{i-1}v_{i},v_{i}v_{i+1}\}$$ containing $$v_{i}$$, $$i=1,2,\ldots,d-1$$. By Lemma 2.1, we obtain Theorem 3.1 directly.

### Theorem 3.1

Let T be an n-vertex tree and $$\gamma_{k}(T)=1$$. Then $$M_{1}(T)\leq n(n-1)$$ and $$M_{2}(T)\leq(n-1)^{2}$$. The equality holds if and only if $$T\cong S_{n}$$.

Let $$T^{i}_{n,k,2}$$ be the tree obtained from the path $$P_{2k+2}=v_{0}\cdots v_{2k+1}$$ by joining $$n-2(k+1)$$ pendent vertices to $$v_{i}$$, where $$i\in\{1,\ldots,2k\}$$.

### Theorem 3.2

If T is an n-vertex tree with distance k-domination number $$\gamma_{k}(T)=2$$, then

$$M_{1}(T)\leq(n-2k) (n-2k+1)+4(2k-1),$$

with equality if and only if $$T\cong T^{i}_{n,k,2}$$, where $$i\in\{1,\ldots,k\}$$. Also,

$$M_{2}(T)\leq(n-2k) (n-2k+2)+8k-8,$$

with equality if and only if $$T\cong T^{i}_{n,k,2}$$, where $$i\in\{2,\ldots,k\}$$.

### Proof

Assume that $$T\in\mathscr{T}_{n,k,2}$$ is the tree that maximizes the Zagreb indices and $$P=v_{0}v_{1}\cdots v_{d}$$ is a diameter path of T. If $$d\leq2k$$, then $$\{v_{\lfloor\frac{d}{2}\rfloor}\}$$ is a distance k-dominating set of T, a contradiction to $$\gamma_{k}(T)=2$$. If $$d\geq2k+2$$, define $$T'=\tau(T,v_{i}v_{i+1})$$, where $$i\in\{1,\ldots ,d-2\}$$. Then $$T'\in\mathscr{T}_{n,k,2}$$. By Lemma 2.2, we have $$M_{i}(T')>M_{i}(T)$$, $$i=1,2$$, a contradiction. Hence, $$d=2k+1$$.

If $$T_{i}$$ is not a star for some $$i\in\{1,2,\ldots,d-1\}$$, then there exists an n-vertex tree $$T'$$ in $$\mathscr{T}_{n,k,2}$$ such that $$M_{i}(T')>M_{i}(T)$$ for $$i=1,2$$ by Lemma 2.2, a contradiction. Besides, $$T\cong T^{i}_{n,k,2}$$ for some $$i\in\{1,\ldots,d-1\}$$ by Lemma 2.3.

Since $$M_{1}(T^{i}_{n,k,2})=M_{1}(T^{j}_{n,k,2})$$ for $$1\leq i\neq j\leq d-1$$ and $$T^{i}_{n,k,2}\cong T^{d-i}_{n,k,2}$$ for $$k+1\leq i\leq d-1$$, we get $$T\cong T^{i}_{n,k,2}$$, $$i\in\{1,\ldots,k\}$$. By direct computation, one has $$M_{1}(T)=M_{1}(T^{i}_{n,k,2})= (n-2k)(n-2k+1)+4(2k-1)$$, $$i\in\{1,\ldots ,k\}$$. In addition, $$M_{2}(T^{1}_{n,k,2})=M_{2}(T^{d-1}_{n,k,2})< M_{2}(T^{2}_{n,k,2})=\cdots =M_{2}(T^{d-2}_{n,k,2})$$ and $$T^{i}_{n,k,2}\cong T^{d-i}_{n,k,2}$$ for $$i\in \{k+1,\ldots,d-2\}$$. Hence, $$T\cong T^{i}_{n,k,2}$$, where $$i\in\{2,\ldots,k\}$$. Moreover, $$M_{2}(T)=M_{2}(T^{i}_{n,k,2})=(n-2k)(n-2k+2)+8k-8$$. This completes the proof. □

### Lemma 3.3

Let tree $$T\in\mathscr{T}_{n,k,3}$$. Then

$$M_{1}(T)\leq(n-3k) (n-3k+1)+4(3k-1)$$

and

$$M_{2}(T)\leq(n-3k) (n-3k+3)+12k-10,$$

with equality if and only if $$T\cong T_{n,k,3}$$.

### Proof

Assume that $$T\in\mathscr{T}_{n,k,3}$$. We complete the proof by induction on n. By Lemma 2.4, we have $$n\geq (k+1)\gamma_{k}$$. This lemma is true for $$n=(k+1)\gamma_{k}$$ by Lemma 2.7. Suppose that $$n>3(k+1)$$ and the statement holds for $$n-1$$ in the following.

Let D be a minimum distance k-dominating set of T and $$P=v_{0}v_{1}\cdots v_{d}$$ be a diameter path of T. Then $$d\geq2k+2$$. Otherwise, $$\{v_{k},v_{k+1}\}$$ is a distance k-dominating set, a contradiction. Note that $$\bigcup_{i=0}^{k}N_{T}^{i}(v_{0})\cap D\neq\emptyset$$ and $$\bigcup_{i=0}^{k}N_{T}^{i}(v_{0})\subseteq(\bigcup_{i=0}^{k-1}V(T_{i})\cup\{v_{k}\})$$. Hence, $$(\bigcup_{i=0}^{k-1}V(T_{i})\cup\{v_{k}\})\cap D\neq\emptyset$$. However, $$\bigcup_{i=0}^{k}N_{T}^{i}(x)\subseteq\bigcup_{i=0}^{k}N_{T}^{i}(v_{k})$$ for $$x\in\bigcup_{i=0}^{k}V(T_{i})\setminus\{v_{k}\}$$, so we assume that $$v_{k}\in D$$ and $$(\bigcup_{i=0}^{k}V(T_{i})\setminus\{ v_{k}\})\cap D=\emptyset$$. Similarly, $$v_{d-k}\in D$$ and $$(\bigcup_{i=d-k}^{d}V(T_{i})\setminus\{v_{d-k}\})\cap D=\emptyset$$. Suppose that $$v_{0}=u_{1}$$, $$v_{d}=u_{2},\ldots, u_{m}$$ are the pendent vertices of T and $$S_{T}=\{u_{i}\mid1\leq i\leq m, \gamma_{k}(T-u_{i})=\gamma_{k}(T)\}$$. We have the following claim.

### Claim 1

$$S_{T}\neq\emptyset$$.

### Proof

Assume that $$S_{T}=\emptyset$$. Namely, $$\gamma_{k}(T-u_{i})=\gamma_{k}(T)-1$$ for each $$i\in\{1,\ldots,m\}$$. If $$D\setminus\{w_{i}\}$$ is a minimum distance k-dominating set of the tree $$T-u_{i}$$, where $$w_{i}\in D$$, then $$w_{i}\neq w_{j}$$ for $$1\leq i\neq j\leq m$$. Otherwise, $$\gamma_{k}(T-u_{i})=\gamma_{k}(T)$$ or $$\gamma _{k}(T-u_{j})=\gamma_{k}(T)$$, a contradiction. It follows that $$m\leq\gamma_{k}$$.

If $$d_{T}(v_{i})\geq3$$ for some $$i\in\{2,\ldots,k,d-k,\ldots,d-1\}$$, then $$V(T_{i})\cap\{u_{3},\ldots,u_{m}\}\neq\emptyset$$. In view of $$\{ v_{k},v_{d-k}\}\subseteq D$$, we have $$\gamma_{k}(T-x)=\gamma_{k}(T)$$ for $$x\in V(T_{i})\cap\{u_{3},\ldots,u_{m}\}$$, a contradiction. Hence, $$d_{T}(v_{i})=2$$ for $$i\in\{2,\ldots,k,d-k,\ldots,d-1\}$$.

Since $$\gamma_{k}(T-v_{0})=\gamma_{k}(T)-1$$, $$v_{1}$$ must be dominated by the vertices in $$D\setminus\{v_{k}\}$$. Bearing in mind that $$(\bigcup_{i=0}^{k}V(T_{i})\setminus\{v_{k}\})\cap D=\emptyset$$, one has $$v_{k+1}\in D$$. The same applies to $$v_{d-k-1}$$. Hence, $$\{ v_{k},v_{k+1},v_{d-k-1},v_{d-k}\}\subseteq D$$. If $$d>2k+2$$, then the vertices $$v_{k}$$, $$v_{k+1}$$, $$v_{d-k-1}$$ and $$v_{d-k}$$ are different from each other, a contradiction to $$\gamma_{k}(T)=3$$. As a consequence, $$d=2k+2$$ and thus $$D=\{v_{k},v_{k+1},v_{d-k}\}$$.

If $$d_{T}(v_{k+1})=2$$, then $$T\cong P_{2k+3}$$ and $$\{v_{k},v_{d-k}\}$$ is a distance k-dominating set, a contradiction. It follows that $$d_{T}(v_{k+1})\geq3$$. Hence, $$m\geq3=\gamma_{k}$$. Recalling that $$m\leq \gamma_{k}=3$$, we have $$m=3$$, which implies that $$T_{k+1}$$ is a path with end vertices $$v_{k+1}$$ and $$u_{3}$$. If $$d(v_{k+1},u_{3})>k$$, then $$u_{3}$$ cannot be dominated by the vertices in D. If $$d(v_{k+1},u_{3})< k$$, then $$D\setminus\{v_{k+1}\}$$ is a distance k-dominating set, a contradiction. Therefore, $$d(v_{k+1},u_{3})=k$$. We conclude that $$|V(T)|=3(k+1)$$, which contradicts $$n>3(k+1)$$, so Claim 1 is true. □

Considering $$S_{T}\neq\emptyset$$ for $$T\in\mathscr{T}_{n,k,3}$$, the tree among $$\mathscr{T}_{n,k,3}$$ that maximizes the Zagreb indices must be in the set $$\{T^{*}\in\mathscr{T}_{n,k,3}\mid |N_{T^{*}}(S_{T^{*}})|=1\}$$ by Lemma 2.8. To determine the extremal trees among $$\mathscr{T}_{n,k,3}$$, we assume that $$T\in\{T^{*}\in\mathscr {T}_{n,k,3}\mid|N_{T^{*}}(S_{T^{*}})|=1\}$$ in what follows.

Let $$u_{i}$$ be a pendent vertex such that $$\gamma_{k}(T-u_{i})=\gamma_{k}(T)$$ and s be the unique vertex adjacent to $$u_{i}$$. By Lemma 2.5, $$d_{T}(s)\leq\triangle\leq n-k\gamma_{k}$$. Define $$A=\{x\in V(T)\mid d_{T}(x)=1, xs\notin E(T)\}$$ and $$B=\{x\in V(T)\mid d_{T}(x)\geq2, xs\notin E(T)\}$$. Then $$\gamma_{k}(T-x)=\gamma _{k}(T)-1$$ for all $$x\in A$$. As a consequence, $$|A|\leq\gamma_{k}$$ from the proof of Claim 1. By the induction hypothesis,

\begin{aligned} M_{1}(T) =& M_{1}(T-u_{i})+2d(s) \\ \leq&(n-1-k\gamma_{k}) (n-1-k\gamma_{k}+1)+4(k \gamma_{k}-1)+2(n-k\gamma _{k}) \\ =&(n-k\gamma_{k}) (n-k\gamma_{k}+1)+4(k \gamma_{k}-1). \end{aligned}

The equality holds if and only if $$T-u_{i}\cong T_{n-1,k,\gamma_{k}}$$ and $$d_{T}(s)=\triangle=n-k\gamma_{k}$$, i.e., $$T\cong T_{n,k,\gamma_{k}}$$.

Note that $$|A|+|B|=n-1-d_{T}(s)$$ and $$|A|\leq\gamma_{k}$$. Therefore, $$|B|=n-1-d_{T}(s)-|A|\geq n-1-d_{T}(s)-\gamma_{k}$$ and

$$\sum_{xs\notin E(T)}d(x)\geq|A|+2|B|=\bigl(|A|+|B|\bigr)+|B|\geq 2 \bigl(n-1-d_{T}(s)\bigr)-\gamma_{k}.$$

By the above inequality and the definition of $$M_{2}$$, we have

\begin{aligned} M_{2}(T) =&M_{2}(T-u_{i})+\sum _{v\in V(T)}d_{T}(v)-\sum_{xs\notin E(T)}d_{T}(x)-1 \\ \leq&M_{2}(T-u_{i})+2(n-1)-2\bigl(n-1-d_{T}(s) \bigr)+\gamma_{k}-1 \end{aligned}
(1)
\begin{aligned} \leq&(n-1-k\gamma_{k})\bigl[n-1-(k-1)\gamma_{k} \bigr]+(4k-2)\gamma_{k}-4 \\ &{}+2(n-k\gamma_{k})+\gamma_{k}-1 \quad\bigl(\text{since } d_{T}(s)\leq\triangle\leq n-k\gamma_{k}\bigr) \\ =&(n-k\gamma_{k})\bigl[n-(k-1)\gamma_{k}\bigr]+(4k-2) \gamma_{k}-4. \end{aligned}
(2)

The equality (1) holds if and only if $$|A|=\gamma_{k}$$, $$|B|=n-1-d_{T}(s)-\gamma_{k}$$ and $$d_{T}(x)=2$$ for $$x\in B$$. The equality (2) holds if and only if $$T-u_{i}\cong T_{n-1,k,\gamma_{k}}$$ and $$d_{T}(s)=\triangle=n-k\gamma_{k}$$. Hence, $$M_{2}(T)\leq(n-k\gamma _{k})[n-(k-1)\gamma_{k}]+(4k-2)\gamma_{k}-4$$ with equality if and only if $$T\cong T_{n,k,\gamma_{k}}$$. □

### Theorem 3.4

Let T be a tree of order n with distance k-domination number $$\gamma_{k}$$ (≥3). Then

$$M_{1}(T)\leq(n-k\gamma_{k}) (n-k\gamma_{k}+1)+4(k \gamma_{k}-1)$$

and

$$M_{2}(T)\leq(n-k\gamma_{k})\bigl[n-(k-1)\gamma_{k} \bigr]+(4k-2)\gamma_{k}-4,$$

with equality if and only if $$T\cong T_{n,k,\gamma_{k}}$$.

### Proof

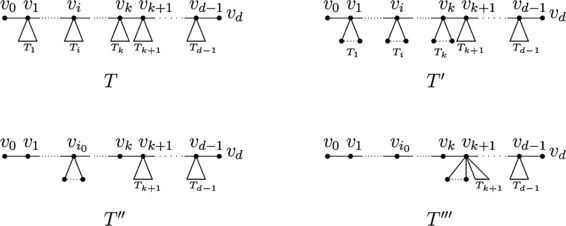

Let $$T\in\mathscr{T}_{n,k,\gamma_{k}}$$ and $$P=v_{0}v_{1}\cdots v_{d}$$ be a diameter path of T. Define $$S_{T}=\{u\in V(T)\mid d_{T}(u)=1,\gamma_{k}(T-u)=\gamma_{k}(T)\}$$. If $$S_{T}=\emptyset$$, then $$\gamma_{k}(T-v_{i})=\gamma_{k}(T)-1$$ for $$i=0,d$$. If $$S_{T}\neq\emptyset$$, then we suppose that $$T\in\{T^{*}\in\mathscr {T}_{n,k,\gamma_{k}}\mid|N_{T^{*}}(S_{T^{*}})|=1\}$$ by Lemma 2.8 for establishing the maximum Zagreb indices of trees among $$\mathscr {T}_{n,k,\gamma_{k}}$$. If $$v_{d}\in S_{T}\neq\emptyset$$, then $$\gamma_{k}(T-v_{0})=\gamma_{k}(T)-1$$, which implies that $$\gamma _{k}(T-v_{0})=\gamma_{k}(T)-1$$ or $$\gamma_{k}(T-v_{d})=\gamma_{k}(T)-1$$. Assume that $$\gamma_{k}(T-v_{0})=\gamma_{k}(T)-1$$. Then there is a minimum distance k-dominating set D of T such that $$\{v_{k},v_{k+1},v_{d-k}\}\subseteq D$$ from the proof of Lemma 3.3.

Let $$T'$$ be the tree obtained from T by applying Transformation I on $$T_{i}$$ repeatedly for $$i=1,\ldots,k$$ such that $$T'_{i}\cong S_{|V(T'_{i})|}$$, where $$T'_{i}$$ is the component of $$T'-\{ v_{i-1}v_{i},v_{i}v_{i+1}\}$$ containing $$v_{i}$$, $$i=1,\ldots,k$$ (see Figure 4). Then $$T'\in\mathscr{T}_{n,k,\gamma_{k}}$$. By Lemma 2.2, we have $$M_{i}(T)\leq M_{i}(T')$$, $$i=1,2$$, with equality if and only if $$T\cong T'$$.

By Lemma 2.3, for some $$i_{0},i_{1}\in\{1,\ldots,k\}$$, define

\begin{aligned} T''={}&T'-\bigcup _{i\in\{1,\ldots,k\}\setminus\{i_{0}\}}\bigl\{ v_{i} x\mid x\in N_{T'}(v_{i}) \setminus\{v_{i-1},v_{i+1}\}\bigr\} \\ &+\bigcup_{i\in\{1,\ldots,k\}\setminus\{i_{0}\}}\bigl\{ v_{i_{0}}x\mid x\in N_{T'}(v_{i})\setminus\{v_{i-1},v_{i+1}\} \bigr\} \end{aligned}

and

\begin{aligned} \widetilde{T}''={}&T'-\bigcup _{i\in\{1,\ldots,k\}\setminus\{i_{1}\}}\bigl\{ v_{i} x\mid x\in N_{T'}(v_{i}) \setminus\{v_{i-1},v_{i+1}\}\bigr\} \\ & +\bigcup_{i\in\{1,\ldots,k\}\setminus\{i_{1}\}}\bigl\{ v_{i_{1}}x\mid x\in N_{T'}(v_{i})\setminus\{v_{i-1},v_{i+1}\} \bigr\} .\end{aligned}

Then one has $$M_{1}(T')\leq M_{1}(T'')$$ with equality if and only if $$T'\cong T''$$ and $$M_{2}(T')\leq M_{2}(\widetilde{T}'')$$ with equality if and only if $$T'\cong\widetilde{T}''$$.

Suppose that $$|N_{T''}(v_{i_{0}})\setminus\{v_{i_{0}-1},v_{i_{0}+1}\} |=|N_{\widetilde{T}''}\setminus\{v_{i_{1}-1},v_{i_{1}+1}\}|=m$$, $$m\geq0$$. Let

\begin{aligned} T'''={}&T''- \bigl\{ v_{i_{0}}x\mid x\in N_{T''}(v_{i_{0}})\setminus\{ v_{i_{0}-1},v_{i_{0}+1}\}\bigr\} \\ &+\bigl\{ v_{k+1}x\mid x\in N_{T''}(v_{i_{0}})\setminus \{v_{i_{0}-1},v_{i_{0}+1}\} \bigr\} \\ ={}&\widetilde{T}''-\bigl\{ v_{i_{1}}x\mid x\in N_{\widetilde {T}''}(v_{i_{1}})\setminus\{v_{i_{1}-1},v_{i_{1}+1}\} \bigr\} \\ &+\bigl\{ v_{k+1}x\mid x\in N_{\widetilde{T}''}(v_{i_{1}})\setminus \{ v_{i_{1}-1},v_{i_{1}+1}\}\bigr\} .\end{aligned}

Then D is a minimum distance k-dominating set of $$T'''$$ and $$d_{T'''}(v_{i})=2$$ for $$i=1,\ldots,k$$. Assume that $$\mathit{PN}_{k,D}(x)$$ is the set of all private k-neighbors of x with respect to D in $$T'''$$. It is clear that the vertices in $$\bigcup_{i=0}^{k}N_{T'''}^{i}(v_{k})\setminus\{v_{0},\ldots,v_{k}\}$$ can be dominated by $$v_{k+1}\in D$$. Thus, $$D\setminus\{v_{k}\}$$ is a distance k-dominating set of tree $$T'''-\{v_{0},\ldots,v_{k}\}$$. In addition, $$\mathit{PN}_{k,D}(v_{k+1})\subseteq V(T''')\setminus\{v_{0},\ldots ,v_{k}\}$$, which means that $$D\setminus\{v_{k}\}$$ is a minimum distance k-dominating set of $$T'''-\{v_{0},\ldots,v_{k}\}$$. So $$\gamma_{k}(T'''-\{v_{0},\ldots,v_{k}\} )=\gamma_{k}-1$$. Analogously, $$\gamma_{k}(T'''-\{v_{0},\ldots,v_{k-1}\})=\gamma_{k}-1$$.

By the definition of the first Zagreb index, we get

\begin{aligned} M_{1}\bigl(T''' \bigr)-M_{1}\bigl(T''\bigr)&=4+ \bigl(d_{T''}(v_{k+1})+m\bigr)^{2}-(2+m)^{2}-d_{T''}^{2}(v_{k+1}) \\ &=2m\bigl(d_{T''}(v_{k+1})-2\bigr) \\ &\geq0,\end{aligned}

so $$M_{1}(T''')-M_{1}(T'')=0$$ if and only if at least one of the following conditions holds:

1. (1)

$$m=0$$, which implies that $$T''\cong T'''$$;

2. (2)

$$d_{T''}(v_{k+1})=2$$.

If $$i_{1}=1$$, then

\begin{aligned} M_{2}\bigl(T''' \bigr)-M_{2}\bigl(\widetilde{T}''\bigr) ={}&6+ \bigl(d_{\widetilde{T}''}(v_{k+1})+m\bigr) \biggl(m+\sum _{x\in N_{\widetilde {T}''}(v_{k+1})}d_{\widetilde{T}''}(x)\biggr) \\ &-(m+2) (m+3)-d_{\widetilde{T}''}(v_{k+1})\sum _{x\in N_{\widetilde {T}''}(v_{k+1})}d_{\widetilde{T}''}(x) \\ ={}&m\biggl[d_{\widetilde{T}''}(v_{k+1})+\sum_{x\in N_{\widetilde {T}''}(v_{k+1})}d_{\widetilde{T}''}(x)-5 \biggr] \\ \geq{}&0 ,\end{aligned}

with equality if and only if $$m=0$$, that is, $$\widetilde{T}''\cong T'''$$. If $$i_{1}\neq1$$ and $$i_{1}\neq k$$, then

\begin{aligned} M_{2}\bigl(T''' \bigr)-M_{2}\bigl(\widetilde{T}''\bigr) ={}&8+ \bigl(d_{\widetilde{T}''}(v_{k+1})+m\bigr) \biggl(m+\sum _{x\in N_{\widetilde {T}''}(v_{k+1})}d_{\widetilde{T}''}(x)\biggr) \\ &-(m+2) (m+4)-d_{\widetilde{T}''}(v_{k+1})\sum _{x\in N_{\widetilde {T}''}(v_{k+1})}d_{\widetilde{T}''}(x) \\ ={}&m\biggl[d_{\widetilde{T}''}(v_{k+1})+\sum_{x\in N_{\widetilde {T}''}(v_{k+1})}d_{\widetilde{T}''}(x)-6 \biggr] \\ \geq{}&0 .\end{aligned}

Also, $$M_{2}(T''')-M_{2}(\widetilde{T}'')=0$$ if and only if at least one of the following conditions holds:

1. (1)

$$m=0$$, namely, $$\widetilde{T}''\cong T'''$$;

2. (2)

$$d_{\widetilde{T}''}(v_{k})=d_{\widetilde {T}''}(v_{k+1})=d_{\widetilde{T}''}(v_{k+2})=2$$.

If $$i_{1}\neq1$$ and $$i_{1}=k$$, then

\begin{aligned} M_{2}\bigl(T''' \bigr)-M_{2}\bigl(\widetilde{T}''\bigr) ={}&4+ \bigl(d_{\widetilde{T}''}(v_{k+1})+m\bigr) \biggl(m+2+\sum _{x\in N_{\widetilde {T}''}(v_{k+1})\setminus\{v_{k}\}}d_{\widetilde{T}''}(x)\biggr) \\ &-(m+2) (m+2)-d_{\widetilde{T}''}(v_{k+1}) \biggl(\sum _{x\in N_{\widetilde {T}''}(v_{k+1})\setminus\{v_{k}\}}d_{\widetilde{T}''}(x)+m+2\biggr) \\ ={}&m\biggl(\sum_{x\in N_{\widetilde{T}''}(v_{k+1})\setminus\{v_{k}\} }d_{\widetilde{T}''}(x)-2\biggr) \\ \geq{}&0 .\end{aligned}

As a result, $$M_{2}(T''')-M_{2}(\widetilde{T}'')=0$$ if and only if at least one of the following conditions holds:

1. (1)

$$m=0$$, which implies that $$\widetilde{T}''\cong T'''$$;

2. (2)

$$d_{\widetilde{T}''}(v_{k+1})=d_{\widetilde{T}''}(v_{k+2})=2$$.

In what follows, we prove $$M_{1}(T''')\leq(n-k\gamma_{k})(n-k\gamma _{k}+1)+4(k\gamma_{k}-1)$$ and $$M_{2}(T''')\leq(n-k\gamma_{k})[n-(k-1)\gamma _{k}]+(4k-2)\gamma_{k}-4$$ with equality if and only if $$T'''\cong T_{n,k,\gamma_{k}}$$ by induction on $$\gamma_{k}$$. The statement is true for $$\gamma_{k}=3$$ and $$n\geq(k+1)\gamma_{k}$$ by Lemma 3.3. Assume that $$\gamma _{k}\geq4$$, the statement holds for $$\gamma_{k}-1$$ and all the $$n\geq (k+1)(\gamma_{k}-1)$$.

In view of $${\gamma_{k}(T'''-\{v_{0},v_{1},\ldots,v_{k}\})}=\gamma _{k}-1$$ and $${|V(T'''-\{v_{0},v_{1},\ldots,v_{k}\})|}=n-k-1\geq (k+1)(\gamma_{k}-1)$$, by the induction hypothesis, we get

\begin{aligned} M_{1}\bigl(T'''\bigr)&= M_{1}\bigl(T'''- \{v_{0},v_{1},\ldots,v_{k}\} \bigr)+2d_{T'''}(v_{k+1})-1+ \sum_{i=0}^{k}d^{2}_{T'''}(v_{i}) \\ &\leq M_{1}(T_{n-k-1,k,\gamma_{k}-1})+2(n-k\gamma_{k})+4k \\ &=(n-k\gamma_{k}) (n-k\gamma_{k}+1)+4(k \gamma_{k}-1).\end{aligned}

The equality holds if and only if $$T'''-\{v_{0},v_{1},\ldots,v_{k}\}\cong T_{n-k-1,k,\gamma_{k}-1}$$ and $$d_{T'''}(v_{k+1})=\triangle=n-k\gamma_{k}$$. Recalling that $$d_{T'''}(v_{i})=2$$ for $$i=1,\ldots,k$$, we have $$M_{1}(T''')=(n-k\gamma _{k})(n-k\gamma_{k}+1)+4(k\gamma_{k}-1)$$ if and only if $$T'''\cong T_{n,k,\gamma_{k}}$$.

Thus, $$M_{1}(T)\leq M_{1}(T')\leq M_{1}(T'')\leq M_{1}(T''')\leq(n-k\gamma _{k})(n-k\gamma_{k}+1)+4(k\gamma_{k}-1)$$ and $$M_{1}(T)=(n-k\gamma_{k})(n-k\gamma_{k}+1)+4(k\gamma_{k}-1)$$ if and only if at least one of the following conditions holds:

1. (1)

$$T\cong T'\cong T''\cong T'''\cong T_{n,k,\gamma_{k}}$$;

2. (2)

$$T\cong T'\cong T''$$, where $$d_{T''}(v_{k+1})=2$$. Besides, $$T'''\cong T_{n,k,\gamma_{k}}$$.

However, the second condition is impossible. If $$T'''\cong T_{n,k,\gamma _{k}}$$, then $$d_{T'''}(v_{k+1})=n-k\gamma_{k}$$ and the number of the pendent vertices in $$N_{T'''}(v_{k+1})$$ is $$n-(k+1)\gamma_{k}$$. By the definition of $$T'''$$, we have

$$n-(k+1)\gamma_{k}\geq\big|N_{T''}(v_{i_{0}})\setminus \{v_{i_{0}-1},v_{i_{0}+1}\}\big|.$$

Hence,

\begin{aligned} d_{T''}(v_{k+1})&=d_{T'''}(v_{k+1})-|N_{T''}(v_{i_{0}}) \setminus\{ v_{i_{0}-1},v_{i_{0}+1}\}| \\ &\geq d_{T'''}(v_{k+1})-\bigl[n-(k+1)\gamma_{k}\bigr] \\ &=\gamma_{k}\geq3,\end{aligned}

a contradiction to $$d_{T''}(v_{k+1})=2$$. Therefore,

$$M_{1}(T)\leq(n-k\gamma_{k}) (n-k\gamma_{k}+1)+4(k \gamma_{k}-1)$$

with equality if and only if $$T\cong T_{n,k,\gamma_{k}}$$.

Note that $${\gamma_{k}(T'''-\{v_{0},\ldots,v_{k-1}\})}=\gamma _{k}-1$$ and $${|V(T'''-\{v_{0},\ldots,v_{k-1}\})|}>(k+1)(\gamma _{k}-1)$$. Then

\begin{aligned} M_{2}\bigl(T'''\bigr)&= M_{2}\bigl(T'''- \{v_{0},v_{1},\ldots,v_{k-1}\} \bigr)+d_{T'''}(v_{k+1})+4(k-1)+2 \\ &\leq M_{2}(T_{n-k,k,\gamma_{k}-1})+n-k\gamma_{k}+4(k-1)+2 \\ &=(n-k\gamma_{k})\bigl[n-(k-1)\gamma_{k}\bigr]+(4k-2) \gamma_{k}-4.\end{aligned}

The equality holds if and only if $$T'''-\{v_{0},\ldots,v_{k-1}\}\cong T_{n-k,k,\gamma_{k}-1}$$ and $$d_{T'''}(v_{k+1})=\triangle=n-k\gamma _{k}$$. In consideration of $$d_{T'''}(v_{i})=2$$ for $$i=1,\ldots,k$$, the equality holds if and only if $$T'''\cong T_{n,k,\gamma_{k}}$$.

Hence, if $$i_{1}\neq1$$, then $$M_{2}(T)\leq M_{2}(T')\leq M_{2}(\widetilde {T}'')\leq M_{2}(T''')\leq(n-k\gamma_{k})[n-(k-1)\gamma_{k}]+(4k-2)\gamma _{k}-4$$, with equality if and only if at least one of the following conditions holds:

1. (1)

$$T\cong T'\cong\widetilde{T}''\cong T'''\cong T_{n,k,\gamma_{k}}$$;

2. (2)

$$T\cong T'\cong\widetilde{T}''$$, where $$d_{\widetilde {T}''}(v_{k})=d_{\widetilde{T}''}(v_{k+1})=d_{\widetilde {T}''}(v_{k+2})=2$$ and $$\widetilde{T}'''\cong T_{n,k,\gamma_{k}}$$.

Analogous to the analysis of the first Zagreb index, the second condition above is impossible. Thus,

$$M_{2}(T)\leq(n-k\gamma_{k})\bigl[n-(k-1)\gamma_{k} \bigr]+(4k-2)\gamma_{k}-4$$

and the equality holds if and only if $$T\cong T_{n,k,\gamma_{k}}$$.

Besides, if $$i=1$$, then $$M_{2}(T)\leq(n-k\gamma_{k})[n-(k-1)\gamma _{k}]+(4k-2)\gamma_{k}-4$$ with equality if and only if $$T\cong T_{n,k,\gamma _{k}}$$ immediately. This completes the proof. □

### Remark 3.5

Borovićanin and Furtula [1] proved

$$M_{1}(T)\leq(n-\gamma) (n-\gamma+1)+4(\gamma-1)$$

and

$$M_{2}(T)\leq 2(n-\gamma+1) (\gamma-1)+(n-\gamma) (n-2\gamma+1),$$

with equality if and only if $$T\cong T_{n,\gamma}$$, where $$T_{n,\gamma}$$ is the tree obtained from the star $$K_{1,n-\gamma}$$ by attaching a pendent edge to its $$\gamma-1$$ pendent vertices. In this paper, we determine the extremal values on the Zagreb indices of trees with distance k-domination number for $$k\geq2$$. Note that the domination number is the special case of the distance k-domination number for $$k=1$$ and $$T_{n,k,\gamma_{k}}\cong T_{n,\gamma}$$, $$T_{n,k,2}^{i}\cong T_{n,\gamma}$$, $$i\in\{1,\ldots,k\}$$, when $$k=1$$. Let T be an n-vertex tree with distance k-domination number $$\gamma_{k}$$. Then, by using Theorems 3.1, 3.2 and 3.4 and the results in [1], we have

$$M_{1}(T)\leq \textstyle\begin{cases}n(n-1) & \text{if }\gamma _{k}=1,\\ (n-k\gamma_{k})(n-k\gamma_{k}+1)+4(k\gamma_{k}-1) &\text{if }\gamma_{k}\geq2, \end{cases}$$

with equality if and only if $$T\cong S_{n}$$ when $$\gamma_{k}=1$$, $$T\cong T_{n,k,2}^{i}$$, $$i\in\{1,\ldots,k\}$$, when $$\gamma_{k}=2$$, or $$T\cong T_{n,k,\gamma_{k}}$$ when $$\gamma_{k}\geq3$$. Moreover,

$$M_{2}(T)\leq \textstyle\begin{cases}2(n-\gamma_{k}+1)(\gamma_{k}-1)+(n-\gamma_{k})(n-2\gamma _{k}+1) & \text{if }k=1,\\ (n-1)^{2} & \text{if }k\geq2, \gamma_{k}=1,\\ (n-k\gamma_{k})[n-(k-1)\gamma_{k}]+(4k-2)\gamma _{k}-4 & \text{if }k\geq2, \gamma_{k}\geq2, \end{cases}$$

with equality if and only if $$T\cong S_{n}$$ when $$k\geq2$$ and $$\gamma _{k}=1$$, $$T\cong T_{n,k,2}^{i}$$, $$i\in\{2,\ldots,k\}$$, when $$k\geq2$$ and $$\gamma_{k}=2$$, or $$T\cong T_{n,k,\gamma_{k}}$$ otherwise.

## References

1. Borovićanin, B, Furtula, B: On extremal Zagreb indices of trees with given domination number. Appl. Math. Comput. 279, 208-218 (2016)

2. Dobrynin, A, Kochetova, AA: Degree distance of a graph: a degree analogue of the Wiener index. J. Chem. Inf. Comput. Sci. 34, 1082-1086 (1994)

3. Dobrynin, A, Entringer, R, Gutman, I: Wiener index of trees: theory and applications. Acta Appl. Math. 66, 211-249 (2011)

4. Balaban, AT, Chiriac, A, Motoc, I, Simon, Z: Steric Fit in Quantitative Structure-Activity Relations. Lecture Notes in Chemistry, vol. 15, pp. 22-27. Springer, Berlin (1980)

5. Estrada, E: Characterization of 3D molecular structure. Chem. Phys. Lett. 319, 713-718 (2000)

6. Zhang, HP, Yang, YJ: Resistance distance and Kirchhoff index in circulant graphs. Int. J. Quant. Chem. 107, 330-339 (2007)

7. Bordes, A, Glorot, X, Weston, J, Bengio, Y: A semantic matching energy function for learning with multi-relational data. Mach. Learn. 94, 233-259 (2014)

8. Gupta, S, Singh, M, Madan, AK: Eccentric distance sum: a novel graph invariant for predicting biological and physical properties. J. Math. Anal. Appl. 275, 386-401 (2002)

9. Gupta, S, Singh, M, Madan, AK: Connective eccentricity index: a novel topological descriptor for predicting biological activity. J. Mol. Graph. Model. 18, 18-25 (2000)

10. Sardana, S, Madan, AK: Predicting anti-HIV activity of TIBO derivatives: a computational approach using a novel topological descriptor. J. Mol. Model. 8, 258-265 (2002)

11. Randić, M: On characterization of molecular branching. J. Am. Chem. Soc. 97, 6609-6615 (1975)

12. Shi, YT: Note on two generalizations of the Randic index. Appl. Math. Comput. 265, 1019-1025 (2015)

13. Lokesha, V, Shetty, BS, Ranjini, PS, Cangul, IN, Cevilk, AS: New bounds for Randic and GA indices. J. Inequal. Appl. 2013, Article ID 180 (2013)

14. Zhou, B, Trinajstić, N: On general sum-connectivity index. J. Math. Chem. 47, 210-218 (2013)

15. Akhter, S, Imran, M, Raza, Z: Bounds for the general sum-connectivity index of composite graphs. J. Inequal. Appl. 2017, Article ID 76 (2017)

16. Gutman, I, Trinajstić, N: Graph theory and molecular orbitals. Total π-electron energy of alternant hydrocarbons. Chem. Phys. Lett. 17, 535-538 (1972)

17. Gutman, I: Multiplicative Zagreb indices of trees. Bull. Soc. Math. Banja Luka 18, 17-23 (2011)

18. Das, KC, Yurttas, A, Togan, M, Cevik, AS, Cangul, IN: The multiplicative Zagreb indices of graph operations. J. Inequal. Appl. 2013, Article ID 90 (2013)

19. Zhan, FQ, Qiao, YF, Cai, JL: Unicyclic and bicyclic graphs with minimal augmented Zagreb index. J. Inequal. Appl. 2015, Article ID 126 (2015)

20. Balaban, AT, Motoc, I, Bonchev, D, Mekenyan, O: Topological indices for structure-activity correlations. Top. Curr. Chem. 114, 21-55 (1983)

21. Todeschini, R, Consonni, V: Handbook of Molecular Descriptors. Wiley-VCH, Weinheim (2000)

22. Gutman, I, Ruščić, B, Trinajstić, N, Wilcox, CF: Graph theory and molecular orbitals, XII. Acyclic polyencs. J. Chem. Phys. 62, 3399-3405 (1975)

23. Nikolić, S, Kovaćević, G, Miličević, A, Trinajstić, N: The Zagreb indices 30 years after. Croat. Chem. Acta 76, 113-124 (2003)

24. Gutman, I, Das, KC: The first Zagreb index 30 years after. MATCH Commun. Math. Comput. Chem. 50, 83-92 (2004)

25. Furtula, B, Gutman, I: A forgotten topological index. J. Math. Chem. 53, 1184-1190 (2015)

26. Hosamani, SM, Basavanagoud, B: New upper bounds for the first Zagreb index. MATCH Commun. Math. Comput. Chem. 74, 97-101 (2015)

27. Milovanović, EI, Milovanović, IŽ, Dolićanin, EĆ, Glogić, E: A note on the first reformulated Zagreb index. Appl. Math. Comput. 273, 16-20 (2016)

28. Furtula, B, Gutmana, I, Ediz, S: On difference of Zagreb indices. Discrete Appl. Math. 178, 83-88 (2014)

29. Liu, BL, Gutman, I: Upper bounds for Zagreb indices of connected graphs. MATCH Commun. Math. Comput. Chem. 55, 439-446 (2006)

30. Zhang, SG, Zhang, HL: Unicyclic graphs with the first three smallest and largest first general Zagreb index. MATCH Commun. Math. Comput. Chem. 55, 427-438 (2006)

31. Zhou, B, Gutman, I: Further properties of Zagreb indices. MATCH Commun. Math. Comput. Chem. 54, 233-239 (2005)

32. Gutman, I, Goubko, M: Trees with fixed number of pendent vertices with minimal first Zagreb index. Bull. Int. Math. Virtual Inst. 3, 161-164 (2013)

33. Yan, Z, Liu, HQ, Liu, HG: Sharp bounds for the second Zagreb index of unicyclic graphs. J. Math. Chem. 42, 565-574 (2007)

34. Lang, RL, Deng, XL, Lu, H: Bipartite graphs with the maximal value of the second Zagreb index. Bull. Malays. Math. Sci. Soc. 36, 1-6 (2013)

35. Vasilyeva, A, Dardab, R, Stevanović, D: Trees of given order and independence number with minimal first Zagreb index. MATCH Commun. Math. Comput. Chem. 72, 775-782 (2014)

36. Feng, YQ, Hu, X, Li, SC: On the extremal Zagreb indices of graphs with cut edges. Acta Appl. Math. 10, 667-684 (2010)

37. Liu, MH, Liu, BL: Second Zagreb indices of unicyclic graphs with given degree sequences. Discrete Appl. Math. 167, 217-221 (2014)

38. Xu, KX: The Zagreb indices of graphs with a given clique number. Appl. Math. Lett. 24, 1026-1030 (2011)

39. Li, SC, Yang, HX, Zhao, Q: Sharp bounds on Zagreb indices of cacti with k pendent vertices. Filomat 26, 1189-1200 (2012)

40. Li, SC, Zhang, MJ: Sharp bounds for the Zagreb indices of bipartite graphs with a given diameter. Appl. Math. Lett. 24, 131-137 (2011)

41. Chang, GJ: k-domination and graph covering problems. Ph.D. thesis, School of OR and IE, Cornell University, Ithaca, NY (1982)

42. Chang, GJ, Nemhauser, GL: The k-domination and k-stability problems on sun-free chordal graphs. SIAM J. Algebraic Discrete Methods 5, 332-345 (1984)

43. Haynes, TW, Hedetniemi, ST, Slater, PJ: Fundamentals of Domination in Graphs. Marcel Dekker, New York (1998)

44. Haynes, TW, Hedetniemi, ST, Slater, PJ: Domination in Graphs. Marcel Dekker, New York (1998)

45. Dankelmann, P: Average distance and domination number. Discrete Appl. Math. 80, 21-35 (1997)

46. Tian, F, Xu, JM: Average distance and distance domination numbers. Discrete Appl. Math. 157, 1113-1127 (2009)

47. He, CX, Wu, BF, Yu, ZS: On the energy of trees with given domination number. MATCH Commun. Math. Comput. Chem. 64, 169-180 (2010)

48. Das, KC, Gutman, I: Some properties of the second Zagreb index. MATCH Commun. Math. Comput. Chem. 52, 103-112 (2004)

49. Hua, HB, Zhang, SG, Xu, KX: Further results on the eccentric distance sum. Discrete Appl. Math. 160, 170-180 (2012)

50. Deng, HY: A unified approach to the extremal Zagreb indices for trees, unicyclic graphs and bicyclic graphs. MATCH Commun. Math. Comput. Chem. 57, 597-616 (2007)

51. Meir, A, Moon, JW: Relations between packing and covering numbers of a tree. Pac. J. Math. 61, 225-233 (1975)

52. Topp, J, Volkmann, L: On packing and covering numbers of graphs. Discrete Math. 96, 229-238 (1991)

## Acknowledgements

This work is financially supported by the National Natural Science Foundation of China (No. 11401004) and the Natural Science Foundation of Anhui Province of China (No. 1408085QA03).

## Author information

Authors

### Contributions

All authors read and approved the final manuscript.

### Corresponding author

Correspondence to Xiangfeng Pan.

## Ethics declarations

### Competing interests

The authors declare that they have no competing interests.

### Publisher’s Note

Springer Nature remains neutral with regard to jurisdictional claims in published maps and institutional affiliations.

## Appendix

### Proof

Either $$M_{i}(G_{1})>M_{i}(G)$$ or $$M_{i}(G_{2})>M_{i}(G)$$, $$i=1,2$$, in Lemma 2.8, where $$G_{1}=G-\{vy_{1}\}+\{uy_{1}\}$$ and $$G_{2}=G-\{ux_{1}\}+\{vx_{1}\}$$, as shown in the following figure.

Let $$G^{*}=G-\{x_{1},\ldots,x_{r},y_{1},\ldots,y_{t}\}$$, $$d_{G^{*}}(u)=a$$ and $$d_{G^{*}}(v)=b$$. Then

\begin{aligned} M_{1}(G_{1})-M_{1}(G)&=(a+r+1)^{2}+(b+t-1)^{2}-(a+r)^{2}-(b+t)^{2} \\ &=2(a+r-b-t+1)\end{aligned}

and

\begin{aligned} M_{1}(G_{2})-M_{1}(G)&=(a+r-1)^{2}+(b+t+1)^{2}-(a+r)^{2}-(b+t)^{2} \\ &=2(b+t-a-r+1)\end{aligned}

by the definition of the first Zagreb index. Suppose that $$M_{1}(G_{1})-M_{1}(G)\leq0$$. Then $$a+r\leq b+t-1$$. It follows that $$M_{1}(G_{2})-M_{1}(G)>0$$.

If $$u\notin N_{G}(v)$$, then

\begin{aligned} M_{2}(G_{1})-M_{2}(G)={}&(a+r+1) \biggl(\sum _{x\in N_{G^{*}}(u)}d_{G}(x)+r+1 \biggr) \\ &+(b+t-1) \biggl(\sum_{x\in N_{G^{*}}(v)}d_{G}(x)+t-1 \biggr) \\ &-(a+r) \biggl(\sum_{x\in N_{G^{*}}(u)}d_{G}(x)+r \biggr)-(b+t) \biggl(\sum_{x\in N_{G^{*}}(v)}d_{G}(x)+t \biggr) \\ ={}&\sum_{x\in N_{G^{*}}(u)}d_{G}(x)-\sum _{x\in N_{G^{*}}(v)}d_{G}(x)+2r-2t+a-b+2\end{aligned}

and

\begin{aligned} M_{2}(G_{2})-M_{2}(G)={}&(a+r-1) \biggl(\sum _{x\in N_{G^{*}}(u)}d_{G}(x)+r-1 \biggr) \\ &+(b+t+1) \biggl(\sum_{x\in N_{G^{*}}(v)}d_{G}(x)+t+1 \biggr) \\ &-(a+r) \biggl(\sum_{x\in N_{G^{*}}(u)}d_{G}(x)+r \biggr)-(b+t) \biggl(\sum_{x\in N_{G^{*}}(v)}d_{G}(x)+t \biggr) \\ ={}&\sum_{x\in N_{G^{*}}(v)}d_{G}(x)-\sum _{x\in N_{G^{*}}(u)}d_{G}(x)+2t-2r+b-a+2.\end{aligned}

If $$M_{2}(G_{1})-M_{2}(G)\leq0$$, then $$M_{2}(G_{2})-M_{2}(G)>0$$.

If $$u\in N_{G}(v)$$, then

$$\begin{gathered} M_{2}(G_{1})-M_{2}(G) \\ \quad=(a+r+1) \biggl(\sum_{x\in N_{G^{*}}(u)\setminus\{v\}}d_{G}(x)+r+1 \biggr)+(b+t-1) \biggl(\sum_{x\in N_{G^{*}}(u)\setminus\{v\}}d_{G}(x)+t-1 \biggr) \\ \qquad{}+(a+r+1) (b+t-1)-(a+r) \biggl(\sum_{x\in N_{G^{*}}(u)\setminus\{v\} }d_{G}(x)+r \biggr) \\ \qquad{}-(b+t) \biggl(\sum_{x\in N_{G^{*}}(u)\setminus\{v\} }d_{G}(x)+t \biggr)-(a+r) (b+t) \\ \quad=\sum_{x\in N_{G^{*}}(u)\setminus\{v\}}d_{G}(x)-\sum _{x\in N_{G^{*}}(v)\setminus\{u\}}d_{G}(x)+r-t+1\end{gathered}$$

and

$$\begin{gathered} M_{2}(G_{2})-M_{2}(G) \\ \quad=(a+r-1) \biggl(\sum_{x\in N_{G^{*}}(u)\setminus\{v\}}d_{G}(x)+r-1 \biggr)+(b+t+1) \biggl(\sum_{x\in N_{G^{*}}(u)\setminus\{v\}}d_{G}(x)+t+1 \biggr) \\ \qquad{}+(a+r-1) (b+t+1)-(a+r) \biggl(\sum_{x\in N_{G^{*}}(u)\setminus\{v\} }d_{G}(x)+r \biggr) \\ \qquad{}-(b+t) \biggl(\sum_{x\in N_{G^{*}}(u)\setminus\{v\}}d_{G}(x)+t \biggr)-(a+r) (b+t) \\ \quad=\sum_{x\in N_{G^{*}}(v)\setminus\{u\}}d_{G}(x)-\sum _{x\in N_{G^{*}}(u)\setminus\{v\}}d_{G}(x)+t-r+1.\end{gathered}$$

Assume that $$M_{2}(G_{1})-M_{2}(G)\leq0$$. Then $$M_{2}(G_{2})-M_{2}(G)>0$$. Therefore, either $$M_{i}(G_{1})>M_{i}(G)$$ or $$M_{i}(G_{2})>M_{i}(G)$$, $$i=1,2$$. □

## Rights and permissions

Reprints and permissions

Pei, L., Pan, X. Extremal values on Zagreb indices of trees with given distance k-domination number. J Inequal Appl 2018, 16 (2018). https://doi.org/10.1186/s13660-017-1597-3
