A tensor trust-region model for nonlinear system


It has turned out that the tensor expansion model has better approximation to the objective function than models of the normal second Taylor expansion. This paper conducts a study of the tensor model for nonlinear equations and it includes the following: (i) a three dimensional symmetric tensor trust-region subproblem model of the nonlinear equations is presented; (ii) the three dimensional symmetric tensor is replaced by interpolating function and gradient values from the most recent past iterate, which avoids the storage of the three dimensional symmetric tensor and decreases the workload of the computer; (iii) the limited BFGS quasi-Newton update is used instead of the second Jacobian matrix, which generates an inexpensive computation of a complex system; (iv) the global convergence is proved under suitable conditions. Numerical experiments are done to show that this proposed algorithm is competitive with the normal algorithm.


This paper focuses on

$$ S(x)=0, \quad x \in \Re^{n}, $$

where \(S:\Re^{n} \rightarrow \Re^{n}\) is continuously differentiable nonlinear system. The nonlinear system (1.1) has been proved to possess wildly different application fields in parameter estimating, function approximating, and nonlinear fitting, etc. At present, there exist many effective algorithms working in it, such as the traditional Gauss–Newton method [1, 9,10,11, 14, 16], the BFGS method [8, 23, 27, 29, 39, 43], the Levenberg–Marquardt method [6, 24, 42], the trust-region method [4, 26, 35, 41], the conjugate gradient algorithm [12, 25, 30, 38, 40], and the limited BFGS method [13, 28]. Here and in the next statement, for research convenience, suppose that \(S(x)\) has solution \(x^{*}\). Setting \(\beta (x):=\frac{1}{2}\Vert S(x) \Vert ^{2}\) as a norm function, the problem (1.1) is equivalent to the following optimization problem:

$$ \min \beta (x), \quad x\in \Re^{n}. $$

The trust-region (TR) methods have as a main objective solving the so-called trust-region subproblem model to get the trial step \(d_{k}\),

$$\begin{aligned}& \operatorname{Min} \quad Tp_{k}(d) = \frac{1}{2}\bigl\Vert S(x_{k})+\nabla S (x_{k})d \bigr\Vert ^{2}, \\& \quad \Vert d \Vert \leq \triangle , \end{aligned}$$

where \(x_{k}\) is the kth iteration, is the so-called TR radius, and \(\Vert \cdot \Vert \) is the normally Euclidean norm of vectors or matrix. The first choice for many scholars is to study the above model to make a good improvement. An adaptive TR model is designed by Zhang and Wang [42]:

$$\begin{aligned}& \operatorname{Min} \quad \phi_{k}(d) = \frac{1}{2}\bigl\Vert S(x_{k})+\nabla S(x_{k})d \bigr\Vert ^{2}, \\& \quad \Vert d \Vert \leq c^{p}\bigl\Vert S(x_{k}) \bigr\Vert ^{\gamma }, \end{aligned}$$

where \(p>0\) is an integer, and \(0< c<1\) and \(0.5<\gamma <1\) are constants. Its superlinear convergence is obtained under the local error bound assumption, by which it has been proved that the local error bound assumption is weaker than the nondegeneracy [24]. Thus one made progress in theory. However, its global convergence still needs the nondegeneracy. Another adaptive TR subproblem is defined by Yuan et al. [35]:

$$\begin{aligned} &\operatorname{Min} \quad Tq_{k}(d) = \frac{1}{2}\bigl\Vert S(x_{k})+B_{k}d \bigr\Vert ^{2}, \\ &\quad \Vert d \Vert \leq c^{p}\bigl\Vert S(x_{k}) \bigr\Vert , \end{aligned}$$

where \(B_{k}\) is generated by the BFGS quasi-Newton formula

$$ B_{k+1}=B_{k} - \frac{B_{k} s_{k} s_{k}^{T} B_{k}}{s_{k}^{T} B_{k} s _{k}} + \frac{y_{k} {y_{k}}^{T}}{{y_{k}}^{T}s_{k}}, $$

where \(y_{k}=S(x_{k+1})-S(x_{k}),\,s_{k}=x_{k+1}-x_{k}\), \(x_{k+1}\) is the next iteration, and \(B_{0}\) is an initial symmetric positive definite matrix. This TR method can possess the global convergence without the nondegeneracy, which shows that this paper made a further progress in theory. Furthermore, it also possesses the quadratic convergence. It has been showed that the BFGS quasi-Newton update is very effective for optimization problems (see [32, 33, 36] etc.). There exist many applications of the TR methods (see [19,20,21, 31] etc.) for nonsmooth optimizations and other problems.

It is not difficult to see that the above models only get the second Taylor expansion and approximation. Can we get the approximation to reach one more level, namely the third expansion, or even the fourth? The answer is positive and a third Taylor expansion is used and a three dimensional symmetric tensor model is stated. In the next section, the motivation and the tensor TR model are stated. The algorithm and its global convergence are presented in Sect. 3. In Sect. 4, we do the experiments of the algorithms. One conclusion is given in the last section.

Motivation and the tensor trust-region model

Consider the tensor model for the nonlinear system \(S(x)\) at \(x_{k}\),

$$ \vartheta (x_{k}+d)=S(x_{k})+\nabla S(x_{k})^{T}d+\frac{1}{2}T_{k}d ^{2}, $$

where \(\nabla S(x_{k})\) is the Jacobian matrix of \(S(x)\) at \(x_{k}\) and \(T_{k}\) is three dimensional symmetric tensor. It is not difficult to see that the above tensor model (2.1) has better approximation than the normal quadratical trust-region model. It has been proved that the tensor is significantly simpler when only information from one past iterate is used (see [3] for details), which obviously decreases the complexity of the computation of the three dimensional symmetric tensor \(T_{k}\). Then the model (2.1) can be written as the following extension:

$$ \vartheta (x_{k}+d)=S(x_{k})+\nabla S(x_{k})^{T}d+\frac{3}{2}\bigl(s_{k-1} ^{T}d\bigr)^{2}s_{k-1}. $$

In order to avoid the exact Jacobian matrix \(\nabla S(x_{k})\), we use the quasi-Newton update matrix \(B_{k}\) instead of it. Thus, our trust-region subproblem model is designed by

$$\begin{aligned}& \operatorname{Min} \quad N_{k}(d) = \frac{1}{2}\biggl\Vert S(x_{k})+B_{k}d+\frac{3}{2}\bigl(s_{k-1}^{T}d \bigr)^{2}s_{k-1} \biggr\Vert ^{2}, \\& \quad \Vert d \Vert \leq c^{p}\bigl\Vert S(x_{k}) \bigr\Vert ^{\gamma }, \end{aligned}$$

where \(B_{k}=H_{k}^{-1}\) and \(H_{k}\) is generated by the following low-storage limited BFGS (L-BFGS) update formula:

$$\begin{aligned} H_{k+1} =&V_{k}^{T}H_{k}V_{k}+ \rho_{k}s_{k}s_{k}^{T} \\ =& V_{k}^{T}\bigl[V_{k-1}^{T}H_{k-1}V_{k-1}+ \rho_{k-1}s_{k-1}s_{k-1}^{T}\bigr]V _{k}+\rho_{k}s_{k}s_{k}^{T} \\ =& \cdots \\ =& \bigl[V_{k}^{T}\cdots V_{k-{m}+1}^{T} \bigr]H_{k-{m}+1}[V_{k-{m}+1} \cdots V _{k}] \\ & {}+\rho_{k-{m}+1}\bigl[V_{k-1}^{T}\cdots V_{k-{m}+2}^{T}\bigr]s_{k-{m}+1}s ^{T}_{k-{m}+1}[V_{k-{m}+2} \cdots V_{k-1}] \\ & {} + \cdots \\ & {} + \rho_{k}s_{k}s_{k}^{T}, \end{aligned}$$

where \(\rho_{k}=\frac{1}{s_{k}^{T}y_{k}}\), \(V_{k}=I-\rho_{k}y_{k}s _{k}^{T}\), I is the unit matrix and m is a positive integer. It has turned out that the L-BFGS method has a fast linear convergence rate and minimal storage, and it is effective for large-scale problems (see [2, 13, 28, 34, 37] etc.). Let \(d_{k}^{p}\) be the solution of (2.3) corresponding to the constant p. Define the actual reduction by

$$ Ad_{k}\bigl(d_{k}^{p}\bigr)=\beta \bigl(x_{k}+d_{k}^{p}\bigr)-\beta (x_{k}), $$

and the predict reduction by

$$ Pd_{k}\bigl(d_{k}^{p} \bigr)=N_{k}\bigl(d_{k}^{p}\bigr)-N_{k}(0). $$

Based on definition of the actual reduction \(Ad_{k}(d_{k}^{p})\) and the predict reduction \(Pd_{k}(d_{k}^{p})\), their radio is defined by

$$ r_{k}^{p} = \frac{Ad_{k}(d_{k}^{p})}{Pd_{k}(d_{k}^{p})}. $$

Therefore, the tensor trust-region model algorithm for solve (1.1) is stated as follows.

Algorithm 1

Initial: :

Constants ρ, \(c\in (0,1)\), \(p=0\), \(\epsilon >0\), \(x_{0}\in \Re^{n},\,m>0\), and \(B_{0}=H_{0}^{-1}\in \Re^{n}\times \Re ^{n}\) is a symmetric and positive definite matrix. Let \(k:=0\);

Step 1: :

Stop if \(\Vert S(x_{k}) \Vert <\epsilon \) holds;

Step 2: :

Solve (2.3) with \(\triangle =\triangle_{k}\) to obtain \(d_{k}^{p}\);

Step 3: :

Compute \(Ad_{k}(d_{k}^{p})\), \(Pd_{k}(d_{k}^{p})\), and the radio \(r_{k}^{p}\). If \(r_{k}^{p}<\rho \), let \(p=p+1\), go to Step 2. If \(r_{k}^{p}\geq \rho \), go to the next step;

Step 4: :

Set \(x_{k+1}=x_{k}+d_{k}^{p}\), \(y_{k}=S(x_{k+1})-S(x _{k})\), update \(B_{k+1}=H_{k+1}^{-1}\) by (2.4) if \(y_{k}^{T}d _{k}^{p}>0\), otherwise set \(B_{k+1}=B_{k}\);

Step 5: :

Let \(k:=k+1\) and \(p=0\). Go to Step 1.


The procedure of “Step 2–Step 3–Step 2” is called the inner cycle in the above algorithm. It is necessary for us to prove that the inner cycle is finite, which generates the circumstance that Algorithm 1 is well defined.

Convergence results

This section focuses on convergence results of Algorithm 1 under the following assumptions.

Assumption i

(A) :

The level set Ω defined by

$$ \varOmega =\bigl\{ x\mid\beta (x)\leq \beta (x_{0})\bigr\} $$

is bounded.

(B) :

On an open convex set \(\varOmega_{1}\) containing Ω, the nonlinear system \(S(x)\) is twice continuously differentiable.

(C) :

The approximation relation

$$ \bigl\Vert \bigl[\nabla S(x_{k})-B_{k} \bigr]S(x_{k}) \bigr\Vert =O\bigl(\bigl\Vert d_{k}^{p} \bigr\Vert \bigr) $$

is true, where \(d_{k}^{p}\) is the solution of the model (2.3).

(D) :

On \(\varOmega_{1}\), the sequence matrices \(\{B_{k}\}\) are uniformly bounded, namely there exist constants \(0< M_{0}\leq M\) satisfying

$$ M_{s}\leq \Vert B_{k} \Vert \le M_{l} \quad \forall k. $$

Assumption i (B) means that there exists a constant \(M_{L}>0\) satisfying

$$ \bigl\Vert \nabla S(x_{k})^{T}\nabla S(x_{k}) \bigr\Vert \leq M_{L},\quad \forall k. $$

Based on the above assumptions and the definition of the model (2.3), we have the following lemma.

Lemma 3.1

Let \(d_{k}^{p}\) be the solution of (2.3), then the inequality

$$ Pd_{k}\bigl(d_{k}^{p}\bigr)\leq - \frac{1}{2}\bigl\Vert B_{k}S(x_{k}) \bigr\Vert \min \biggl\{ \triangle _{k},\frac{\Vert B_{k}S(x_{k}) \Vert }{M_{l}^{2}}\biggr\} +O\bigl( \triangle_{k}^{2}\bigr) $$



By the definition of \(d_{k}^{p}\) of (2.3), then, for any \(\alpha \in [0,1]\), we get

$$\begin{aligned} Pd_{k}\bigl(d_{k}^{p}\bigr) &\leq Pd_{k}\biggl(-\alpha \frac{\triangle_{k}}{\Vert B_{k}S(x_{k}) \Vert }B_{k}S(x_{k}) \biggr) \\ &= \frac{1}{2}\biggl[\alpha^{2} \triangle_{k}^{2} \frac{\Vert B_{k}B_{k}S(x_{k}) \Vert ^{2}}{\Vert B_{k}S(x_{k}) \Vert ^{2}}+\alpha^{4} \triangle_{k}^{4} \frac{9}{4}\frac{(s_{k-1}^{T}B_{k}S(x_{k}))^{4}}{\Vert B_{k}S(x_{k}) \Vert ^{4}} \\ &\quad {} + 3\alpha^{2} \triangle_{k}^{2} \frac{(s_{k-1}^{T}B_{k}S(x_{k}))^{2}}{ \Vert B_{k}s_{k-1} \Vert ^{2}}S(x_{k})^{T}s_{k-1}-2\alpha \triangle_{k} \frac{(S(x _{k})^{T}B_{k}B_{k}S(x_{k}))}{\Vert B_{k}S(x_{k}) \Vert } \\ &\quad {} - 3\alpha^{3}\triangle_{k}^{3} \frac{(s_{k-1}^{T}B_{k}S(x_{k}))^{2}s _{k-1}^{T}B_{k}B_{k}S(x_{k})}{\Vert B_{k}S(x_{k}) \Vert ^{3}}\biggr] \\ &= \frac{1}{2}\biggl[\alpha^{2} \triangle_{k}^{2} \frac{\Vert B_{k}B_{k}S(x_{k}) \Vert ^{2}}{\Vert B_{k}S(x_{k}) \Vert ^{2}} -2\alpha \triangle_{k} \frac{(S(x_{k})^{T}B _{k}B_{k}S(x_{k}))}{\Vert B_{k}S(x_{k}) \Vert }+O\bigl( \triangle_{k}^{2}\bigr)\biggr] \\ &\leq -\alpha \triangle_{k} \bigl\Vert B_{k}S(x_{k}) \bigr\Vert +\frac{1}{2} \alpha ^{2} \triangle_{k}^{2} M_{l}^{2}+O\bigl(\triangle_{k}^{2} \bigr). \end{aligned}$$

Therefore, we have

$$\begin{aligned} Pd_{k}\bigl(d_{k}^{p}\bigr) \leq & \min _{0\leq \alpha \leq 1}\biggl[-\alpha \triangle _{k} \bigl\Vert B_{k}S(x_{k}) \bigr\Vert +\frac{1}{2} \alpha^{2} \triangle_{k}^{2} M_{l} ^{2}\biggr]+O\bigl(\triangle_{k}^{2}\bigr) \\ \leq &-\frac{1}{2}\bigl\Vert B_{k}S(x_{k}) \bigr\Vert \min \biggl\{ \triangle_{k},\frac{\Vert B_{k}S(x_{k}) \Vert }{M_{l}^{2}}\biggr\} +O\bigl( \triangle_{k}^{2}\bigr). \end{aligned}$$

The proof is complete. □

Lemma 3.2

Let \(d_{k}^{p}\) be the solution of (2.3). Suppose that Assumption i holds and \(\{x_{k}\}\) is generated by Algorithm 1. Then we have

$$ \bigl\vert Ad_{k}\bigl(d_{k}^{p} \bigr)-Pd_{k}\bigl(d_{k}^{p}\bigr) \bigr\vert =O \bigl(\bigl\Vert d_{k}^{p} \bigr\Vert ^{2} \bigr). $$


Using Assumption i, the definition of (2.5) and (2.6), we obtain

$$\begin{aligned}& \bigl\vert Ad_{k}\bigl(d_{k}^{p}\bigr)-Pd_{k}\bigl(d_{k}^{p}\bigr) \bigr\vert \\& \quad = \bigl\vert \beta \bigl(x_{k}+d_{k}^{p}\bigr)-N_{k}\bigl(d_{k}^{p}\bigr) \bigr\vert \\& \quad = \frac{1}{2}\biggl\vert \bigl\Vert S(x_{k})+\nabla S(x_{k}) d_{k}^{p} +O\bigl( \bigr\Vert d_{k}^{p}\bigl\Vert ^{2}\bigr) \bigr\Vert ^{2}- \biggl\Vert S(x_{k})+B_{k}d_{k}^{p}+ \frac{3}{2}\bigl(s_{k-1}^{T}d_{k}^{p} \bigr)^{2}s_{k-1} \biggr\Vert ^{2} \biggr\vert \\& \quad = \bigl\vert S(x_{k})^{T}\nabla S(x_{k})d_{k}^{p}-S(x_{k})^{T}B_{k}d_{k}^{p}+O\bigl(\bigl\Vert d_{k}^{p} \bigr\Vert ^{2}\bigr) + O\bigl(\bigl\Vert d_{k}^{p} \bigr\Vert ^{3}\bigr)+O\bigl(\bigl\Vert d_{k}^{p} \bigr\Vert ^{4}\bigr) \bigr\vert \\& \quad \leq \bigl\Vert \bigl[\nabla S(x_{k})-B_{k} \bigr]S(x_{k}) \bigr\Vert \bigl\Vert d_{k}^{p} \bigr\Vert +O\bigl(\bigl\Vert d_{k}^{p} \bigr\Vert ^{2}\bigr) + O\bigl(\bigl\Vert d_{k}^{p} \bigr\Vert ^{3}\bigr)+O\bigl(\bigl\Vert d_{k}^{p} \bigr\Vert ^{4}\bigr) \\& \quad = O\bigl(\bigl\Vert d_{k}^{p} \bigr\Vert ^{2}\bigr). \end{aligned}$$

This completes the proof. □

Lemma 3.3

Let the conditions of Lemma 3.2 hold. We conclude that Algorithm 1 does not infinitely circle in the inner cycle (“Step 2–Step 3–Step 2).


This lemma will be proved by contradiction. Suppose, at \(x_{k}\), that Algorithm 1 infinitely circles in the inner cycle, namely, \(r_{k}^{p}<\rho \) and \(c^{p}\rightarrow 0\) with \(p\rightarrow \infty \). This implies that \(\Vert g_{k} \Vert \geq \epsilon \), or the algorithm stops. Thus we conclude that \(\Vert d_{k}^{p} \Vert \leq \triangle_{k}=c^{p}\Vert g_{k} \Vert \rightarrow 0\) is true.

By Lemma 3.1 and Lemma 3.2, we get

$$\begin{aligned} \bigl\vert r_{k}^{p}-1 \bigr\vert &=\frac{\vert Ad_{k}(d_{k}^{p})-Pd_{k}(d_{k}^{p}) \vert }{\vert Pd_{k}(d_{k}^{p}) \vert } \\ &\leq \frac{2O(\Vert d_{k}^{p} \Vert ^{2})}{ \triangle_{k}\Vert B_{k}S(x_{k}) \Vert +O(\triangle_{k}^{2})}\rightarrow 0. \end{aligned}$$

Therefore, for p sufficiently large, we have

$$ r_{k}^{p}\geq \rho , $$

which generates a contradiction with the fact \(r_{k}^{p}<\rho \). The proof is complete. □

Lemma 3.4

Suppose that the conditions of Lemma 3.3 holds. Then we conclude that \(\{x_{k}\}\subset \varOmega \) is true and \(\{\beta (x_{k})\}\) converges.


By the results of the above lemma, we get

$$ r_{k}^{p} \geq \rho >0. $$

Combining with Lemma 3.1 generates

$$ \beta (x_{k+1})\leq \beta (x_{k})\leq \cdots \leq \beta (x_{0}). $$

Then \(\{x_{k}\}\subset \varOmega \) holds. By the case \(\beta (x_{k}) \geq 0\), we deduce that \(\{\beta (x_{k})\}\) converges. This completes its proof. □

Theorem 3.5

Suppose that the conditions of Lemma 3.3 hold and \(\{x_{k}\}\) is generated by Algorithm 1. Then Algorithm 1 either finitely stops or generates an infinite sequence \(\{x_{k}\}\) satisfying

$$ \lim_{k\rightarrow \infty } \bigl\Vert S(x_{k}) \bigr\Vert =0. $$


Suppose that Algorithm 1 does not finitely stop. We need to obtain (3.8). Assume that

$$ \lim_{k\rightarrow \infty } \bigl\Vert B_{k}S(x_{k}) \bigr\Vert =0 $$

holds. Using (3.3) one gets (3.8). So, we can complete this lemma by (3.9). We use the contradiction to have (3.9). Namely, we suppose that there exist an subsequence \(\{k_{j}\}\) and a positive constant ε such that

$$ \bigl\Vert B_{k_{j}}S(x_{k_{j}}) \bigr\Vert \geq \varepsilon . $$

Let \(K=\{k\mid \Vert B_{k}S(x_{k}) \Vert \geq \varepsilon \}\) be an index set. Using Assumption i, the case \(\Vert B_{k}S(x_{k}) \Vert \geq \varepsilon\) (\(k\in K\)), and \(\Vert S(x_{k}) \Vert \) (\(k\in K\)) is bounded away from 0, we assume

$$ \bigl\Vert S(x_{k}) \bigr\Vert \geq \varepsilon ,\quad \forall k\in K $$

holds. By Lemma 3.1 and the definition of Algorithm 1, we obtain

$$\begin{aligned} \sum_{k\in K}\bigl[\beta (x_{k})-\beta (x_{k+1})\bigr]&\geq -\sum_{k\in K}\rho Pd _{k}\bigl(d_{k}^{p_{k}}\bigr) \\ &\geq \sum _{k\in K}\rho \frac{1}{2}\min \biggl\{ c^{p_{k}} \varepsilon ,\frac{\varepsilon }{M_{l}^{2}}\biggr\} \varepsilon , \end{aligned}$$

where \(p_{k}\) is the largest p value obtained in the inner circle. Lemma 3.4 tells us that the sequence \(\{\beta (x_{k})\}\) is convergent, thus

$$ \sum_{k\in K}\rho \frac{1}{2}\min \biggl\{ c^{p_{k}}\varepsilon ,\frac{ \varepsilon }{M_{l}^{2}}\biggr\} \varepsilon < +\infty . $$

Then \(p_{k} \rightarrow +\infty \) when \(k\rightarrow +\infty \) and \(k\in K\). Therefore, for all \(k\in K\), it is reasonable for us to assume \(p_{k}\geq 1\). In the inner circle, by the determination of \(p_{k}\) (\(k\in K\)), let \(d_{k}'\) corresponding to the subproblem

$$\begin{aligned} & \operatorname{Min} \quad q_{k}(d) =\frac{1}{2}\biggl\Vert S(x_{k})+B_{k}d+\frac{3}{2}\bigl(s_{k-1}^{T}d \bigr)^{2}s_{k-1} \biggr\Vert ^{2}, \\ &\quad \operatorname{s.t.} \quad \Vert d \Vert \leq c^{p_{k}-1}\bigl\Vert S(x_{k}) \bigr\Vert , \end{aligned}$$

be unacceptable. Setting \(x_{k+1}'=x_{k}+d_{k}'\) one has

$$ \frac{\beta (x_{k})-\beta (x_{k+1}')}{-Pd_{k}(d_{k}')}< \rho . $$

Using Lemma 3.1 and the definition \(\triangle_{k}\) one has

$$ -Pd_{k}\bigl(d_{k}'\bigr)\geq \frac{1}{2}\min \biggl\{ c^{p_{k}-1}\varepsilon ,\frac{ \varepsilon }{M_{l}^{2}} \biggr\} \varepsilon . $$

Using Lemma 3.2 one gets

$$ \beta \bigl(x_{k+1}'\bigr)-\beta (x_{k})-Pd_{k} \bigl(d_{k}'\bigr)=O\bigl(\bigl\Vert d_{k}' \bigr\Vert ^{2}\bigr)=O\bigl(c ^{2(p_{k}-1)}\bigr). $$

Thus, we obtain

$$ \biggl\vert \frac{\beta (x_{k+1}')-\beta (x_{k})}{Pd_{k}(d_{k}')}-1 \biggr\vert \leq \frac{O(c^{2(p_{k}-1)})}{0.5\min \{c^{p_{k}-1}\varepsilon ,\frac{ \varepsilon }{M_{l}^{2}}\}\varepsilon +O(c^{2(p_{k}-1)}\varepsilon ^{2})}. $$

Using \(p_{k}\rightarrow +\infty \) when \(k\rightarrow +\infty \) and \(k\in K\), we get

$$ \frac{\beta (x_{k})-\beta (x_{k+1}')}{-Pd_{k}(d_{k}')}\rightarrow 1, \quad k\in K, $$

this generates a contradiction to (3.12). This completes the proof. □

Numerical results

This section reports some numerical results of Algorithm 1 and the algorithm of [35] (Algorithm YL).


The nonlinear system obeys the following statement:

$$ S(x)=\bigl(g_{1}(x),g_{2}(x),\ldots ,g_{n}(x) \bigr)^{T}. $$

Problem 1

Trigonometric function

$$ g_{i}(x)=2\Biggl(n+i(1-\cos x_{i})-\sin x_{i}- \sum_{j=1}^{n} \cos x_{j}\Biggr) (2 \sin x_{i}-\cos x_{i}),\quad i=1,2,3,\ldots ,n. $$

Initial guess: \(x_{0}=(\frac{101}{100n},\frac{101}{100n},\ldots , \frac{101}{100n})^{T}\).

Problem 2

Logarithmic function

$$ g_{i}(x)=\ln (x_{i}+1)-\frac{x_{i}}{n},\quad i=1,2,3, \ldots ,n. $$

Initial points: \(x_{0}=(1,1,\ldots ,1)^{T}\).

Problem 3

Broyden tridiagonal function ([7], pp. 471–472)

$$\begin{aligned} g_{1}(x) =&(3-0.5x_{1})x_{1}-2x_{2}+1, \\ g_{i}(x) =&(3-0.5x_{i})x_{i}-x_{i-1}+2x_{i+1}+1, \quad i=2,3,\ldots ,n-1, \\ g_{n}(x) =&(3-0.5x_{n})x_{n}-x_{n-1}+1. \end{aligned}$$

Initial points: \(x_{0}=(-1,-1,\ldots ,-1)^{T}\).

Problem 4

Trigexp function ([7], p. 473)

$$\begin{aligned}& g_{1}(x) = 3x_{1}^{3}+2x_{2}-5+\sin (x_{1}-x_{2})\sin (x_{1}+x_{2}), \\& g_{i}(x) = -x_{i-1}e^{x_{i-1}-x_{i}}+x_{i} \bigl(4+3x_{i}^{2}\bigr)+2x_{i+1} \\& \hphantom{g_{i}(x) =}+\sin (x_{i}-x_{i+1})\sin (x_{i}+x_{i+1})-8, \quad i=2,3,\ldots ,n-1, \\& g_{n}(x) = -x_{n-1}e^{x_{n-1}-x_{n}}+4x_{n}-3. \end{aligned}$$

Initial guess: \(x_{0}=(0,0,\ldots ,0)^{T}\).

Problem 5

Strictly convex function 1 ([18], p. 29). \(S(x)\) is the gradient of \(h(x)=\sum_{i=1}^{n}(e^{x_{i}}-x_{i})\). We have

$$ g_{i}(x)=e^{x_{i}}-1,\quad i=1,2,3,\ldots ,n. $$

Initial points: \(x_{0}=(\frac{1}{n},\frac{2}{n},\ldots ,1)^{T}\).

Problem 6

Strictly convex function 2 ([18], p. 30). \(S(x)\) is the gradient of \(h(x)=\sum_{i=1}^{n}\frac{i}{10} (e^{x_{i}}-x _{i})\). We have

$$ g_{i}(x)=\frac{i}{10}\bigl(e^{x_{i}}-1\bigr),\quad i=1,2,3,\ldots ,n. $$

Initial guess: \(x_{0}=(1,1,\ldots ,1)^{T}\).

Problem 7

Penalty function

$$\begin{aligned}& g_{i}(x) = \sqrt{10^{-5}}(x_{i}-1), \quad i=1,2,3,\ldots ,n-1, \\& g_{n}(x) = \biggl(\frac{1}{4n}\biggr)\sum _{j=1}^{n}x_{j}^{2}- \frac{1}{4}. \end{aligned}$$

Initial guess: \(x_{0}=(\frac{1}{3},\frac{1}{3},\ldots ,\frac{1}{3})^{T}\).

Problem 8

Variable dimensioned function

$$\begin{aligned}& g_{i}(x) = x_{i}-1, \quad i=1,2,3,\ldots ,n-2, \\& g_{n-1}(x) = \sum_{j=1}^{n-2}j(x_{j}-1), \\& g_{n}(x) = \Biggl(\sum_{j=1}^{n-2}j(x_{j}-1) \Biggr)^{2}. \end{aligned}$$

Initial guess: \(x_{0}=(1-\frac{1}{n},1-\frac{2}{n},\ldots ,0)^{T}\).

Problem 9

Discrete boundary value problem [15]

$$\begin{aligned}& g_{1}(x) = 2x_{1}+0.5h^{2}(x_{1}+h)^{3}-x_{2}, \\& g_{i}(x) = 2x_{i}+0.5h^{2}(x_{i}+hi)^{3}-x_{i-1}+x_{i+1}, \quad i=2,3,\ldots ,n-1, \\& g_{n}(x) = 2x_{n}+0.5h^{2}(x_{n}+hn)^{3}-x_{n-1}, \\& h = \frac{1}{n+1}. \end{aligned}$$

Initial points: \(x_{0}=(h(h-1),h(2h-1),\ldots ,h(nh-1))\).

Problem 10

The discretized two-point boundary value problem similar to the problem in [17]

$$ S(x)= Ax+\frac{1}{(n+1)^{2}}F(x)=0, $$

with A is the \(n\times n\) tridiagonal matrix given by

A= [ 8 1 1 8 1 1 8 1 1 1 8 ] ,

and \(F(x)=(F_{1}(x),F_{2}(x),\ldots,F_{n}(x))^{T}\) with \(F_{i}(x)=\sin x _{i} -1\), \(i=1,2,\ldots,n\), and \(x=(50,0,50,0, \ldots )\).

Parameters: \(\rho =0.05\), \(\epsilon =10^{-4}\), \(c=0.5\), \(p=3\), \(m=6\), \(H_{0}\) is the unit matrix.

The method for ( 1.3 ) and ( 2.3 ): the \(Dogleg\) method [22].

Codes experiments: run on a PC with an Intel Pentium(R) Xeon(R) E5507 CPU @2.27 GHz, 6.00 GB of RAM, and the Windows 7 operating system.

Codes software: MATLAB r2017a.

Stop rules: the program stops if \(\Vert S(x) \Vert \leq 1e{-}4\) holds.

Other cases: we will stop the program if the iteration number is larger than a thousand.

Results and discussion

The column meaning of the tables is as follows.

Dim: the dimension.

NI: the iterations number.

NG: the norm function number.

Time: the CPU-time in s.

Numerical results of Table 1 show the performance of these two algorithms as regards NI, NG and Time. It is not difficult to see that:

  1. (i)

    Both of these algorithms can successfully solve all these ten nonlinear problems;

  2. (ii)

    the NI and the NG of these two algorithm do not increase when the dimension becomes large;

  3. (iii)

    the NI and the NG of Algorithm 1 are competitive to those of Algorithm YL and the Time of Algorithm YL is better than that of Algorithm 1. To directly show their the efficiency, the tool of [5] is used and three figures for NI, NG and Time are listed.

Table 1 Experiment results

Figures 13 show the performance of NI, NG and Time of these two algorithms. It is easy to see that the NI and the NG of Algortihm 1 have won since their performance profile plot is on top right. And the Time of Algorithm YL has superiority to Algorithm 1. Both of these two algorithms have good robustness. All these three figures show that both of these two algorithms are very interesting and we hope they will be further studied in the future.

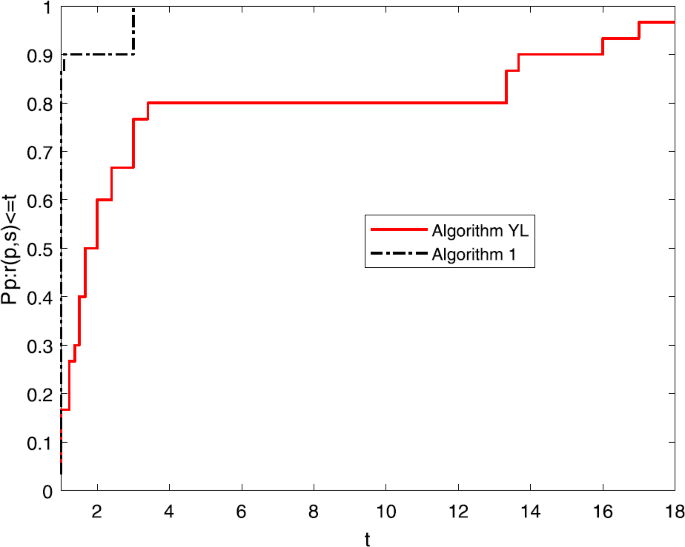

Figure 1
figure 1

Performance profiles of these methods (NI)

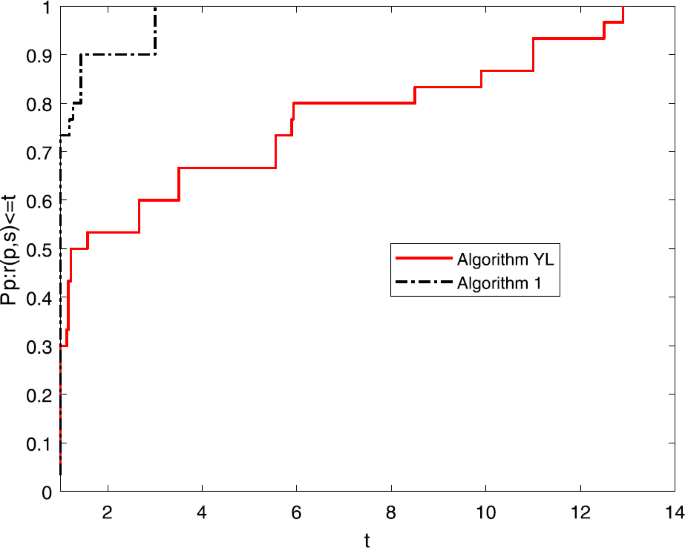

Figure 2
figure 2

Performance profiles of these methods (NG)

Figure 3
figure 3

Performance profiles of these methods (Time)


This paper considers the tensor trust-region model for nonlinear system. The global convergence is obtained under suitable conditions and numerical experiments are reported. This paper includes the following main work:

  1. (1)

    a tensor trust-region model is established and discussed.

  2. (2)

    the low workload update is used in this tensor trust-region model. In the future, we think this tensor trust-region model shall be more significant.


  1. Bertsekas, D.P.: Nonlinear Programming. Athena Scientific, Belmont (1995)

    MATH  Google Scholar

  2. Byrd, R.H., Nocedal, J., Schnabel, R.B.: Representations of quasi-Newton matrices and their use in limited memory methods. Math. Program. 63, 129–156 (1994)

    MathSciNet  Article  Google Scholar

  3. Chow, T., Eskow, E., Schnabel, R.: Algorithm 783: a software package for unstrained optimization using tensor methods. ACM Trans. Math. Softw. 20, 518–530 (1994)

    Article  Google Scholar

  4. Conn, A.R., Gould, N.I.M., Toint, P.L.: Trust Region Method. SIAM, Philadelphia (2000)

    Book  Google Scholar

  5. Dolan, E.D., Moré, J.J.: Benchmarking optimization software with performance profiles. Math. Program. 91, 201–213 (2002)

    MathSciNet  Article  Google Scholar

  6. Fan, J.Y.: A modified Levenberg–Marquardt algorithm for singular system of nonlinear equations. J. Comput. Math. 21, 625–636 (2003)

    MathSciNet  MATH  Google Scholar

  7. Gomez-Ruggiero, M., Martinez, J.M., Moretti, A.: Comparing algorithms for solving sparse nonlinear systems of equations. SIAM J. Sci. Stat. Comput. 23, 459–483 (1992)

    MathSciNet  Article  Google Scholar

  8. Griewank, A.: The ’global’ convergence of Broyden-like methods with a suitable line search. J. Aust. Math. Soc. Ser. B 28, 75–92 (1986)

    MathSciNet  Article  Google Scholar

  9. Levenberg, K.: A method for the solution of certain nonlinear problem in least squares. Q. Appl. Math. 2, 164–166 (1944)

    MathSciNet  Article  Google Scholar

  10. Li, D., Fukushima, M.: A global and superlinear convergent Gauss–Newton-based BFGS method for symmetric nonlinear equations. SIAM J. Numer. Anal. 37, 152–172 (1999)

    MathSciNet  Article  Google Scholar

  11. Li, D., Qi, L., Zhou, S.: Descent directions of quasi-Newton methods for symmetric nonlinear equations. SIAM J. Numer. Anal. 40(5), 1763–1774 (2002)

    MathSciNet  Article  Google Scholar

  12. Li, X., Wang, S., Jin, Z., Pham, H.: A conjugate gradient algorithm under Yuan–Wei–Lu line search technique for large-scale minimization optimization models. Math. Probl. Eng. 2018, Article ID 4729318 (2018)

    MathSciNet  Google Scholar

  13. Li, Y., Yuan, G., Wei, Z.: A limited-memory BFGS algorithm based on a trust-region quadratic model for large-scale nonlinear equations. PLoS ONE 10(5), Article ID e0120993 (2015)

    Article  Google Scholar

  14. Marquardt, D.W.: An algorithm for least-squares estimation of nonlinear inequalities. SIAM J. Appl. Math. 11, 431–441 (1963)

    Article  Google Scholar

  15. Moré, J.J., Garbow, B.S., Hillström, K.E.: Testing unconstrained optimization software. ACM Trans. Math. Softw. 7, 17–41 (1981)

    MathSciNet  Article  Google Scholar

  16. Nocedal, J., Wright, S.J.: Numerical Optimization. Springer, New York (1999)

    Book  Google Scholar

  17. Ortega, J.M., Rheinboldt, W.C.: Iterative Solution of Nonlinear Equations in Several Variables. Academic Press, New York (1970)

    MATH  Google Scholar

  18. Raydan, M.: The Barzilai and Borwein gradient method for the large scale unconstrained minimization problem. SIAM J. Optim. 7, 26–33 (1997)

    MathSciNet  Article  Google Scholar

  19. Sheng, Z., Yuan, G.: An effective adaptive trust region algorithm for nonsmooth minimization. Comput. Optim. Appl. 71, 251–271 (2018)

    MathSciNet  Article  Google Scholar

  20. Sheng, Z., Yuan, G., et al.: An adaptive trust region algorithm for large-residual nonsmooth least squares problems. J. Ind. Manag. Optim. 14, 707–718 (2018)

    MathSciNet  Google Scholar

  21. Sheng, Z., Yuan, G., et al.: A new adaptive trust region algorithm for optimization problems. Acta Math. Sci. 38B(2), 479–496 (2018)

    MathSciNet  Article  Google Scholar

  22. Wang, Y.J., Xiu, N.H.: Theory and Algoithm for Nonlinear Programming. Shanxi Science and Technology Press, Xian (2004)

    Google Scholar

  23. Wei, Z., Yuan, G., Lian, Z.: An approximate Gauss–Newton-based BFGS method for solving symmetric nonlinear equations. Guangxi Sciences 11(2), 91–99 (2004)

    Google Scholar

  24. Yamashita, N., Fukushima, M.: On the rate of convergence of the Levenberg–Marquardt method. Computing 15, 239–249 (2001)

    MathSciNet  MATH  Google Scholar

  25. Yuan, G., Duan, X., Liu, W., Wang, X., Cui, Z., Sheng, Z.: Two new PRP conjugate gradient algorithms for minimization optimization models. PLoS ONE 10(10), Article ID e0140071 (2015).

    Article  Google Scholar

  26. Yuan, G., Lu, S., Wei, Z.: A new trust-region method with line search for solving symmetric nonlinear equations. Int. J. Comput. Math. 88, 2109–2123 (2011)

    MathSciNet  Article  Google Scholar

  27. Yuan, G., Lu, X.: A new backtracking inexact BFGS method for symmetric nonlinear equations. Comput. Math. Appl. 55, 116–129 (2008)

    MathSciNet  Article  Google Scholar

  28. Yuan, G., Lu, X.: An active set limited memory BFGS algorithm for bound constrained optimization. Appl. Math. Model. 35, 3561–3573 (2011)

    MathSciNet  Article  Google Scholar

  29. Yuan, G., Lu, X., Wei, Z.: BFGS trust-region method for symmetric nonlinear equations. J. Comput. Appl. Math. 230(1), 44–58 (2009)

    MathSciNet  Article  Google Scholar

  30. Yuan, G., Meng, Z., Li, Y.: A modified Hestenes and Stiefel conjugate gradient algorithm for large-scale nonsmooth minimizations and nonlinear equations. J. Optim. Theory Appl. 168, 129–152 (2016)

    MathSciNet  Article  Google Scholar

  31. Yuan, G., Sheng, Z.: Nonsmooth Optimization Algorithms. Press of Science, Beijing (2017)

    Google Scholar

  32. Yuan, G., Sheng, Z., Wang, P., Hu, W., Li, C.: The global convergence of a modified BFGS method for nonconvex functions. J. Comput. Appl. Math. 327, 274–294 (2018)

    MathSciNet  Article  Google Scholar

  33. Yuan, G., Wei, Z.: Convergence analysis of a modified BFGS method on convex minimizations. Comput. Optim. Appl. 47, 237–255 (2010)

    MathSciNet  Article  Google Scholar

  34. Yuan, G., Wei, Z., Lu, S.: Limited memory BFGS method with backtracking for symmetric nonlinear equations. Math. Comput. Model. 54, 367–377 (2011)

    MathSciNet  Article  Google Scholar

  35. Yuan, G., Wei, Z., Lu, X.: A BFGS trust-region method for nonlinear equations. Computing 92, 317–333 (2011)

    MathSciNet  Article  Google Scholar

  36. Yuan, G., Wei, Z., Lu, X.: Global convergence of the BFGS method and the PRP method for general functions under a modified weak Wolfe–Powell line search. Appl. Math. Model. 47, 811–825 (2017)

    MathSciNet  Article  Google Scholar

  37. Yuan, G., Wei, Z., Wu, Y.: Modified limited memory BFGS method with nonmonotone line search for unconstrained optimization. J. Korean Math. Soc. 47, 767–788 (2010)

    MathSciNet  Article  Google Scholar

  38. Yuan, G., Wei, Z., Yang, Y.: The global convergence of the Polak–Ribiere–Polyak conjugate gradient algorithm under inexact line search for nonconvex functions. J. Comput. Appl. Math. (2018).

    Article  Google Scholar

  39. Yuan, G., Yao, S.: A BFGS algorithm for solving symmetric nonlinear equations. Optimization 62, 45–64 (2013)

    MathSciNet  Article  Google Scholar

  40. Yuan, G., Zhang, M.: A three-terms Polak–Ribière–Polyak conjugate gradient algorithm for large-scale nonlinear equations. J. Comput. Appl. Math. 286, 186–195 (2015)

    MathSciNet  Article  Google Scholar

  41. Yuan, Y.: Trust region algorithm for nonlinear equations. Information 1, 7–21 (1998)

    MathSciNet  MATH  Google Scholar

  42. Zhang, J., Wang, Y.: A new trust region method for nonlinear equations. Math. Methods Oper. Res. 58, 283–298 (2003)

    MathSciNet  Article  Google Scholar

  43. Zhu, D.: Nonmonotone backtracking inexact quasi-Newton algorithms for solving smooth nonlinear equations. Appl. Math. Comput. 161, 875–895 (2005)

    MathSciNet  MATH  Google Scholar

Download references


The authors would like to thank the above the support funding. The authors also thank the referees and the editor for their valuable suggestions which greatly improve our paper.

Authors’ information

Songhua Wang and Shulun Liu are co-first authors.


This work was supported by the National Natural Science Fund of China (Grant No. 11661009).

Author information

Authors and Affiliations



Dr. Songhua Wang mainly analyzed the theory results and Shulun Liu has done the numerical experiments. All authors read and approved the final manuscript.

Corresponding author

Correspondence to Songhua Wang.

Ethics declarations

Competing interests

The authors declare that they have no competing interests.

Additional information

Publisher’s Note

Springer Nature remains neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Rights and permissions

Open Access This article is distributed under the terms of the Creative Commons Attribution 4.0 International License (, which permits unrestricted use, distribution, and reproduction in any medium, provided you give appropriate credit to the original author(s) and the source, provide a link to the Creative Commons license, and indicate if changes were made.

Reprints and Permissions

About this article

Verify currency and authenticity via CrossMark

Cite this article

Wang, S., Liu, S. A tensor trust-region model for nonlinear system. J Inequal Appl 2018, 343 (2018).

Download citation

  • Received:

  • Accepted:

  • Published:

  • DOI:


  • 65K05
  • 90C26


  • Tensor model
  • Trust region
  • Nonlinear equations
  • BFGS formula
  • Convergence
