Application of inequalities technique to dynamics analysis of a stochastic eco-epidemiology model

Journal of Inequalities and Applications20162016:327

https://doi.org/10.1186/s13660-016-1265-z

©  The Author(s) 2016

Received: 30 June 2016

Accepted: 29 November 2016

Published: 22 December 2016

Abstract

This paper formulates an infected predator-prey model with Beddington-DeAngelis functional response from a classical deterministic framework to a stochastic differential equation (SDE). First, we provide a global analysis including the global positive solution, stochastically ultimate boundedness, the persistence in mean, and extinction of the SDE system by using the technique of a series of inequalities. Second, by using Itô’s formula and Lyapunov methods, we investigate the asymptotic behaviors around the equilibrium points of its deterministic system. The solution of the stochastic model has a unique stationary distribution, it also has the characteristics of ergodicity. Finally, we present a series of numerical simulations of these cases with respect to different noise disturbance coefficients to illustrate the performance of the theoretical results. The results show that if the intensity of the disturbance is sufficiently large, the persistence of the SDE model can be destroyed.

Keywords

stochastic eco-epidemiology modelHölder inequality and Chebyshev inequalityasymptotic behaviorpersistence in meanstationary distribution

1 Introduction

Mathematical inequalities play a large role in mathematics analysis and its application. Recently, the inequality technique was applied to impulsive differential systems [1, 2] and stochastic differential systems [3–5], thus some new results were obtained.

Predation can have far-reaching effects on biological communities. Thus many scientists have studied the interaction between predator and prey [6–10]. Interaction between predator and prey is hard to avoid being influenced by some factors. One of the most common factors is the disease. Therefore, there are many scholars who have studied the infected predator-prey systems [11–17]. For instance, Hadeler and Freedman [16] considered a predator-prey system with parasitic infection. They proved the epidemic threshold theorem for where there is coexistence of the predator with the uninfected prey. Han and Ma [15] analyzed four modifications of a predator-prey model to include an SIS or SIR parasitic infection. They obtained the thresholds and global stability results of the four systems.

Species may be subject to uncertain environmental disturbances, such as fluctuations of birth rate and death rate, food, habitat and water, etc. These phenomena can be described by stochastic processes. Recently, the stochastic predator-prey systems have received much attention from scholars [18–21]. Zhang and Jiang [18] studied a stochastic three species eco-epidemiological system. They analyzed the stochastic stability and asymptotic behaviors around the equilibrium points of its deterministic model. Liu and Wang [19] considered a two-species non-autonomous predator-prey model with white noise. They obtained the sufficient criteria for extinction, non-persistence in the mean, and weak persistence in the mean.

The functional response of predator is a very important factor of predator-prey system, which reflects the average consumption rate of predator to prey. Therefore, many scholars prefer to study the predator-prey system with functional response [22–25]. For instance, Wang and Wei [22] explored a predator-prey system with strong Allee effect and an Ivlev-type functional response. Liu and Beretta [23] studied a predator-prey model with a Beddington-DeAngelis functional response. Some biologists have argued that in many instances, especially when predators have to hunt for food and, therefore, have to share or compete for food, the functional response in a prey-predator model should be predator-dependent. This view has been supported by some practical observations [26, 27]. Skalski and Gilliam [26] collected observation data from 19 predator-prey communities, they found that three predator-dependent functional responses (Crowley-Martin [28], Hassell-Varley [29] and Beddington-DeAngelis [30, 31]) were in agreement with the observation data, and in many instances, the Beddington-DeAngelis type looked better than the other two.

The Beddington-DeAngelis type functional response of per capita feeding rate can be expressed as follows:
$$F(x,y)=\frac{axy}{1+px+qy}, $$
where a (units: time−1) represents the effects of capture rate on the feeding rate, p (units: prey−1) denotes the effects of handling time on the feeding rate, q (units: predator−1) represents the magnitude of interference among predators. Compared with the Holling II functional response, the Beddington-DeAngelis type functional response has an additional term qy in the denominator. In other words, this type of functional response is affected by both predator and prey. Therefore, the effect of mutual interference on the dynamics of population is worth studying.

To the best of our knowledge, the research on global asymptotic behaviors of a stochastic infected predator-prey system with Beddington-DeAngelis has not gone very far yet. Therefore, according to a deterministic predator-prey model, this paper investigates the stationary distribution and ergodic property of a stochastic infected predator-prey with Beddington-DeAngelis and explores the influence of white noise on the persistence in mean and extinction of the predator-prey-disease system.

First of all, a deterministic predator-prey system is described in [32] by
$$ \textstyle\begin{cases} \dot{X}(t)= {X(t) [b-a_{11}X(t)-\frac {a_{12}S(t)}{1+pX(t)+qS(t)} ],}\\ \dot{S}(t)= {S(t) [-c-a_{22}S(t)+\frac {a_{21}X(t)}{1+pX(t)+qS(t)}-\beta I(t) ],}\\ \dot{I}(t)= {I(t) [-d-a_{33}I(t)+\beta S(t) ],} \end{cases} $$
(1)
where \(X(t)\) is the population density of prey at time t, \(S(t)\) and \(I(t)\), respectively, stand for the densities of susceptible predator and infected predator at time t, b is the intrinsic growth rate of \(X(t)\), c is the natural mortality rate of \(S(t)\), d is the diseased death rate of \(I(t)\). \(a_{11}, a_{22}, a_{33}\), respectively, stand for the density coefficients of \(X(t), S(t)\) and \(I(t)\). \(a_{12}\) is the captured rate of \(X(t)\), \(\frac{a_{21}}{a_{12}}\) is the conversion rate from \(X(t)\) to \(S(t)\), β represents the infection rate from \(S(t)\) to \(I(t)\), \(p,q>0\) are constant coefficients.
Second, the world is full of uncertainty and random phenomena, so species in the ecosystem may be subject to different forms of random interference. In this paper, we assume that the disturbance in the environment affects not only the rate of predation but also the infection rate of the disease, so that
$$a_{12}\rightarrow a_{12}+\sigma_{12} \dot{B_{1}},\qquad a_{21}\rightarrow a_{21}+ \sigma_{21}\dot{B_{1}}, \qquad\beta\rightarrow\beta+\sigma \dot{B_{2}}, $$
where \(B_{1}(t)\) and \(B_{2}(t)\) are standard Brownian motions, \(\sigma _{12}^{2},\sigma_{21}^{2}\), and \(\sigma^{2}\) are the intensities of the Brownian motions.
Taking into account the effects of random interference gives
$$ \textstyle\begin{cases} dX(t)=X(t) [b-a_{11}X(t)-\frac{a_{12}S(t)}{1+pX(t)+qS(t)} ]\,dt-\frac{\sigma_{12}S(t)X(t)}{1+pX(t)+qS(t)}\,dB_{1}(t),\\ dS(t)=S(t) [-c-a_{22}S(t)+\frac{a_{21}X(t)}{1+pX(t)+qS(t)}-\beta I(t) ]\,dt\\ \hphantom{dS(t)=}{}+\frac{\sigma_{21}S(t)X(t)}{1+pX(t)+qS(t)}\,dB_{1}(t)-\sigma S(t)I(t)\,dB_{2}(t),\\ dI(t)=I(t) [-d-a_{33}I(t)+\beta S(t) ]\,dt+\sigma S(t)I(t)\,dB_{2}(t). \end{cases} $$
(2)

The rest of this paper is organized as follows. In the next section, we consider the existence of a global positive solution and the stochastically ultimate boundedness of model (2). In Section 3, we study the global asymptotic behaviors of model (2) around the equilibrium points of its deterministic system. In addition, we explore the stationary distribution and ergodic property of model (2). In Section 4, we obtain the conditions for the persistence in mean and extinction of model (2). In the last section, we summarize our main results and give some numerical simulations.

Throughout this paper, let \((\Omega,\mathcal{F},\{\mathcal{F}\}_{t\geq 0},\mathcal{P})\) be a complete probability space with a filtration \(\{\mathcal{F}_{t}\} _{t\geq0}\) satisfying the usual conditions (i.e. it is increasing and right continuous while \(\mathcal{F}_{0}\) contains all \(\mathcal{P}\)-null sets). The function \(B_{i}(t)\) (\(i=1,2\)) is a Brownian motion defined on the complete probability space Ω. For an integrable function \(X(t)\) on \([0,+\infty)\), we define \(\langle X(t)\rangle=\frac{1}{t}\int ^{t}_{0}X(s)\,ds, \langle X(t)\rangle_{*}=\liminf_{t\rightarrow+\infty}\langle X(t)\rangle, \langle X(t)\rangle^{*}=\limsup_{t\rightarrow+\infty }\langle X(t)\rangle\).

2 Global positive solution and stochastically ultimate boundedness

2.1 Global positive solution

Due to the physical meaning, variables \(S(t)\), \(I(t)\), and \(Y(t)\) in model (2) should remain nonnegative for \(t\geq0\). We next prove that this is actually the case and, furthermore, the positive solution is unique.

Lemma 2.1

For any initial value \((X(0),S(0),I(0))\in R_{+}^{3}\), model (2) has a local unique positive solution \((X(t),S(t),I(t))\) on \(t\in[0,\tau _{e})\), where \(\tau_{e}\) is the explosion time.

Theorem 2.1

For any initial value \((X(0),S(0),I(0))\in R_{+}^{3}\), model (2) has a unique positive solution \((X(t),S(t),I(t))\in R_{+}^{3}\) on \(t\geq0\) with probability 1.

Proof

By Lemma 2.1, we only need to prove that \(\tau_{e}=\infty\) a.s. To this end, let \(k_{0}>0\) be a sufficiently large constant such that \(X(0),S(0)\) and \(I(0)\) all lie in \([\frac{1}{k_{0}},k_{0}]\). For each \(k\geq k_{0}\) (\(k\in N_{+}\)), define the stopping time
$$\tau_{k}=\inf \biggl\{ t\in[0,\tau_{e}]:X(t)\notin \biggl( \frac{1}{k_{0}},k_{0} \biggr),S(t)\notin \biggl( \frac{1}{k_{0}},k_{0} \biggr)\mbox{ or }I(t)\notin \biggl( \frac{1}{k_{0}},k_{0} \biggr) \biggr\} . $$
As is easy to see, \(\tau_{k}\) is a monotonically increasing function when \(k\rightarrow\infty\). Let \(\tau_{\infty}= {\lim_{k\rightarrow\infty}}\tau_{k}\), thus \(\tau_{\infty}\leq\tau_{e}\) a.s. Now we need to prove \(\tau_{\infty}=\infty\) a.s., otherwise, there exist two constants \(T>0\) and \(\epsilon\in(0,1)\) such that \(P\{\tau _{\infty}\leq T\}>\epsilon\). Thus, there is an integer \(k_{1}\geq k_{0}\) such that
$$ P\{\tau_{\infty}\leq T\}>\epsilon,\quad k\geq k_{1}. $$
(3)
Define a \(C^{3}\)-function \(V:R^{3}_{+}\rightarrow R_{+}\),
$$ V(X,S,I)=X-1-\ln X+S-1-\ln S+I-1-\ln{I}. $$
The non-negativity of the function \(V(X,S,I)\) can be seen by \(u-1-\ln u\geq0,u>0\).
Applying Itô’s formula to the stochastic differential system (2) yields
$$ \begin{aligned} dV={}&LV\,dt-\frac{\sigma_{12}(X-1)S}{1+pX+qS}\,dB_{1}(t)+ \frac{\sigma _{21}(S-1)X}{1+pX+qS}\,dB_{1}(t)\\ &{}-\sigma(S-1)I\,dB_{2}(t)+ \sigma(I-1)S\,dB_{2}(t), \end{aligned} $$
where
$$ \begin{aligned} LV={}&(X-1) \biggl(b-a_{11}X- \frac{a_{12}S}{1+pX+qS} \biggr)+\frac{\sigma _{12}^{2}S^{2}}{2(1+pX+qS)^{2}} \\ &{}+(S-1) \biggl(-c-a_{22}S+\frac{a_{21}X}{1+pX+qS}-\beta I \biggr)+ \frac {\sigma_{21}^{2}X^{2}}{2(1+pX+qS)^{2}} \\ &{}+(I-1) (-d-a_{33}I+\beta S )+\frac{1}{2}\sigma^{2}S^{2}+ \frac {1}{2}\sigma^{2}I^{2} \\ ={}&bX-a_{11}X^{2}-\frac{a_{12}SX}{1+pX+qS}-b+a_{11}X+ \frac {a_{12}S}{1+pX+qS}+\frac{\sigma_{12}^{2}S^{2}}{2(1+pX+qS)^{2}} \\ &{}-cS-a_{22}S^{2}+\frac{a_{21}XS}{1+pX+qS}+c+a_{22}S- \frac {a_{21}X}{1+pX+qS}+\beta I \\ &{}+\frac{\sigma_{21}^{2}X^{2}}{2(1+pX+qS)^{2}}+\frac{1}{2}\sigma ^{2}I^{2}-dI-a_{33}I^{2}+d+a_{33}I- \beta S+\frac{1}{2}\sigma^{2}S^{2} \\ \leq{}&- \biggl[a_{11}X^{2}-(b+a_{11})X- \frac{a_{12}}{q}-\frac{\sigma _{12}^{2}}{2q^{2}} \biggr]- \biggl[a_{22}S^{2}- \biggl(a_{22}+\frac {a_{21}}{p} \biggr)S-c-\frac{\sigma_{21}^{2}}{2p^{2}} \biggr] \\ &{}- \bigl[a_{33}I^{2}-(\beta+a_{33})I-d \bigr]+ \frac{1}{2}\sigma ^{2}\bigl(S^{2}+I^{2} \bigr). \end{aligned} $$
Since
$$ \begin{aligned} &\frac{d(\frac{\sigma_{21}}{\sigma_{12}}X+S+I)}{dt}+ \biggl(\frac{\sigma _{21}}{\sigma_{12}}X+S+I \biggr) \\ &\quad=\frac{\sigma_{21}}{\sigma_{12}}X \biggl(1+b-a_{11}X-\frac {a_{12}S}{1+pX+qS} \biggr)+S \biggl(1-c-a_{22}S+\frac {a_{21}X}{1+pX+qS}-\beta I \biggr) \\ &\qquad{}+I [1-d-a_{33}I+\beta S ] \\ &\quad\leq-\frac{\sigma_{21}}{\sigma_{12}} \bigl[a_{11}X^{2}-(b+1)X \bigr]- \biggl[a_{22}S^{2}- \biggl(1+\frac{a_{21}}{p} \biggr)S \biggr]- \bigl(a_{33}I^{2}-I \bigr) \\ &\quad\leq3\cdot\max \biggl\{ \frac{\sigma_{21}(b+1)^{2}}{4\sigma _{12}a_{11}},\frac{(1+\frac{a_{21}}{p})^{2}}{4a_{22}},\frac {1}{4a_{33}} \biggr\} \\ &\quad\leq C_{0}, \end{aligned} $$
where \(C_{0}\) is a positive constant.
Then we have
$$ \begin{aligned} \frac{\sigma_{21}}{\sigma_{12}}X(t)+S(t)+I(t)&\leq \biggl( \frac{\sigma _{21}}{\sigma_{12}}X(0)+S(0)+I(0) \biggr)e^{-t}+C_{0} \bigl(1-e^{-t} \bigr) \\ &\leq e^{-t} \biggl(\frac{\sigma_{21}}{\sigma_{12}}(0)+S(0)+I(0)+C_{0} \bigl(e^{t}-1 \bigr) \biggr) \\ &\leq\max \biggl\{ \frac{\sigma_{21}}{\sigma_{12}}X(0)+S(0)+I(0),C_{0} \biggr\} \end{aligned} $$
and
$$ \limsup_{t\rightarrow\infty} \biggl(\frac{\sigma_{21}}{\sigma _{12}}X(t)+S(t)+I(t) \biggr)\leq{C_{0}}. $$
(4)
Therefore, we have
$$ \begin{aligned} LV\leq{}&{-} \biggl[a_{11}X^{2}-(b+a_{11})X- \frac{a_{12}}{q}-\frac{\sigma _{12}^{2}}{2q^{2}} \biggr]- \biggl[a_{22}S^{2}- \biggl(a_{22}+\frac {a_{21}}{p} \biggr)S-c-\frac{\sigma_{21}^{2}}{2p^{2}} \biggr]\\ &{}- \bigl[a_{33}I^{2}-(\beta+a_{33})I-d \bigr]+ \sigma^{2}C_{0}^{2}\\ \leq{}&K_{0}, \end{aligned} $$
where \(K_{0}\) is a positive constant.
So we have
$$ \begin{aligned}[b] dV\leq{}&K_{0}\,dt- \frac{\sigma_{12}(X-1)S}{1+pX+qS}\,dB_{1}(t)+\frac{\sigma _{21}(S-1)X}{1+pX+qS}\,dB_{1}(t)\\ &{}-\sigma(S-1)I\,dB_{2}(t)+\sigma(I-1)S\,dB_{2}(t). \end{aligned} $$
(5)
Integrating (5) from 0 to \(\tau_{k}\wedge T\) and taking expectation on both sides, we have
$$ EV\bigl(X(\tau_{k}\wedge T),S(\tau_{k}\wedge T),I(\tau_{k}\wedge T)\bigr)\leq V\bigl(X(0),S(0),I(0) \bigr)+K_{0}T. $$
(6)
Let \(\Omega_{k}=\{\tau_{k}\leq T\}\), from inequality (3) we can see that \(P(\Omega_{k})\geq\epsilon\). Note that, for every \(\omega\in \Omega_{k}\), there exists at least one of \(X(\tau_{k},\omega),S(\tau _{k},\omega),I(\tau_{k},\omega)\) that equals either k or \(\frac{1}{k}\). As a result, we have
$$ {V\bigl(X(\tau_{k}\wedge T),S(\tau_{k}\wedge T),I(\tau_{k}\wedge T)\bigr)\geq(k-1-\ln k)\wedge \biggl( \frac{1}{k}-1-\ln\frac{1}{k} \biggr).} $$
(7)
Applying equation (6) and equation (7), we get
$$ \begin{aligned} &V\bigl(X(0),S(0),I(0)\bigr)+K_{0}T\\ &\quad\geq {E\bigl[1\Omega_{k}(\omega)V\bigl(X(\tau_{k}\wedge T),S(\tau _{k}\wedge T),I(\tau_{k}\wedge T)\bigr)\bigr]}\\ &\quad\geq \epsilon(k-1-\ln k)\wedge\biggl(\frac{1}{k}-1-\ln \frac{1}{k}\biggr), \end{aligned} $$
where \(1\Omega_{k}\) is the indicator function of \(\Omega_{k}\).
When \(k\rightarrow\infty\), we have
$$\infty>V\bigl(X(0),S(0),I(0)\bigr)+K_{0}T=\infty. $$
This is a contradiction. So \(\tau_{\infty}=\infty\). □

2.2 Stochastically ultimate boundedness

Theorem 2.1 shows that \(R_{+}^{3}\) is the positive invariant set of model (2). Now we prove the stochastically ultimate boundedness of model (2).

Definition 2.1

Let \((X(t),S(t),I(t))\) be the solution of model (2) with initial value \((X(0), S(0),I(0))\in R^{3}_{+}\). If, for any \(\varepsilon\in(0,1)\), there exists a \(\chi(=\chi(\omega ))>0\) such that the solution of model (2) satisfies
$$\limsup_{t\rightarrow\infty}P \bigl\{ \bigl\vert \bigl(X(t),S(t),I(t)\bigr) \bigr\vert >\chi \bigr\} < \varepsilon, $$
then model (2) has stochastically ultimate boundedness.

Lemma 2.2

The following elementary inequality will be used frequently in the sequel.
  1. (1)

    \(x^{r}\leq1+r(x-1), x\geq0, 1\geq r\geq0\),


  2. (2)

    \(n^{(1-p/2)\wedge0}|x|^{p}\leq\sum_{i=1}^{n}x_{i}^{p}\leq n^{(1-p/2)\vee0}|x|^{p}\),


where \(R_{+}^{n}:=\{x\in R^{n}:x_{i}>0,1\leq i\leq n\}, n\in R_{+}, p>0\).

Theorem 2.2

Let \((X(t),S(t),I(t))\) be the solution of model (2) with initial value \((X(0),S(0), I(0))\in R^{3}_{+}\), then \((X(t),S(t),I(t))\) is stochastically ultimate boundedness.

Proof

Define
$$V(X,S,I)=X^{\frac{1}{2}}+S^{\frac{1}{2}}+I^{\frac {1}{2}},\quad \bigl(X(t),S(t),I(t)\bigr)\in R_{+}^{3}. $$
Applying Itô’s formula to stochastic differential system (2) yields
$$ \begin{aligned} dV={}&LV\,dt-\frac{\sigma_{12}X^{\frac {1}{2}}S}{2(1+pX+qS)}\,dB_{1}(t)+ \frac{\sigma_{21}S^{\frac {1}{2}}X}{2(1+pX+qS)}\,dB_{1}(t)\\ &{}-{\frac{1}{2}}\sigma S^{\frac{1}{2}}I\,dB_{2}(t)+{ \frac{1}{2}}\sigma I^{\frac{1}{2}}S\,dB_{2}(t), \end{aligned} $$
where
$$ \begin{aligned} LV={}&{\frac{1}{2}} X^{\frac{1}{2}} \biggl(b-a_{11}X-\frac {a_{12}S}{1+pX+qS} \biggr)-\frac{\sigma_{12}^{2}X^{\frac {1}{2}}S}{8(1+pX+qS)^{2}}\\ &{}+{\frac{1}{2}}S^{\frac{1}{2}} \biggl(-c-a_{22}S+ \frac {a_{21}X}{1+pX+qS}-\beta I \biggr)-\frac{\sigma_{21}^{2}S^{\frac {1}{2}}X}{8(1+pX+qS)} \\ &{}+{\frac{1}{2}}I^{\frac{1}{2}} (-d-a_{33}I+\beta S )- \frac {1}{8}\sigma^{2}S^{\frac{1}{2}}I-\frac{1}{8} \sigma^{2}I^{\frac{1}{2}}S \\ \leq{}&{-}{\frac{1}{2}}a_{11}X^{\frac{3}{2}}+\frac{1}{2}b X^{\frac {1}{2}}-{\frac{1}{2}}a_{22}S^{\frac{3}{2}}+ \frac{a_{21}}{2p}S^{\frac {1}{2}}-{\frac{1}{2}}a_{33}I^{\frac{3}{2}}+{ \frac{1}{2}}\beta I^{\frac {1}{2}}S. \end{aligned} $$
Applying the Hölder inequality \(ab\leq\frac{a^{p}}{p}+\frac {b^{q}}{q}, \frac{1}{p}+\frac{1}{q}=1\) (\(p,q>1\)), we have
$$I^{\frac{1}{2}}S\leq\frac{1}{3}I^{\frac{3}{2}}+\frac{2}{3}S^{\frac{3}{2}}. $$
Therefore,
$$ \begin{aligned} LV\leq{}&{-}{\frac{1}{2}}a_{11}X^{\frac{3}{2}}+ \frac{1}{2} (b+2 ) X^{\frac{1}{2}}-{\frac{1}{2}} \biggl(a_{22}-\frac{2}{3}\beta \biggr)S^{\frac{3}{2}}+ \frac{1}{2} \biggl(\frac{a_{21}}{p}+2 \biggr)S^{\frac {1}{2}} \\ &{}-{\frac{1}{2}} \biggl(a_{33}-\frac{1}{3}\beta \biggr)I^{\frac {3}{2}}+I^{\frac{1}{2}}- \bigl(X^{\frac{1}{2}}+S^{\frac{1}{2}}+I^{\frac {1}{2}} \bigr) \\ \leq{}&H_{0}-V(X,S,I), \end{aligned} $$
where \(H_{0}>0\) is a positive constant.
Thus
$$ \begin{aligned} dV\leq{}&\bigl[H_{0}-V(X,S,I)\bigr]\,dt- \frac{\sigma_{12}X^{\frac {1}{2}}S}{2(1+pX+qS)}\,dB_{1}(t)+\frac{\sigma_{21}S^{\frac {1}{2}}X}{2(1+pX+qS)}\,dB_{1}(t) \\ &{}-{\frac{1}{2}}\sigma S^{\frac{1}{2}}I\,dB_{2}(t)+{ \frac{1}{2}}\sigma I^{\frac{1}{2}}S\,dB_{2}(t). \end{aligned} $$
Applying Itô’s formula to \(e^{t}V(X,S,I)\) yields
$$ \begin{aligned} d\bigl(e^{t}V(X,S,I)\bigr)={}&e^{t} \bigl[V(X,S,I)\,dt+dV(X,S,I)\bigr] \\ \leq{}&e^{t}H_{0}\,dt+e^{t} \biggl[- \frac{\sigma_{12}X^{\frac {1}{2}}S}{2(1+pX+qS)}\,dB_{1}(t)+\frac{\sigma_{21}S^{\frac {1}{2}}X}{2(1+pX+qS)}\,dB_{1}(t) \\ &{}-{\frac{1}{2}}\sigma S^{\frac{1}{2}}I\,dB_{2}(t)+{ \frac{1}{2}}\sigma I^{\frac{1}{2}}S\,dB_{2}(t) \biggr]. \end{aligned} $$
So we have
$$e^{t}EV(X,S,I)\leq V\bigl(X(0),S(0),I(0)\bigr)+H_{0} \bigl(e^{t}-1\bigr) $$
and
$$\limsup_{t\rightarrow+\infty}EV(X,S,I)\leq H_{0}. $$
Applying the second inequality of Lemma 2.2 and letting \(n=3, p=\frac{1}{2}\), we have
$${3^{\frac{3}{4}\wedge0}}\bigl\vert \bigl(X(t),S(t),I(t)\bigr)\bigr\vert ^{\frac{1}{2}}\leq V(X,S,I). $$
Thus, we obtain
$$\limsup_{t\rightarrow+\infty}E\bigl|\bigl(X(t),S(t),I(t)\bigr)\bigr|^{\frac{1}{2}}\leq H. $$
Therefore, for any \(\varepsilon>0\), set \(\chi=\frac{H^{2}}{\varepsilon ^{2}}\), applying the Chebyshev inequality, we have
$$ P \bigl\{ \bigl\vert \bigl(X(t),S(t),I(t)\bigr)\bigr\vert >\chi \bigr\} \leq \frac{E\vert (X(t),S(t),I(t))\vert ^{\frac{1}{2}}}{\sqrt{\chi}}, $$
that is,
$$\limsup_{t\rightarrow\infty} P \bigl\{ \bigl\vert \bigl(X(t),S(t),I(t)\bigr) \bigr\vert >\chi \bigr\} \leq\varepsilon. $$
 □

3 Asymptotic behaviors

System (1) has three equilibrium points [32]: (i) when \(R_{0}=\frac{a_{21}b}{c(a_{11}+pb)}<1\), system (1) has an equilibrium point \(E_{1}(K,0,0)\); (ii) when \(R_{0}=\frac {a_{21}b}{c(a_{11}+pb)}>1\) and \(R_{1}=\frac{a_{21}b}{ (c+\frac{da_{22}}{\beta} ) (a_{11}+pb+\frac{qda_{11}}{\beta} )}<1\), system (1) has another disease free equilibrium point \(E_{2}(\overline{X},\overline {S},0)\); (iii) when \(R_{1}=\frac{a_{21}b}{ (c+\frac{da_{22}}{\beta } ) (a_{11}+pb+\frac{qda_{11}}{\beta} )}>1\), system (1) has a positive equilibrium point \(E_{3}(X^{*},S^{*},I^{*})\). For its stochastic system (2), however, these equilibrium points do not exist.

In this section, we study the asymptotic behaviors of model (2) around the three equilibrium points \(E_{1}(K,0,0)\), \(E_{2}(\overline {X},\overline{S},0)\), and \(E_{3}(X^{*},S^{*},I^{*})\) of its deterministic model (1), respectively.

3.1 Asymptotic behaviors around the equilibrium point \(E_{1}\) of system (1)

When \(R_{0}<1\), system (1) has an equilibrium point \(E_{1}(K,0,0)=(\frac{b}{a_{11}},0,0)\), but it is not the equilibrium point of system (2). In this subsection, we study the asymptotic behaviors of system (2) around \(E_{1}(K,0,0)\).

Theorem 3.1

Let \((X(t),S(t),I(t))\) be the solution of model (2) with initial value \((X(0),S(0), I(0))\in R^{3}_{+}\). If \(R_{0}<1\) and \(K=\frac {b}{a_{11}}\leq\frac{c}{a_{21}}\), then
$$ {\limsup_{t\rightarrow\infty}\frac{1}{t} \int_{0}^{t} \bigl[\bigl(X(\theta)-K \bigr)^{2}+S(\theta)^{2}+I^{2}(\theta) \bigr]\,d\theta \leq\frac{\sigma _{12}^{2}K}{2q^{2}W_{1}},} $$
where \(W_{1}=\min \{a_{11},\frac{a_{12}a_{22}}{a_{21}},\frac {a_{12}a_{33}}{a_{21}} \}\).

Proof

Note that \((K,0,0)\) is the equilibrium point of system (1), where \(K=\frac{b}{a_{11}}\).

Define
$$ V(X,S,I)= \biggl(X-K-K\ln\frac{X}{K} \biggr)+\frac{a_{12}}{a_{21}} (S+I ). $$
Applying Itô’s formula to stochastic differential system (2) yields
$$ \begin{aligned} dV=&LV\,dt-\frac{\sigma_{12}(X-K)S}{1+pX+qS}\,dB_{1}(t)+ \frac{a_{12}\sigma _{21}SX}{a_{21}(1+pX+qS)}\,dB_{1}(t), \end{aligned} $$
(8)
where
$$ \begin{aligned} LV={}&(X-K) \biggl[b-a_{11}X- \frac{a_{12}S}{1+pX+qS} \biggr]+\frac{\sigma _{12}^{2}KS^{2}}{2(1+pX+qS)^{2}} \\ &{}+\frac{a_{12}}{a_{21}} \biggl[S \biggl(-c-a_{22}S+\frac {a_{21}X}{1+pX+qS}- \beta I \biggr)-I (d+a_{33}I-\beta S ) \biggr] \\ ={}&(X-K) \biggl[b-a_{11}(X-K)-a_{11}K-\frac{a_{12}S}{1+pX+qS} \biggr]+\frac {\sigma_{12}^{2}KS^{2}}{2(1+pX+qS)^{2}} \\ &{}+\frac{a_{12}}{a_{21}} \biggl[S \biggl(-c-a_{22}S+\frac {a_{21}X}{1+pX+qS}- \beta I \biggr)-I (d+a_{33}I-\beta S ) \biggr] \\ \leq{}&{-}a_{11}(X-K)^{2}+\frac{a_{12}KS}{1+pX+qS}+\frac{\sigma _{12}^{2}KS^{2}}{2(1+pX+qS)^{2}}- \frac{a_{12}}{a_{21}} \bigl(cS+a_{22}S^{2}+a_{33}I^{2} \bigr) \\ \leq{}&{-}a_{11}(X-K)^{2}+a_{12} \biggl(K- \frac{c}{a_{21}} \biggr)S+\frac{\sigma _{12}^{2}K}{2q^{2}}-\frac{a_{12}a_{22}}{a_{21}}S^{2}- \frac {a_{12}a_{33}}{a_{21}}I^{2} \\ \leq{}&{-}a_{11}(X-K)^{2}-\frac{a_{12}a_{22}}{a_{21}}S^{2}- \frac {a_{12}a_{33}}{a_{21}}I^{2}+\frac{\sigma_{12}^{2}K}{2q^{2}}. \end{aligned} $$
Integrating equation (8) from 0 to t, we obtain
$$ \begin{aligned}[b] V(t)-V(0)\leq{}&{-} \int_{0}^{t}a_{11}\bigl(X(\theta)-K \bigr)^{2}\,d\theta-\frac {a_{12}a_{22}}{a_{21}} \int_{0}^{t}S^{2}(\theta)\,d\theta\\ &{}- \frac{a_{12}a_{33}}{a_{21}} \int_{0}^{t}I^{2}(\theta)\,d\theta+\frac{\sigma_{12}^{2}K}{2q^{2}}t+M_{1}(t), \end{aligned} $$
(9)
where
$$ \begin{aligned} M_{1}(t)= \int_{0}^{t} \biggl[-\frac{\sigma_{12}(X(\theta)-K)S(\theta )}{1+pX(\theta)+qS(\theta)}+ \frac{a_{12}\sigma_{21}S(\theta)X(\theta )}{a_{21}(1+pX(\theta)+qS(\theta))} \biggr]\,dB_{1}(\theta) \end{aligned} $$
is a real-valued continuous local martingale.
Thus
$$ \begin{aligned} \limsup_{t\rightarrow+\infty}\frac{\langle M_{1},M_{1}\rangle_{t}}{t}&= \limsup_{t\rightarrow+\infty}\frac{1}{t} \int_{0}^{t} \biggl[-\frac{\sigma _{12}(X(\theta)-K)S(\theta)}{1+pX(\theta)+qS(\theta)}+ \frac{a_{12}\sigma _{21}S(\theta)X(\theta)}{a_{21}(1+pX(\theta)+qS(\theta))} \biggr]^{2}\,d\theta \\ &\leq2C^{2} \biggl[\frac{\sigma_{12}^{2}}{q^{2}}+\frac{a_{12}^{2}\sigma _{21}^{2}}{a_{21}^{2}q^{2}} \biggr]< + \infty. \end{aligned} $$
Applying the strong law of large numbers, we obtain \({\lim_{t\rightarrow+\infty}}\frac{M_{1}(t)}{t}=0\).
Dividing equation (9) by t and taking the limit superior, we have
$$ {\limsup_{t\rightarrow\infty}\frac{1}{t} \int_{0}^{t} \biggl[a_{11}\bigl(X( \theta)-K\bigr)^{2}+\frac{a_{12}a_{22}}{a_{21}}S^{2}(\theta)+ \frac {a_{12}a_{33}}{a_{21}}I^{2}(\theta) \biggr]\,d\theta\leq\frac{\sigma_{12}^{2}K}{2q^{2}},} $$
thus
$$ {\limsup_{t\rightarrow\infty}\frac{1}{t} \int_{0}^{t} \bigl[a_{11}\bigl(X(\theta)-K \bigr)^{2}+S^{2}(\theta)+I^{2}(\theta) \bigr]\,d\theta \leq\frac {\sigma_{12}^{2}K}{2q^{2}W_{1}}.} $$
 □

Corollary 3.1

From Theorem 3.1, when \(\sigma_{12}=0\), we have
$$LV\leq-a_{11}(X-K)^{2}-\frac{a_{12}a_{22}}{a_{21}}S^{2}- \frac {a_{12}a_{33}}{a_{21}}I^{2}\leq0, $$
thus when \(R_{0}<1\) and \(K=\frac{b}{a_{11}}\leq\frac{c}{a_{21}}\) hold, the equilibrium point \(E_{1}(K,0,0)\) of system (1) is globally asymptotically stable.

Remark 3.1

From Theorem 3.1, if the interference intensity is sufficiently small, the solution of model (2) will fluctuate around the equilibrium point \(E_{1}(K,0,0)\). Moreover, the fluctuation intensity is related with the disturbance intensity: the fluctuation intensity is positively correlated with the value of \(\sigma_{12}\).

3.2 Asymptotic behaviors around the equilibrium point \(E_{2}\) of system (1)

When \(R_{0}>1\) and \(R_{1}<1\), system (1) has an equilibrium point \(E_{2}(\overline{X},\overline{S},0)\), but it is not the equilibrium point of system (2). In this subsection, we study the asymptotic behaviors of system (2) around \(E_{2}(\overline{X},\overline{S},0)\).

Theorem 3.2

Let \((X(t),S(t),I(t))\) be the solution of model (2) with initial value \((X(0),S(0), I(0))\in R^{3}_{+}\). If \(R_{0}>1, R_{1}<1\) and \(a_{11}q>a_{22}p\), then we have
$$ \begin{aligned} \limsup_{t\rightarrow+\infty}\frac{1}{t} \int_{0}^{t} \bigl[\bigl(X(\theta )-\overline{X} \bigr)^{2}+\bigl(S(\theta)-\overline{S}\bigr)^{2}+I^{2}( \theta) \bigr]\,d\theta \leq\frac{U_{2}}{W_{2}}, \end{aligned} $$
where
$$U_{2}=\frac{\sigma_{12}^{2}\overline{X}}{2q^{2}}+\frac{a_{12}(1+p\overline {X})}{a_{21}(1+q\overline{S})} \biggl(\frac{\sigma_{21}^{2}\overline {S}}{2p^{2}}+ \frac{\sigma^{2}\overline{S}}{2}C_{0}^{2} \biggr) $$
and
$$W_{2}=\min \biggl\{ a_{11}-\frac{a_{12}p}{q}, \frac{a_{12}a_{22}(1+p\overline {X})}{a_{21}(1+q\overline{S})},\frac{a_{12}a_{33}(1+p\overline {X})}{a_{21}(1+q\overline{S})} \biggr\} . $$

Proof

Noting that \((\overline{X},\overline{S},0)\) is the equilibrium point of system (1), thus
$$b-a_{11}\overline{X}-\frac{a_{12}\overline{S}}{1+p\overline {X}+q\overline{S}}=0,\qquad c+a_{22} \overline{S}-\frac{a_{21}\overline {X}}{1+p\overline{X}+q\overline{S}}=0. $$
Define
$$ \begin{aligned}[b] V(X,S,I)&= \biggl(X-\overline{X}-\overline{X}\ln \frac{X}{\overline {X}} \biggr)+\frac{a_{12}(1+p\overline{X})}{a_{21}(1+q\overline{S})} \biggl(S-\overline{S}-\overline{S} \ln\frac{S}{\overline{S}} \biggr)+\frac {a_{12}(1+p\overline{X})}{a_{21}(1+q\overline{S})}I\\ &:=V_{1}+\frac{a_{12}(1+p\overline{X})}{a_{21}(1+q\overline{S})}V_{2}+\frac {a_{12}(1+p\overline{X})}{a_{21}(1+q\overline{S})}V_{3}. \end{aligned} $$
Applying Itô’s formula to stochastic differential system (2) yields
$$ dV_{1}=LV_{1}\,dt- \frac{\sigma_{11}(X-\overline{X})S}{1+pX+qS}\,dB_{1}(t), $$
where
$$ \begin{aligned} LV_{1}={}&(X-\overline{X}) \biggl[b-a_{11}X-\frac{a_{12}S}{1+pX+qS} \biggr] +\frac{\sigma_{12}^{2}\overline{X}S^{2}}{2(1+pX+qS)^{2}} \\ ={}&(X-\overline{X}) \biggl[b-a_{11}(X-\overline{X})-a_{11} \overline {X}-\frac{a_{12}S}{1+pX+qS} \biggr]+\frac{\sigma_{12}^{2}\overline {X}S^{2}}{2(1+pX+qS)^{2}} \\ ={}&(X-\overline{X}) \biggl[-a_{11}(X-\overline{X})+a_{12} \frac{p\overline {S}(X-\overline{X})-(S-\overline{S})(1+p\overline{X})}{(1+p\overline {X}+q\overline{S})(1+pX+qS)} \biggr]+\frac{\sigma_{12}^{2}\overline {X}S^{2}}{2(1+pX+qS)^{2}} \\ ={}&-a_{11}(X-\overline{X})^{2}+\frac{a_{12}p\overline{S}(X-\overline {X})^{2}}{(1+p\overline{X}+q\overline{S})(1+pX+qS)}- \frac {a_{12}(1+p\overline{X})(S-\overline{S})(X-\overline{X})}{(1+p\overline {X}+q\overline{S})(1+pX+qS)}\\ &{}+\frac{\sigma_{12}^{2}\overline{X}S^{2}}{2(1+pX+qS)^{2}}. \end{aligned} $$
Similarly,
$$ dV_{2}=LV_{2}\,dt+\frac{\sigma_{21}(S-\overline{S})X}{1+pX+qS}\,dB_{1}(t)- \sigma (S-\overline{S})I\,dB_{2}(t), $$
where
$$ \begin{aligned} LV_{2}={}&(S-\overline{S}) \biggl[-c-a_{22}S+\frac{a_{21}X}{1+pX+qS}-\beta I \biggr]+ \frac{\sigma_{21}^{2}\overline{S}X^{2}}{2(1+pX+qS)^{2}}+\frac{\sigma ^{2}\overline{S}}{2}I^{2} \\ ={}&(S-\overline{S}) \biggl[-c-a_{22}(S-\overline{S})-a_{22} \overline {S}+\frac{a_{21}X}{1+pX+qS}-\beta I \biggr]+\frac{\sigma_{21}^{2}\overline {S}X^{2}}{2(1+pX+qS)^{2}}+ \frac{\sigma^{2}\overline{S}}{2}I^{2} \\ ={}&(S-\overline{S}) \biggl[-a_{22}(S-\overline{S})+a_{21} \frac{(X-\overline {X})(1+q\overline{S})-q\overline{X}(S-\overline{S})}{(1+p\overline {X}+q\overline{S})(1+pX+qS)}-\beta I \biggr] \\ &{}+\frac{\sigma_{21}^{2}\overline{S}X^{2}}{2(1+pX+qS)^{2}}+\frac{\sigma ^{2}\overline{S}}{2}I^{2} \\ ={}&-a_{22}(S-\overline{S})^{2}+a_{21} \frac{(1+q\overline{S})(X-\overline {X})(S-\overline{S})}{(1+p\overline{X}+q\overline {S})(1+pX+qS)}-a_{21}\frac{q\overline{X}(S-\overline {S})^{2}}{(1+p\overline{X}+q\overline{S})(1+pX+qS)} \\ &{}-\beta I(S-\overline{S})+\frac{\sigma_{21}^{2}\overline {S}X^{2}}{2(1+pX+qS)^{2}}+\frac{\sigma^{2}\overline{S}}{2}I^{2}. \end{aligned} $$
Also, we have
$$ dV_{3}=I(t) [-d-a_{33}I+\beta S ]\,dt+\sigma SI\,dB_{2}(t). $$
Hence
$$ \begin{aligned}[b] dV={}&LV\,dt-\frac{\sigma_{12}(X-\overline{X})S}{1+pX+qS}\,dB_{1}(t)+ \frac {a_{12}(1+p\overline{X})}{a_{21}(1+q\overline{S})} \biggl[\frac{\sigma _{21}(S-\overline{S})X}{1+pX+qS}\,dB_{1}(t)\\ &{}-\sigma(S-\overline{S})I\,dB_{2}(t)+\sigma SI\,dB_{2}(t)\biggr], \end{aligned} $$
(10)
where
$$ \begin{aligned} LV={}&LV_{1}+\frac{a_{12}(1+p\overline{X})}{a_{21}(1+q\overline {S})}LV_{2}+ \frac{a_{12}(1+p\overline{X})}{a_{21}(1+q\overline{S})}LV_{3} \\ ={}&-a_{11}(X-\overline{X})^{2}+\frac{a_{12}p\overline{S}(X-\overline {X})^{2}}{(1+p\overline{X}+q\overline{S})(1+pX+qS)}- \frac {a_{12}(1+p\overline{X})(S-\overline{S})(X-\overline{X})}{(1+p\overline {X}+q\overline{S})(1+pX+qS)}\\ &{}+\frac{\sigma_{12}^{2}\overline{X}S^{2}}{2(1+pX+qS)^{2}}+\frac {a_{12}(1+p\overline{X})}{a_{21}(1+q\overline{S})} \biggl[-a_{22}(S- \overline{S})^{2}+a_{21}\frac{(1+q\overline{S})(X-\overline {X})(S-\overline{S})}{(1+p\overline{X}+q\overline{S})(1+pX+qS)}\\ &{}-a_{21}\frac{q\overline{X}(S-\overline{S})^{2}}{(1+p\overline {X}+q\overline{S})(1+pX+qS)}-\beta I(S-\overline{S})+ \frac{\sigma _{21}^{2}\overline{S}X^{2}}{2(1+pX+qS)^{2}}+\frac{\sigma^{2}\overline {S}}{2}I^{2}\\ &{}+I (-d-a_{33}I+\beta S ) \biggr]\\ \leq{}&- \biggl(a_{11}-\frac{a_{12}p}{q} \biggr) (X- \overline{X})^{2}-\frac {a_{12}a_{22}(1+p\overline{X})}{a_{21}(1+q\overline{S})}(S-\overline {S})^{2}- \frac{a_{12}a_{33}(1+p\overline{X})}{a_{21}(1+q\overline {S})}I^{2}\\ &{}+\frac{a_{12}(1+p\overline{X})}{a_{21}(1+q\overline{S})} (\beta \overline{S}-d)I+\frac{\sigma_{12}^{2}\overline{X}S^{2}}{2(1+pX+qS)^{2}}\\ &{}+ \frac {a_{12}(1+p\overline{X})}{a_{21}(1+q\overline{S})} \biggl(\frac{\sigma _{21}^{2}\overline{S}X^{2}}{2(1+pX+qS)^{2}}+\frac{\sigma^{2}\overline {S}}{2}I^{2} \biggr). \end{aligned} $$
Since \(\beta\overline{S}< d\), thus
$$ \begin{aligned} LV\leq{}&{-}\biggl(a_{11}-\frac{a_{12}p}{q} \biggr) (X-\overline{X})^{2}-\frac {a_{12}a_{22}(1+p\overline{X})}{a_{21}(1+q\overline{S})}(S-\overline {S})^{2}-\frac{a_{12}a_{33}(1+p\overline{X})}{a_{21}(1+q\overline {S})}I^{2}\\ &{}+\frac{\sigma_{11}^{2}\overline{X}}{2q^{2}}+\frac{a_{12}(1+p\overline {X})}{a_{21}(1+q\overline{S})} \biggl(\frac{\sigma_{12}^{2}\overline {S}}{2p^{2}}+ \frac{\sigma_{2}^{2}\overline{S}}{2}C_{0}^{2} \biggr). \end{aligned} $$
Integrating both sides of equation (10) from 0 to t yields
$$ \begin{aligned}[b] V(t)-V(0)\leq{}& \int_{0}^{t} \biggl[- \biggl(a_{11}- \frac{a_{12}p}{q} \biggr) \bigl(X(\theta)-\overline {X}\bigr)^{2}\\ &{}- \frac{a_{12}a_{22}(1+p\overline{X})}{a_{21}(1+q\overline {S})}\bigl(S(\theta)-\overline{S}\bigr)^{2} -\frac{a_{12}a_{33}(1+p\overline{X})}{a_{21}(1+q\overline {S})}I^{2}(\theta) \biggr]\,d\theta\\ &{}+ \biggl[ \frac{\sigma_{12}^{2}\overline {X}}{2q^{2}}+\frac{a_{12}(1+p\overline{X})}{a_{21}(1+q\overline{S})} \biggl(\frac{\sigma_{21}^{2}\overline{S}}{2p^{2}}+ \frac{\sigma^{2}\overline {S}}{2}C_{0}^{2} \biggr) \biggr]t +M_{2}(t)+M_{3}(t), \end{aligned} $$
(11)
where
$$ M_{2}(t)= \int_{0}^{t} \biggl[-\frac{\sigma_{12}(X(\theta)-\overline{X})S(\theta )}{1+pX(\theta)+qS(\theta)}+ \frac{a_{12}(1+p\overline {X})}{a_{21}(1+q\overline{S})}\frac{\sigma_{21}(S(\theta)-\overline {S})X(\theta)}{1+pX(\theta)+qS(\theta)} \biggr]\,dB_{1}(\theta) $$
and
$$ M_{3}(t)= \int_{0}^{t}\frac{a_{12}\sigma(1+p\overline{X})\overline{S}I(\theta )}{a_{21}(1+q\overline{S})}\,dB_{2}( \theta) $$
are real-valued continuous local martingales.
Thus
$$\begin{aligned} &\limsup_{t\rightarrow+\infty}\frac{\langle M_{2},M_{2}\rangle_{t}}{t}\\ &\quad= \limsup_{t\rightarrow+\infty}\frac{1}{t} \int_{0}^{t} \biggl[-\frac{\sigma _{12}(X(\theta)-\overline{X})S(\theta)}{1+pX(\theta)+qS(\theta)}+ \frac {a_{12}(1+p\overline{X})}{a_{21}(1+q\overline{S})}\frac{\sigma _{21}(S(\theta)-\overline{S})X(\theta)}{1+pX(\theta)+qS(\theta)} \biggr]^{2}\,d\theta \\ &\quad\leq2C_{0}^{2} \biggl[\frac{\sigma_{12}^{2}}{q^{2}}+ \frac{a_{12}^{4}\sigma _{21}^{2}(1+p\overline{X})^{2}}{a_{21}^{2}p^{2}(1+q\overline{S})^{2}} \biggr]< +\infty \end{aligned}$$
and
$$ \begin{aligned} \limsup_{t\rightarrow+\infty}\frac{\langle M_{3},M_{3}\rangle_{t}}{t}&= \limsup_{t\rightarrow+\infty}\frac{1}{t} \int_{0}^{t} \biggl[\frac{a_{12}\sigma (1+p\overline{X})\overline{S}I(\theta)}{a_{21}(1+q\overline{S})} \biggr]^{2}\,d\theta\\ &\leq C_{0}^{2} \biggl[\frac{a_{12}^{2}\sigma^{2}\overline{S}^{2}(1+p\overline {X})^{2}}{(1+q\overline{S})^{2}} \biggr]< +\infty. \end{aligned} $$
Applying the strong law of large numbers, we have \(\lim_{t\rightarrow+\infty}\frac{M_{i}(t)}{t}=0 \) (\(i=2,3\)).
Dividing equation (11) by t and taking the limit superior, we have
$$ \begin{aligned} &\limsup_{t\rightarrow+\infty}\frac{1}{t} \int_{0}^{t} \biggl[ \biggl(a_{11}- \frac{a_{12}p}{q} \biggr) \bigl(X(\theta)-\overline{X}\bigr)^{2}+ \frac {a_{12}a_{22}(1+p\overline{X})}{a_{21}(1+q\overline{S})}\bigl(S(\theta ) -\overline{S}\bigr)^{2}\\ &\qquad{}+\frac{a_{12}a_{33}(1+p\overline{X})}{a_{21}(1+q\overline {S})}I^{2}(\theta) \biggr]\,d\theta\leq \frac{\sigma_{12}^{2}\overline {X}}{2q^{2}}+\frac{a_{12}(1+p\overline{X})}{a_{21}(1+q\overline{S})} \biggl(\frac{\sigma_{21}^{2}\overline{S}}{2p^{2}}+ \frac{\sigma^{2}\overline {S}}{2}C_{0}^{2} \biggr). \end{aligned} $$
Thus
$$ \limsup_{t\rightarrow+\infty}\frac{1}{t} \int_{0}^{t} \bigl[\bigl(X(\theta )-\overline{X} \bigr)^{2}+\bigl(S(\theta)-\overline{S}\bigr)^{2}+I^{2}( \theta) \bigr]\,d\theta \leq\frac{U_{2}}{W_{2}}. $$
 □

Corollary 3.2

From Theorem 3.2, when \(\sigma_{12}=\sigma_{21}=\sigma=0\), we have
$$LV\leq- \biggl(a_{11}-\frac{a_{12}p}{q} \biggr) (X- \overline{X})^{2}-\frac {a_{12}a_{22}(1+p\overline{X})}{a_{21}(1+q\overline{S})}(S-\overline {S})^{2}- \frac{a_{12}a_{33}(1+p\overline{X})}{a_{21}(1+q\overline {S})}I^{2}\leq0, $$
thus when \(a_{11}q>a_{22}p\), \(R_{0}>1\) and \(R_{1}<1\) hold, the equilibrium point \(E_{2}(\overline{X},\overline{S},0)\) of system (1) is globally asymptotically stable.

Remark 3.2

From Theorem 3.2, if the interference intensity is sufficiently small, the solution of model (2) will fluctuates around the equilibrium point \(E_{2}(\overline{X},\overline{S},0)\). Moreover, the fluctuation intensity is related with the disturbance intensity: the fluctuation intensity is positively correlated with the value of \(\sigma_{12},\sigma_{21}\) and σ.

3.3 Asymptotic behaviors around the positive equilibrium point \(E_{3}\) of system (1)

When \(R_{1}>1\), system (1) has a positive equilibrium point \(E_{3}(X^{*},S^{*},I^{*})\), but it is not the equilibrium point of model (2). Now, we explore the asymptotic behaviors of system (2) around \(E_{3}(X^{*},S^{*},I^{*})\).

\(X(t)\) is a temporally homogeneous Markov process in \(E_{l}\), which is given by the stochastic differential equation
$$dX(t)=b(X)\,dt+ {\sum^{k}_{m=1}} \sigma_{m}(x)\,dB_{m}(t), $$
where \(E_{l}\subset R^{l}\) represents a l-dimensional Euclidean space.
The diffusion matrix of \(X(t)\) is given by
$$\Lambda(x)=\bigl(a_{i,j}(x)\bigr),a_{i,j}(x)= {\sum ^{k}_{m=1}}\sigma _{m}^{i}(x) \sigma_{m}^{j}(x). $$

Assumption 3.1

[33]

Assume that there is a bounded domain \(U\subset E_{l}\) with regular boundary, satisfying the following conditions:
  1. (1)

    In the domain U and some of its neighbors, the minimum eigenvalue of the diffusion matrix \(A(x)\) is nonzero.


  2. (2)

    When \(x\in E_{l}\backslash U\), the mean time τ at which a path starting from x to the set U is limited, and \(\sup_{x\in H} E_{x}\tau<\infty\) for every compact subset \(H \subset E_{l}\).



Lemma 3.1

[33]

When Assumption 3.1 holds, the Markov process \(X(t)\) has a stationary distribution \(\mu(\cdot)\) with density in \(E_{l}\). Let \(f(x)\) be a function integrable with respect to the measure μ, where \(x\in E_{l}\), then, for any Borel set \(B\subset E_{l}\), we have
$${\lim_{t\rightarrow\infty}}P(t,x,B)=\mu(B) $$
and
$$P_{x} \biggl\{ {\lim_{T\rightarrow\infty}}\frac{1}{T} \int _{0}^{T}f\bigl(x(t)\bigr)\,dt= \int_{E_{l}}f(x)\mu(dx) \biggr\} =1. $$

Theorem 3.3

Let \((X(t),S(t),I(t))\) be the solution of model (2) with initial value \((X(0),S(0), I(0))\in R^{3}_{+}\). If \(a_{11}q>a_{12}p\) and \(R_{1}>1\) hold, then
$$ \limsup_{t\rightarrow+\infty}\frac{1}{t} \int_{0}^{t} \bigl[\bigl(X(\theta )-X^{*} \bigr)^{2}+\bigl(S(\theta)-S^{*}\bigr)^{2}+\bigl(I(\theta)-I^{*} \bigr)^{2} \bigr]\,d\theta\leq\frac {U_{3}}{W_{3}}, $$
where
$$U_{3}=\frac{\sigma_{12}^{2}X^{*}}{2q^{2}}+\frac {a_{12}(1+pX^{*})}{a_{21}(1+qS^{*})} \biggl( \frac{\sigma _{21}^{2}S^{*}}{2p^{2}}+\frac{C_{0}^{2}\sigma^{2}}{2}\bigl(S^{*}+I^{*}\bigr) \biggr) $$
and
$$W_{3}=\min \biggl\{ a_{11}-\frac{a_{12}p}{q}, \frac {a_{12}a_{22}(1+pX^{*})}{a_{21}(1+qS^{*})},\frac {a_{12}a_{33}(1+pX^{*})}{a_{21}(1+qS^{*})} \biggr\} . $$

Proof

Noting that \((X^{*},S^{*},I^{*})\) is the equilibrium point of system (1), thus
$$ \textstyle\begin{cases} b-a_{11}X^{*}-\frac{a_{12}S^{*}}{1+pX^{*}+qS^{*}}=0,\\ -c-a_{22}S^{*}+\frac{a_{21}X^{*}}{1+pX^{*}+qS^{*}}-\beta I^{*}=0,\\ \beta S^{*}-d-a_{33}I^{*}=0. \end{cases} $$
Define
$$ \begin{aligned} V(X,S,I)={}& \biggl(X-X^{*}-X^{*}\ln\frac{X}{X^{*}} \biggr)+\frac {a_{12}(1+pX^{*})}{a_{21}(1+qS^{*})} \biggl(S-S^{*}-S^{*}\ln\frac{S}{S^{*}} \biggr)\\ &{}+\frac{a_{12}(1+pX^{*})}{a_{21}(1+qS^{*})} \biggl(I-I^{*}-I^{*}\ln\frac {I}{I^{*}} \biggr) \\ :={}&V_{1}+\frac{a_{12}(1+pX^{*})}{a_{21}(1+qS^{*})}V_{2}+\frac {a_{12}(1+pX^{*})}{a_{21}(1+qS^{*})}V_{3}. \end{aligned} $$
Applying Itô’s formula to the stochastic differential system (2) yields
$$ dV_{1}=LV_{1}\,dt- \frac{\sigma_{12}(X-X^{*})S}{1+pX+qS}\,dB_{1}(t), $$
where
$$ \begin{aligned} LV_{1}={}&\bigl(X-X^{*}\bigr) \biggl[b-a_{11}X-\frac{a_{12}S}{1+pX+qS} \biggr]+\frac{\sigma _{12}^{2}X^{*}S^{2}}{2(1+pX+qS)^{2}} \\ ={}&\bigl(X-X^{*}\bigr) \biggl[b-a_{11}\bigl(X-X^{*}\bigr)-a_{11}X^{*}- \frac{a_{12}S}{1+pX+qS} \biggr]+\frac{\sigma_{12}^{2}X^{*}S^{2}}{2(1+pX+qS)^{2}} \\ ={}&\bigl(X-X^{*}\bigr) \biggl[-a_{11}\bigl(X-X^{*}\bigr)+a_{12} \frac {pS^{*}(X-X^{*})-(S-S^{*})(1+pX^{*})}{(1+pX^{*}+qS^{*})(1+pX+qS)} \biggr] \\ &{}+\frac{\sigma_{12}^{2}X^{*}S^{2}}{2(1+pX+qS)^{2}} \\ ={}&{-}a_{11}\bigl(X-X^{*}\bigr)^{2}+\frac {a_{12}pS^{*}(X-X^{*})^{2}}{(1+pX^{*}+qS^{*})(1+pX+qS)}+ \frac{\sigma _{12}^{2}X^{*}S^{2}}{2(1+pX+qS)^{2}} \\ &{}-\frac{a_{12}(1+pX^{*})(S-S^{*})(X-X^{*})}{(1+pX^{*}+qS^{*})(1+pX+qS)}. \end{aligned} $$
Similarly,
$$ dV_{2}=LV_{2}\,dt+ \frac{\sigma_{21}(S-S^{*})X}{1+pX+qS}\,dB_{1}(t)-\sigma \bigl(S-S^{*}\bigr)I\,dB_{2}(t), $$
where
$$\begin{aligned} LV_{2}={}&\bigl(S-S^{*}\bigr) \biggl[-c-a_{22}S+\frac{a_{21}X}{1+pX+qS}-\beta I \biggr]+ \frac{\sigma_{21}^{2}S^{*}X^{2}}{2(1+pX+qS)^{2}}+\frac{1}{2}\sigma^{2}S^{*}I^{2} \\ ={}&\bigl(S-S^{*}\bigr) \biggl[-c-a_{22}\bigl(S-S^{*}\bigr)-a_{22}S^{*}+ \frac{a_{21}X}{1+pX+qS}-\beta \bigl(I-I^{*}\bigr)-\beta I^{*} \biggr] \\ &{}+\frac{\sigma_{21}^{2}S^{*}X^{2}}{2(1+pX+qS)^{2}}+\frac{1}{2}\sigma^{2}S^{*}I^{2} \\ ={}&\bigl(S-S^{*}\bigr) \biggl[-a_{22}\bigl(S-S^{*}\bigr)+a_{21} \frac {(X-X^{*})(1+qS^{*})-qX^{*}(S-S^{*})}{(1+pX^{*}+qS^{*})(1+pX+qS)}-\beta \bigl(I-I^{*}\bigr) \biggr] \\ &{}+\frac{\sigma_{21}^{2}S^{*}X^{2}}{2(1+pX+qS)^{2}}+\frac{1}{2}\sigma^{2}S^{*}I^{2} \\ ={}&-a_{22}\bigl(S-S^{*}\bigr)^{2}+a_{21} \frac {(1+qS^{*})(X-X^{*})(S-S^{*})}{(1+pX^{*}+qS^{*})(1+pX+qS)}-\beta\bigl(I-I^{*}\bigr) \bigl(S-S^{*}\bigr) \\ &{}-a_{21}\frac{qX^{*}(S-S^{*})^{2}}{(1+pX^{*}+qS^{*})(1+pX+qS)}+\frac{\sigma _{21}^{2}S^{*}X^{2}}{2(1+pX+qS)^{2}}+\frac{1}{2} \sigma^{2}S^{*}I^{2}. \end{aligned}$$
Also, we have
$$ dV_{3}=LV_{3}\,dt+\sigma\bigl(I-I^{*}\bigr)S\,dB_{2}(t), $$
where
$$ \begin{aligned} LV_{3}&=\bigl(I-I^{*}\bigr) [-d-a_{33}I+\beta S ]+\frac{1}{2}\sigma^{2}I^{*}S^{2}\\ &=\bigl(I-I^{*}\bigr) \bigl[-d-a_{33}\bigl(I-I^{*}\bigr)-a_{33}I^{*}+ \beta\bigl(S-S^{*}\bigr)+\beta S^{*} \bigr]+\frac{1}{2}\sigma^{2}I^{*}S^{2}\\ &=-a_{33}\bigl(I-I^{*}\bigr)^{2}+\beta\bigl(S-S^{*}\bigr) \bigl(I-I^{*}\bigr)+\frac{1}{2}\sigma^{2}I^{*}S^{2}. \end{aligned} $$
Then we have
$$ \begin{aligned} dV={}&LV\,dt-\frac{\sigma_{12}(X-X^{*})S}{1+pX+qS}\,dB_{1}(t)+ \frac {a_{12}(1+pX^{*})}{a_{21}(1+qS^{*})} \biggl[\frac{\sigma _{21}(S-S^{*})X}{1+pX+qS}\,dB_{1}(t)\\ &{}-\sigma\bigl(S-S^{*}\bigr)I\,dB_{2}(t)+\sigma\bigl(I-I^{*} \bigr)S\,dB_{2}(t) \biggr], \end{aligned} $$
(12)
where
$$\begin{aligned} LV={}&LV_{1}+\frac{a_{12}(1+pX^{*})}{a_{21}(1+qS^{*})}LV_{2}+ \frac {a_{12}(1+pX^{*})}{a_{21}(1+qS^{*})}LV_{3} \\ ={}&-a_{11}\bigl(X-X^{*}\bigr)^{2}+\frac {a_{12}pS^{*}(X-X^{*})^{2}}{(1+pX^{*}+qS^{*})(1+pX+qS)}+ \frac{\sigma _{12}^{2}X^{*}S^{2}}{2(1+pX+qS)^{2}} \\ &{}-\frac{a_{12}(1+pX^{*})(S-S^{*})(X-X^{*})}{(1+pX^{*}+qS^{*})(1+pX+qS)}+\frac {a_{12}(1+pX^{*})}{a_{21}(1+qS^{*})} \biggl[-a_{22}\bigl(S-S^{*} \bigr)^{2}-a_{33}\bigl(I-I^{*}\bigr)^{2} \\ &{}+a_{21}\frac {(1+qS^{*})(X-X^{*})(S-S^{*})}{(1+pX^{*}+qS^{*})(1+pX+qS)}-a_{21}\frac {qX^{*}(S-S^{*})^{2}}{(1+pX^{*}+qS^{*})(1+pX+qS)} \\ &{}+\frac{\sigma_{21}^{2}S^{*}X^{2}}{2(1+pX+qS)^{2}}+\frac{\sigma ^{2}S^{*}}{2}I^{2}+\frac{\sigma^{2}I^{*}}{2}S^{2} \biggr] \\ \leq{}&{-} \biggl(a_{11}-\frac{a_{12}p}{q} \biggr) \bigl(X-X^{*} \bigr)^{2}-\frac {a_{12}a_{22}(1+pX^{*})}{a_{21}(1+qS^{*})}\bigl(S-S^{*}\bigr)^{2}- \frac {a_{12}a_{33}(1+pX^{*})}{a_{21}(1+qS^{*})}\bigl(I-I^{*}\bigr)^{2} \\ &{}+\frac{\sigma_{12}^{2}X^{*}}{2q^{2}}+\frac {a_{12}(1+pX^{*})}{a_{21}(1+qS^{*})} \biggl[\frac{\sigma _{21}^{2}S^{*}}{2p^{2}}+ \frac{C^{2}\sigma^{2}}{2}\bigl(S^{*}+I^{*}\bigr) \biggr]. \end{aligned}$$
It is easy to see that, for any
$$\phi< \min \biggl\{ \biggl(a_{11}-\frac{a_{12}p}{q} \biggr)X^{*}, \frac {a_{12}a_{22}(1+pX^{*})}{a_{21}(1+qS^{*})}S^{*},\frac {a_{12}a_{33}(1+pX^{*})}{a_{21}(1+qS^{*})}I^{*} \biggr\} , $$
the ellipsoid
$$ \begin{aligned} &{-} \biggl(a_{11}-\frac{a_{12}p}{q} \biggr) \bigl(X-X^{*}\bigr)^{2}-\frac {a_{12}a_{22}(1+pX^{*})}{a_{21}(1+qS^{*})}\bigl(S-S^{*} \bigr)^{2}\\ &\quad{}-\frac {a_{12}a_{33}(1+pX^{*})}{a_{21}(1+qS^{*})}\bigl(I-I^{*}\bigr)^{2}+\phi=0 \end{aligned} $$
lies entirely in \(R_{+}^{3}\). Let U to be any neighborhood of the ellipsoid with \(\bar{U}\subseteq E_{3}=R_{+}^{3}\), thus for any \(x\in U\backslash E_{l}\), we have \(LV\leq-\overline{M}\) (M̅ is a positive constant). Therefore, condition (2) in Assumption 3.1 is satisfied. Moreover, there exists a \(G=\min\{\sigma _{1}^{2}x_{1}^{2},\sigma_{2}^{2}x_{2}^{2},\sigma_{3}^{2}x_{3}^{2},(x_{1},x_{2},x_{3})\in\overline {U}\}>0\) such that
$${\sum^{3}_{i,j=1}} \Biggl( {\sum ^{3}_{k=1}a_{ik}(x)a_{jk}(x) \Biggr)}\xi_{i}\xi_{j}=\sigma_{1}^{2}x_{1}^{2} \xi _{1}^{2}+\sigma_{2}^{2}x_{2}^{2} \xi_{2}^{2}+\sigma_{3}^{2}x_{3}^{2} \xi_{3}^{2}\geq G\|\xi\|^{2} $$
for all \(x\in\bar{U}, \xi\in R^{3}\), which means condition (1) in Assumption 3.1 is satisfied. Therefore, the stochastic model (2) has a unique stationary distribution \(\mu(\cdot)\), it also has the ergodic property.
Integrating equation (12) from 0 to t on both sides yields
$$ \begin{aligned}[b] V(t)-V(0)\leq{}& \int_{0}^{t} \biggl[- \biggl(a_{11}- \frac{a_{12}p}{q} \biggr) \bigl(X(\theta)-X^{*}\bigr)^{2}- \frac {a_{12}a_{22}(1+pX^{*})}{a_{21}(1+qS^{*})}\bigl(S(\theta)-S^{*}\bigr)^{2} \\ &{}-\frac{a_{12}a_{33}(1+pX^{*})}{a_{21}(1+qS^{*})}\bigl(I(\theta)-I^{*}\bigr)^{2} \biggr]\,d\theta \\ &{}+ \biggl[\frac{\sigma_{12}^{2}X^{*}}{2q^{2}}+\frac {a_{12}(1+pX^{*})}{a_{21}(1+qS^{*})} \biggl(\frac{\sigma _{21}^{2}S^{*}}{2p^{2}}+ \frac{C_{0}^{2}\sigma^{2}}{2}\bigl(S^{*}+I^{*}\bigr) \biggr) \biggr]\\ &{}+M_{4}(t)+M_{5}(t), \end{aligned} $$
(13)
where
$$ M_{4}(t)= \int_{0}^{t} \biggl[-\frac{\sigma_{12}(X(\theta)-X^{*})S(\theta )}{1+pX(\theta)+qS(\theta)}+ \frac{a_{12}(1+pX^{*})}{a_{21}(1+qS^{*})}\frac {\sigma_{21}(S(\theta)-S^{*})X(\theta)}{1+pX(\theta)+qS(\theta)} \biggr]\,dB_{1}(\theta) $$
and
$$ M_{5}(t)= \int_{0}^{t}\frac{a_{12}(1+pX^{*})}{a_{21}(1+qS^{*})} \bigl[-\sigma \bigl(S(\theta)-S^{*}\bigr)I(\theta)+\sigma\bigl(I(\theta)-I^{*}\bigr)S(\theta) \bigr]\,dB_{2}(\theta) $$
are real-valued continuous local martingales.
Thus
$$\begin{aligned} &\limsup_{t\rightarrow+\infty} \frac{\langle M_{4},M_{4}\rangle_{t}}{t}\\ &\quad= \limsup_{t\rightarrow+\infty}\frac{1}{t} \int_{0}^{t} \biggl[\frac {a_{12}(1+pX^{*})}{a_{21}(1+qS^{*})} \frac{\sigma_{21}(S(\theta)-S^{*})X(\theta )}{1+pX(\theta)+qS(\theta)}-\frac{\sigma_{12}(X(\theta)-X^{*})S(\theta )}{1+pX(\theta)+qS(\theta)} \biggr]^{2}\,d\theta\\ &\quad\leq2C_{0}^{2} \biggl[\frac{\sigma_{12}^{2}}{q^{2}}+ \frac{a_{12}^{4}\sigma _{21}^{2}(1+pX^{*})^{2}}{a_{21}^{2}p^{2}(1+qS^{*})^{2}} \biggr]< +\infty \end{aligned}$$
and
$$ \limsup_{t\rightarrow+\infty}\frac{\langle M_{5},M_{5}\rangle_{t}}{t}= \limsup_{t\rightarrow+\infty}\frac{1}{t} \int_{0}^{t} \bigl(\sigma S^{*}I(\theta )-\sigma I^{*}S( \theta) \bigr)^{2}\,d\theta\leq2C_{0}^{2} \sigma^{2} \bigl(S^{*}+I^{*} \bigr)< +\infty. $$
Applying the strong law of large numbers, we have \(\lim_{t\rightarrow+\infty}\frac{M_{i}(t)}{t}=0\) (\(i=4,5\)).
Dividing equation (13) by t and taking the limit superior, we have
$$ \begin{aligned} &\limsup_{t\rightarrow+\infty}\frac{1}{t} \int_{0}^{t} \biggl[ \biggl(a_{11}- \frac{a_{12}p}{q} \biggr) \bigl(X(\theta)-X^{*}\bigr)^{2}+ \frac {a_{12}a_{22}(1+pX^{*})}{a_{21}(1+qS^{*})}\bigl(S(\theta)-S^{*}\bigr)^{2} \\ &\qquad{}+\frac{a_{12}a_{33}(1+pX^{*})}{a_{21}(1+qS^{*})}\bigl(I(\theta)-I^{*}\bigr)^{2} \biggr]\,d\theta \\ &\quad\leq\frac{\sigma_{12}^{2}X^{*}}{2q^{2}}+\frac {a_{12}(1+pX^{*})}{a_{21}(1+qS^{*})} \biggl[\frac{\sigma _{21}^{2}S^{*}}{2p^{2}}+ \frac{C_{0}^{2}\sigma^{2}}{2}\bigl(S^{*}+I^{*}\bigr) \biggr], \end{aligned} $$
thus
$$ \limsup_{t\rightarrow+\infty}\frac{1}{t} \int_{0}^{t} \bigl[\bigl(X(\theta )-X^{*} \bigr)^{2}+\bigl(S(\theta)-S^{*}\bigr)^{2}+\bigl(I(\theta)-I^{*} \bigr)^{2} \bigr]\,d\theta\leq\frac {U_{3}}{W_{3}}. $$
(14)
 □

Corollary 3.3

From Theorem 3.3, when \(\sigma_{12}=\sigma_{21}=\sigma=0\), we have
$$\begin{aligned} LV&\leq- \biggl(a_{11}-\frac{a_{12}p}{q} \biggr) \bigl(X-X^{*} \bigr)^{2}-\frac {a_{12}a_{22}(1+pX^{*})}{a_{21}(1+qS^{*})}\bigl(S-S^{*}\bigr)^{2}- \frac {a_{12}a_{33}(1+pX^{*})}{a_{21}(1+qS^{*})}\bigl(I-I^{*}\bigr)^{2}\\ &\leq0. \end{aligned}$$
Thus when \(a_{11}q>a_{22}p\) and \(R_{1}>1\) hold, the positive equilibrium point \(E_{3}(X^{*},S^{*},I^{*})\) of system (1) is globally asymptotically stable.

Remark 3.3

From Theorem 3.3, if the interference intensity is sufficiently small, the solution of model (2) will fluctuates around the equilibrium point \(E_{3}(X^{*},S^{*},I^{*})\). Moreover, the fluctuation intensity is related with the disturbance intensity: the fluctuation intensity is positively correlated with the value of \(\sigma _{12},\sigma_{21}\) and σ.

Remark 3.4

If the conditions in Theorem 3.3 are hold, then the solution of model (2) has a unique stationary distribution, it also has the ergodic property.

4 Persistence in mean and extinction

When we consider a biological population system, persistence in mean and extinction are two very important properties. In this section, we investigate the persistence in mean and extinction of system (2).

Since there is no equilibrium point in system (2), we cannot determine the persistence of system (2) by proving the stability of the equilibrium point as a deterministic system.

Definition 4.1

[5]

The definition of persistence in mean and extinction are given as follows:
  1. (1)

    The species \(X(t)\) is said to be in extinction if \({\lim_{t\rightarrow+\infty}}X(t)=0\).


  2. (2)

    The species \(X(t)\) is said to be in persistence in mean if \({\lim_{t\rightarrow+\infty}}\langle X(t)\rangle_{*}>0\).



Lemma 4.1

[34]

Let \(X(t)\in C(\Omega\times[0,+\infty),R_{+})\).

(1) If there exist \(T>0,\lambda_{0}>0,\lambda,n_{i}\), when \(t\geq T\), we have
$$\ln X(t)\leq\lambda t-\lambda_{0} \int_{0}^{t}X(s)\,ds+\sum _{i=1}^{j}n_{i}B(t) \quad\textit{a.s.}, $$
then
$$ \textstyle\begin{cases} \langle X\rangle^{*}\leq\frac{\lambda}{\lambda_{0}}\textit{ a.s.},& \textit{if }\lambda\geq 0;\\ \lim_{t\rightarrow+\infty}X(t)=0 \textit{ a.s.},& \textit{if }\lambda< 0. \end{cases} $$
(2) If there exist \(T>0,\lambda_{0}>0,\lambda>0,n_{i}\), when \(t\geq T\), we have
$$\ln X(t)\geq\lambda t-\lambda_{0} \int_{0}^{t}X(s)\,ds+\sum _{i=1}^{j}n_{i}B(t)\quad \textit{a.s.}, $$
then \(\langle X\rangle_{*}\geq\frac{\lambda}{\lambda_{0}}\) a.s.

4.1 Persistence in mean

Theorem 4.1

Let \((X(t),S(t),I(t))\) be the solution of model (2) with initial value \((X(0),S(0), I(0))\in R^{3}_{+}\). Model (2) has persistence in mean if conditions \(a_{11}q>a_{12}p, R_{1}>1\), and
$$\varrho=\max\{\sigma_{12},\sigma_{21},\sigma\}< \min \biggl\{ X^{*}\sqrt{\frac {W_{3}}{U_{0}}},S^{*}\sqrt{\frac{W_{3}}{U_{0}}},I^{*}\sqrt{ \frac{W_{3}}{U_{0}}} \biggr\} $$
hold, that is,
$$\liminf_{t\rightarrow+\infty}\frac{1}{t} \int_{0}^{t}X(\theta)\,d\theta>0,\qquad \liminf _{t\rightarrow+\infty}\frac{1}{t} \int_{0}^{t}S(\theta)\,d\theta>0,\qquad \liminf _{t\rightarrow+\infty}\frac{1}{t} \int_{0}^{t}I(\theta)\,d\theta>0, $$
where
$$U_{0}=\frac{X^{*}}{2q^{2}}+\frac{a_{12}(1+pX^{*})}{a_{21}(1+qS^{*})} \biggl( \frac {S^{*}}{2p^{2}}+\frac{C_{0}^{2}(S^{*}+I^{*})}{2} \biggr), $$
\(U_{3}\) and \(W_{3}\) are defined in Theorem 3.3.

Proof

Applying equation (14) in Theorem 3.3 we have
$$ \textstyle\begin{cases} {\limsup_{t\rightarrow+\infty}}\frac{1}{t}\int _{0}^{t}(X(\theta)-X^{*})^{2}\leq\frac{U_{3}}{W_{3}},\\ {\limsup_{t\rightarrow+\infty}}\frac{1}{t}\int _{0}^{t}(S(\theta)-S^{*})^{2}\leq\frac{U_{3}}{W_{3}},\\ {\limsup_{t\rightarrow+\infty}}\frac{1}{t}\int _{0}^{t}(I(\theta)-I^{*})^{2}\leq\frac{U_{3}}{W_{3}}. \end{cases} $$
(15)
Applying the inequality \(2a^{2}-2ab\leq a^{2}+(a-b)^{2}\) to \(X(t)\), we have
$$X\geq\frac{X^{*}}{2}-\frac{(X-X^{*})^{2}}{2X^{*}}. $$
Therefore
$$ \begin{aligned} U_{3}&=\frac{\sigma_{12}^{2}X^{*}}{2q^{2}}+ \frac {a_{12}(1+pX^{*})}{a_{21}(1+qS^{*})} \biggl[\frac{\sigma _{21}^{2}S^{*}}{2p^{2}}+\frac{C_{0}^{2}\sigma^{2}}{2}\bigl(S^{*}+I^{*} \bigr) \biggr] \\ &\leq\varrho^{2} \biggl[\frac{X^{*}}{2q^{2}}+\frac {a_{12}(1+pX^{*})}{a_{21}(1+qS^{*})} \biggl(\frac{S^{*}}{2p^{2}}+\frac {C_{0}^{2}(S^{*}+I^{*})}{2} \biggr) \biggr] \\ &=\varrho^{2}U_{0}. \end{aligned} $$
When \(\varrho< X^{*}\sqrt{\frac{W_{3}}{U_{0}}}\), we have
$$ \begin{aligned} \liminf_{t\rightarrow+\infty}\frac{1}{t} \int_{0}^{t}X(\theta)\,d\theta&\geq \frac{X^{*}}{2}-\limsup_{t\rightarrow+\infty}\frac{1}{t} \int_{0}^{t}\frac {(X(\theta)-X^{*})^{2}}{2X^{*}}\,d\theta \\ &\geq\frac{X^{*}}{2}-\frac{U_{3}}{2W_{3}X^{*}} \\ &\geq\frac{X^{*}}{2}-\frac{\sigma^{2}U_{0}}{2W_{3}X^{*}} \\ &>0. \end{aligned} $$
Similarly, when \(\varrho< S^{*}\sqrt{\frac{W_{3}}{U_{0}}}\), we have
$$ \begin{aligned} \liminf_{t\rightarrow+\infty}\frac{1}{t} \int_{0}^{t}S(\theta)\,d\theta&\geq \frac{S^{*}}{2}-\limsup_{t\rightarrow+\infty}\frac{1}{t} \int_{0}^{t}\frac {(S(\theta)-S^{*})^{2}}{2S^{*}}\,d\theta \\ &\geq\frac{S^{*}}{2}-\frac{U_{3}}{2W_{3}S^{*}} \\ &\geq\frac{S^{*}}{2}-\frac{\sigma^{2}U_{0}}{2W_{3}S^{*}} \\ &>0. \end{aligned} $$
When \(\varrho< I^{*}\sqrt{\frac{W_{3}}{U_{0}}}\), we have
$$\begin{aligned} \liminf_{t\rightarrow+\infty}\frac{1}{t} \int_{0}^{t}I(\theta)\,d\theta&\geq \frac{I^{*}}{2}-\limsup_{t\rightarrow+\infty}\frac{1}{t} \int_{0}^{t}\frac {(I(\theta)-I^{*})^{2}}{2I^{*}}\,d\theta \\ &\geq\frac{I^{*}}{2}-\frac{U_{3}}{2W_{3}I^{*}} \\ &\geq\frac{I^{*}}{2}-\frac{\sigma^{2}U_{0}}{2W_{3}I^{*}} \\ &>0. \end{aligned}$$
 □

Remark 4.1

From Theorem 4.1, when \(R_{1}>1,a_{11}q>a_{12}p\) and the intensity of random disturbance is sufficiently small, system (2) will persistence in mean. This shows that biological populations can resist a small environmental disturbance to maintain the original persistence.

4.2 Extinction

Extinction and persistence in mean are closely related, so we also concern ourselves with the situation of population extinction. In this subsection, we point out the conditions of predator extinction.

Theorem 4.2

Let \((X(t),S(t),I(t))\) be the solution of model (2) with initial value \((X(0),S(0), I(0))\in R^{3}_{+}\). If one of the following conditions holds:
  1. (1)

    \(\sigma_{21}>\max \{\frac{a_{21}}{\sqrt{2c}},\sqrt {a_{21}p} \}\),


  2. (2)

    \(R^{*}=\frac{a_{21}}{pc}-\frac{\sigma_{21}^{2}}{2p^{2}c}<1,\sigma _{21}\leq\sqrt{a_{21p}}\),


then
$$\lim_{t\rightarrow+\infty}X(t)=\frac{b}{a_{11}},\qquad\lim_{t\rightarrow +\infty}S(t)=0,\qquad \lim_{t\rightarrow+\infty}I(t)=0. $$

Proof

Applying Itô’s formula to the second equation of stochastic differential system (2) yields
$$ \begin{aligned}[b] d\ln S(t)={}& \biggl[-c- \frac{\sigma^{2}I^{2}}{2}-\frac{\sigma _{21}^{2}X^{2}}{2(1+pX+qS)^{2}}-a_{22}S+\frac{a_{21}X}{1+pX+qS}-\beta I \biggr]\,dt\\ &{}+\frac{\sigma_{21}X}{1+pX+qS}\,dB_{1}(t)-\sigma I\,dB_{2}(t)\\ \leq{}& \biggl[-c-a_{22}S-\frac{\sigma_{21}^{2}}{2} \biggl( \frac {X}{1+pX+qS}-\frac{a_{21}}{\sigma_{21}^{2}} \biggr)^{2}+\frac {a_{21}^{2}}{2\sigma_{21}^{2}} \biggr]\,dt\\ &{}+\frac{\sigma_{21}X}{1+pX+qS}\,dB_{1}(t)-\sigma I\,dB_{2}(t). \end{aligned} $$
(16)
Case I. When \(\sigma_{21}>\max \{\frac{a_{21}}{\sqrt{2c}},\sqrt {a_{21}p} \}\), inequality (16) takes its maximum value on the interval \([0,\frac{1}{p}]\) at \(\frac{a_{21}}{\sigma_{21}^{2}}\), so we have
$$ d\ln S(t) \leq \biggl[-c-a_{22}S+\frac{a_{21}^{2}}{2\sigma_{21}^{2}} \biggr]\,dt+ \frac {\sigma_{21}X}{1+pX+qS}\,dB_{1}(t)-\sigma I\,dB_{2}(t). $$
Integrating (16) from 0 to t and dividing it by t, we get
$$ \frac{1}{t}\ln\frac{S(t)}{S(0)}\leq\frac{a_{21}^{2}}{2\sigma _{21}^{2}}-c-a_{22} \bigl\langle S(t)\bigr\rangle +t^{-1} \int_{0}^{t}\frac{\sigma _{21}X(\theta)}{1+pX(\theta)+qS(\theta)}\,dB_{1}( \theta)-t^{-1} \int _{0}^{t}\sigma I(\theta)\,dB_{2}( \theta). $$
Applying Lemma 4.1, we obtain
$$ \lim_{t\rightarrow+\infty}S(t)=0. $$
Case II. When \(R^{*}=\frac{a_{21}}{pc}-\frac{\sigma_{21}^{2}}{2p^{2}c}<1\) and \(\sigma_{21}\leq\sqrt{a_{21p}}\), inequality (16) takes its maximum value on the interval \([0,\frac{1}{p}]\) at \(\frac{1}{p}\), so we have
$$ d\ln S(t) \leq \biggl[\frac{a_{21}}{p}-\frac{\sigma_{21}^{2}}{2p^{2}}-c-a_{22}S \biggr]\,dt+\frac{\sigma_{21}X}{1+pX+qS}\,dB_{1}(t)-\sigma I\,dB_{2}(t). $$
Integrating (16) from 0 to t and dividing it by t, we obtain
$$ \begin{aligned} \frac{1}{t}\ln\frac{S(t)}{S(0)}\leq{}& \frac{a_{21}}{p}-\frac{\sigma _{21}^{2}}{2p^{2}}-c-a_{22}\bigl\langle S(t)\bigr\rangle +t^{-1} \int_{0}^{t}\frac{\sigma _{21}X(\theta)}{1+pX(\theta)+qS(\theta)}\,dB_{1}( \theta)\\ &{}-t^{-1} \int _{0}^{t}\sigma I(\theta)\,dB_{2}( \theta) \\ ={}&c \biggl(\frac{a_{21}}{cp}-\frac{\sigma_{21}^{2}}{2cp^{2}}-1 \biggr)-a_{22} \bigl\langle S(t)\bigr\rangle +t^{-1} \int_{0}^{t}\frac{\sigma_{21}X(\theta )}{1+pX(\theta)+qS(\theta)}\,dB_{1}( \theta) \\ &{}-t^{-1} \int_{0}^{t}\sigma I(\theta)\,dB_{2}(\theta) \\ ={}&c \bigl(R^{*}-1 \bigr)-a_{22}\bigl\langle S(t)\bigr\rangle +t^{-1} \int_{0}^{t}\frac {\sigma_{21}X(\theta)}{1+pX(\theta)+qS(\theta)}\,dB_{1}( \theta)\\ &{}-t^{-1} \int _{0}^{t}\sigma I(\theta)\,dB_{2}( \theta). \end{aligned} $$
Applying Lemma 4.1, we obtain
$$ \lim_{t\rightarrow+\infty}S(t)=0. $$
Applying Itô’s formula to the third equation of stochastic differential system (2), one has
$$ d\ln I(t)= \biggl[-d-\frac{\sigma^{2}S^{2}}{2}-a_{33}I+\beta S \biggr]\,dt+ \sigma S\,dB_{2}(t). $$
Since \({\lim_{t\rightarrow+\infty}}S(t)=0\), there is an arbitrarily small constant \(\varepsilon>0\) such that when \(t>T\), we have \(-\frac{\sigma^{2}S^{2}}{2}+\beta S<\varepsilon\), thus
$$ \begin{aligned}[b] \ln I(t)&= \biggl(-d-a_{33}I+ \beta S-\frac{\sigma^{2}S^{2}}{2} \biggr)\,dt+\sigma S\,dB_{2}(t)\\ &\leq (\varepsilon-d-a_{33}I )\,dt+\sigma S\,dB_{2}(t). \end{aligned} $$
(17)
Integrating equation (17) from 0 to t and dividing it by t yields
$$ \frac{1}{t}\ln\frac{I(t)}{I(0)}\leq\varepsilon-d-a_{33}\bigl\langle I(t)\bigr\rangle +t^{-1} \int_{0}^{t}\sigma S(\theta)\,dB_{2}( \theta). $$
Applying Lemma 4.1 and the arbitrariness of ε, we obtain
$$ \lim_{t\rightarrow+\infty}I(t)=0. $$
Similarly,
$$ d\ln X(t)= \biggl(b-a_{11}X-\frac{a_{12}S}{1+pX+qS}-\frac{\sigma _{12}^{2}S^{2}}{2(1+pX+qS)^{2}} \biggr)\,dt-\frac{\sigma _{12}S}{1+pX+qS}\,dB_{1}(t). $$
Since \({\lim_{t\rightarrow+\infty}S(t)=0}\), there is an arbitrarily small constant \(\varepsilon>0\) such that when \(t>T\), we have \(\frac{S}{1+pX+qS}<\varepsilon\), thus
$$ d\ln X(t) \geq \bigl(b-a_{11}X-a_{12}\varepsilon-\sigma _{12}^{2}\varepsilon^{2} \bigr)\,dt- \frac{\sigma_{12}S}{1+pX+qS}\,dB_{1}(t). $$
Integrating the above equation from 0 to t and dividing it by t, one has
$$ \frac{1}{t}\ln\frac{X(t)}{X(0)}\geq b-a_{12}\varepsilon-\sigma _{12}^{2}\varepsilon^{2}-a_{11}\bigl\langle X(t)\bigr\rangle -t^{-1} \int_{0}^{t}\frac {\sigma_{12}S(\theta)}{1+pX(\theta)+qS(\theta)}\,dB_{1}( \theta). $$
Applying Lemma 4.1 and the arbitrariness of ε, we obtain
$$ \lim_{t\rightarrow+\infty}X(t)\geq\frac{b}{a_{11}}. $$
(18)
On the other hand,
$$ \begin{aligned}[b] d\ln X(t)&= \biggl(b-a_{11}X- \frac{a_{12}S}{1+pX+qS}-\frac{\sigma _{12}^{2}S^{2}}{2(1+pX+qS)^{2}} \biggr)\,dt-\frac{\sigma_{12}S}{1+pX+qS}\,dB_{1}(t)\\ &\leq (b-a_{11}X )\,dt-\frac{\sigma_{12}S}{1+pX+qS}\,dB_{1}(t). \end{aligned} $$
(19)
Integrating equation (19) from 0 to t and dividing it by t, we have
$$ \begin{aligned} \frac{1}{t}\ln\frac{X(t)}{X(0)} \leq&b-a_{11}\bigl\langle X(t)\bigr\rangle -t^{-1} \int_{0}^{t}\frac{\sigma_{12}S(\theta)}{1+pX(\theta)+qS(\theta )}\,dB_{1}( \theta). \end{aligned} $$
Applying Lemma 4.1, we obtain
$$ \lim_{t\rightarrow+\infty}X(t)\leq\frac{b}{a_{11}}. $$
(20)
From (18) and (20), we have
$$ \lim_{t\rightarrow+\infty}X(t)=\frac{b}{a_{11}}. $$
 □

Remark 4.2

From Theorem 4.2, if the intensity of random disturbance is sufficiently large or \(R^{*}<1\) and \(\sigma_{12}\leq\sqrt{a_{21}p}\), the predator population will be extinct.

5 Conclusions and numerical simulations

This paper investigates a stochastic infected predator-prey model with Beddington-DeAngelis functional response. The existence of a global positive solution of model (2) is first proved, then we show the stochastically ultimate boundedness of the solution. In addition, by using the Lyapunov method and Itô’s formula, we study the asymptotic properties and stationary distribution of the solution of model (2) around the equilibrium points of its deterministic. At last, we discuss the persistence in mean and extinction of model (2). The biological significance of the result shows that the external environment disturbance may have a certain effect on the stability of the biological system: the population’s ability to adapt to the environment is limited. If the disturbance in the environment is small enough, the stability of the population will not be destroyed; if large disturbances occur in the environment, it may lead to the extinction of species.

We next give some numerical simulations to support our results. We consider the following discrete equations:
$$ \textstyle\begin{cases} X_{n+1}=X_{n}+X_{n} [b-a_{11}X_{n}-\frac{a_{12}S_{n}}{1+pX_{n}+qS_{n}} ]\Delta t-\frac{\sigma_{12}S_{n}X_{n}}{1+pX_{n}+qS_{n}}\Delta W_{1k},\\ S_{n+1}=S_{n}+S_{n} [-c-a_{22}S_{n}+\frac{a_{21}X_{n}}{1+pX_{n}+qS_{n}}-\beta I_{n} ]\Delta t+\frac{\sigma_{21}X_{n}S_{n}}{1+pX_{n}+qS_{n}}\Delta W_{1k}-\sigma S_{n}I_{n}\Delta W_{2k},\\ I_{n+1}=I_{n}+I_{n} [\beta S_{n}-d-a_{33}I_{n} ]\Delta t+\sigma S_{n}I_{n}\Delta W_{2k}, \end{cases} $$
where \(\Delta t=0.01\), \(\Delta W_{ik}\triangleq W(t_{k+1})-W(t_{k})\) obeys the Gaussian distribution \(N(0,\Delta t)\).
In Figure 1, we choose \(X(0)=2,S(0)=2,I(0)=2,b=1,c=0.4,d=0.2,a_{11}=0.8,a_{12}=0.55, a_{21}=0.2,a_{22}=0.1,a_{33}=0.1,\beta =0.2,p=1,q=1\), and step size \(\triangle t=0.001\).
Figure 1
Figure 1

Time sequence diagram and phase portrait of model ( 2 ). (a) The deterministic model; (b) the Brownian motion model with \(\sigma_{12}=\sigma_{21}=\sigma=0.5\); (c) phase portrait: the red ∘ is corresponding to the deterministic model, while the blue ∘ represents the stochastic model.

Under this condition,
$$E_{1}=(K,0,0)=(1.25,0,0),\qquad R_{0}=0.76,\qquad K= \frac{b}{a_{11}}=1.25\leq\frac {c}{a_{21}}=2. $$

The numerical simulation of Figure 1 is consistent with our conclusion in Theorem 3.1.

In Figure 2, we choose \(X(0)=2,S(0)=2,I(0)=2,b=0.6,c=0.2,d=0.3,a_{11}=0.8,a_{12}=0.6, a_{21}=0.8,a_{22}=0.1,a_{33}=0.4,\beta =0.2,p=1,q=1\), and step size \(\triangle t=0.001\).
Figure 2
Figure 2

Time sequence diagram and phase portrait of model ( 2 ). (a)-(c) are a Brownian motion model with \(\sigma_{12}=\sigma _{21}=\sigma=0.1,0.2,0.4\), respectively. (d)-(f) are phase portraits of (a)-(c), respectively. The red ∘ is corresponding to the deterministic model, while the blue ∘ represents the stochastic model.

Under this condition,
$$\begin{aligned}& E_{2}=(\overline{X},\overline {S},0)=(0.6,0.4,0),\qquad a_{11}q=0.8>a_{22}p=0.1,\\& R_{0}=5>1,\qquad R_{1}=0.53< 1. \end{aligned}$$
In Figure 2(a), we choose \(\sigma_{12}=\sigma_{21}=\sigma=0.1\), thus
$$ \limsup_{t\rightarrow+\infty}\frac{1}{t} \int_{0}^{t} \bigl[\bigl(X(\theta )-\overline{X} \bigr)^{2}+\bigl(S(\theta)-\overline{S}\bigr)^{2}+I^{2}( \theta) \bigr]\,d\theta \leq\frac{U_{2}}{W_{2}}=11.8648. $$
In Figure 2(b), we choose \(\sigma_{12}=\sigma_{21}=\sigma=0.2\), thus
$$ \limsup_{t\rightarrow+\infty}\frac{1}{t} \int_{0}^{t} \bigl[\bigl(X(\theta )-\overline{X} \bigr)^{2}+\bigl(S(\theta)-\overline{S}\bigr)^{2}+I^{2}( \theta) \bigr]\,d\theta \leq\frac{U_{2}}{W_{2}}=47.4592. $$
In Figure 2(c), we choose \(\sigma_{12}=\sigma_{21}=\sigma=0.4\), thus
$$ \limsup_{t\rightarrow+\infty}\frac{1}{t} \int_{0}^{t} \bigl[\bigl(X(\theta )-\overline{X} \bigr)^{2}+\bigl(S(\theta)-\overline{S}\bigr)^{2}+I^{2}( \theta) \bigr]\,d\theta \leq\frac{U_{2}}{W_{2}}=189.8369. $$

Figure 2 shows that the solution of model (2) fluctuates around the equilibrium \(E_{2}(0.6,0.4,0)\). In addition, the fluctuation intensity is related with the disturbance intensity: with the increase of \(\sigma_{12},\sigma_{21},\sigma\), the fluctuation intensity is also increasing. These all meet the conditions of Theorem 3.2.

In Figure 3, we choose \(X(0)=2,S(0)=2,I(0)=2,b=1,c=0.1,d=0.1,a_{11}=0.5,a_{12}=0.3, a_{21}=1,a_{22}=0.1,a_{33}=0.2,\beta =0.5,p=1,q=1\), and step size \(\triangle t=0.001\).

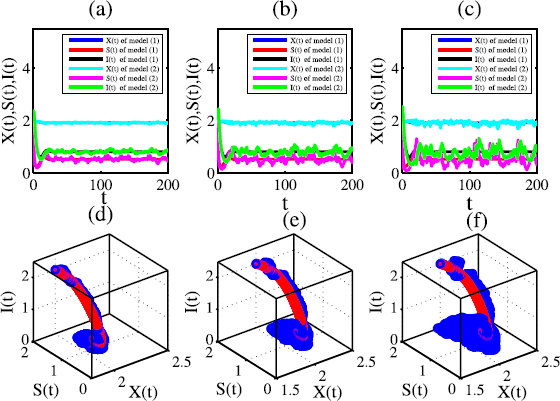

Figure 3
Figure 3

Time sequence diagram and phase portrait of model ( 2 ). (a) The Brownian motion model with \(\sigma_{12}=\sigma _{21}=\sigma=0.03,0.06,0.1\), respectively. (d)-(f) are phase portraits of (a)-(c), respectively. The red ∘ is corresponding to the deterministic model, while the blue ∘ represents the stochastic model.

Under this condition,
$$\begin{aligned}& E_{3}=\bigl(X^{*},S^{*},I^{*}\bigr)=(1.9085,0.5231,0.8071),\\& a_{11}q=0.5>a_{22}p=0.3,\qquad R_{1}=5.21>1. \end{aligned}$$
In Figure 3(a), we choose \(\sigma_{12}=\sigma_{21}=\sigma=0.03\), thus
$$ \limsup_{t\rightarrow+\infty}\frac{1}{t} \int_{0}^{t} \bigl[\bigl(X(\theta )-X^{*} \bigr)^{2}+\bigl(S(\theta)-S^{*}\bigr)^{2}+\bigl(I(\theta)-I^{*} \bigr)^{2} \bigr]\,d\theta\leq\frac {U_{3}}{W_{3}}=8.1131. $$
In Figure 3(b), we choose \(\sigma_{12}=\sigma_{21}=\sigma=0.06\), thus
$$ \limsup_{t\rightarrow+\infty}\frac{1}{t} \int_{0}^{t} \bigl[\bigl(X(\theta )-X^{*} \bigr)^{2}+\bigl(S(\theta)-S^{*}\bigr)^{2}+\bigl(I(\theta)-I^{*} \bigr)^{2} \bigr]\,d\theta\leq\frac {U_{3}}{W_{3}}=22.4523. $$
In Figure 3(c), we choose \(\sigma_{12}=\sigma_{21}=\sigma=0.1\), thus
$$ \limsup_{t\rightarrow+\infty}\frac{1}{t} \int_{0}^{t} \bigl[\bigl(X(\theta )-X^{*} \bigr)^{2}+\bigl(S(\theta)-S^{*}\bigr)^{2}+\bigl(I(\theta)-I^{*} \bigr)^{2} \bigr]\,d\theta\leq\frac {U_{3}}{W_{3}}=90.1453. $$

Figure 3 shows that the solution of model (2) fluctuates around \(E_{3}(1.9085,0.5231, 0.8071)\). In addition, the fluctuation intensity is related with the disturbance intensity: with the increase of \(\sigma_{12},\sigma_{21}\) and σ, the fluctuation intensity is also increasing. These all meet the conditions of Theorem 3.2.

In Figure 4, we choose \(X(0)=2,S(0)=2,I(0)=2,b=1,c=0.1,d=0.1,a_{11}=0.5,a_{12}=0.3, a_{21}=1,a_{22}=0.1,a_{33}=0.2,\beta =0.5,p=1,q=1\), and step size \(\triangle t=0.001\). Figure 4 shows that the solution of model (2) fluctuates up and down in a small neighborhood. According to the density functions in Figure 4(b)-(d), we see that there is a stationary distribution. This is in line with our conclusions.
Figure 4
Figure 4

Time sequence diagram and density function of model ( 2 ) with \(\pmb{\sigma_{12}=\sigma_{21}=\sigma=0.01}\) . (a) Time sequence diagram; (b)-(d) the density functions of \(X(t)\), \(S(t)\), \(I(t)\), respectively.

In Figure 5, we choose \(X(0)=2,S(0)=2,I(0)=2,b=1,c=0.1,d=0.1,a_{11}=0.5,a_{12}=0.3, a_{21}=0.1,a_{22}=0.1,a_{33}=0.2,\beta =0.5,p=0.5,q=0.5\), and step size \(\triangle t=0.001\).
Figure 5
Figure 5

Persistence in mean and extinction of model ( 2 ). (a) The deterministic model; (b) persistence in mean of model (2); (c) extinction of model (2).

In this condition,
$$\begin{aligned}& E_{3}=\bigl(X^{*},S^{*},I^{*}\bigr)=(1.8793,0.4339,0.5847),\\& a_{11}q=0.25>a_{22}p=0.15,\qquad R_{1}=3.4>1. \end{aligned}$$
In Figure 5(b), we choose \(\sigma_{12}=\sigma_{21}=\sigma=0.006\). In this case,
$$\varrho=\max\{\sigma_{12},\sigma_{21},\sigma\}=0.006< \min \biggl\{ X^{*}\sqrt {\frac{W_{3}}{U_{0}}},S^{*}\sqrt{\frac{W_{3}}{U_{0}}},I^{*}\sqrt{ \frac {W_{3}}{U_{0}}} \biggr\} =0.0064, $$
which satisfies the conditions in Theorem 4.1. Figure 5(b) shows that \(X(t),S(t),I(t)\) have persistence in mean, this is in line with our conclusion in Theorem 4.1.
In Figure 5(c), we choose \(\sigma_{12}=\sigma=0.5\) and
$$\sigma_{21}=1.2>\max \biggl\{ \frac{a_{12}}{\sqrt{2c}},\sqrt{a_{21}p} \biggr\} =0.223, $$
which satisfies the conditions in Theorem 4.2. Figure 5(c) shows that \(S(t),I(t)\) are extinct and
$$\lim_{t\rightarrow+\infty}X(t)=\frac{b}{a_{11}}=2, $$
this is in line with our conclusion in Theorem 4.2.
To sum up, we have the following conclusions:
  1. I.
    Asymptotic behaviors
    1. (1)

      When \(R_{0}<1\) and \(Ka_{21}< c\), the solution of model (2) is fluctuating around \(E_{1}\). Therefore, the intensity of the fluctuation is positively correlated with \(\sigma_{12}\).


    2. (2)

      When \(R_{0}>1,R_{1}<1\) and \(a_{11}q>a_{22}p\), the solution of model (2) is fluctuating around \(E_{2}\). Therefore, the intensity of the fluctuation is positively correlated with \(\sigma_{12},\sigma_{21}\) and σ.


    3. (3)

      When \(R_{1}>1\) and \(a_{11}q>a_{22}p\), the solution of model (2) is fluctuating around \(E_{3}\). Therefore, the intensity of the fluctuation is positively correlated with \(\sigma_{12},\sigma_{21}\) and σ. When the interference intensity is sufficient small, the solution of model (2) has a unique stationary distribution, it also has the ergodic property.



  2. II.
    Persistence in mean and extinction
    1. (1)

      When \(R_{1}>1,a_{11}q>a_{12}p\) and \(\varrho=\max\{\sigma_{12},\sigma _{21},\sigma\}<\min \{X^{*}\sqrt{\frac{W_{3}}{U_{0}}},S^{*}\sqrt{\frac {W_{3}}{U_{0}}},I^{*}\sqrt{\frac{W_{3}}{U_{0}}} \}\), the solution of model (2) can have persistence in mean.


    2. (2)

      When \(\sigma_{21}>\max \{\frac{a_{21}}{\sqrt{2c}},\sqrt {a_{21}p} \}\) or \(R^{*}<1\) and \(\sigma_{21}\leq\sqrt{a_{21p}}\), the predator of model (2) can be extinct.




Declarations

Acknowledgements

The authors would like to thank Dr. Tonghua Zhang, who helped them during the writing of this paper. This work was supported by National Natural Science Foundation of China (11371230, 11501331, 11561004), the SDUST Research Fund (2014TDJH102), Shandong Provincial Natural Science Foundation, China (ZR2015AQ001, BS2015SF002), Joint Innovative Center for Safe And Effective Mining Technology and Equipment of Coal Resources, the Open Foundation of the Key Laboratory of Jiangxi Province for Numerical Simulation and Emulation Techniques, Gannan Normal University, China, SDUST Innovation Fund for Graduate Students (No. SDKDYC170225).

Open Access This article is distributed under the terms of the Creative Commons Attribution 4.0 International License (http://creativecommons.org/licenses/by/4.0/), which permits unrestricted use, distribution, and reproduction in any medium, provided you give appropriate credit to the original author(s) and the source, provide a link to the Creative Commons license, and indicate if changes were made.

Authors’ Affiliations

(1)
College of Mathematics and Systems Science, Shandong University of Science and Technology, Qingdao, P.R. China
(2)
Key Laboratory of Jiangxi Province for Numerical Simulation and Emulation Techniques, Gannan Normal University, Ganzhou, P.R. China
(3)
State Key Laboratory of Mining Disaster Prevention and Control Co-founded by Shandong Province and the Ministry of Science and Technology, Shandong University of Science and Technology, Qingdao, P.R. China

References

  1. Gao, SJ, Chen, LS, Nieto, JJ, Torres, A: Analysis of a delayed epidemic model with pulse vaccination and saturation incidence. Vaccine 24, 6037-6045 (2006) View ArticleGoogle Scholar
  2. Meng, XZ, Jiao, JJ, Chen, LS: The dynamics of an age structured predator-prey model with disturbing pulse and time delays. Nonlinear Anal., Real World Appl. 9, 547-561 (2008) MathSciNetView ArticleMATHGoogle Scholar
  3. Tong, YL: Relationship between stochastic inequalities and some classical mathematical inequalities. J. Inequal. Appl. 1997(1), 364048 (1997) MathSciNetView ArticleGoogle Scholar
  4. Zu, L, Jiang, DQ, O’Regan, D: Conditions for persistence and ergodicity of a stochastic Lotka-Volterra predator-prey model with regime switching. Commun. Nonlinear Sci. Numer. Simul. 29, 1-11 (2015) MathSciNetView ArticleGoogle Scholar
  5. Meng, XZ, Zhao, SN, Feng, T, Zhang, TH: Dynamics of a novel nonlinear stochastic SIS epidemic model with double epidemic hypothesis. J. Math. Anal. Appl. 433, 227-242 (2016) MathSciNetView ArticleMATHGoogle Scholar
  6. Meng, XZ, Liu, R, Liu, LD, Zhang, TH: Evolutionary analysis of a predator-prey community under natural and artificial selections. Appl. Math. Model. 39, 574-585 (2015) MathSciNetView ArticleGoogle Scholar
  7. Jiao, JJ, Chen, LS, Cai, SH, Wang, LM: Dynamics of a stage-structured predator-prey model with prey impulsively diffusing between two patches. Nonlinear Anal., Real World Appl. 11, 2748-2756 (2010) MathSciNetView ArticleMATHGoogle Scholar
  8. Zhang, H, Georgescu, P, Chen, LS: An impulsive predator-prey system with Beddington-DeAngelis functional response and time delay. Int. J. Biomath. 1, 1-17 (2008) MathSciNetView ArticleMATHGoogle Scholar
  9. Song, XY, Chen, LS: Harmless delays and global attractivity for nonautonomous predator-prey system with dispersion. Comput. Math. Appl. 39, 33-42 (2000) MathSciNetView ArticleMATHGoogle Scholar
  10. Zhang, TQ, Ma, WB, Meng, XZ, Zhang, TH: Periodic solution of a prey-predator model with nonlinear state feedback control. Appl. Math. Comput. 2667, 95-107 (2015) MathSciNetGoogle Scholar
  11. Chattopadhyay, J, Arino, O: A predator-prey model with disease in the prey. Nonlinear Anal., Theory Methods Appl. 36, 747-766 (1999) MathSciNetView ArticleMATHGoogle Scholar
  12. Xiao, YN, Chen, LS: A ratio-dependent predator-prey model with disease in the prey. Appl. Math. Comput. 131, 397-414 (2002) MathSciNetMATHGoogle Scholar
  13. Haque, M, Jin, Z, Ezio, V: An ecoepidemiological predator-prey model with standard disease incidence. Math. Methods Appl. Sci. 32, 875-898 (2009) MathSciNetView ArticleMATHGoogle Scholar
  14. Xiao, YN, Chen, LS: Modeling and analysis of a predator-prey model with disease in the prey. Math. Biosci. 171, 59-82 (2001) MathSciNetView ArticleMATHGoogle Scholar
  15. Han, LT, Ma, ZE, Hethcote, HW: Four predator prey models with infectious diseases. Math. Comput. Model. 34, 849-858 (2001) MathSciNetView ArticleMATHGoogle Scholar
  16. Hadeler, KP, Freedman, HI: Predator-prey populations with parasitic infection. J. Math. Biol. 27, 609-631 (1989) MathSciNetView ArticleMATHGoogle Scholar
  17. Hethcote, HW, Wang, WD, Han, LT, Ma, ZE: A predator-prey model with infected prey. Theor. Popul. Biol. 66, 259-268 (2004) View ArticleGoogle Scholar
  18. Zhang, QM, Jiang, DQ, Liu, ZW, O’Regan, D: Asymptotic behavior of a three species eco-epidemiological model perturbed by white noise. J. Math. Anal. Appl. 433, 121-148 (2016) MathSciNetView ArticleMATHGoogle Scholar
  19. Liu, M, Wang, K: Persistence, extinction and global asymptotical stability of a non-autonomous predator-prey model with random perturbation. Appl. Math. Model. 36, 5344-5353 (2012) MathSciNetView ArticleMATHGoogle Scholar
  20. Das, K, Reddy, KS, Srinivas, MN, Gazi, NH: Chaotic dynamics of a three species prey-predator competition model with noise in ecology. Appl. Math. Comput. 231, 117-133 (2014) MathSciNetGoogle Scholar
  21. Li, D, Cui, JA, Song, GH: Permanence and extinction for a single-species system with jump-diffusion. J. Math. Anal. Appl. 430, 438-464 (2015) MathSciNetView ArticleMATHGoogle Scholar
  22. Wang, XC, Wei, JJ: Dynamics in a diffusive predator-prey system with strong Allee effect and Ivlev-type functional response. J. Math. Anal. Appl. 422, 1447-1462 (2015) MathSciNetView ArticleMATHGoogle Scholar
  23. Liu, SQ, Beretta, E: Predator-prey model of Beddington-DeAngelis type with maturation and gestation delays. Nonlinear Anal., Real World Appl. 11, 4072-4091 (2010) MathSciNetView ArticleMATHGoogle Scholar
  24. Jiang, J, Song, YL: Delay-induced Bogdanov-Takens bifurcation in a Leslie-Gower predator-prey model with nonmonotonic functional response. Commun. Nonlinear Sci. Numer. Simul. 19, 2454-2465 (2014) MathSciNetView ArticleGoogle Scholar
  25. Meng, XZ, Li, ZQ, Nieto, JJ: Dynamic analysis of Michaelis-Menten chemostat-type competition models with time delay and pulse in a polluted environment. J. Math. Chem. 47, 123-144 (2010) MathSciNetView ArticleMATHGoogle Scholar
  26. Skalski, GT, Gilliam, JF: Functional responses with predator interference: viable alternatives to the Holling type II model. Ecology 82, 3083-3092 (2001) View ArticleGoogle Scholar
  27. Jost, C, Arditi, R: From pattern to process: identifying predator-prey models from time-series data. Popul. Ecol. 43, 229-243 (2001) View ArticleGoogle Scholar
  28. Crowley, PH, Martin, EK: Functional response and interference within and between year classes of a dragonfly population. J. North Am. Benthol. Soc. 8, 211-221 (1989) View ArticleGoogle Scholar
  29. Hassell, MP, Varley, GC: New inductive population model for insect parasites and its bearing on biological control. Nature 223, 1133-1137 (1969) View ArticleGoogle Scholar
  30. Beddington, JR: Mutual interference between parasites or predators and its effect on searching efficiency. J. Anim. Ecol. 44, 331-340 (1975) View ArticleGoogle Scholar
  31. DeAngelis, DL, Goldstein, RA, O’Neill, RV: A model for tropic interaction. Ecology 56, 881-892 (1975) View ArticleGoogle Scholar
  32. Li, S, Wang, XP: Analysis of stochastic predator-prey models with disease in the predator and Beddington-DeAngelis functional response. Adv. Differ. Equ. 2015, 224 (2015) View ArticleGoogle Scholar
  33. Hasminskij, RZ, Milstejn, GN, Nevelson, MB: Stochastic Stability of Differential Equations. Springer, Berlin (2012) Google Scholar
  34. Liu, M, Wang, K: Survival analysis of a stochastic cooperation system in a polluted environment. J. Biol. Syst. 19, 183-204 (2011) MathSciNetView ArticleMATHGoogle Scholar

Copyright

© The Author(s) 2016

Advertisement
