Open Access

A nonmonotone hybrid conjugate gradient method for unconstrained optimization

Journal of Inequalities and Applications20152015:124

https://doi.org/10.1186/s13660-015-0644-1

Received: 16 January 2015

Accepted: 27 March 2015

Published: 8 April 2015

Abstract

A nonmonotone hybrid conjugate gradient method is proposed, in which the technique of the nonmonotone Wolfe line search is used. Under mild assumptions, we prove the global convergence and linear convergence rate of the method. Numerical experiments are reported.

Keywords

unconstrained optimization nonmonotone hybrid conjugate gradient algorithm global convergence linear convergence rate

1 Introduction

Let us take the following unconstrained optimization problem:
$$ \min_{x\in{R}^{n}} f(x), $$
(1)
where \(f: {R}^{n}\rightarrow {R}\) is continuously differentiable. For solving (1), the conjugate gradient method generates a sequence \(\{x_{k}\} \): \(x_{k+1}=x_{k}+\alpha_{k}d_{k}\), \(d_{0}= -g_{0}\), and \(d_{k}=-g_{k}+\beta_{k}d_{k-1}\), where the stepsize \(\alpha_{k}>0\) is obtained by the line search, \(d_{k}\) is the search direction, \(g_{k}=\nabla f{(x_{k})}\) is the gradient of \(f(x)\) at the point \(x_{k}\), and \(\beta_{k}\) is known as the conjugate gradient parameter. Different parameters correspond to different conjugate gradient methods. A remarkable survey of conjugate gradient methods is given by Hager and Zhang [1].
Plenty of hybrid conjugate gradient methods were presented in [27] after the first hybrid conjugate algorithm was proposed by Touati-Ahmed and Storey [8]. In [5], Lu et al. proposed a new hybrid conjugate gradient method (LY) with the conjugate gradient parameter \(\beta_{k}^{LY}\),
$$\begin{aligned} \beta_{k}^{LY}= \left \{ \begin{array}{@{}l@{\quad}l} \frac{g_{k}^{T}(g_{k}-d_{k-1})}{d_{k-1}^{T}(g_{k}-g_{k-1})}, & \mbox{if }|1-\frac{g_{k}^{T}d_{k-1}}{\|g_{k}\|^{2}}|\leq\mu,\\ \frac{\mu\|g_{k}\|^{2}}{d_{k-1}^{T}g_{k}-\lambda d_{k-1}^{T}g_{k-1}}, & \mbox{otherwise}, \end{array} \right . \end{aligned}$$
(2)
where \(0<\mu\leq\frac{\lambda-\sigma}{1-\sigma}\), \(\sigma<\lambda\leq1\). Numerical experiments show that the LY method is effective.
It is well known that the nonmonotone algorithms are promising methods for solving highly nonlinear large-scale and possibly ill-conditioned problems. The first nonmonotone line search framework was proposed by Grippo et al. in [9] for Newton’s methods. At each iteration, the current function value is defined as follows:
$$ f_{l(k)}=\max_{0\leq j \leq m(k)}f(x_{k-j}), $$
(3)
where \(m(0)=0\), \(0\leq m(k)\leq\min{\{m(k-1)+1,M\}}\), M is some positive integer. Zhang and Hager [10] proposed another nonmonotone line search technique, they adopted \(C_{k}\) to replace the current function \(f_{k}\), where
$$ C_{k}=\frac{\zeta_{k-1} Q_{k-1} C_{k-1}+f_{k}}{Q_{k}}, $$
(4)
\(Q_{0}=1\), \(C_{0}=f(x_{0})\), \(\zeta_{k-1}\in[0,1]\), and
$$ Q_{k}=\zeta_{k-1} Q_{k-1}+1. $$
(5)
To obtain the global convergence (see [4, 1114]) and implement the algorithms, the line search in the conjugate gradient is usually chosen by a Wolfe line search; the stepsize \(\alpha_{k}\) satisfies the following two inequalities:
$$\begin{aligned}& f(x_{k}+\alpha_{k}d_{k})\leq f(x_{k})+ \rho\alpha_{k}g_{k}^{T} d_{k}, \end{aligned}$$
(6)
$$\begin{aligned}& g(x_{k}+\alpha_{k}d_{k})^{T}d_{k} \geq\sigma g_{k}^{T} d_{k}, \end{aligned}$$
(7)
where \(0<\rho<\sigma<1\). In particular, a nonmonotone version line search can relax the choice of the stepsize. Therefore the nonmonotone Wolfe line search requires the stepsize \(\alpha_{k}\) to satisfy
$$\begin{aligned} f(x_{k}+\alpha_{k}d_{k})\leq f_{l(k)}+ \rho\alpha_{k}g_{k}^{T} d_{k} \end{aligned}$$
(8)
and (7), or
$$\begin{aligned} f(x_{k}+\alpha_{k}d_{k})\leq C_{k}+ \rho \alpha_{k}g_{k}^{T} d_{k} \end{aligned}$$
(9)
and (7).

The aim of this paper is to propose a nonmonotone hybrid conjugate gradient method which combines the nonmonotone line search technique with the LY method. It is based on the idea that the larger values of the stepsize \(\alpha_{k}\) may be accepted by the nonmonotone algorithmic framework and improve the behavior of the LY method.

The paper is organized as follows. A new nonmonotone hybrid conjugate gradient algorithm is presented and the global convergence of the algorithm is proved in Section 2. The line convergence rate of the algorithm is shown in Section 3. In Section 4, numerical results are reported.

2 Nonmonotone hybrid conjugate gradient algorithm and global convergence

Now we present a nonmonotone hybrid conjugate gradient algorithm.

Algorithm 1

  • Step 1. Given \(x_{0}\in R^{n}\), \(\epsilon>0\), \(d_{0}=-g_{0}\), \(C_{0}=f_{0}\), \(Q_{0}, \zeta_{0}, k:=0\).

  • Step 2. If \(\|g_{k}\|<\epsilon\), then stop. Otherwise, compute \(\alpha_{k}\) by (9) and (7), set \(x_{k+1}=x_{k}+\alpha_{k}d_{k}\).

  • Step 3. Compute \(\beta_{k+1}\) by (2), set \(d_{k+1}=-g_{k+1}+\beta_{k+1}d_{k}\), \(k:=k+1\), and go to Step 2.

Assumption 1

We make the following assumptions:
  1. (i)

    The level set \({\Omega_{0}}=\{x\in R^{n}:{f{(x)}\leq f{(x_{0})}}\}\) is bounded, where \(x_{0}\) is the initial point.


  2. (ii)
    The gradient function \(g(x)=\nabla f(x)\) of the objective function f is Lipschitz continuous in a neighborhood \(\mathcal{N}\) of level set \({\Omega_{0}}\), i.e. there exists a constant \(L\geq0\) such that
    $$\bigl\| g{(x)}-g{(\bar{x})}\bigr\| \leq L\|x-\bar{x}\|, $$
    for any \({x,\bar{x}}\in\mathcal{N}\).


Lemma 2.1

Let the sequence \(\{x_{k}\}\) be generated by Algorithm 1. Then \(d_{k}^{T}g_{k}<0\) holds for all \(k\geq1\).

Proof

From Lemma 2 and Lemma 3 in [5], the conclusion holds. □

Lemma 2.2

Let Assumption  1 hold and the sequence \(\{x_{k}\}\) be obtained by Algorithm 1, \(\alpha_{k}\) satisfies the nonmonotone Wolfe conditions (9) and (7). Then
$$ \alpha_{k}\geq\frac{\sigma-1}{L}\frac{g_{k}^{T}d_{k}}{\|d_{k}\|^{2}}. $$
(10)

Proof

From (7), we have
$$\begin{aligned} (g_{k+1}-g_{k})^{T}d_{k}\geq( \sigma-1)g_{k}^{T}d_{k} \end{aligned}$$
and by (ii) of Assumption 1 it implies that
$$\begin{aligned} (g_{k+1}-g_{k})^{T}d_{k}\leq \alpha_{k} L\|d_{k}\|^{2}. \end{aligned}$$
By combining these two inequalities, we obtain
$$\alpha_{k}\geq\frac{\sigma-1}{L}\frac{g_{k}^{T}d_{k}}{\|d_{k}\|^{2}}. $$
 □

Lemma 2.3

Let the sequence \(\{x_{k}\}\) be generated by Algorithm 1 and \(d_{k}^{T}g_{k}<0\) hold for all \(k\geq1\). Then
$$ f_{k}\leq C_{k}. $$
(11)

Proof

See Lemma 1.1 in [10]. □

Lemma 2.4

Let Assumption  1 hold, and the sequence \(\{x_{k}\}\) be obtained by Algorithm 1, where \(d_{k}\) satisfies \(d_{k}^{T}g_{k}<0\), \(\alpha_{k}\) is obtained by the nonmonotone Wolfe conditions (9) and (7). Then
$$ \sum_{k\geq0}\frac{1}{Q_{k+1}} \frac{{(d_{k}^{T}g_{k})}^{2}}{\|d_{k}\|^{2}}< +\infty. $$
(12)

Proof

By (9) and (10), we have
$$ f_{k+1}\leq C_{k}-c_{0} \frac{(d_{k}^{T}g_{k})^{2}}{\|d_{k}\|^{2}}, $$
(13)
where \(c_{0}=\rho(1-\sigma)/L\).
From (4), (5), and (13), we have
$$\begin{aligned} C_{k+1} =&\frac{\zeta_{k} Q_{k} C_{k}+f(x_{k+1})}{ Q_{k+1}} \leq\frac{\zeta_{k} Q_{k} C_{k}+C_{k}-c_{0}\frac {{(d_{k}^{T}g_{k})}^{2}}{\|d_{k}\|^{2}}}{ Q_{k+1}} \leq C_{k}-\frac{c_{0}}{Q_{k+1}}\frac{(d_{k}^{T}g_{k})^{2}}{\|d_{k}\|^{2}}. \end{aligned}$$
(14)
Since \(f(x)\) is bounded from below in the level set \(\Omega_{0}\) and by (11) for all k, we know that \(C_{k}\) is bounded from below. It follows from (14) that (12) holds. □

Theorem 2.1

Suppose that Assumptions  1 hold and the sequence \(\{x_{k}\}\) is generated by the Algorithm 1. If \(\zeta_{\max}<1\), then either \(g_{k}=0\) for some k or
$$ \lim_{k\rightarrow\infty}\inf\|g_{k}\|=0. $$
(15)

Proof

We prove by contradiction and assume that there exists a constant \(\epsilon>0\) such that
$$ \|g_{k}\|^{2}\geq\epsilon, \quad k=0,1,2,3, \ldots. $$
(16)
By Lemma 4 in [5], we have \(|\beta_{k}|^{LY}\leq\frac{\mu\|g_{k}\| ^{2}}{d_{k-1}^{T}g_{k}-\lambda d_{k-1}^{T}g_{k-1}}\). Then we have \({\|d_{k}\|}^{2}=(\beta^{LY})^{2} \|d_{k-1}\|^{2}-2g_{k}^{T}d_{k}-\|g_{k}\|^{2} \leq(\frac{\mu\|g_{k}\|^{2}}{d_{k-1}^{T}g_{k}-\lambda d_{k-1}^{T}g_{k-1}})^{2}\|d_{k-1}\|^{2}-2g_{k}^{T}d_{k}-\|g_{k}\|^{2}\). The rest of the proof is similar to Theorem 2 and Theorem 1 in [5], and we also conclude
$$\frac{(g_{k}^{T}d_{k})^{2}}{\|d_{k}\|^{2}}\geq\frac{\epsilon}{k}. $$
Furthermore, by \(\zeta_{\max}<1\) and (5), we have
$$ Q_{k}=1+\sum_{j=0}^{k-1} \prod_{i=0}^{j}\zeta_{k-1-i}\leq \frac{1}{1-\zeta_{\max}}, $$
(17)
then
$$\frac{1}{Q_{k+1}}\frac{(g_{k}^{T}d_{k})^{2}}{\|d_{k}\|^{2}}\geq(1-\zeta_{\max }) \frac{\epsilon}{k}, $$
which indicates
$$\sum_{i=1}^{\infty}\frac{1}{Q_{k+1}} \frac {{(g_{k}^{T}d_{k})}^{2}}{\|d_{k}\|^{2}}=+\infty. $$
This contradicts (12). Therefore (15) holds. □

3 Linear convergence rate of algorithm

We analyze the linearly convergence rate of the nonmonotone hybrid conjugate gradient method under the uniform convex assumption of \(f(x)\). The nonmonotone strong Wolfe line search is adopted in this section, given by (9) and
$$\begin{aligned} \bigl|g(x_{k}+\alpha_{k}d_{k})^{T}d_{k} \bigr|\leq-\sigma g_{k}^{T} d_{k}. \end{aligned}$$
(18)
We suppose that the object function \(f(x)\) is twice continuously differentiable and uniformly convex on the level set \(\Omega_{0}\). Then the point \(x^{*}\) denotes a unique solution of the problem (1); there exists a positive constant τ such that
$$ f(x)-f \bigl(x^{*} \bigr)\leq\bigl\| \nabla f(x)\bigr\| \bigl\| x-x^{*}\bigr\| \leq\tau\bigl\| \nabla f(x)\bigr\| ^{2}, \quad\mbox{for all } x \in R^{n}. $$
(19)
The above conclusion (19) can be found in [10].
To analyze the convergence of the nonmonotone line search hybrid conjugate gradient method, the main difficulty is that the search directions do not usually satisfy the direction condition:
$$ g_{k}^{T}d_{k}\leq-c \|g_{k}\|^{2}, $$
(20)
for some constant \(c>0\) and all \(k\geq1\). The following lemma has proven that the direction generated by Algorithm 1 with the strong Wolfe line search (9) and (18) in this paper satisfies the direction condition (20) by the observation for \(g_{k}^{T}d_{k-1}\).

Lemma 3.1

Suppose that the sequence \(\{x_{k}\}\) is generated by Algorithm 1 with the strong Wolfe line search (9) and (18), \(0<\sigma <\frac{\lambda}{1+\mu}\). Then there exists some constant \(c>0\) such that the direction condition (20) holds.

Proof

According to the choice of the conjugate gradient parameter \(\beta _{k}^{LY}\), the result is discussed by two cases. In the first case,
$$ \biggl|1-\frac{g_{k}^{T}d_{k-1}}{\|g_{k}\|^{2}}\biggr|\leq\mu, \quad \textit{i.e. } 1-\mu\leq \frac{g_{k}^{T}d_{k-1}}{\|g_{k}\|^{2}}\leq1+\mu, $$
(21)
then \(\beta_{k}=\frac{g_{k}^{T}(g_{k}-d_{k-1})}{d_{k-1}^{T}(g_{k}-g_{k-1})}\). If \(\beta_{k}\geq0\), then, by (21) and \(d_{k-1}^{T}g_{k-1}<0\), \(d_{k-1}^{T}g_{k}\geq0\) and \(g_{k}^{T}(g_{k}-d_{k-1})\geq0\). Furthermore, we have, by (18),
$$\begin{aligned} g_{k}^{T}d_{k}&=-\|g_{k} \|^{2}+\frac {g_{k}^{T}(g_{k}-d_{k-1})}{d_{k-1}^{T}(g_{k}-g_{k-1})}g_{k}^{T}d_{k-1} \\ &\leq-\|g_{k}\|^{2}-\sigma\frac {g_{k}^{T}(g_{k}-d_{k-1})}{d_{k-1}^{T}(g_{k}-g_{k-1})}g_{k-1}^{T}d_{k-1} \\ &\leq-\|g_{k}\|^{2}-\sigma\frac {g_{k}^{T}(g_{k}-d_{k-1})}{-d_{k-1}^{T}g_{k-1}}g_{k-1}^{T}d_{k-1} \\ &= -\|g_{k}\|^{2}+\sigma \bigl(\|g_{k} \|^{2}-g_{k}^{T}d_{k-1} \bigr) \\ &=-(1-\sigma)\|g_{k}\|^{2}-\sigma g_{k}^{T}d_{k-1} \\ &\leq-(1-\sigma)\|g_{k}\|^{2}-\sigma(1-\mu) \|g_{k}\|^{2} \\ &=-(1-\sigma\mu)\|g_{k}\|^{2}. \end{aligned}$$
(22)
If \(\beta_{k}<0\), we have, by (18) and (21),
$$\begin{aligned} g_{k}^{T}d_{k}&=-\|g_{k} \|^{2}+\frac {g_{k}^{T}(g_{k}-d_{k-1})}{d_{k-1}^{T}(g_{k}-g_{k-1})}g_{k}^{T}d_{k-1} \\ &\leq-\|g_{k}\|^{2}+\sigma\frac {g_{k}^{T}(g_{k}-d_{k-1})}{d_{k-1}^{T}(g_{k}-g_{k-1})}g_{k-1}^{T}d_{k-1} \\ &\leq-\|g_{k}\|^{2}+\sigma\frac {g_{k}^{T}(g_{k}-d_{k-1})}{-d_{k-1}^{T}g_{k-1}}g_{k-1}^{T}d_{k-1} \\ &\leq-\|g_{k}\|^{2}-\sigma \bigl(\|g_{k} \|^{2}-g_{k}^{T}d_{k-1} \bigr) \\ &=-(1+\sigma)\|g_{k}\|^{2}+\sigma g_{k}^{T}d_{k-1} \\ &=-(1+\sigma)\|g_{k}\|^{2}+\sigma(1+\mu) \|g_{k} \|^{2} \\ &=-(1-\sigma\mu)\|g_{k}\|^{2}. \end{aligned}$$
(23)
In the second case,
$$ \biggl|1-\frac{g_{k}^{T}d_{k-1}}{\|g_{k}\|^{2}}\biggr|>\mu, $$
(24)
then \(\beta_{k}=\frac{\mu\|g_{k}\|^{2}}{d_{k-1}^{T}g_{k}-\lambda d_{k-1}^{T}g_{k-1}}>0\). By (18), we have
$$\begin{aligned} g_{k}^{T}d_{k}&=-\|g_{k} \|^{2}+{\frac{\mu\|g_{k}\|^{2}}{{d^{T}_{k-1}}g_{k}-\lambda d^{T}_{k-1}g_{k-1}}} g_{k}^{T}d_{k-1} \\ &\leq-\|g_{k}\|^{2}-{\frac{\sigma\mu\|g_{k}\|^{2}}{(\sigma-\lambda) d^{T}_{k-1}g_{k-1}}} g_{k-1}^{T}d_{k-1} \\ &=- \biggl(1-\frac{\mu\sigma}{\lambda-\sigma} \biggr)\|g_{k}\|^{2}. \end{aligned}$$
(25)

From (23) and (25), we obtain (20), where \(c=\min\{1-\sigma\mu, 1-\frac{\mu\sigma}{\lambda-\sigma}\}>0\). The proof is completed. □

Lemma 3.2

Suppose the assumptions of Lemma  2.2 hold and, for all k,
$$ \|d_{k}\|\leq c_{1}\|g_{k}\|, $$
(26)
then there exists a constant \(c_{2}>0\) such that
$$ \alpha_{k}\geq c_{2}, \quad\textit{for all } k. $$
(27)

Proof

By Lemma 2.2 and Lemma 3.2, we have
$$\alpha_{k}\geq\frac{\sigma-1}{L}\frac{g_{k}^{T}d_{k}}{\|d_{k}\|^{2}}\geq- \frac {\sigma-1}{L}\frac{c\|g_{k}\|^{2}}{c_{1}\|g_{k}\|^{2}}\geq c_{2}, $$
where \(c_{2}=\frac{c(1-\sigma)}{c_{1}L}\). □

Theorem 3.1

Let \(x^{*}\) be the unique solution of problem (1) and the sequence \(\{ x_{k}\}\) be generated by Algorithm 1 with the nonmonotone Wolfe conditions (9) and (18), \(0<\sigma<\frac{\lambda}{1+\mu }\). If \(\alpha_{k}\leq\nu\) and \(\zeta_{\max}<1\), then there exists a constant \(\vartheta\in(0,1)\) such that
$$ f_{k}-f \bigl(x^{*} \bigr)\leq\vartheta^{k} \bigl(f_{0}-f \bigl(x^{*} \bigr) \bigr). $$
(28)

Proof

The proof is similar to that Theorem 3.1 given in [10]. By (9), (20), and (27), we have
$$\begin{aligned} f_{k+1}&\leq C_{k}+\rho\alpha_{k}g_{k}^{T}d_{k} \leq C_{k}-cc_{2}\rho\|g_{k}\|^{2}. \end{aligned}$$
(29)
By (ii) in Assumption 1, \(x_{k+1}=x_{k}+\alpha_{k}d_{k}\) and (27), we have
$$ \|g_{k+1}\|\leq\|g_{k+1}-g_{k}\|+ \|g_{k}\|\leq\alpha_{k}L\|d_{k}\|+\|g_{k} \|\leq (1+c_{1}\nu L)\|g_{k}\|. $$
(30)
In the first case, \(\|g_{k}\|^{2}\geq\beta(C_{k}-f(x^{*}))\), where
$$ \beta=1/ \bigl(cc_{2}\rho+\tau(1+c_{1}\nu L)^{2} \bigr). $$
(31)
By (4) and (29), we have
$$\begin{aligned} C_{k+1}-f \bigl(x^{*} \bigr)&=\frac{\zeta_{k}Q_{k}(C_{k}-f(x^{*}))+(f_{k+1}-f(x^{*}))}{1+\zeta _{k} Q_{k}} \\ &\leq\frac{\zeta_{k}Q_{k}(C_{k}-f(x^{*}))+(C_{k}-f(x^{*}))-cc_{2}\rho\|g_{k}\| ^{2}}{1+\zeta_{k} Q_{k}} \\ &=C_{k}-f \bigl(x^{*} \bigr)-\frac{cc_{2}\rho\|g_{k}\|^{2}}{Q_{k+1}}. \end{aligned}$$
(32)
Since \(Q_{k+1}\leq\frac{1}{1-\zeta_{\max}}\) by (17), we have
$$C_{k+1}-f \bigl(x^{*} \bigr)\leq C_{k}-f \bigl(x^{*} \bigr)-cc_{2}\rho(1-\zeta_{\max})\|g_{k} \|^{2}. $$
By \(\|g_{k}\|^{2}\geq\beta(C_{k}-f(x^{*}))\), we have
$$ C_{k+1}-f \bigl(x^{*} \bigr)\leq\vartheta \bigl(C_{k}-f \bigl(x^{*} \bigr) \bigr), $$
(33)
where \(\vartheta=1-cc_{2}\rho\beta(1-\zeta_{\max})\in(0, 1)\).
In the second case, \(\|g_{k}\|^{2}< \beta(C_{k}-f(x^{*}))\). By (19) and (30), we have
$$f_{k+1}-f \bigl(x^{*} \bigr)\leq\tau(1+c_{1}\nu L)^{2} \|g_{k}\|^{2}\leq\tau\beta(1+c_{1} \nu L)^{2} \bigl(C_{k}-f \bigl(x^{*} \bigr) \bigr). $$
By combining the equality, the first equation of (32), and \(Q_{k+1}\leq\frac{1}{1-\zeta_{\max}}\), \(\zeta_{\max}<1\) and (31), we obtain
$$\begin{aligned} C_{k+1}-f \bigl(x^{*} \bigr)&\leq\frac{\zeta_{k}Q_{k}(C_{k}-f(x^{*}))+\tau\beta(1+c_{1}\nu L)^{2}(C_{k}-f(x^{*}))}{1+\zeta_{k} Q_{k}} \\ &= \biggl(1-\frac{1-\tau\beta(1+c_{1}\nu L)^{2}}{Q_{k+1}} \biggr) \bigl(C_{k}-f \bigl(x^{*} \bigr) \bigr) \\ &= \bigl(1-{ \bigl(1-\tau\beta(1+c_{1}\nu L)^{2} \bigr)} {(1- \zeta_{\max})} \bigr) \bigl(C_{k}-f \bigl(x^{*} \bigr) \bigr) \\ &= \bigl(1-cc_{2}\rho\beta(1-\zeta_{\max}) \bigr) \bigl(C_{k}-f \bigl(x^{*} \bigr) \bigr) \\ &\leq\vartheta \bigl(C_{k}-f \bigl(x^{*} \bigr) \bigr). \end{aligned}$$
(34)
By (11), (33), and (34), we have
$$f_{k}-f \bigl(x^{*} \bigr)\leq C_{k}-f \bigl(x^{*} \bigr)\leq \vartheta \bigl(C_{k-1}-f \bigl(x^{*} \bigr) \bigr)\leq\cdots\leq \vartheta^{k} \bigl(C_{0}-f \bigl(x^{*} \bigr) \bigr). $$
The proof is completed. □

4 Numerical experiments

In this section, we report numerical results to illustrate the performance of hybrid conjugate gradient (LY) in [5], Algorithm 1 (NHLYCG1) and Algorithm 2 (NGLYCG2), in which (8) replaces only (9) in Step 2 of Algorithm 1. All codes are written with Matlab R2012a and are implemented on a PC with CPU 2.40 GHz and 2.00GB RAM. We select 12 small-scale and 28 large-scale unconstrained optimization test functions from [15] and the CUTEr collection [16, 17] (see Table 1). All algorithms implement the stronger version of the Wolfe condition with \(\rho=0.45\) and \(\sigma=0.39\), and \(\mu=0.5\), \(\lambda=0.6\), \(C_{0}=f_{0}\), \(Q_{0}=1\), \(\zeta _{0}=0.08\), \(\zeta_{1}=0.04\), \(\zeta_{k+1}=\frac{\zeta_{k}+\zeta_{k-1}}{2}\), and the terminated condition
$$\|g_{k}\|_{2}\leq10^{-6} \quad\mbox{or}\quad |f_{k+1}-f_{k}|\leq10^{-6}\max\bigl\{ 1.0,|f_{k}|\bigr\} . $$
Table 2 lists all the numerical results, which include the order numbers and dimensions of the tested problems, the number of iterations (it), the function evaluations (nf), the gradient evaluations (ng), and the CPU time (t) in seconds, respectively. We presented the Dolan and Moré [18] performance profiles for the LY, NHLYCG1, and NGLYCG2. Note that the performance ratio \(q(\tau)\) is the probability for a solver s for the tested problems with the factor τ of the smallest cost. As we can see from Figure 1 and Figure 2, NHLYCG1 is superior to LY and NGLYCG2 for the number of iterations and CPU time. Figure 3 shows that NGLYCG1 is slightly better than LY and NGLYCG2 for the number of function value evaluations. Figure 4 shows the performance of NGLYCG1 is very much like that of LY for the number of gradient evaluations. However, the performance of NGLYCG2 with the nonmonotone framework (3) is less than satisfactory.

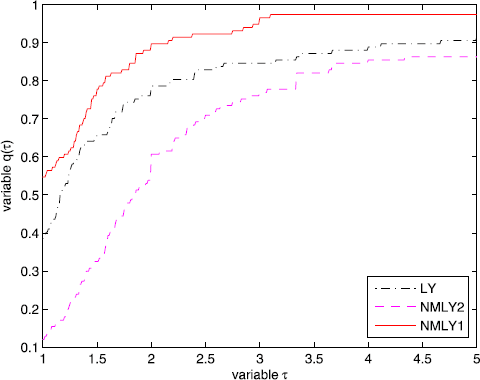

Figure 1

Performance profile comparing the number of iterations.

Figure 2

Performance profile comparing the CPU time.

Figure 3

Performance profile comparing the number of function evaluations.

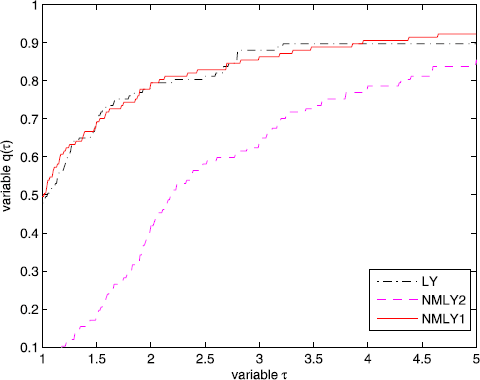

Figure 4

Performance profile comparing the number of gradient evaluations.

Table 1

Test problems

No.

Problem name

1

Helical valley function

2

BIGGS6

3

Gaussian function

4

POWELLBS

5

BOX3

6

BEALE

7

WOODS

8

FREUROTH

9

Osborne 1 function

10

Osborne 2 function

11

Powell singular function

12

Meyer function

13

Bard function

14

PENALTY2

15

VARDIM

16

PENALTY1

17

EXTROSNB

18

Extended Powell singular function

19

CHEBYQAD

20

BROYDN3D

21

Separable cubic function

22

Nearly separable function

23

Allgower function

24

Schittkowski function 302

25

Discrete integral equation function

26

BDQRTIC

27

ARGLINB

28

ARWHEAD

29

NONDIA

30

NONDQUAR

31

DQDRTIC

32

EG2

33

CURLY20

34

LIARWHD

35

ENGVAL1

36

CRAGGLVY

37

the Edensch function

38

the Explin 1 function

39

the Argling function

40

NONSCOMP

Table 2

Numerical comparisons of LY, NMLY1, and NMLY2

No.

Dim

LY

NMLY2

NMLY1

it

nf

ng

t

it

nf

ng

t

it

nf

ng

t

1

3

36

69

48

0.0156

59

137

92

0.0156

40

84

60

0.0156

2

6

147

243

200

0.0468

413

853

697

0.1404

146

270

213

0.0468

3

3

2

5

4

0

4

10

8

0

3

9

8

0

4

2

9

26

13

0

11

48

28

0

13

38

17

0.0312

5

3

15

28

19

0

29

75

68

0.0312

14

35

28

0

6

2

37

61

46

0.0156

28

64

45

0

20

60

30

0.0156

7

4

74

130

100

0.0156

313

623

458

0.0936

62

119

90

0.0156

8

2

44

82

61

0.0156

37

98

70

0

5

25

9

0.0156

9

5

128

233

184

0.0936

181

383

278

0.1404

104

199

153

0.078

10

11

3

42

3

0.0156

4

29

4

0

3

13

3

0.0312

11

4

6

49

7

0

169

348

254

0.0468

59

121

77

0.0312

12

3

9

45

14

0

170

456

328

0.1248

13

80

34

0.0156

13

3

25

49

33

0.0156

64

135

101

0.0468

39

75

52

0.0312

14

500

14

70

28

0.0156

10

82

40

0.0156

3

46

10

0.0156

15

500

13

68

14

0

13

118

48

0.0312

17

187

122

0.0156

1,000

16

70

16

0

13

87

35

0.0156

19

301

211

0.0312

2,000

14

58

14

0.0156

15

116

50

0.0156

26

362

237

0.0624

16

500

11

35

22

0.0156

40

147

101

0.0156

34

103

87

0.0156

1,000

16

40

23

0

49

141

99

0.0312

21

82

62

0.0156

2,000

20

51

28

0.0312

34

122

73

0.0312

57

156

108

0.0624

1,000

22

75

30

0.078

28

96

67

0.1248

31

134

70

0.156

17

500

42

87

58

0.0156

133

294

213

0.078

3

18

3

0

1,000

64

120

87

0.0312

187

406

299

0.0936

3

19

3

0

2,000

53

105

72

0.0312

134

304

221

0.0936

3

19

3

0.0156

1,000

56

113

79

0.2028

184

393

292

0.624

3

19

3

0.0312

18

500

220

364

295

0.1092

184

353

253

0.1092

110

197

160

0.0624

1,000

180

288

238

0.1404

163

322

235

0.1404

104

191

150

0.078

2,000

181

308

248

0.2184

181

361

262

0.2496

112

205

164

0.156

1,000

217

361

293

1.2792

320

625

458

2.1372

133

244

197

0.8892

19

500

68

105

86

5.694

103

210

146

10.9201

70

112

95

6.1308

1,000

99

143

125

32.7602

88

185

133

38.891

113

201

144

40.0923

2,000

72

110

95

90.5742

190

387

287

306.2456

78

141

104

110.3239

1,000

121

197

142

983.8203

35

156

80

708.6189

24

67

45

322.8129

20

500

51

74

60

0.0468

55

114

73

0.0156

53

83

68

0.0312

1,000

54

78

62

0.0312

55

117

73

0.0312

93

143

115

0.0468

2,000

44

74

58

0.0312

58

130

87

0.0624

33

61

39

0.0156

1,000

43

69

57

0.1872

52

115

71

0.1872

42

75

59

0.1248

21

500

4

9

8

0.0468

10

20

19

0.1092

8

18

17

0.1092

1,000

5

11

10

0.234

10

20

19

0.468

9

20

19

0.468

2,000

5

11

10

0.9204

10

20

19

1.8408

9

20

19

1.8252

1,000

5

11

10

6.63

11

23

22

15.3973

10

21

20

13.8997

22

500

50

91

68

1.1076

86

207

133

2.2308

36

92

65

1.0764

1,000

33

96

52

3.3852

52

146

100

6.552

43

104

71

4.602

2,000

27

113

48

12.1681

43

147

91

23.6186

52

167

83

22.9477

1,000

102

222

142

246.5128

76

196

140

244.2664

42

123

71

124.442

23

500

4

32

8

0.1092

13

69

30

0.4368

3

36

6

0.078

1,000

6

69

9

0.4836

17

230

61

3.4944

3

57

5

0.234

2,000

5

61

8

1.794

16

165

41

10.3585

3

37

3

0.5304

1,000

5

62

11

16.1617

12

125

20

30.6074

3

56

5

6.1932

24

500

59

137

88

0.0156

62

232

133

0.0312

34

192

121

0.0156

1,000

26

91

34

0.0156

34

174

98

0.0312

56

292

204

0.0624

2,000

17

68

26

0.0156

16

112

35

0.0312

22

272

172

0.0624

1,000

37

89

42

0.1092

34

164

59

0.156

25

266

146

0.2496

25

500

7

67

43

12.8545

13

85

53

15.9589

13

80

26

10.4521

1,000

7

59

28

26.7698

8

78

51

41.9019

47

229

130

115.8931

2,000

22

141

90

275.5914

7

55

28

96.081

7

68

28

107.2507

1,000

7

63

36

716.4346

16

175

117

2148.9606

11

115

63

1265.6829

26

500

54

105

77

1.6224

55

127

88

1.7628

46

97

68

1.3728

1,000

53

101

75

5.4132

92

195

140

10.4053

46

94

69

5.0856

2,000

42

89

62

15.1945

71

162

113

27.5654

40

92

65

16.0213

1,000

29

68

43

44.4603

58

150

105

110.0275

44

97

68

69.7168

27

500

3

52

4

0.2184

11

178

91

1.9968

9

152

12

0.6708

1,000

13

193

99

8.7049

5

68

13

1.5756

7

106

27

2.9484

2,000

5

101

46

16.3645

7

141

40

16.5205

7

141

48

18.7045

1,000

9

112

32

99.279

8

140

33

112.5859

13

224

48

172.6151

28

500

8

23

10

0

22

60

38

0.0468

19

45

27

0.0156

1,000

9

25

13

0.0156

7

45

31

0.0156

11

59

43

0.0312

2,000

16

60

26

0.0312

13

78

42

0.0624

16

72

36

0.0468

1,000

5

22

7

0.0312

10

53

30

0.2496

11

60

40

0.2808

29

500

28

65

41

0.0468

13

69

52

0.0312

13

50

27

0.0312

1,000

4

17

5

0

22

86

53

0.0468

11

56

34

0.0156

2,000

7

23

8

0

10

49

26

0.0468

13

66

35

0.0468

1,000

7

26

9

0.0624

4

40

28

0.156

12

124

101

0.7332

30

500

287

452

387

14.6017

365

691

649

21.0913

249

380

334

10.1089

1,000

292

456

407

44.5071

343

646

593

69.3736

257

404

359

40.8411

2,000

343

524

477

154.3786

376

721

655

213.9242

271

457

376

122.1176

1,000

310

474

424

640.2749

376

729

663

1006.2533

236

412

337

512.9157

31

500

70

110

87

0.3276

73

158

113

0.39

58

115

90

0.2964

1,000

49

88

66

0.468

50

131

93

0.624

30

68

45

0.312

2,000

38

69

49

0.7644

64

142

103

1.3416

34

75

49

0.6396

1,000

27

52

32

2.0904

53

128

90

6.1152

34

85

60

4.0248

32

500

6

50

9

0.0156

53

144

89

0.0624

4

60

6

0

1,000

30

88

44

0.0468

18

211

35

0.0468

6

93

7

0.0156

2,000

3

23

6

0.0156

10

107

16

0.0468

4

45

5

0.0156

1,000

5

39

10

0.0936

8

80

17

0.1872

4

55

8

0.0936

33

500

320

442

406

7.6596

427

822

614

11.8405

4

24

7

0.1248

1,000

268

381

342

20.6233

338

652

483

29.1566

4

25

7

0.39

2,000

195

269

248

47.1435

235

461

342

66.7996

4

25

7

1.2792

1,000

145

198

182

137.4681

223

434

326

247.1524

4

25

7

4.5396

34

500

105

187

146

0.1404

101

234

162

0.156

98

191

143

0.1404

1,000

33

76

49

0.1248

73

197

136

0.2496

97

203

156

0.2028

2,000

123

226

172

0.39

173

416

306

0.6708

89

196

141

0.312

1,000

175

311

243

2.6676

236

537

395

4.6176

151

319

239

2.6676

35

500

12

25

14

0.0468

13

35

23

0.078

5

18

5

0.0156

1,000

12

25

14

0.078

11

30

19

0.1248

5

18

5

0.0312

2,000

11

23

13

0.1716

11

34

23

0.2808

5

18

5

0.0624

1,000

10

23

14

0.9984

10

31

22

1.56

5

18

5

0.2808

36

500

37

228

122

0.6864

10

78

17

0.1404

9

34

16

0.078

1,000

17

75

25

0.2652

11

78

20

0.234

9

51

13

0.156

2,000

37

137

57

1.1076

11

101

21

0.5148

15

90

34

0.6864

1,000

16

82

23

2.496

10

82

18

2.1684

15

76

21

2.106

37

500

11

25

16

0.0156

10

33

19

0

3

17

6

0

1,000

12

26

15

0.0156

11

29

19

0.0156

3

17

6

0

2,000

10

22

12

0.0312

10

27

18

0.0312

3

18

6

0.0156

5,000

8

18

10

0.0936

10

27

18

0.156

3

18

6

0.0624

38

500

6

75

50

0.0156

10

123

72

0.0624

8

105

51

0.0312

1,000

4

63

22

0.0156

7

107

43

0.0468

4

56

24

0.0156

2,000

7

121

65

0.0624

13

211

130

0.1248

8

132

68

0.078

5,000

5

95

49

0.2184

5

84

34

0.156

6

115

51

0.2496

39

500

8

127

51

2.7924

10

168

76

3.7596

9

127

62

3.042

1,000

7

107

40

8.5021

11

188

85

15.7405

9

144

61

11.9341

2,000

10

142

67

46.7691

16

248

104

81.2453

113

573

189

182.7708

5,000

9

165

72

698.6037

12

162

78

675.7495

13

181

83

756.8077

40

500

170

257

218

0.1092

305

578

430

0.1716

105

171

140

0.1404

1,000

153

231

196

0.0624

265

505

367

0.1404

114

208

155

0.0624

2,000

147

222

190

0.0936

272

522

390

0.1872

117

188

155

0.078

5,000

144

233

184

0.3588

305

579

425

0.8424

125

205

172

0.3276

Declarations

Acknowledgements

This work is supported in part by the NNSF (11171003) of China.

Open Access This is an Open Access article distributed under the terms of the Creative Commons Attribution License (http://creativecommons.org/licenses/by/4.0), which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly credited.

Authors’ Affiliations

(1)
School of Mathematics and Statistics, Beihua University

References

  1. Hager, WW, Zhang, H: A new conjugate gradient method with guaranteed descent and an efficient line search. SIAM J. Optim. 16, 170-192 (2005) View ArticleMATHMathSciNetGoogle Scholar
  2. Andrei, N: A hybrid conjugate gradient algorithm for unconstrained optimization as a convex combination of Hestenes-Stiefel and Dai-Yuan. Stud. Inform. Control 17(4), 55-70 (2008) Google Scholar
  3. Babaie-Kafaki, S, Mahdavi-Amiri, N: Two modified hybrid conjugate gradient methods based on a hybrid secant equation. Math. Model. Anal. 18(1), 32-52 (2013) View ArticleMATHMathSciNetGoogle Scholar
  4. Dai, YH, Yuan, Y: An efficient hybrid conjugate gradient method for unconstrained optimization. Ann. Oper. Res. 103, 33-47 (2001) View ArticleMATHMathSciNetGoogle Scholar
  5. Lu, YL, Li, WY, Zhang, CM, Yang, YT: A class new conjugate hybrid gradient method for unconstrained optimization. J. Inf. Comput. Sci. 12(5), 1941-1949 (2015) View ArticleGoogle Scholar
  6. Yang, YT, Cao, MY: The global convergence of a new mixed conjugate gradient method for unconstrained optimization. J. Appl. Math. 2012, 93298 (2012) MathSciNetGoogle Scholar
  7. Zheng, XF, Tian, ZY, Song, LW: The global convergence of a mixed conjugate gradient method with the Wolfe line search. Oper. Res. Trans. 13(2), 18-24 (2009) MATHMathSciNetGoogle Scholar
  8. Touati-Ahmed, D, Storey, C: Efficient hybrid conjugate gradient techniques. J. Optim. Theory Appl. 64(2), 379-397 (1990) View ArticleMATHMathSciNetGoogle Scholar
  9. Grippo, L, Lampariello, F, Lucidi, S: A nonmonotone line search technique for Newton’s method. SIAM J. Numer. Anal. 23, 707-716 (1986) View ArticleMATHMathSciNetGoogle Scholar
  10. Zhang, H, Hager, WW: A nonmonotone line search technique and its application to unconstrained optimization. SIAM J. Optim. 14, 1043-1056 (2004) View ArticleMATHMathSciNetGoogle Scholar
  11. Zoutendijk, G: Nonlinear programming, computational methods. In: Abadie, J (ed.) Integer and Nonlinear Programming. North-Holland, Amsterdam (1970) Google Scholar
  12. Al-Baali, M: Descent property and global convergence of the Fletcher-Reeves method with inexact line search. IMA J. Numer. Anal. 5, 121-124 (1985) View ArticleMATHMathSciNetGoogle Scholar
  13. Gilbert, JC, Nocedal, J: Global convergence properties of conjugate gradient methods for optimization. SIAM J. Optim. 2(1), 21-42 (1992) View ArticleMATHMathSciNetGoogle Scholar
  14. Yu, GH, Zhao, YL, Wei, ZX: A descent nonlinear conjugate gradient method for large-scale unconstrained optimization. Appl. Math. Comput. 187(2), 636-643 (2007) View ArticleMATHMathSciNetGoogle Scholar
  15. Moré, JJ, Garbow, BS, Hillstrom, KE: Testing unconstrained optimization software. ACM Trans. Math. Softw. 7, 17-41 (1981) View ArticleMATHGoogle Scholar
  16. Andrei, N: An unconstrained optimization test functions collection. Adv. Model. Optim. 10, 147-161 (2008) MATHMathSciNetGoogle Scholar
  17. Gould, NIM, Orban, D, Toint, PL: CUTEr and SifDec: a constrained and unconstrained testing environment, revisited. ACM Trans. Math. Softw. 29, 373-394 (2003) View ArticleMATHMathSciNetGoogle Scholar
  18. Dolan, ED, Moré, JJ: Benchmarking optimization software with performance profiles. Math. Program. 9, 201-213 (2002) View ArticleGoogle Scholar

Copyright

© Li and Yang; licensee Springer. 2015
